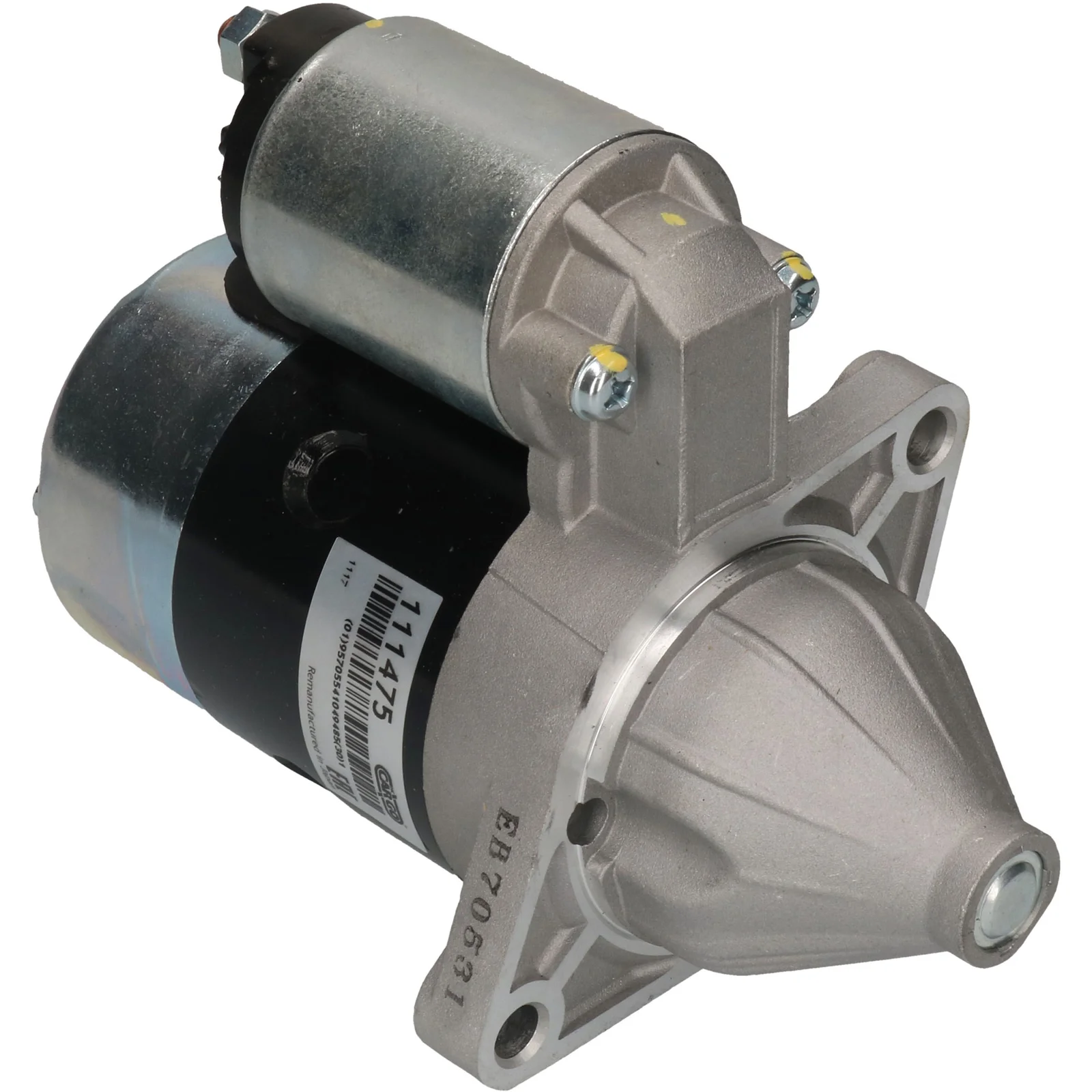

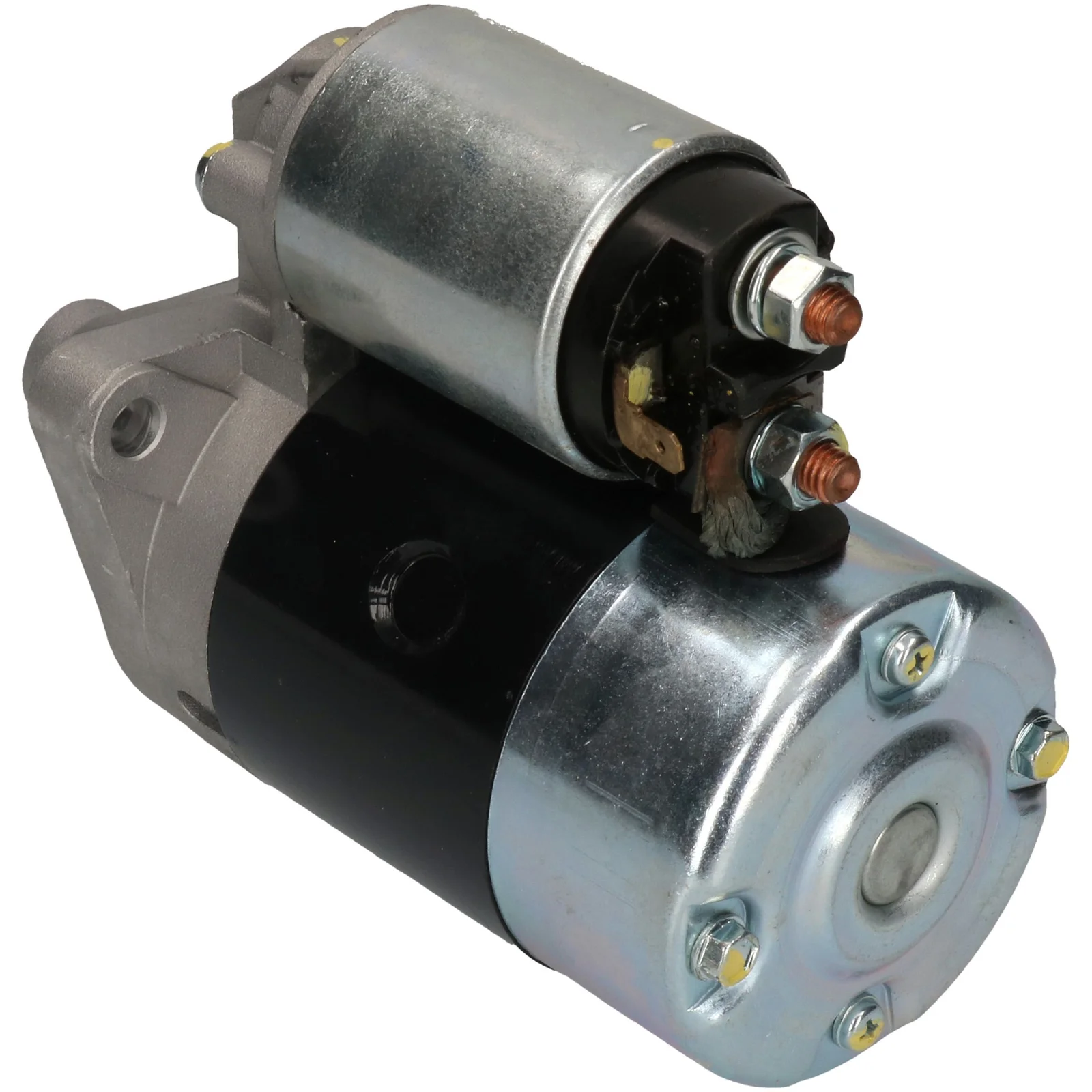

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111475

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 0.8, Ant./tenner: 8, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 0.8
monteringsflens: 66.00
driveavstand: 18.00
monteringshull 2 mm: 9.00
monteringshull 1 mm: 9.00
Avstand/bak: 128.50
Avstand/frem: 54.50
Antall/tannhjul: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6.30
Gavlype: DD
Avstand mm: 110.00
Rotasjon: Klokkeviser
Total lengde mm: 185.50
Drevetype: Stål
Vanntett: Nei
Oljesiktet: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Rotation CW
Dist./back 128.50
Dist./front 54.50
Drive dist. 18.00
Drive type Steel
Gear type DD
kW 0.8
Terminal 50 6.30
Voltage 12
Total length 185.50 mm
Waterproof No
Dist. 110.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032111475, js394, M002T30481, M002T30581, M002T30585, M002T30586, M002T41581, M002T41586, M002T49181, M002T49189, M003T33182, M003T33183, m2t30481, m2t30581, m2t30585, m2t30586, m2t33182, m2t33183, m2t41581, m2t41586, m2t49181, m2t49189, m3t33182, m3t33183, 15852-63010, 15852-63011, 15852-63012, 19837-63012, 31100-73031, 31100-73033, 31100-73034, 31100-73035, 31100-73036, 31100-80091, 31100-80092, 31100-80094, 31100-80x51, 9000334103

  • Konkurrentreferens
    ats-170, azs-250, CST35107, CST35177, DRS0718, drs2881, FRS590, J5218007, lrs00490, LRS01139, LRS02065, LRS02129, QS1429, S5413S, sm-00200r, smt0125, SR4506X, STR28022, vs224, 2-1445-mi, 8ea726482-001, 25-1099, 25-1201, 25-2077, 26-1116, 37-52.800, 37-52.807, 91-27-3154, 345.009.082, 345.109.082, 683.001.092, 4200, 11370, 16791, 20394, 33796, 103172, 105053, 11040214, 11040295, 11040309, 11040520, 11040521, 0986012880, 0986012881, 943251895010

  • NormaliseratArtNr
    ats170, azs250, cst35107, cst35177, drs0718, drs2881, f032111475, frs590, j5218007, js394, lrs00490, lrs01139, lrs02065, lrs02129, m002t30481, m002t30581, m002t30585, m002t30586, m002t41581, m002t41586, m002t49181, m002t49189, m003t33182, m003t33183, m2t30481, m2t30581, m2t30585, m2t30586, m2t33182, m2t33183, m2t41581, m2t41586, m2t49181, m2t49189, m3t33182, m3t33183, qs1429, s5413s, sm00200r, smt0125, sr4506x, str28022, vs224, 8ea726482001, 4200, 11370, 16791, 20394, 21445mi, 33796, 103172, 105053, 251099, 251201, 252077, 261116, 3110080x51, 3752800, 3752807, 11040214, 11040295, 11040309, 11040520, 11040521, 91273154, 345009082, 345109082, 683001092, 0986012880, 0986012881, 1585263010, 1585263011, 1585263012, 1983763012, 3110073031, 3110073033, 3110073034, 3110073035, 3110073036, 3110080091, 3110080092, 3110080094, 9000334103, 943251895010

  • Passar modeller
    Suzuki Model: Samurai Model series: Samurai Model type: 4x4 Size of motor: 1.0 Brand of engine: F10A Type description: SJ From date: 01-05-1990 To date: 01-10-1994 Fuel: Gasoline Approved: Yes
    Suzuki Model: Samurai Model series: Samurai Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 Body: Convertible From date: 01-09-1981 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-09-1981 To date: 01-12-1988 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 0.8
    monteringsflens: 66.00
    driveavstand: 18.00
    monteringshull 2 mm: 9.00
    monteringshull 1 mm: 9.00
    Avstand/bak: 128.50
    Avstand/frem: 54.50
    Antall/tannhjul: 8
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6.30
    Gavlype: DD
    Avstand mm: 110.00
    Rotasjon: Klokkeviser
    Total lengde mm: 185.50
    Drevetype: Stål
    Vanntett: Nei
    Oljesiktet: Nei
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 66.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Rotation CW
    Dist./back 128.50
    Dist./front 54.50
    Drive dist. 18.00
    Drive type Steel
    Gear type DD
    kW 0.8
    Terminal 50 6.30
    Voltage 12
    Total length 185.50 mm
    Waterproof No
    Dist. 110.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      F032111475, js394, M002T30481, M002T30581, M002T30585, M002T30586, M002T41581, M002T41586, M002T49181, M002T49189, M003T33182, M003T33183, m2t30481, m2t30581, m2t30585, m2t30586, m2t33182, m2t33183, m2t41581, m2t41586, m2t49181, m2t49189, m3t33182, m3t33183, 15852-63010, 15852-63011, 15852-63012, 19837-63012, 31100-73031, 31100-73033, 31100-73034, 31100-73035, 31100-73036, 31100-80091, 31100-80092, 31100-80094, 31100-80x51, 9000334103

    • Konkurrentreferens
      ats-170, azs-250, CST35107, CST35177, DRS0718, drs2881, FRS590, J5218007, lrs00490, LRS01139, LRS02065, LRS02129, QS1429, S5413S, sm-00200r, smt0125, SR4506X, STR28022, vs224, 2-1445-mi, 8ea726482-001, 25-1099, 25-1201, 25-2077, 26-1116, 37-52.800, 37-52.807, 91-27-3154, 345.009.082, 345.109.082, 683.001.092, 4200, 11370, 16791, 20394, 33796, 103172, 105053, 11040214, 11040295, 11040309, 11040520, 11040521, 0986012880, 0986012881, 943251895010

    • NormaliseratArtNr
      ats170, azs250, cst35107, cst35177, drs0718, drs2881, f032111475, frs590, j5218007, js394, lrs00490, lrs01139, lrs02065, lrs02129, m002t30481, m002t30581, m002t30585, m002t30586, m002t41581, m002t41586, m002t49181, m002t49189, m003t33182, m003t33183, m2t30481, m2t30581, m2t30585, m2t30586, m2t33182, m2t33183, m2t41581, m2t41586, m2t49181, m2t49189, m3t33182, m3t33183, qs1429, s5413s, sm00200r, smt0125, sr4506x, str28022, vs224, 8ea726482001, 4200, 11370, 16791, 20394, 21445mi, 33796, 103172, 105053, 251099, 251201, 252077, 261116, 3110080x51, 3752800, 3752807, 11040214, 11040295, 11040309, 11040520, 11040521, 91273154, 345009082, 345109082, 683001092, 0986012880, 0986012881, 1585263010, 1585263011, 1585263012, 1983763012, 3110073031, 3110073033, 3110073034, 3110073035, 3110073036, 3110080091, 3110080092, 3110080094, 9000334103, 943251895010

    • Passar modeller
      Suzuki Model: Samurai Model series: Samurai Model type: 4x4 Size of motor: 1.0 Brand of engine: F10A Type description: SJ From date: 01-05-1990 To date: 01-10-1994 Fuel: Gasoline Approved: Yes
      Suzuki Model: Samurai Model series: Samurai Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-11-1988 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 Body: Convertible From date: 01-09-1981 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      Suzuki Model: SJ Model series: SJ 410 Model type: 4WD Size of motor: 1.0 Brand of engine: F10A Type description: SJ410 From date: 01-09-1981 To date: 01-12-1988 Fuel: Gasoline Approved: Yes
