Varenr.: F032111525

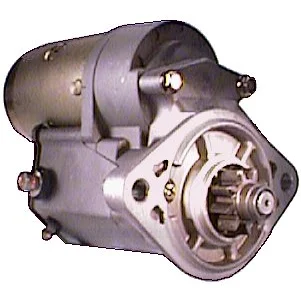

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsfaktor: 12
kW: 2.2
Monteringsflens: 82,50
Dreven avstand: 22,00
Monteringshull 2 mm: M12-1.25
Monteringshull 1 mm: M12-1.25
Avstand/bak: 201,50
Avstand/framp: 34,00
Antall/tenner: 9
B+: M8
Posisjon/50: 55
Terminal 50: M4
Girkastype: GR
Avstand mm: 115,50
Rotasjon: medur
Total lengde mm: 237,00
Drevingstype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljeforseglet: Nei
Antall/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (2)
Position/50 55
Prod. info BN
Rotation CW
Dist./back 201.50
Dist./front 34.00
Drive dist. 22.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M4
Voltage 12
Total length 237.00 mm
Waterproof No
Dist. 115.50 mm
Mount. hole 2 M12-1.25 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F032111525, js1005, 28100-87316, 28100-87316-000, 128000-5760

  • Konkurrentreferens
    CST40149, drs3547, F042000006, F042S00006, J5216015, lrs02041, QS2063, S6082, STR-5002, STR5002, 8ea737259-001, 18-52.603, 18-52.615, 25-1369, 110.506.092, 317.002.112, 317.029.092, 4465, 31307R, 104061, 201005, 458584, 11040756

  • NormaliseratArtNr
    cst40149, drs3547, f032111525, f042000006, f042s00006, j5216015, js1005, lrs02041, qs2063, s6082, str5002, 8ea737259001, 4465, 31307r, 104061, 201005, 251369, 458584, 1852603, 1852615, 11040756, 110506092, 317002112, 317029092, 1280005760, 2810087316, 2810087316000

  • Passar modeller
    Daihatsu Model: Rocky Model series: Rocky Type of engine: Diesel Size of motor: 2.8 Brand of engine: DL Body: Convertible From date: 01-02-1985 To date: 01-12-1998 Fuel: Diesel Approved: Yes Manufacture type: Soft top
    Daihatsu Model: Rocky Model series: Rocky Type of engine: Diesel Size of motor: 2.8 Brand of engine: DL From date: 01-02-1985 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL51 Body: Convertible From date: 01-12-1987 To date: 01-04-1993 Fuel: Diesel Approved: Yes Manufacture type: Soft top
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL51 Type description: F7,F8 From date: 01-12-1987 To date: 01-04-1993 Fuel: Diesel Approved: Yes
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 Body: Convertible From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes Manufacture type: Soft top
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 From date: 01-05-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DLT From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DLT-C From date: 01-05-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsfaktor: 12
    kW: 2.2
    Monteringsflens: 82,50
    Dreven avstand: 22,00
    Monteringshull 2 mm: M12-1.25
    Monteringshull 1 mm: M12-1.25
    Avstand/bak: 201,50
    Avstand/framp: 34,00
    Antall/tenner: 9
    B+: M8
    Posisjon/50: 55
    Terminal 50: M4
    Girkastype: GR
    Avstand mm: 115,50
    Rotasjon: medur
    Total lengde mm: 237,00
    Drevingstype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljeforseglet: Nei
    Antall/monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 55
    Prod. info BN
    Rotation CW
    Dist./back 201.50
    Dist./front 34.00
    Drive dist. 22.00
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 M4
    Voltage 12
    Total length 237.00 mm
    Waterproof No
    Dist. 115.50 mm
    Mount. hole 2 M12-1.25 mm
    Mount. hole 1 M12-1.25 mm
  • Kjøretøymatching

    • OEM
      F032111525, js1005, 28100-87316, 28100-87316-000, 128000-5760

    • Konkurrentreferens
      CST40149, drs3547, F042000006, F042S00006, J5216015, lrs02041, QS2063, S6082, STR-5002, STR5002, 8ea737259-001, 18-52.603, 18-52.615, 25-1369, 110.506.092, 317.002.112, 317.029.092, 4465, 31307R, 104061, 201005, 458584, 11040756

    • NormaliseratArtNr
      cst40149, drs3547, f032111525, f042000006, f042s00006, j5216015, js1005, lrs02041, qs2063, s6082, str5002, 8ea737259001, 4465, 31307r, 104061, 201005, 251369, 458584, 1852603, 1852615, 11040756, 110506092, 317002112, 317029092, 1280005760, 2810087316, 2810087316000

    • Passar modeller
      Daihatsu Model: Rocky Model series: Rocky Type of engine: Diesel Size of motor: 2.8 Brand of engine: DL Body: Convertible From date: 01-02-1985 To date: 01-12-1998 Fuel: Diesel Approved: Yes Manufacture type: Soft top
      Daihatsu Model: Rocky Model series: Rocky Type of engine: Diesel Size of motor: 2.8 Brand of engine: DL From date: 01-02-1985 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL51 Body: Convertible From date: 01-12-1987 To date: 01-04-1993 Fuel: Diesel Approved: Yes Manufacture type: Soft top
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL51 Type description: F7,F8 From date: 01-12-1987 To date: 01-04-1993 Fuel: Diesel Approved: Yes
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 Body: Convertible From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes Manufacture type: Soft top
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 From date: 01-05-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DL52 From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DLT From date: 01-09-1991 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      Daihatsu Model: Rocky Model series: Rocky Type of engine: TD Size of motor: 2.8 Brand of engine: DLT-C From date: 01-05-1993 To date: 01-12-1998 Fuel: Diesel Approved: Yes
