Varenr.: F032111573

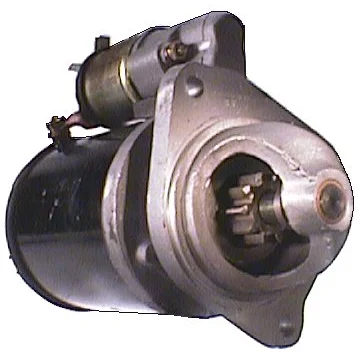

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 12
kW: 2,8
Monteringsflens: 101,00
Drevavstand: 25,50
Monteringshull 3 mm: 12,00
Monteringshull 2 mm: 12,00
Monteringshull 1 mm: 12,00
Avstand/bak: 238,50
Avstand/frem: 72,50
Antall tann: 10
B+: M8
Posisjon/50: 5
Terminal 50: 6,30
Kraftoverføringstype: DD/GR
Avstand 2: 145,00
Avstand 3: 103,00
Avstand mm: 102,00
Rotasjon: med urviseren
Total lengde mm: 311,00
Drevetype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Antall monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 101.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 5
Prod. info BN
Dist. 2 145.00
Dist. 3 103.00
Rotation CW
Dist./back 238.50
Dist./front 72.50
Drive dist. 25.50
Drive type Steel
Gear type DD/GR
kW 2.8
Terminal 50 6.30
Voltage 12
Total length 311.00 mm
Waterproof No
Dist. 102.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032111573, 714-03000R, 714-11200, 714-40006, 714/11200, 26246, 26246a, 26246E, 26246l, 26246m, 26294, 26304, 26304a, 26304b, 26304d, 26343, 26343a, 26343b, 26343d, 26343k, 26351, 26376, 26376a, 26376k, 26376l, 27513, 27513a, 27526, 27526a, 27526d, 0001359116

  • Konkurrentreferens
    BSO7009, CST25110, drs3456, LES0001, lrs00106, MS21, S4054, STR25007, 2-2304-LU, 25-0081, 614.003.102, 17071, 17071N, 33468, 254103, 11090081, 20500106

  • NormaliseratArtNr
    bso7009, cst25110, drs3456, f032111573, les0001, lrs00106, ms21, s4054, str25007, 17071, 17071n, 22304lu, 26246, 26246a, 26246e, 26246l, 26246m, 26294, 26304, 26304a, 26304b, 26304d, 26343, 26343a, 26343b, 26343d, 26343k, 26351, 26376, 26376a, 26376k, 26376l, 27513, 27513a, 27526, 27526a, 27526d, 33468, 250081, 254103, 0001359116, 11090081, 20500106, 71403000r, 71411200, 71440006, 614003102

  • Passar modeller
    Avia Model: Various Models Model series: Various Models Approved: Yes
    JCB Model: 2 Model series: 2B From date: 01-01-1969 Approved: Yes
    JCB Model: 2 Model series: 2D Brand of engine: BMC 384/4 From date: 01-01-1972 Approved: Yes
    JCB Model: 2 Model series: 2D Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
    JCB Model: 3 Model series: 3 Brand of engine: BMC 384/4 From date: 01-01-1971 Approved: Yes
    JCB Model: 3 Model series: 3 Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
    JCB Model: 4 Model series: 4D Brand of engine: BMC 384/4 From date: 01-01-1972 Approved: Yes
    JCB Model: 4 Model series: 4D Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
    TCM Model: FC Model series: FC 3024 Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 12
    kW: 2,8
    Monteringsflens: 101,00
    Drevavstand: 25,50
    Monteringshull 3 mm: 12,00
    Monteringshull 2 mm: 12,00
    Monteringshull 1 mm: 12,00
    Avstand/bak: 238,50
    Avstand/frem: 72,50
    Antall tann: 10
    B+: M8
    Posisjon/50: 5
    Terminal 50: 6,30
    Kraftoverføringstype: DD/GR
    Avstand 2: 145,00
    Avstand 3: 103,00
    Avstand mm: 102,00
    Rotasjon: med urviseren
    Total lengde mm: 311,00
    Drevetype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Nei
    Antall monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 101.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 5
    Prod. info BN
    Dist. 2 145.00
    Dist. 3 103.00
    Rotation CW
    Dist./back 238.50
    Dist./front 72.50
    Drive dist. 25.50
    Drive type Steel
    Gear type DD/GR
    kW 2.8
    Terminal 50 6.30
    Voltage 12
    Total length 311.00 mm
    Waterproof No
    Dist. 102.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      F032111573, 714-03000R, 714-11200, 714-40006, 714/11200, 26246, 26246a, 26246E, 26246l, 26246m, 26294, 26304, 26304a, 26304b, 26304d, 26343, 26343a, 26343b, 26343d, 26343k, 26351, 26376, 26376a, 26376k, 26376l, 27513, 27513a, 27526, 27526a, 27526d, 0001359116

    • Konkurrentreferens
      BSO7009, CST25110, drs3456, LES0001, lrs00106, MS21, S4054, STR25007, 2-2304-LU, 25-0081, 614.003.102, 17071, 17071N, 33468, 254103, 11090081, 20500106

    • NormaliseratArtNr
      bso7009, cst25110, drs3456, f032111573, les0001, lrs00106, ms21, s4054, str25007, 17071, 17071n, 22304lu, 26246, 26246a, 26246e, 26246l, 26246m, 26294, 26304, 26304a, 26304b, 26304d, 26343, 26343a, 26343b, 26343d, 26343k, 26351, 26376, 26376a, 26376k, 26376l, 27513, 27513a, 27526, 27526a, 27526d, 33468, 250081, 254103, 0001359116, 11090081, 20500106, 71403000r, 71411200, 71440006, 614003102

    • Passar modeller
      Avia Model: Various Models Model series: Various Models Approved: Yes
      JCB Model: 2 Model series: 2B From date: 01-01-1969 Approved: Yes
      JCB Model: 2 Model series: 2D Brand of engine: BMC 384/4 From date: 01-01-1972 Approved: Yes
      JCB Model: 2 Model series: 2D Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
      JCB Model: 3 Model series: 3 Brand of engine: BMC 384/4 From date: 01-01-1971 Approved: Yes
      JCB Model: 3 Model series: 3 Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
      JCB Model: 4 Model series: 4D Brand of engine: BMC 384/4 From date: 01-01-1972 Approved: Yes
      JCB Model: 4 Model series: 4D Brand of engine: BMC 4/65 From date: 01-01-1971 Approved: Yes
      TCM Model: FC Model series: FC 3024 Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
