HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111706

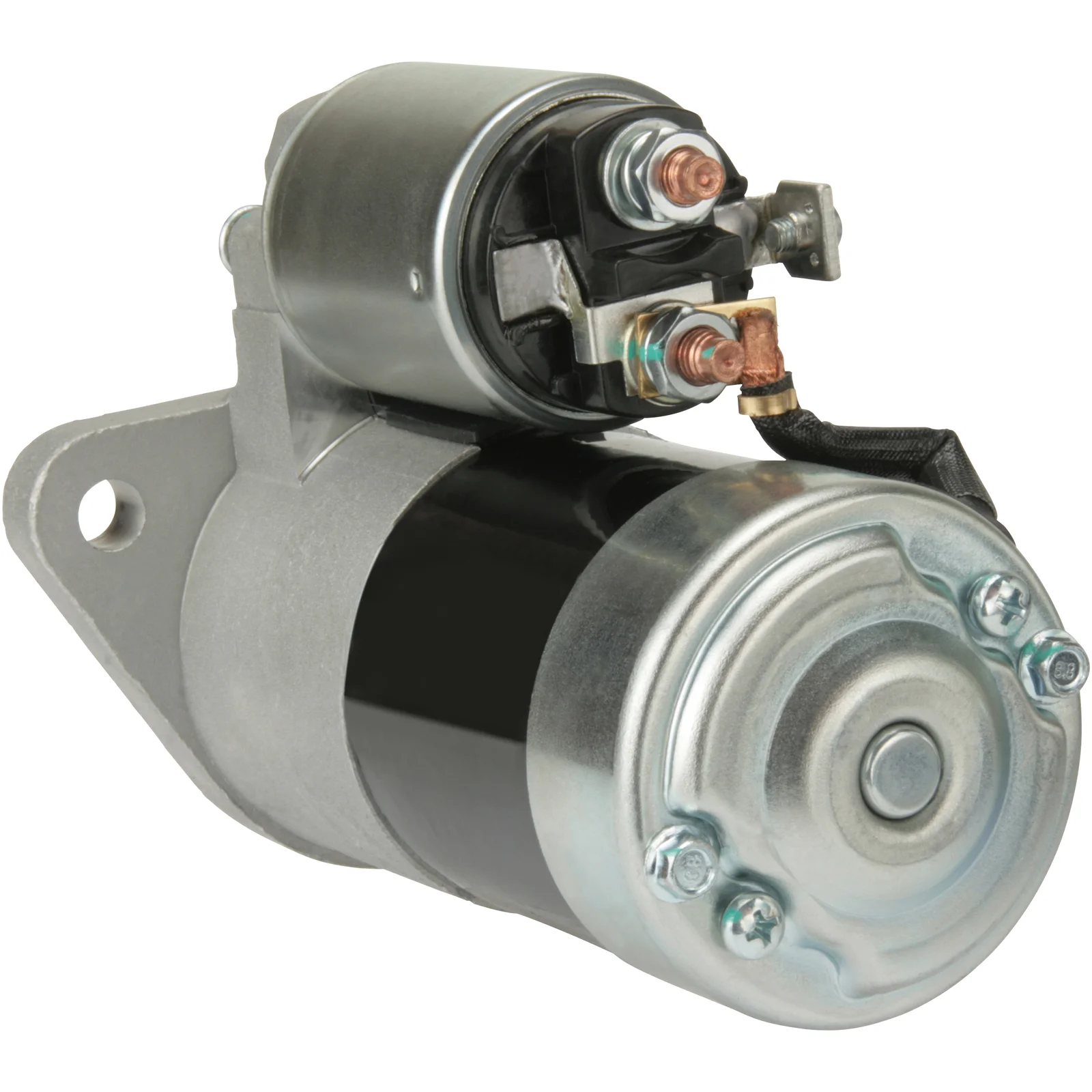

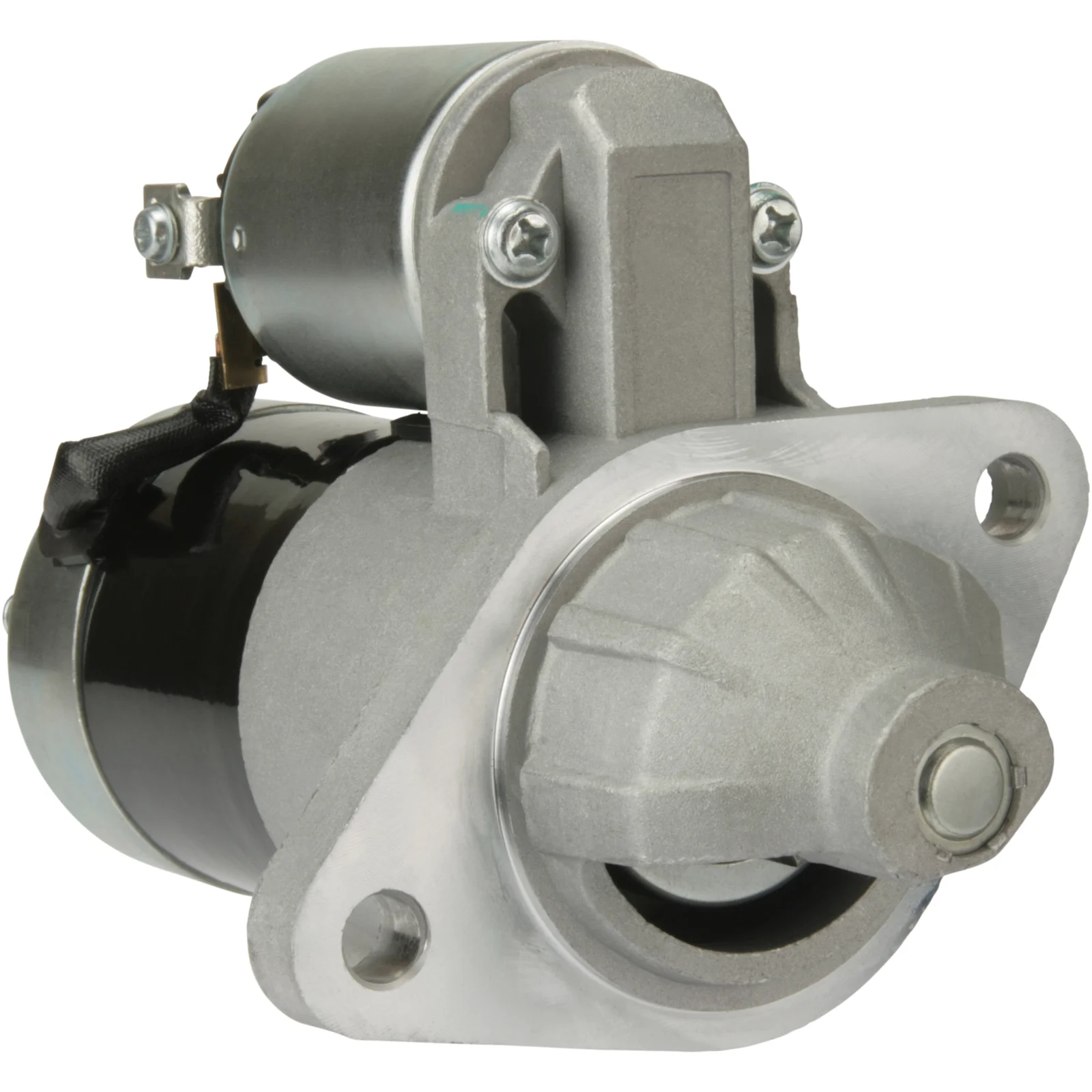

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kumulert effekt: 1,0 kW, Antall tennplugger/tenner: 9, Rotasjon: medur

Beskrivelse

Yanmar Startmotor 12V-1.0kW 12V - 1.0kW, 9k For Yourex produktordre 91-678-4303

Spenning: 12
kW: 1.0
Monteringsflens: 70.00
Drevavstand: 17.50
Monteringshull 2 mm: 10.70
Monteringshull 1 mm: 10.70
Avstand/bak: 150.00
Avstand/forside: 52.00
Antall/tenner: 9
B+: M8
Posisjon/50: 15
Terminal 50: M5
Gavl-type: DD/GR
Avstand mm: 109.50
Rotasjon: medur
Total lengde mm: 206.00
Drev-type: Stål
Vanntett: Nei
Oljelukket: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 70.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Rotation CW
Dist./back 150.00
Dist./front 52.00
Drive dist. 17.50
Drive type Steel
Gear type DD/GR
kW 1.0
Terminal 50 M5
Voltage 12
Total length 206.00 mm
Waterproof No
Dist. 109.50 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    F032111706, js1145, S114-303, s114-303, S114-303A, s114-303a, 128170-77010, 128170-77010d

  • Konkurrentreferens
    CST20138, LRS01128, S2085S, STR23018, 2-1872-HI, 25-1081, 682.007.092, 18209, 18209N, 104458, 201145

  • Bilmärken
    Yanmar, Yanmar Marine

  • NormaliseratArtNr
    cst20138, f032111706, js1145, lrs01128, s114303, s114303a, s2085s, str23018, 18209, 18209n, 21872hi, 104458, 201145, 251081, 682007092, 12817077010, 12817077010d

  • Passar modeller
    Yanmar Model: 1GM Model series: 1GM From date: 01-01-1980 Approved: Yes
    Yanmar Model: 2GM Model series: 2GM Approved: Yes
    Yanmar Model: 3GM Model series: 3GM Approved: Yes
    Yanmar Series: Marin Model: 1GM / 1GM10 Year: 07.80-
    Yanmar Series: Marin Model: 1GM / 2GM / 3GM
    Yanmar Series: Marin Model: 2GM / 2GMF / 2GM20
    Yanmar Series: Marin Model: 3GM / 3GMD / 3GMF / 3GM30
