HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032111855

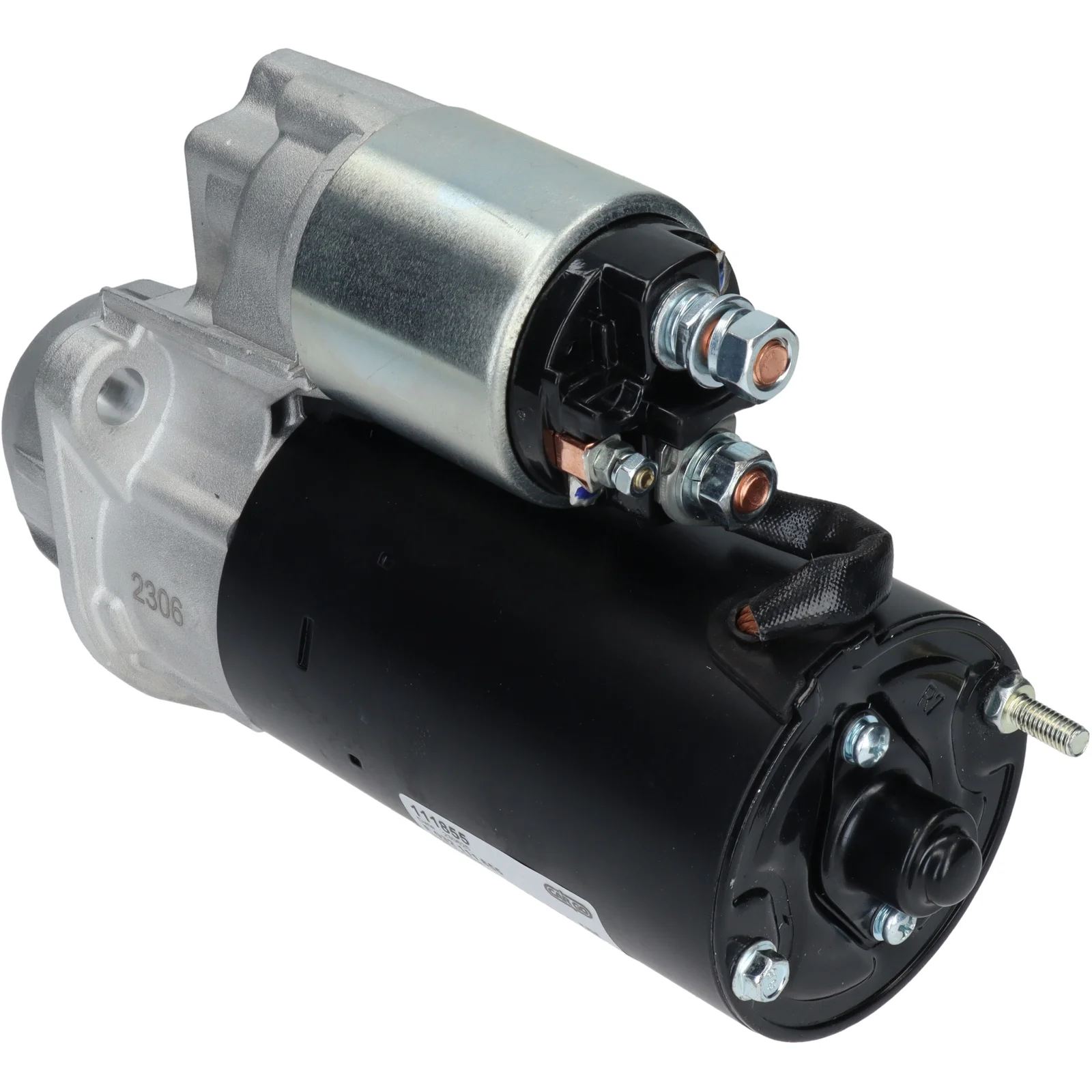

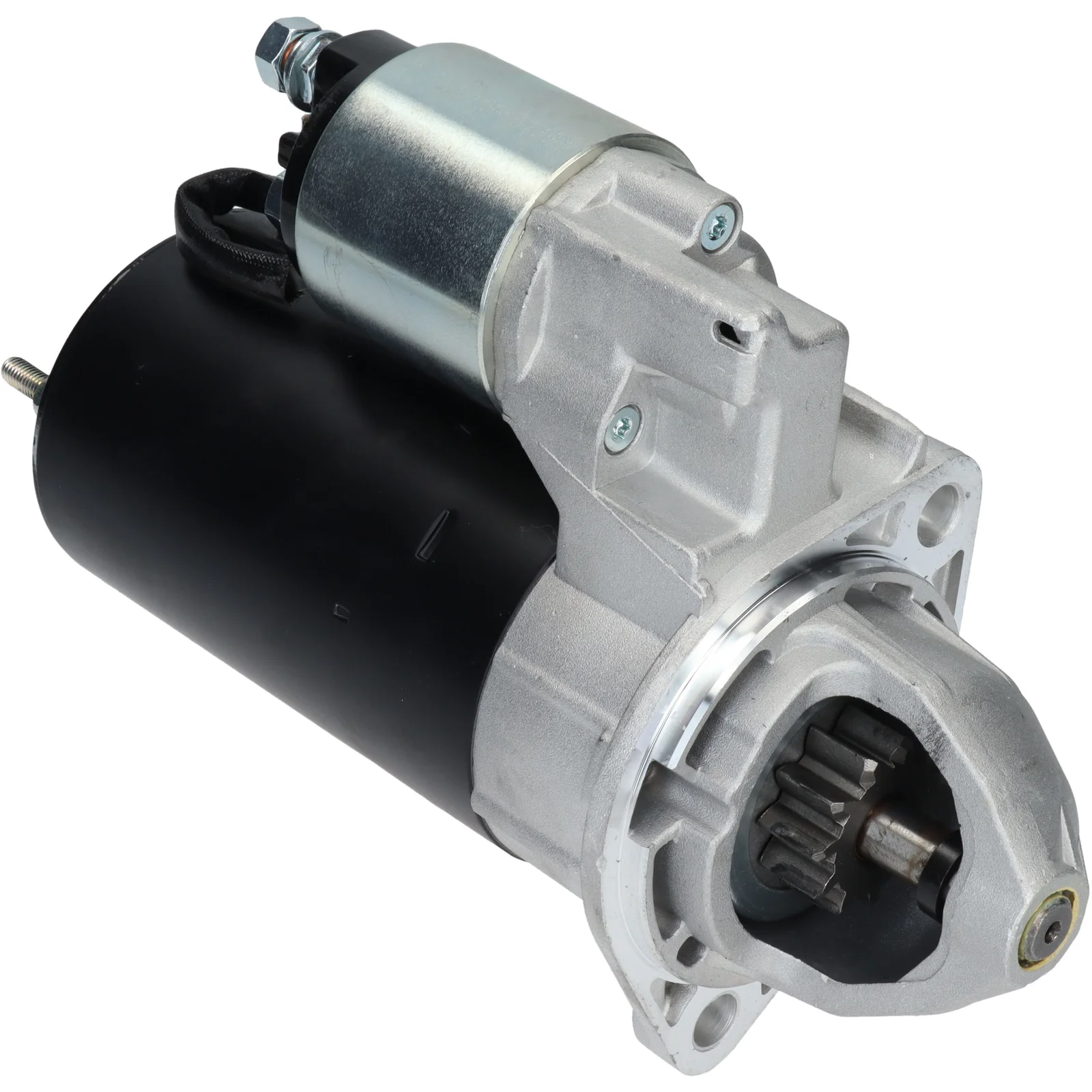

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,2, Nr./tenner: 11, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

KHD Startmotor 12V-2.2kW 12V - 2.2kW, 11k Alternativ: 91-273-4202 (3.2kW) For Yourex produkt bestilling 91-273-1743

Spenning: 12
kW: 2.2
Festebracket: 82,50
Kjedeavstand: 23,00
Festebor 2 mm: 11,00
Festebor 1 mm: 11,00
Avstand/bak: 193,50
Avstand/frem: 62,00
Ant./tenner: 11
B+: M8
Gjengelengde mm: 10,50
Posisjon/50: 40
Terminal 50: M5
Girtype: GR
Avstand mm: 101,00
Rotasjon: med klokka
Total lengde mm: 267,00
Koblingstype: Tørr
Drevenhet: Stål
Prod. info: BN
Vannbestandig: Nei
Olje forseglet: Nei
Ant./festebor: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 40
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 193.50
Dist./front 62.00
Drive dist. 23.00
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 M5
Voltage 12
Total length 267.00 mm
Waterproof No
Dist. 101.00 mm
Thread length 10.50 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    aze4535, cs1185, F032111855, 0001 218 172, 0001 223 002, 11.131.109, 11.180.180, 0118 0180, 0118 0995, 0986 017 430, 1986S00756, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995KZ, 1180995, 1180995KZ, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 9142726, 9142900, 19083023, 069911023f, 9002904386, 443115142726

  • Konkurrentreferens
    BSO7227, CST10142, CST10443, DRS7430, DRS7430N, DRS8290, F042002059, F042002146, F042S02059, F042S02146, LRS01422, LRS01457, MS619, S0066, S0505, STR-2204, STR-B015, STR22027, STR22027AN, STR22039, 2-1946-BO, 2-2204-BO, 8EA015642-011, 8EA737793-001, 20-1137-11, 25-2321, 25-2390, 510.521.112, 510.522.112, 688.011.112, 688.016.112, 8505, 18230, 18230N, 19156N, 101185, 103673, 203002, 220333, 220333A, 438597, 458884, 8018290, 11017430, 11018290, 20513069, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297

  • Bilmärken
    Genie, K.H.D. (Deutz), Volvo BM / Construction Equipment, Zettelmeyer

  • NormaliseratArtNr
    aze4535, bso7227, cs1185, cst10142, cst10443, drs7430, drs7430n, drs8290, f032111855, f042002059, f042002146, f042s02059, f042s02146, lrs01422, lrs01457, ms619, s0066, s0505, str22027, str22027an, str22039, str2204, strb015, 8ea015642011, 8ea737793001, 1986s00756, 8505, 18230, 18230n, 19156n, 21946bo, 22204bo, 101185, 103673, 203002, 220333, 220333a, 252321, 252390, 438597, 458884, 0001109370, 0001109461, 01180180, 1180180, 01180995, 01180995kz, 1180995, 1180995kz, 0001218172, 0001218772, 0001223002, 02934505, 2934505, 02934613, 2934613, 02934631, 03045250, 8018290, 9142726, 9142900, 11017430, 11018290, 11131109, 11180180, 19083023, 20113711, 20513069, 069911023f, 510521112, 510522112, 688011112, 688016112, 0986017430, 0986017437, 0986018290, 0986018293, 0986018297, 9002904386, 443115142726

  • Passar modeller
    Genie Series: S 60, 65 Engine type: Deutz F4L1011F
    Genie Series: Z 45-22 Engine type: Deutz F3L1011F
    K.H.D. (Deutz) Series: BF 4 L 1011 Engine volume: 2.7 Year: 01.95-
    K.H.D. (Deutz) Series: F 2 L 1011 Engine volume: 1.4 Year: 01.95-
    K.H.D. (Deutz) Series: F 3 L 1011 Engine volume: 2.0 Year: 01.95-
    K.H.D. (Deutz) Series: F 3 L 1011 F Model: 12V - 2.2kW 11kugg
    K.H.D. (Deutz) Series: F 4 L 1011 Engine volume: 2.7 Year: 01.95-
    KHD Model: Engine Model series: Engine Model type: 4L1011 Size of motor: 2,8 From date: 01-01-1995 Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 1.4 Brand of engine: F2L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.0 Brand of engine: F3L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: BF4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.7 Brand of engine: F4L1011 From date: 01-06-1989 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Volvo BM / Construction Equipment Series: Lastare Model: L 30 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 32 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 32 Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 35 B (11 kugg) Engine type: Deutz
    Volvo BM / Construction Equipment Series: Lastare Model: L 35 Engine type: Deutz
    Zettelmeyer Series: Lastare Model: ZL 402 C Engine type: Deutz
