Varenr.: F032112034

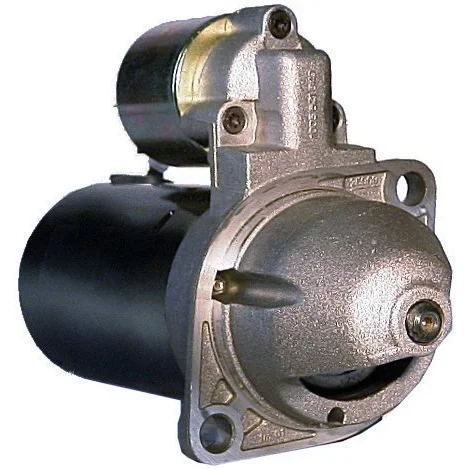

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 1.7, No./tenner: 9, Rotasjon: CCW

Beskrivelse

Spenningspenning: 12
kW: 1.7
Festebøsning: 76.20
Drev avstand: 27.00
Festeboring 2 mm: 10.70
Festeboring 1 mm: 10.70
Avstand/bakside: 191.00
Avstand/forside: 32.50
Antall/tannhjul: 9
B+: M8
Posisjon/50: 15
Klemme 50: 6.30
Girtype: GR
Avstand mm: 105.00
Rotasjon: Venstrehånds
Total lengde mm: 233.50
Dreivtype: Stål
Prod. info: BN
Vannmotstandig: Nei
Oljeforseglet: Nei
Antall/festeboringer: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 76.20
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CCW
Dist./back 191.00
Dist./front 32.50
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 1.7
Terminal 50 6.30
Voltage 12
Total length 233.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 10.70 mm
Mount. hole 1 10.70 mm

  • OEM
    AZE2636, F032112034, 11.131.157, 1986S00763, 54058, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435

  • Konkurrentreferens
    BSO7174, CST10174, CST21130, CST21134, DRS8070N, IS1045, LRS01272, LRS01276, MS252, S0209, S9094(LETRIKA), SBO0254, STR22121, 2-1902-BO, 8EA015642-021, 25-1466, 25-1473, 25-1485, 600.019.092, 681.010.092, 8569, 11545, 18369, 18369N, 18470, 254003, 8018070, 11018070, 42018070, 0986018070

  • NormaliseratArtNr
    aze2636, bso7174, cst10174, cst21130, cst21134, drs8070n, f032112034, is1045, lrs01272, lrs01276, ms252, s0209, s9094letrika, sbo0254, str22121, 8ea015642021, 1986s00763, 8569, 11545, 18369, 18369n, 18470, 21902bo, 54058, 251466, 251473, 251485, 254003, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 8018070, 11018070, 11131157, 42018070, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435, 600019092, 681010092, 0986018070

  • Passar modeller
    ACME Model: Various Models Model series: Various Models Approved: Yes
    Arona Model: Engine Model series: Various Models Brand of engine: AD... From date: 01-02-1978 Fuel: Diesel Approved: Yes
    BCS Model: 300 Model series: 303 Approved: Yes
    BCS Model: 600 Model series: 622 Approved: Yes
    BCS Model: 700 Model series: 745 Approved: Yes
    Ferrari Model: 300 Model series: 305 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 300 Model series: 305 Size of motor: 0.5 Brand of engine: 6L360 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 300 Model series: 306 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 300 Model series: 307 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-10-1990 Fuel: Diesel Approved: Yes
    Ferrari Model: 700 Model series: 792 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 700 Model series: 794 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 90 Model series: 91 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Ferrari Model: 90 Model series: 92 Size of motor: 0.5 Brand of engine: 3LD350 From date: 01-09-1989 Fuel: Diesel Approved: Yes
    Goldoni Model: 100 Model series: 149 Size of motor: 0.6 Brand of engine: RF140 From date: 01-06-1984 Fuel: Diesel Approved: Yes
    Goldoni Model: FC Model series: FC90D Size of motor: 0.4 Brand of engine: 6LD.. From date: 01-04-1991 Fuel: Diesel Approved: Yes
    Goldoni Model: Motocoltivatore Model series: Various Models Approved: Yes
    Goldoni Model: Transcar Model series: 25 Size of motor: 1.0 Brand of engine: 12LD475 From date: 01-11-1990 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Goldoni Model: Various Models Model series: Various Models Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Brand of engine: 2G30 Approved: Yes
    Hatz Model: Stationnares Model series: Stationnares Brand of engine: 2G40 Approved: Yes
    Lombardini Model: Engine Model series: Various Models Brand of engine: 6LD.. From date: 01-01-1982 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.5 Brand of engine: 3LD.. From date: 01-01-1982 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.8 Brand of engine: 10LD400.2 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 0.9 Brand of engine: 12LD435.2 From date: 01-06-1987 Fuel: Diesel Approved: Yes
    Mosa Model: Various Models Model series: Various Models Approved: Yes
    Ruggerini Model: RD Model series: Various Models From date: 01-09-1981 Approved: Yes
    Ruggerini Model: RF Model series: RF80 From date: 01-09-1981 Approved: Yes
    Ruggerini Model: RF Model series: RF81 From date: 01-09-1981 Approved: Yes
    Ruggerini Model: RF Model series: RF96 From date: 01-03-1988 Approved: Yes
    Ruggerini Model: RF Model series: RF99 From date: 01-06-1986 Approved: Yes
    Ruggerini Model: Various Models Model series: Various Models From date: 01-02-1995 Approved: Yes
    1 / 7
  • Beskrivelse
    Spenningspenning: 12
    kW: 1.7
    Festebøsning: 76.20
    Drev avstand: 27.00
    Festeboring 2 mm: 10.70
    Festeboring 1 mm: 10.70
    Avstand/bakside: 191.00
    Avstand/forside: 32.50
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 15
    Klemme 50: 6.30
    Girtype: GR
    Avstand mm: 105.00
    Rotasjon: Venstrehånds
    Total lengde mm: 233.50
    Dreivtype: Stål
    Prod. info: BN
    Vannmotstandig: Nei
    Oljeforseglet: Nei
    Antall/festeboringer: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 76.20
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CCW
    Dist./back 191.00
    Dist./front 32.50
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 1.7
    Terminal 50 6.30
    Voltage 12
    Total length 233.50 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 10.70 mm
    Mount. hole 1 10.70 mm
  • Kjøretøymatching

    • OEM
      AZE2636, F032112034, 11.131.157, 1986S00763, 54058, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435

    • Konkurrentreferens
      BSO7174, CST10174, CST21130, CST21134, DRS8070N, IS1045, LRS01272, LRS01276, MS252, S0209, S9094(LETRIKA), SBO0254, STR22121, 2-1902-BO, 8EA015642-021, 25-1466, 25-1473, 25-1485, 600.019.092, 681.010.092, 8569, 11545, 18369, 18369N, 18470, 254003, 8018070, 11018070, 42018070, 0986018070

    • NormaliseratArtNr
      aze2636, bso7174, cst10174, cst21130, cst21134, drs8070n, f032112034, is1045, lrs01272, lrs01276, ms252, s0209, s9094letrika, sbo0254, str22121, 8ea015642021, 1986s00763, 8569, 11545, 18369, 18369n, 18470, 21902bo, 54058, 251466, 251473, 251485, 254003, 0001109029, 0001110018, 0001115038, 0001115042, 0001214002, 05723515, 05726001, 8018070, 11018070, 11131157, 42018070, 50316400, 50496700, 58400890, 58402230, 63221405, 63221435, 600019092, 681010092, 0986018070

    • Passar modeller
      ACME Model: Various Models Model series: Various Models Approved: Yes
      Arona Model: Engine Model series: Various Models Brand of engine: AD... From date: 01-02-1978 Fuel: Diesel Approved: Yes
      BCS Model: 300 Model series: 303 Approved: Yes
      BCS Model: 600 Model series: 622 Approved: Yes
      BCS Model: 700 Model series: 745 Approved: Yes
      Ferrari Model: 300 Model series: 305 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 300 Model series: 305 Size of motor: 0.5 Brand of engine: 6L360 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 300 Model series: 306 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 300 Model series: 307 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-10-1990 Fuel: Diesel Approved: Yes
      Ferrari Model: 700 Model series: 792 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 700 Model series: 794 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 90 Model series: 91 Size of motor: 0.4 Brand of engine: 6LD400 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Ferrari Model: 90 Model series: 92 Size of motor: 0.5 Brand of engine: 3LD350 From date: 01-09-1989 Fuel: Diesel Approved: Yes
      Goldoni Model: 100 Model series: 149 Size of motor: 0.6 Brand of engine: RF140 From date: 01-06-1984 Fuel: Diesel Approved: Yes
      Goldoni Model: FC Model series: FC90D Size of motor: 0.4 Brand of engine: 6LD.. From date: 01-04-1991 Fuel: Diesel Approved: Yes
      Goldoni Model: Motocoltivatore Model series: Various Models Approved: Yes
      Goldoni Model: Transcar Model series: 25 Size of motor: 1.0 Brand of engine: 12LD475 From date: 01-11-1990 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Goldoni Model: Various Models Model series: Various Models Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Brand of engine: 2G30 Approved: Yes
      Hatz Model: Stationnares Model series: Stationnares Brand of engine: 2G40 Approved: Yes
      Lombardini Model: Engine Model series: Various Models Brand of engine: 6LD.. From date: 01-01-1982 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.5 Brand of engine: 3LD.. From date: 01-01-1982 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.8 Brand of engine: 10LD400.2 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 0.9 Brand of engine: 12LD435.2 From date: 01-06-1987 Fuel: Diesel Approved: Yes
      Mosa Model: Various Models Model series: Various Models Approved: Yes
      Ruggerini Model: RD Model series: Various Models From date: 01-09-1981 Approved: Yes
      Ruggerini Model: RF Model series: RF80 From date: 01-09-1981 Approved: Yes
      Ruggerini Model: RF Model series: RF81 From date: 01-09-1981 Approved: Yes
      Ruggerini Model: RF Model series: RF96 From date: 01-03-1988 Approved: Yes
      Ruggerini Model: RF Model series: RF99 From date: 01-06-1986 Approved: Yes
      Ruggerini Model: Various Models Model series: Various Models From date: 01-02-1995 Approved: Yes
