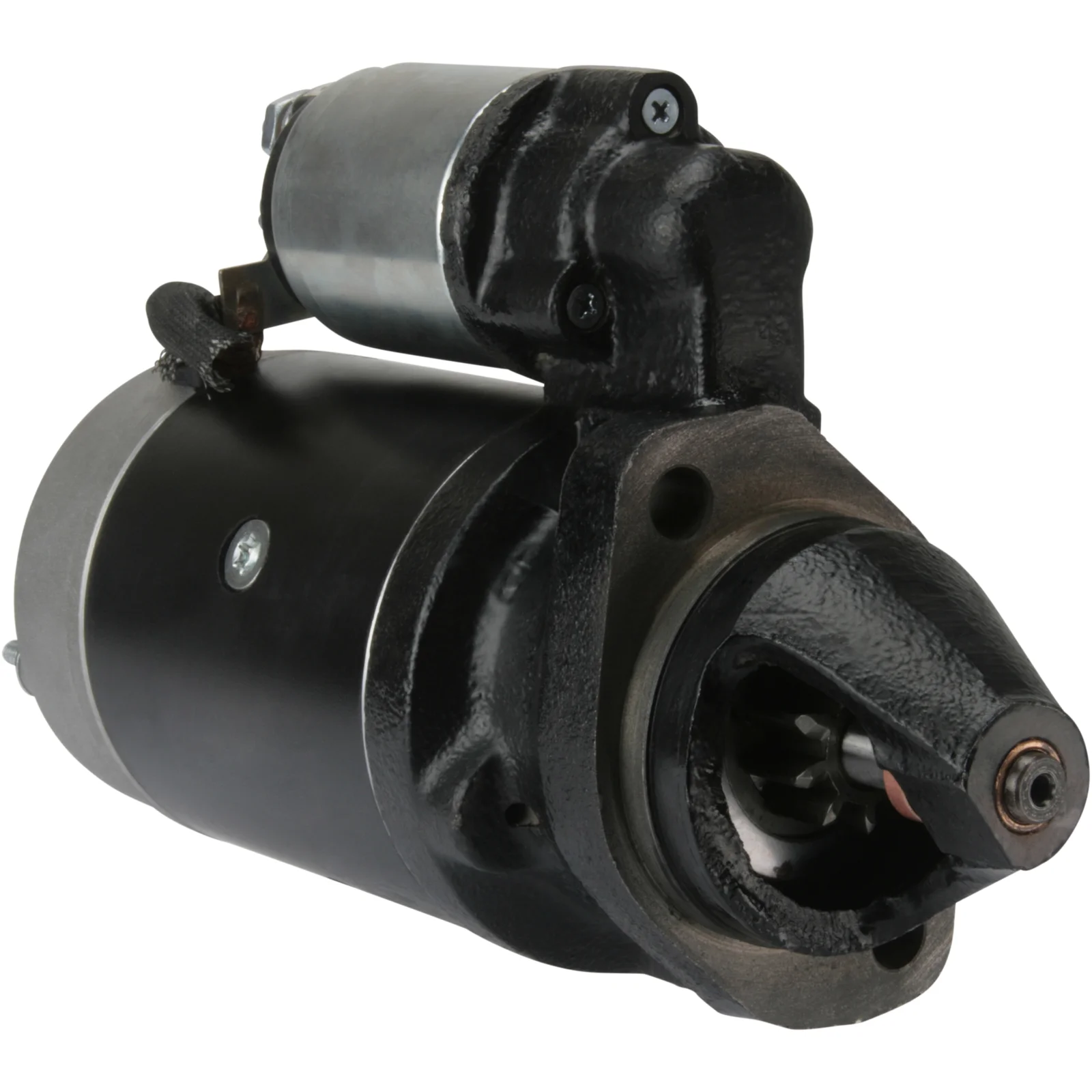

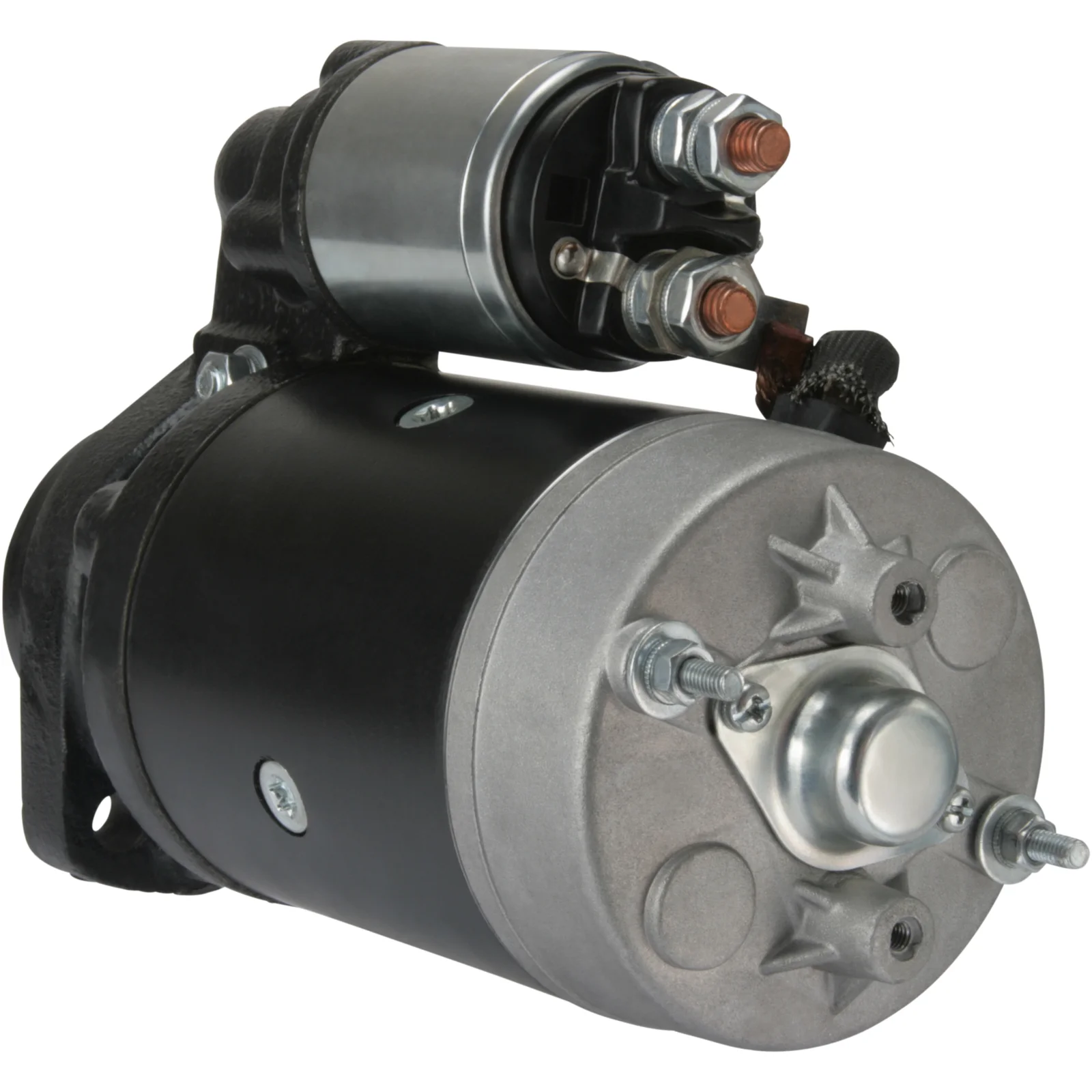

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112039

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2.7, Nr./tenner: 9, Rotasjon: med urviseren

Beskrivelse

Spenningsspenning: 12
kW: 2.7
Monteringsflens: 82,50
Drivningsavstand: 21,00
Monteringshull 2 mm: 13,50
Monteringshull 1 mm: 13,50
Avstand/bak: 220,00
Avstand/forside: 67,00
Antall/tannhjul: 9
B+: M10
Gjengetykk mm: 10,00
Posisjon/50: 15
Terminal 50: M4
Girtype: DD
Avstand mm: 105,00
Rotasjon: med urviseren
Total lengde mm: 298,00
Drevtype: Stål
Prod. info: BN
Vannbeskyttet: Nei
Oljeforseglet: Nei
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 15
Prod. info BN
Rotation CW
Dist./back 220.00
Dist./front 67.00
Drive dist. 21.00
Drive type Steel
Gear type DD
kW 2.7
Terminal 50 M4
Voltage 12
Total length 298.00 mm
Waterproof No
Dist. 105.00 mm
Thread length 10.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 13.50 mm

  • OEM
    A0011511301, A0011516001, azj0101, azj3123, AZJ3192, azj3551, C830100008000, CT6005706625, F032112039, F139900060, f139900060011, mt71gb, 11.130.008, 11.130.247, 11.130.432, 11.130.612, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 0011511301, 0011516001, 12153840, 35532038F, 58400070, 58400450, 63217158, 0855159400, 0855787900, 1142566685, 2130090013, 6005706625, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

  • Konkurrentreferens
    CST10166, CST21152, drs7310, is0432, IS0612, LRS00956, MS190, MS313, S0657S, S9196(LETRIKA), STR22065, 25-0072, 25-1415, 325.002.092, 600.048.092, 625.002.092, 8757, 33339, 33560, 220268, 220268A, 220912, 220912A, 254007, 255177, 11017310, 063217158, 0986017310, 063217158010

  • NormaliseratArtNr
    a0011511301, a0011516001, azj0101, azj3123, azj3192, azj3551, c830100008000, cst10166, cst21152, ct6005706625, drs7310, f032112039, f139900060, f139900060011, is0432, is0612, lrs00956, ms190, ms313, mt71gb, s0657s, s9196letrika, str22065, 8757, 33339, 33560, 220268, 220268a, 220912, 220912a, 250072, 251415, 254007, 255177, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 11017310, 11130008, 11130247, 11130432, 11130612, 0011511301, 0011516001, 12153840, 35532038f, 58400070, 58400450, 063217158, 63217158, 325002092, 600048092, 625002092, 0855159400, 0855787900, 0986017310, 1142566685, 2130090013, 6005706625, 063217158010, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

  • Passar modeller
    Fendt Model: Various Models Model series: Various Models Approved: Yes
    Jenbacher Werke Model: Various Models Model series: Various Models Approved: Yes
    Lombardini Model: Engine Model series: Various Models Size of motor: 1.9 Brand of engine: 11LD625.3 From date: 01-04-1984 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenningsspenning: 12
    kW: 2.7
    Monteringsflens: 82,50
    Drivningsavstand: 21,00
    Monteringshull 2 mm: 13,50
    Monteringshull 1 mm: 13,50
    Avstand/bak: 220,00
    Avstand/forside: 67,00
    Antall/tannhjul: 9
    B+: M10
    Gjengetykk mm: 10,00
    Posisjon/50: 15
    Terminal 50: M4
    Girtype: DD
    Avstand mm: 105,00
    Rotasjon: med urviseren
    Total lengde mm: 298,00
    Drevtype: Stål
    Prod. info: BN
    Vannbeskyttet: Nei
    Oljeforseglet: Nei
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 15
    Prod. info BN
    Rotation CW
    Dist./back 220.00
    Dist./front 67.00
    Drive dist. 21.00
    Drive type Steel
    Gear type DD
    kW 2.7
    Terminal 50 M4
    Voltage 12
    Total length 298.00 mm
    Waterproof No
    Dist. 105.00 mm
    Thread length 10.00 mm
    Mount. hole 2 13.50 mm
    Mount. hole 1 13.50 mm
  • Kjøretøymatching

    • OEM
      A0011511301, A0011516001, azj0101, azj3123, AZJ3192, azj3551, C830100008000, CT6005706625, F032112039, F139900060, f139900060011, mt71gb, 11.130.008, 11.130.247, 11.130.432, 11.130.612, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 0011511301, 0011516001, 12153840, 35532038F, 58400070, 58400450, 63217158, 0855159400, 0855787900, 1142566685, 2130090013, 6005706625, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

    • Konkurrentreferens
      CST10166, CST21152, drs7310, is0432, IS0612, LRS00956, MS190, MS313, S0657S, S9196(LETRIKA), STR22065, 25-0072, 25-1415, 325.002.092, 600.048.092, 625.002.092, 8757, 33339, 33560, 220268, 220268A, 220912, 220912A, 254007, 255177, 11017310, 063217158, 0986017310, 063217158010

    • NormaliseratArtNr
      a0011511301, a0011516001, azj0101, azj3123, azj3192, azj3551, c830100008000, cst10166, cst21152, ct6005706625, drs7310, f032112039, f139900060, f139900060011, is0432, is0612, lrs00956, ms190, ms313, mt71gb, s0657s, s9196letrika, str22065, 8757, 33339, 33560, 220268, 220268a, 220912, 220912a, 250072, 251415, 254007, 255177, 01303920, 1303920, 01303970, 1303970, 0001354012, 0001354091, 0001358038, 0001366004, 0001366022, 11017310, 11130008, 11130247, 11130432, 11130612, 0011511301, 0011516001, 12153840, 35532038f, 58400070, 58400450, 063217158, 63217158, 325002092, 600048092, 625002092, 0855159400, 0855787900, 0986017310, 1142566685, 2130090013, 6005706625, 063217158010, 063296843000, 605720100011, 605720100026, 605720100042, 605720100049, 605720100050

    • Passar modeller
      Fendt Model: Various Models Model series: Various Models Approved: Yes
      Jenbacher Werke Model: Various Models Model series: Various Models Approved: Yes
      Lombardini Model: Engine Model series: Various Models Size of motor: 1.9 Brand of engine: 11LD625.3 From date: 01-04-1984 Fuel: Diesel Approved: Yes
