Varenr.: F032112268

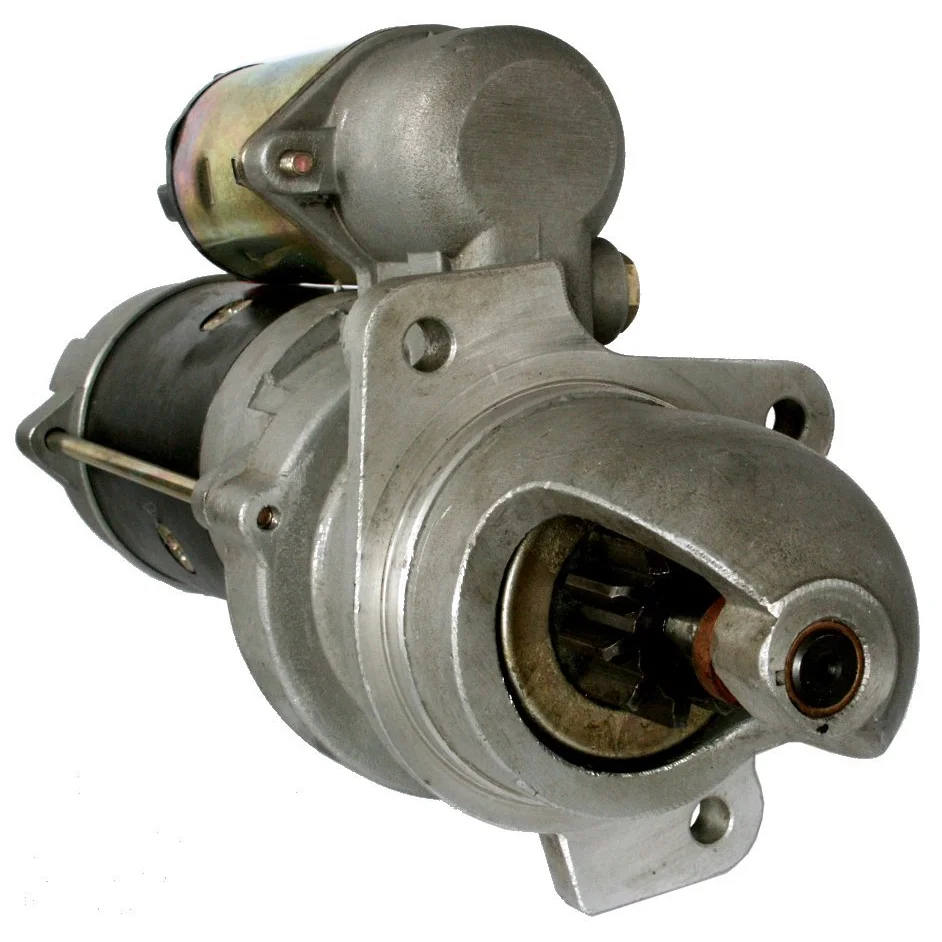

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 2,8
Fester flange: 89,00
Drivingsavstand: 46,00
Fester hull 3 mm: 10,50
Fester hull 2 mm: 10,50
Fester hull 1 mm: 10,50
Avstand/bak: 254,00
Avstand/frem: 88,00
Num./tenner: 10
B+: M10
Posisjon/50: 45
Terminal 50: M5
Girtype: GR
Avstand 2: 126,50
Avstand 3: 89,50
Avstand mm: 89,50
Rotasjon: medur (CW)
Total lengde mm: 340,00
Koblingstype: Tørr
Drevetype: Stål
Prod. info: BN
Vannavstøtende: Nei
Oljetett: Ja
Merk: Erstatter: 28MT.
Num./festerhull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed Yes
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 126.50
Remarks Replacing: 28MT.
Dist. 3 89.50
Rotation CW
Dist./back 254.00
Dist./front 88.00
Drive dist. 46.00
Drive type Steel
Gear type GR
kW 2.8
Terminal 50 M5
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 89.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    0-23000-1850, 0-23000-2010, 0-23000-2140, F032112268, 1107540, 1113274, 1113290, 1113597, 1335407, 1998340, 1998350, 1998357, 1998373, 1998468, 1998484, 10461463, 10465295, 10479607

  • Konkurrentreferens
    BSO7199R, CST60110, CST60134, F042003097, F042003101, F042S03097, F042S03101, LRS01289, S1057, SN-0098R, SNK0023, STR-7064, STR-7066, STR7061, STR7064, STR7066, TS-1576, TS-1644, 25-2008, 50-8417, 50-8431, 91-01-4311, 91-01-4415, 600.050.102, 628.030.102, 4276, 4392, 6166, 6572, 6572R, 6587N, 6587R, 6588, 201054, 254053, 254219

  • NormaliseratArtNr
    bso7199r, cst60110, cst60134, f032112268, f042003097, f042003101, f042s03097, f042s03101, lrs01289, s1057, sn0098r, snk0023, str7061, str7064, str7066, ts1576, ts1644, 4276, 4392, 6166, 6572, 6572r, 6587n, 6587r, 6588, 201054, 252008, 254053, 254219, 508417, 508431, 1107540, 1113274, 1113290, 1113597, 1335407, 1998340, 1998350, 1998357, 1998373, 1998468, 1998484, 10461463, 10465295, 10479607, 91014311, 91014415, 0230001850, 0230002010, 0230002140, 600050102, 628030102

  • Passar modeller
    Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
    Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 254 Size of motor: 2.5 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
    New Holland Model: L Model series: L85 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 12
    kW: 2,8
    Fester flange: 89,00
    Drivingsavstand: 46,00
    Fester hull 3 mm: 10,50
    Fester hull 2 mm: 10,50
    Fester hull 1 mm: 10,50
    Avstand/bak: 254,00
    Avstand/frem: 88,00
    Num./tenner: 10
    B+: M10
    Posisjon/50: 45
    Terminal 50: M5
    Girtype: GR
    Avstand 2: 126,50
    Avstand 3: 89,50
    Avstand mm: 89,50
    Rotasjon: medur (CW)
    Total lengde mm: 340,00
    Koblingstype: Tørr
    Drevetype: Stål
    Prod. info: BN
    Vannavstøtende: Nei
    Oljetett: Ja
    Merk: Erstatter: 28MT.
    Num./festerhull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed Yes
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 126.50
    Remarks Replacing: 28MT.
    Dist. 3 89.50
    Rotation CW
    Dist./back 254.00
    Dist./front 88.00
    Drive dist. 46.00
    Drive type Steel
    Gear type GR
    kW 2.8
    Terminal 50 M5
    Voltage 12
    Total length 340.00 mm
    Waterproof No
    Dist. 89.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      0-23000-1850, 0-23000-2010, 0-23000-2140, F032112268, 1107540, 1113274, 1113290, 1113597, 1335407, 1998340, 1998350, 1998357, 1998373, 1998468, 1998484, 10461463, 10465295, 10479607

    • Konkurrentreferens
      BSO7199R, CST60110, CST60134, F042003097, F042003101, F042S03097, F042S03101, LRS01289, S1057, SN-0098R, SNK0023, STR-7064, STR-7066, STR7061, STR7064, STR7066, TS-1576, TS-1644, 25-2008, 50-8417, 50-8431, 91-01-4311, 91-01-4415, 600.050.102, 628.030.102, 4276, 4392, 6166, 6572, 6572R, 6587N, 6587R, 6588, 201054, 254053, 254219

    • NormaliseratArtNr
      bso7199r, cst60110, cst60134, f032112268, f042003097, f042003101, f042s03097, f042s03101, lrs01289, s1057, sn0098r, snk0023, str7061, str7064, str7066, ts1576, ts1644, 4276, 4392, 6166, 6572, 6572r, 6587n, 6587r, 6588, 201054, 252008, 254053, 254219, 508417, 508431, 1107540, 1113274, 1113290, 1113597, 1335407, 1998340, 1998350, 1998357, 1998373, 1998468, 1998484, 10461463, 10465295, 10479607, 91014311, 91014415, 0230001850, 0230002010, 0230002140, 600050102, 628030102

    • Passar modeller
      Allis Chalmers Model: Various Models Model series: Various Models Approved: Yes
      Hyster Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 245 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 254 Size of motor: 2.5 From date: 01-01-1973 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: MF 200 Model series: 255 Size of motor: 2.5 From date: 01-01-1977 To date: 01-12-1988 Fuel: Diesel Approved: Yes
      New Holland Model: L Model series: L85 Size of motor: 3.9 Brand of engine: Fiat From date: 01-09-1995 To date: 01-12-1998 Fuel: Diesel Approved: Yes
