HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112300

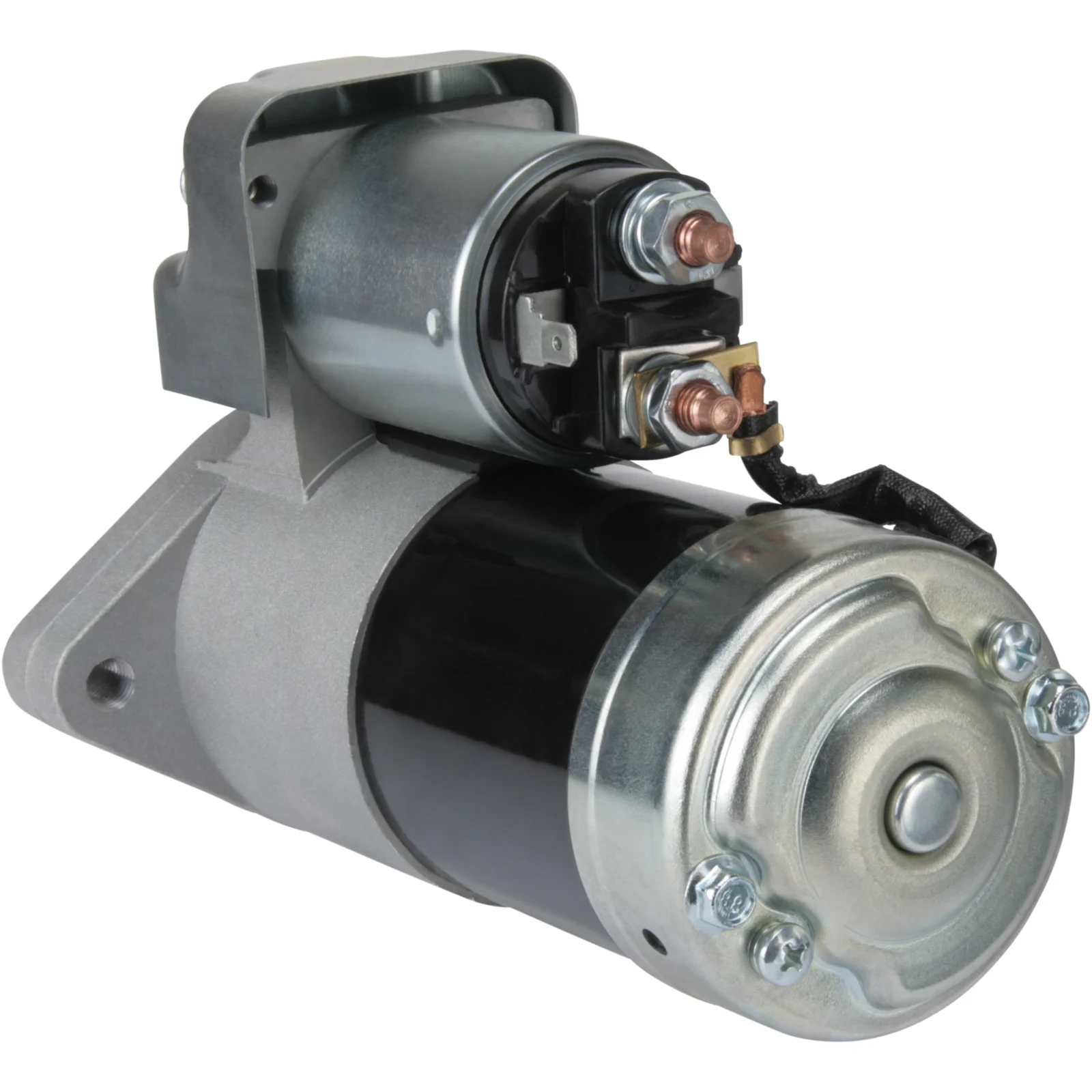

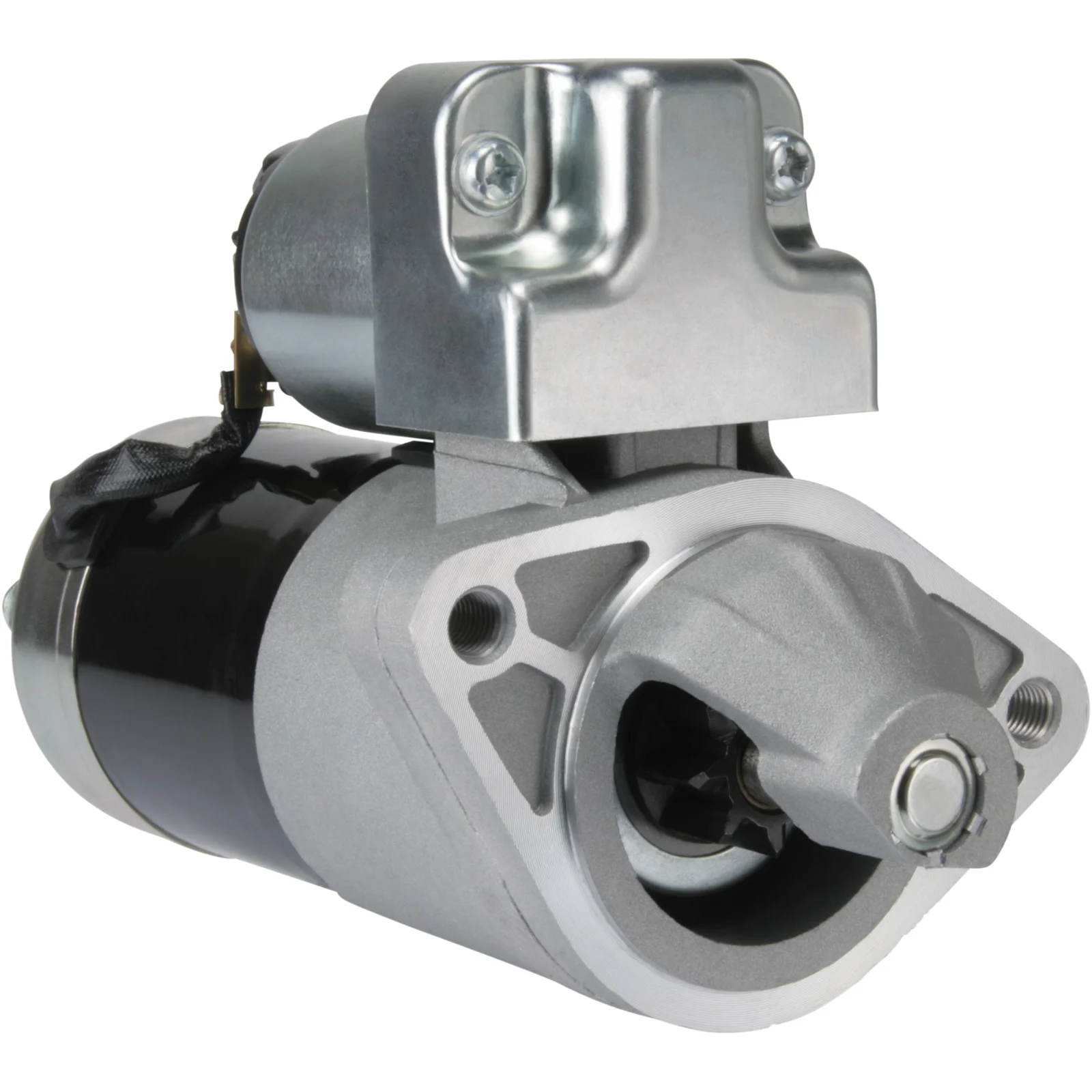

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 1.4 kW, Antall/tannhjul: 8, Rotasjon: medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 1.4
Monteringsflens: 66,00
Drevavstand: 4,50
Avstand/bak: 163,50
Avstand/frem: 40,00
Antall/tenner: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6,30
Girtype: GR
Avstand mm: 100,00
Rotasjon: medur
Total lengde mm: 208,00
Drevetype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljeforseglet: Nei
Antall/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 66.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 163.50
Dist./front 40.00
Drive dist. 4.50
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 208.00 mm
Waterproof No
Dist. 100.00 mm

  • OEM
    F032112300, js1153, M000T85681, M000T85681ZC, M000T85881, M001T76481, M001T79581, M001T86181, m0t85681, M0T85681ZC, m0t85881, m1t76481, m1t79581, M1T86181, 1A5018400, 6840, 31100-65da0, 31100-67D10, 31100-67D20, 31100-77e10, 31100-77E10-000, 31100-77E11, 31100-77E11-000, 31100-77e20, 31100-77E20-000, 31100-77e22

  • Konkurrentreferens
    CST35138, DRS3885, F042001100, F042S01100, J5218014, s-8770, S5139, sj-0081r, STR-3514, STR71064, 2-1991-mi, 8EA737741-001, 25-2150, 345.015.082, 345.016.082, 17686, 17783, 17783N, 104755, 105363, 201153, 220597, 220597A, 458577, 8212393, 11040626, 0986020501

  • NormaliseratArtNr
    cst35138, drs3885, f032112300, f042001100, f042s01100, j5218014, js1153, m000t85681, m000t85681zc, m000t85881, m001t76481, m001t79581, m001t86181, m0t85681, m0t85681zc, m0t85881, m1t76481, m1t79581, m1t86181, s5139, s8770, sj0081r, str3514, str71064, 1a5018400, 8ea737741001, 6840, 17686, 17783, 17783n, 21991mi, 104755, 105363, 201153, 220597, 220597a, 252150, 458577, 3110065da0, 3110067d10, 3110067d20, 3110077e10, 3110077e10000, 3110077e11, 3110077e11000, 3110077e20, 3110077e20000, 3110077e22, 8212393, 11040626, 345015082, 345016082, 0986020501

  • Passar modeller
    Chevrolet Model: Grand Vitara Model series: Grand Vitara Model type: 4WD Size of motor: 2.0 Brand of engine: J20A Body: Closed Off-Road Vehicle Fuel: Petrol Approved: Yes
    Chevrolet Model: Tracker Model series: Tracer Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tracker Model series: Tracker Size of motor: 2.0 Brand of engine: J20A From date: 01-01-1999 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 (SQ 420) Size of motor: 2.0 Brand of engine: J20A Type description: FT, HT Body: Closed Off-Road Vehicle From date: 01-09-1998 To date: 01-12-2003 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: 4x4 Size of motor: 2.0 Brand of engine: J20A Type description: FT, GT From date: 01-04-1998 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: All-wheel Drive (JB627) Size of motor: 2.7 Brand of engine: H27A Type description: JT, TE, TD Body: Closed Off-Road Vehicle From date: 01-10-2006 To date: 01-11-2007 Fuel: Petrol Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 Brand of engine: H27A Type description: FT, GT From date: 01-04-2003 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: XL-7 Size of motor: 2.7 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.0 Brand of engine: J20A From date: 01-10-2005 To date: 01-02-2015 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Size of motor: 2.5 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A Type description: FT, GT From date: 01-04-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Type of engine: V6 Size of motor: 2.7 Brand of engine: H27A From date: 01-09-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: Lang Type of engine: i Size of motor: 2.0 Brand of engine: H20A From date: 01-12-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 1.6 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Size of motor: 2.0 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: i 24V Size of motor: 2.5 Brand of engine: H25A Type description: ET From date: 01-12-1995 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Type of engine: V6 24V Size of motor: 2.5 Brand of engine: H25A From date: 01-04-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
