Varenr.: F032112301

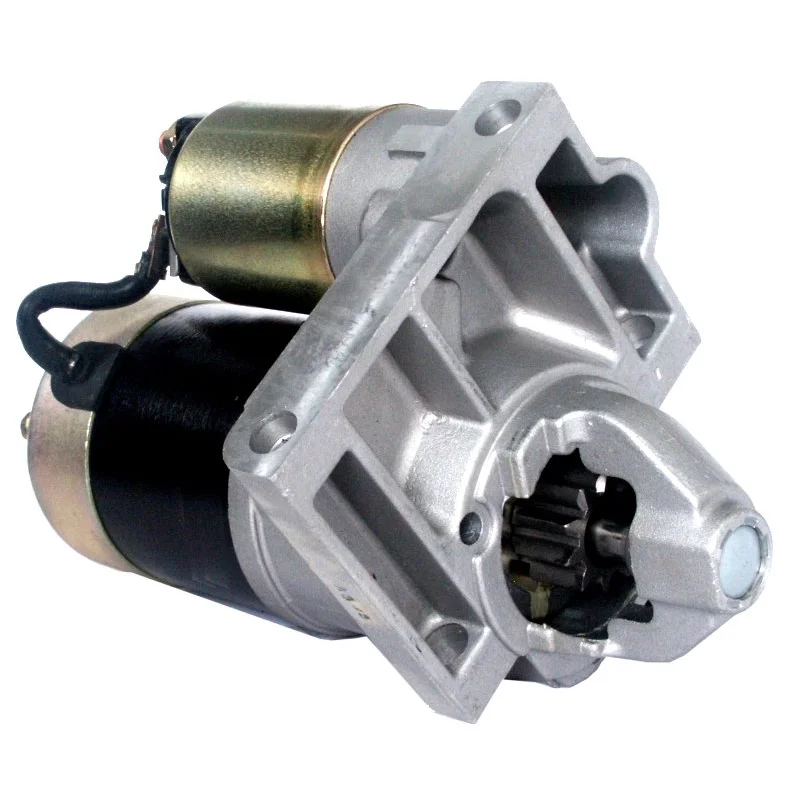

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 1,2, Antall/tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.2
Feste.feste: 60.00
Dreiebeningsavstand: 18.00
Festehull 2 mm: 9.70
Festehull 1 mm: 9.70
Avstand/tilbake: 153.00
Avstand/frem: 55.00
Nr./tenner: 10
B+: M8
Gjengetykkelse mm: 16.50
Posisjon/50: 45
Terminal 50: M5
Giret: GR
Avstand mm: 86.00
Rotasjon: CW
Total lengde mm: 207.50
Kopplingstype: Tørr
Drevtype: Stål
Prod. info: BN
Vannbestandig: Nei
Oljeforseglet: Nei
Nr./festehull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 60.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 153.00
Dist./front 55.00
Drive dist. 18.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 M5
Voltage 12
Total length 207.50 mm
Waterproof No
Dist. 86.00 mm
Thread length 16.50 mm
Mount. hole 2 9.70 mm
Mount. hole 1 9.70 mm

  • OEM
    cs1175, F032112301, M001T79481, M001T79482, m1t79481, m1t79482, 4796981, 56027904, 56041013

  • Konkurrentreferens
    BSO7125, CST35204, drz5172, ds17564, F042001064, F042S01064, lrt00102, QS1655, s1282m, S5125, sc-0070r, smt0087, SR6520X, STR-3069, STR3069, 2-1782-mi, 8EA012528-311, 25-1240, 25-3242, 35-2586, 670.005.102, 3855, 17253, 17564, 17564N, 17564R, 31486, 101175, 104756, 458612, 11040759

  • NormaliseratArtNr
    bso7125, cs1175, cst35204, drz5172, ds17564, f032112301, f042001064, f042s01064, lrt00102, m001t79481, m001t79482, m1t79481, m1t79482, qs1655, s1282m, s5125, sc0070r, smt0087, sr6520x, str3069, 8ea012528311, 3855, 17253, 17564, 17564n, 17564r, 21782mi, 31486, 101175, 104756, 251240, 253242, 352586, 458612, 4796981, 11040759, 56027904, 56041013, 670005102

  • Passar modeller
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.5 Brand of engine: EPE Type description: XJ Body: Closed Off-Road Vehicle From date: 01-10-1990 To date: 01-09-1996 Fuel: Petrol Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-10-1984 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: HX Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: Rio Grande Size of motor: 2.5 From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
    Jeep Model: Wagoneer Model series: Wagoneer Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: EPE Type description: YJ, SJ_ From date: 01-12-1991 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: P00 Body: Convertible From date: 01-08-1996 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 1.2
    Feste.feste: 60.00
    Dreiebeningsavstand: 18.00
    Festehull 2 mm: 9.70
    Festehull 1 mm: 9.70
    Avstand/tilbake: 153.00
    Avstand/frem: 55.00
    Nr./tenner: 10
    B+: M8
    Gjengetykkelse mm: 16.50
    Posisjon/50: 45
    Terminal 50: M5
    Giret: GR
    Avstand mm: 86.00
    Rotasjon: CW
    Total lengde mm: 207.50
    Kopplingstype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Vannbestandig: Nei
    Oljeforseglet: Nei
    Nr./festehull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 60.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Rotation CW
    Dist./back 153.00
    Dist./front 55.00
    Drive dist. 18.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 M5
    Voltage 12
    Total length 207.50 mm
    Waterproof No
    Dist. 86.00 mm
    Thread length 16.50 mm
    Mount. hole 2 9.70 mm
    Mount. hole 1 9.70 mm
  • Kjøretøymatching

    • OEM
      cs1175, F032112301, M001T79481, M001T79482, m1t79481, m1t79482, 4796981, 56027904, 56041013

    • Konkurrentreferens
      BSO7125, CST35204, drz5172, ds17564, F042001064, F042S01064, lrt00102, QS1655, s1282m, S5125, sc-0070r, smt0087, SR6520X, STR-3069, STR3069, 2-1782-mi, 8EA012528-311, 25-1240, 25-3242, 35-2586, 670.005.102, 3855, 17253, 17564, 17564N, 17564R, 31486, 101175, 104756, 458612, 11040759

    • NormaliseratArtNr
      bso7125, cs1175, cst35204, drz5172, ds17564, f032112301, f042001064, f042s01064, lrt00102, m001t79481, m001t79482, m1t79481, m1t79482, qs1655, s1282m, s5125, sc0070r, smt0087, sr6520x, str3069, 8ea012528311, 3855, 17253, 17564, 17564n, 17564r, 21782mi, 31486, 101175, 104756, 251240, 253242, 352586, 458612, 4796981, 11040759, 56027904, 56041013, 670005102

    • Passar modeller
      Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1996 To date: 01-01-1996 Fuel: Gasoline Approved: Yes
      Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Dodge Model: Dakota Model series: Dakota Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: 4x4 Size of motor: 2.5 Brand of engine: EPE Type description: XJ Body: Closed Off-Road Vehicle From date: 01-10-1990 To date: 01-09-1996 Fuel: Petrol Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-10-1984 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: EPE Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: i Size of motor: 2.5 Brand of engine: HX Type description: XJ From date: 01-12-1991 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
      Jeep Model: Wagoneer Model series: Wagoneer Model type: Rio Grande Size of motor: 2.5 From date: 01-01-1995 To date: 01-01-1995 Fuel: Gasoline Approved: Yes
      Jeep Model: Wagoneer Model series: Wagoneer Model type: SE Size of motor: 2.5 From date: 01-01-1994 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: EPE Type description: YJ, SJ_ From date: 01-12-1991 To date: 01-08-1996 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 Brand of engine: P00 Body: Convertible From date: 01-08-1996 To date: 01-04-2007 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Size of motor: 2.5 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      1 / 3
