Varenr.: F032112365

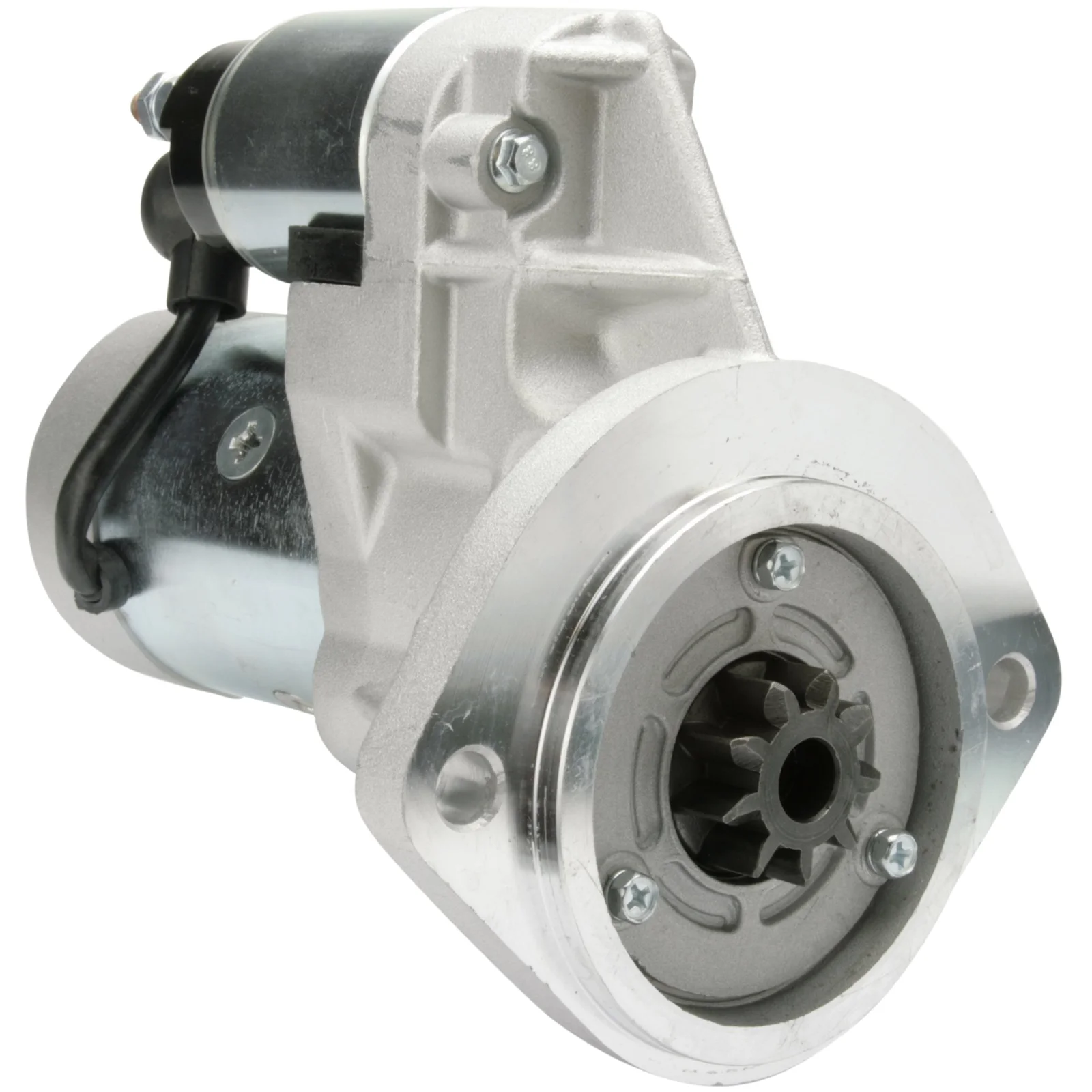

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Beskrivelse

Spenning: 12
kW: 2.2
Festebringe: 95.00
Drevavstand: 10.50
Festebore 2 mm: 11.00
Festebore 1 mm: 11.00
Avstand/bak: 214.00
Avstand/frem: 10.50
Nr./tenner: 9
B+: M8
Posisjon/50: 53
Kontakt 50: 6.30
Vridningstype: GR
Avstand mm: 119.00
Vridning: med klokken
Total lengde mm: 224.00
Koblingstype: Våt
Drevetype: Stål
Prod. info: BN
Værbestandig: Nei
Oljesperret: Nei
Nr./festeboringer: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 95.00
Oil sealed No
No./mount. holes 2 (0)
Position/50 53
Clutch type Wet
Prod. info BN
Rotation CW
Dist./back 214.00
Dist./front 10.50
Drive dist. 10.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 224.00 mm
Waterproof No
Dist. 119.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    dsr1167l, F032112365, js1159, s13-122, s13-126, s13-126a, s13-322, s13-326, 1986S00709, 1986S00917, 7383-10000, 23300-15900, 23300-1s900, 23300-54t00, 23300-90067, 23300-90069, 110566

  • Konkurrentreferens
    CST20130, DENDSN953, DRS3856, DRS3856N, DRS3856X, F032US0070, F042S04063, F042S0H150, J5211073, LRS01343, S2009, STR-6024, STR6011, STR72036, 8EA011350-411, 8EA011611-101, 8EA737806-001, 25-2153, 327.081.092, 9585, 30730N, 30730R, 104387, 201159, 203046, 220208, 220208A, 458896, 8212699, 11040176, 11040753, 0986022690

  • NormaliseratArtNr
    cst20130, dendsn953, drs3856, drs3856n, drs3856x, dsr1167l, f032112365, f032us0070, f042s04063, f042s0h150, j5211073, js1159, lrs01343, s13122, s13126, s13126a, s13322, s13326, s2009, str6011, str6024, str72036, 8ea011350411, 8ea011611101, 8ea737806001, 1986s00709, 1986s00917, 9585, 30730n, 30730r, 104387, 110566, 201159, 203046, 220208, 220208a, 233001s900, 252153, 458896, 2330054t00, 8212699, 11040176, 11040753, 327081092, 738310000, 0986022690, 2330015900, 2330090067, 2330090069

  • Passar modeller
    Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
    Nissan Model: Trade Model series: Trade Type of engine: Diesel Size of motor: 3.0 Brand of engine: BD-30II Body: Platform / Chassis From date: 01-01-1994 To date: 01-12-1998 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 12
    kW: 2.2
    Festebringe: 95.00
    Drevavstand: 10.50
    Festebore 2 mm: 11.00
    Festebore 1 mm: 11.00
    Avstand/bak: 214.00
    Avstand/frem: 10.50
    Nr./tenner: 9
    B+: M8
    Posisjon/50: 53
    Kontakt 50: 6.30
    Vridningstype: GR
    Avstand mm: 119.00
    Vridning: med klokken
    Total lengde mm: 224.00
    Koblingstype: Våt
    Drevetype: Stål
    Prod. info: BN
    Værbestandig: Nei
    Oljesperret: Nei
    Nr./festeboringer: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 95.00
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 53
    Clutch type Wet
    Prod. info BN
    Rotation CW
    Dist./back 214.00
    Dist./front 10.50
    Drive dist. 10.50
    Drive type Steel
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 224.00 mm
    Waterproof No
    Dist. 119.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      dsr1167l, F032112365, js1159, s13-122, s13-126, s13-126a, s13-322, s13-326, 1986S00709, 1986S00917, 7383-10000, 23300-15900, 23300-1s900, 23300-54t00, 23300-90067, 23300-90069, 110566

    • Konkurrentreferens
      CST20130, DENDSN953, DRS3856, DRS3856N, DRS3856X, F032US0070, F042S04063, F042S0H150, J5211073, LRS01343, S2009, STR-6024, STR6011, STR72036, 8EA011350-411, 8EA011611-101, 8EA737806-001, 25-2153, 327.081.092, 9585, 30730N, 30730R, 104387, 201159, 203046, 220208, 220208A, 458896, 8212699, 11040176, 11040753, 0986022690

    • NormaliseratArtNr
      cst20130, dendsn953, drs3856, drs3856n, drs3856x, dsr1167l, f032112365, f032us0070, f042s04063, f042s0h150, j5211073, js1159, lrs01343, s13122, s13126, s13126a, s13322, s13326, s2009, str6011, str6024, str72036, 8ea011350411, 8ea011611101, 8ea737806001, 1986s00709, 1986s00917, 9585, 30730n, 30730r, 104387, 110566, 201159, 203046, 220208, 220208a, 233001s900, 252153, 458896, 2330054t00, 8212699, 11040176, 11040753, 327081092, 738310000, 0986022690, 2330015900, 2330090067, 2330090069

    • Passar modeller
      Nissan Model: Atleon Model series: 110.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 110.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.35 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Atleon Model series: 120.56 Size of motor: 3.0 Brand of engine: BD-30Ti Type description: Atleon Body: Platform / Chassis From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: TDi Size of motor: 2.7 Brand of engine: TD27TI Type description: R20 Body: Van From date: 01-06-1998 To date: 01-09-2007 Fuel: Diesel Approved: Yes
      Nissan Model: Trade Model series: Trade Type of engine: Diesel Size of motor: 3.0 Brand of engine: BD-30II Body: Platform / Chassis From date: 01-01-1994 To date: 01-12-1998 Fuel: Diesel Approved: Yes
      1 / 2
