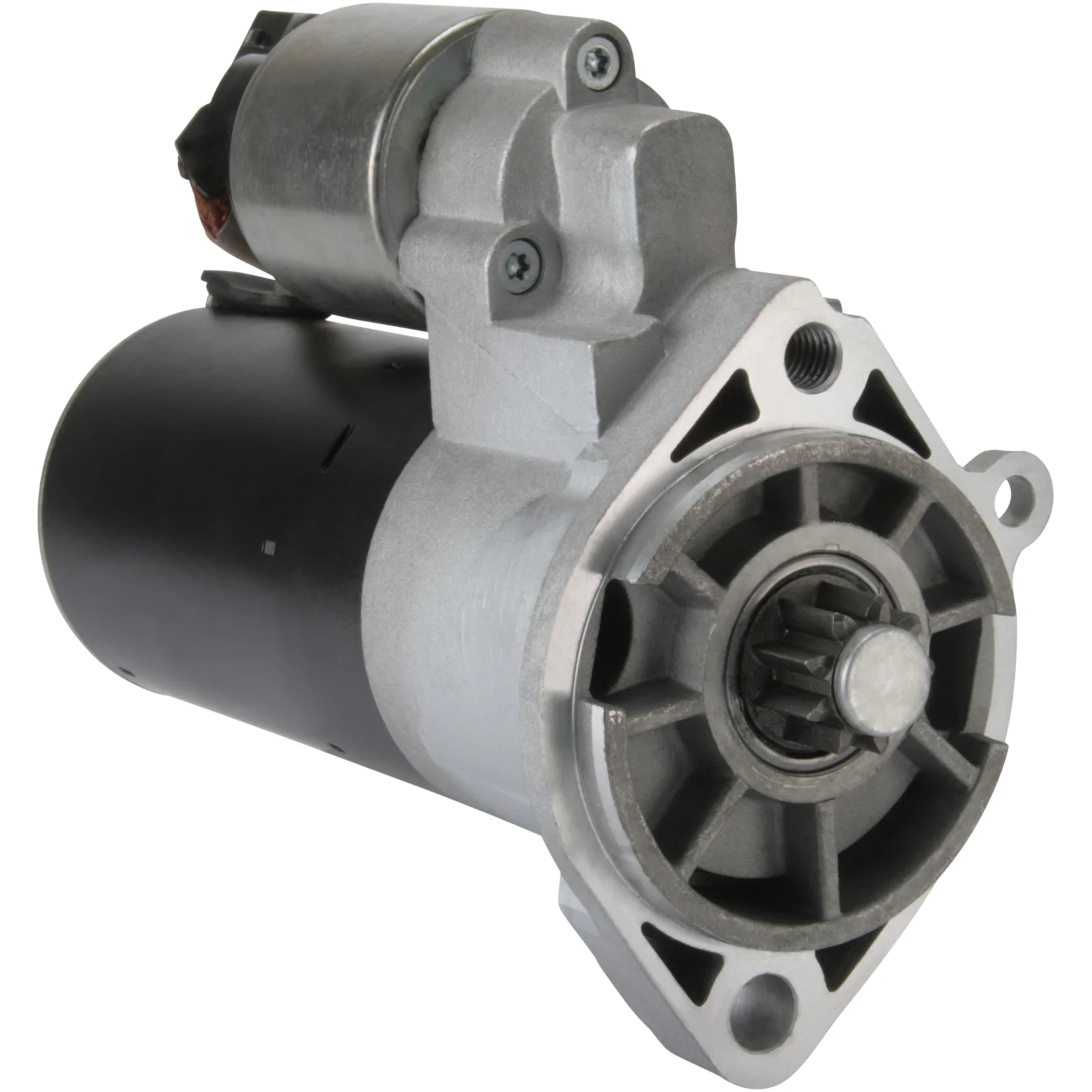

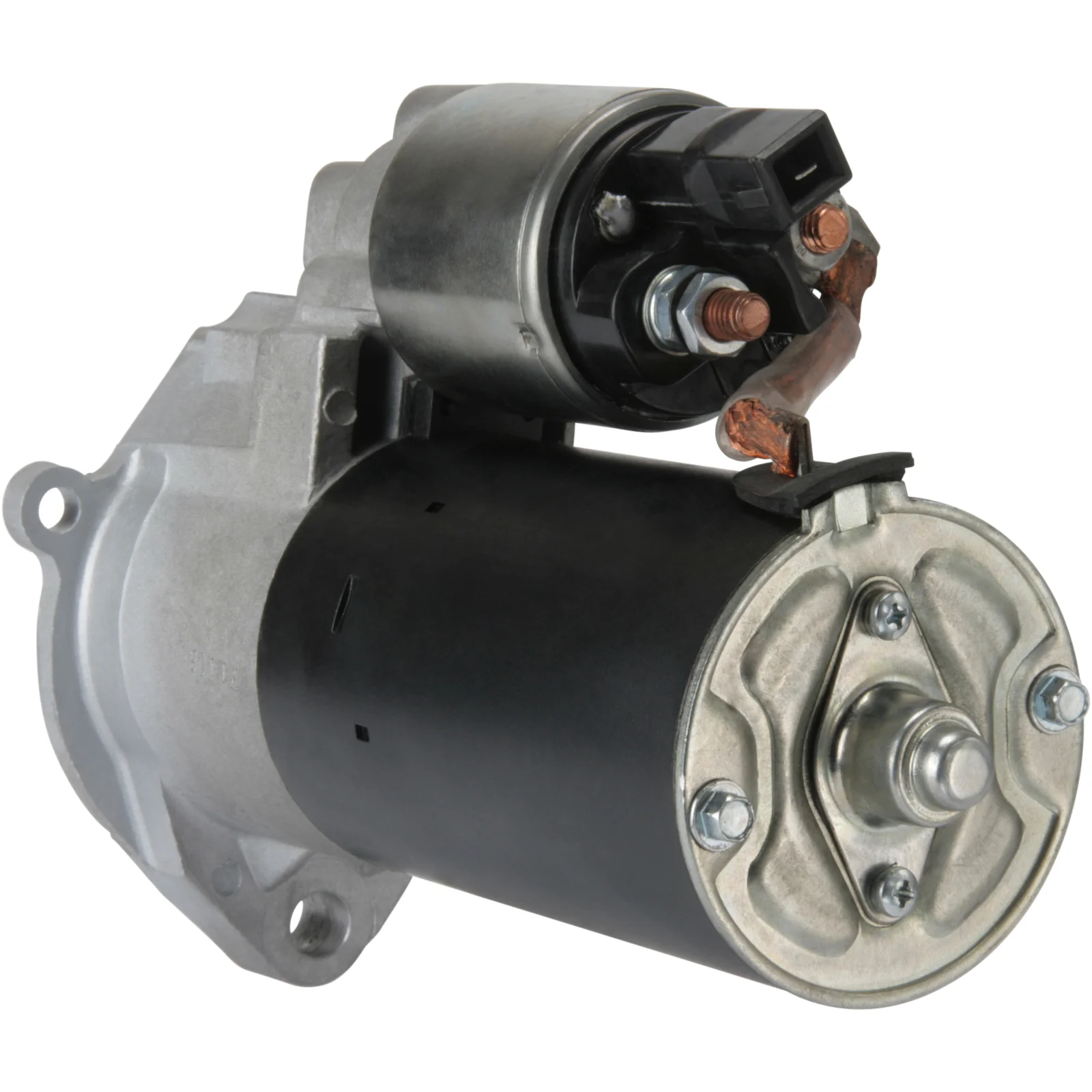

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112430

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2.0
Festebøssing: 82.50
Drevavstand: 21.00
Festeboring 2 mm: 11.00
Avstand/bak: 203.00
Avstand/front: 25.00
Nr./tenner: 9
B+: M8
Posisjon/50: 60
Terminal 50: 4.80
G gevingstype: GR
Avstand mm: 104.50
Rotasjon: med klokka
Total lengde mm: 229.50
Koblingsype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Nr./festeboringer: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (1)
Position/50 60
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 203.00
Dist./front 25.00
Drive dist. 21.00
Drive type Steel
Gear type GR
kW 2.0
Terminal 50 4.80
Voltage 12
Total length 229.50 mm
Waterproof No
Dist. 104.50 mm
Mount. hole 2 11.00 mm

  • OEM
    cs1187, F032112430, 1986S00819, 0001125507, 0001125508, 0001125517, 0001125518, 1516682R, 069911023j, 069911023JX, 069911023m, 069911023MX

  • Konkurrentreferens
    CST10296, DRS8940, F032US0053, F042S02188, F042S0H121, LRS01540, S0192, STR-H121, 8EA012527-371, 25-3024, 311.097.092, 32553N, 101187, 104734, 220651, 220651A, 458538, 726923, 8212301, 11018940, 0986018940, 944280189400

  • NormaliseratArtNr
    cs1187, cst10296, drs8940, f032112430, f032us0053, f042s02188, f042s0h121, lrs01540, s0192, strh121, 8ea012527371, 1986s00819, 32553n, 101187, 104734, 220651, 220651a, 253024, 458538, 726923, 0001125507, 0001125508, 0001125517, 0001125518, 1516682r, 8212301, 11018940, 069911023j, 069911023jx, 069911023m, 069911023mx, 311097092, 0986018940, 944280189400

  • Passar modeller
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: APA Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Bus From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 28-35 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: ANJ Body: Van From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
    VW Model: LT Model series: LT 40-55 Type of engine: TDi Size of motor: 2.5 Brand of engine: AVR Body: Platform / Chassis From date: 01-05-1999 To date: 01-07-2006 Fuel: Diesel Approved: Yes
