HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112442

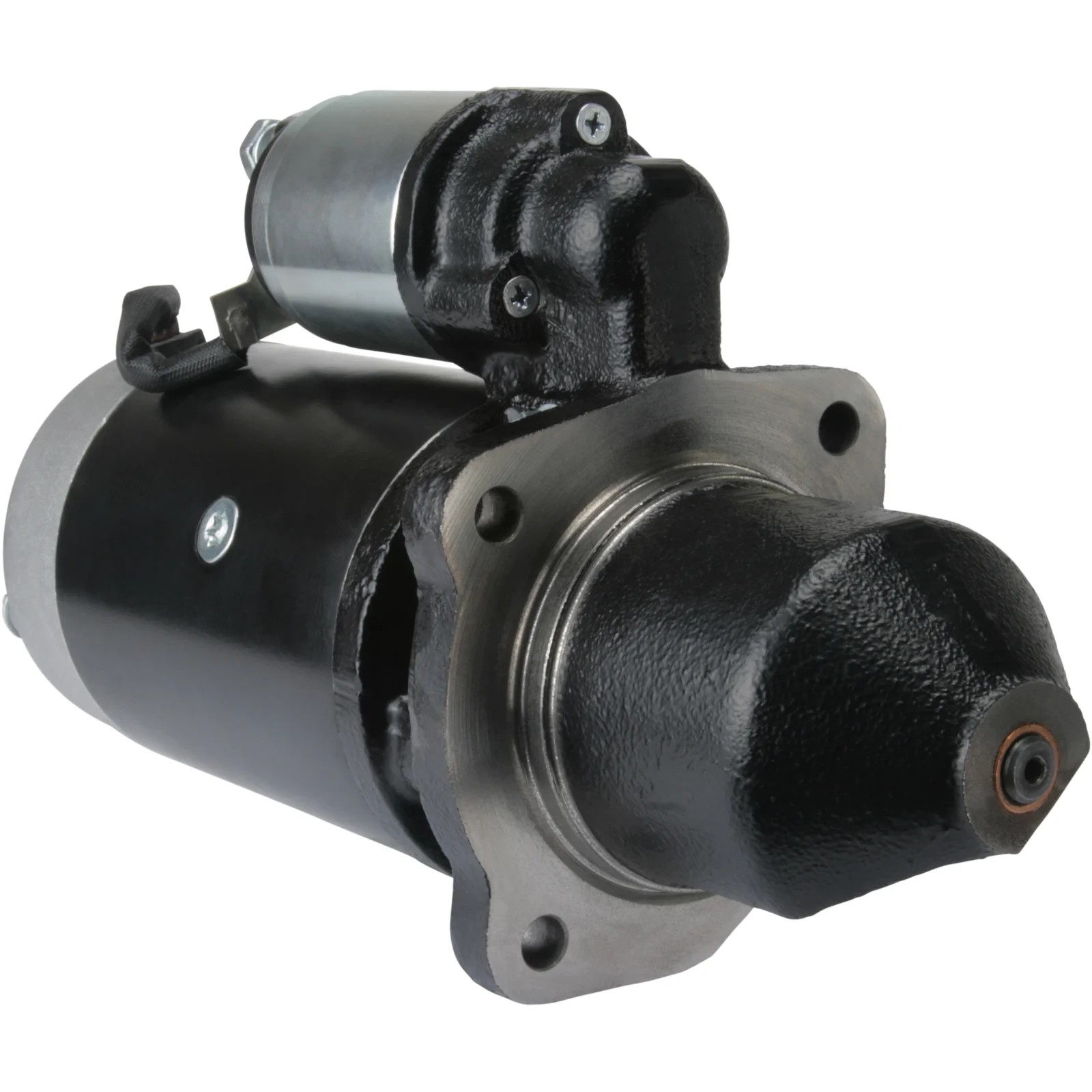

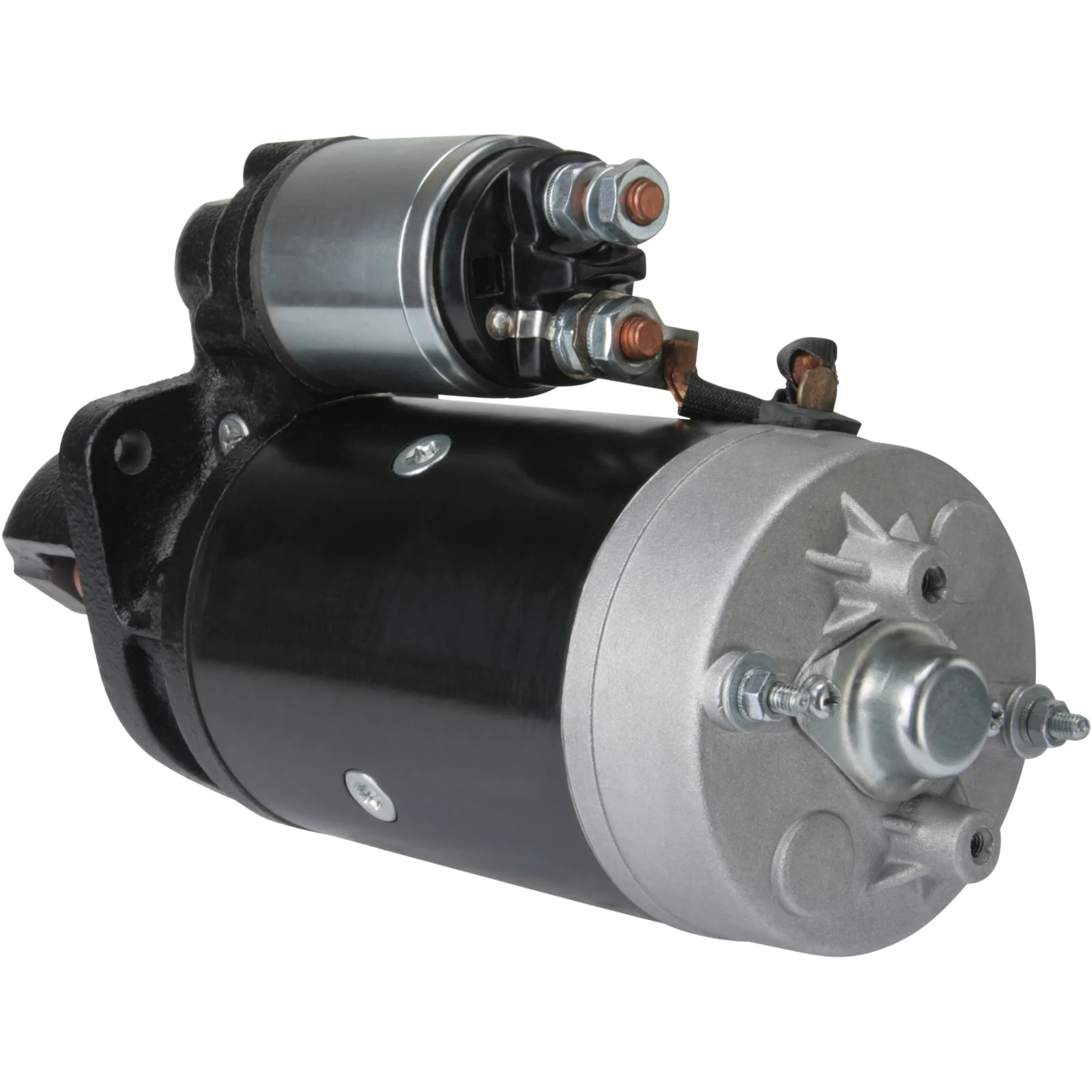

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 3,0kW, Antall tann: 10, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 3,0
Festebracket: 89,00
Driveavstand: 48,00
Festebore 3 mm: 11,00
Festebore 2 mm: 11,00
Festebore 1 mm: 11,00
Avstand/bak: 235,00
Avstand/frem: 96,00
Antall./tenner: 10
B+: M10
Posisjon/50: 15
Terminal 50: M4
Geværtype: DD
Avstand 2: 90,00
Avstand 3: 90,00
Avstand mm: 127,00
Rotasjon: Kl. CW
Total lengde mm: 340,00
Koppl. type: Tørr
Drive type: Stål
Prod. info: BN
Vannavvisende: Nei
Oljetett: Nei
Info: GR Starter HC-CARGO 115609.
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 235.00
Dist./front 96.00
Drive dist. 48.00
Drive type Steel
Gear type DD
Info GR Starter HC-CARGO 115609.
kW 3.0
Terminal 50 M4
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

  • Konkurrentreferens
    ALT10391, CST10228, DRS3818, LRS01622, S0250, S9060, STR22096, 25-3148, 630.009.103, 686.005.102, 18361, 18631N, 19655N, 19655R, 101205, 101376, 0986024000, 0986024003

  • NormaliseratArtNr
    al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003

  • Passar modeller
    John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 3,0
    Festebracket: 89,00
    Driveavstand: 48,00
    Festebore 3 mm: 11,00
    Festebore 2 mm: 11,00
    Festebore 1 mm: 11,00
    Avstand/bak: 235,00
    Avstand/frem: 96,00
    Antall./tenner: 10
    B+: M10
    Posisjon/50: 15
    Terminal 50: M4
    Geværtype: DD
    Avstand 2: 90,00
    Avstand 3: 90,00
    Avstand mm: 127,00
    Rotasjon: Kl. CW
    Total lengde mm: 340,00
    Koppl. type: Tørr
    Drive type: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljetett: Nei
    Info: GR Starter HC-CARGO 115609.
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 235.00
    Dist./front 96.00
    Drive dist. 48.00
    Drive type Steel
    Gear type DD
    Info GR Starter HC-CARGO 115609.
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 340.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      AL70852, al81154, cs1205, F032112442, 501856, 0001367077, 9142745

    • Konkurrentreferens
      ALT10391, CST10228, DRS3818, LRS01622, S0250, S9060, STR22096, 25-3148, 630.009.103, 686.005.102, 18361, 18631N, 19655N, 19655R, 101205, 101376, 0986024000, 0986024003

    • NormaliseratArtNr
      al70852, al81154, alt10391, cs1205, cst10228, drs3818, f032112442, lrs01622, s0250, s9060, str22096, 18361, 18631n, 19655n, 19655r, 101205, 101376, 253148, 501856, 0001367077, 9142745, 630009103, 686005102, 0986024000, 0986024003

    • Passar modeller
      John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      1 / 3
