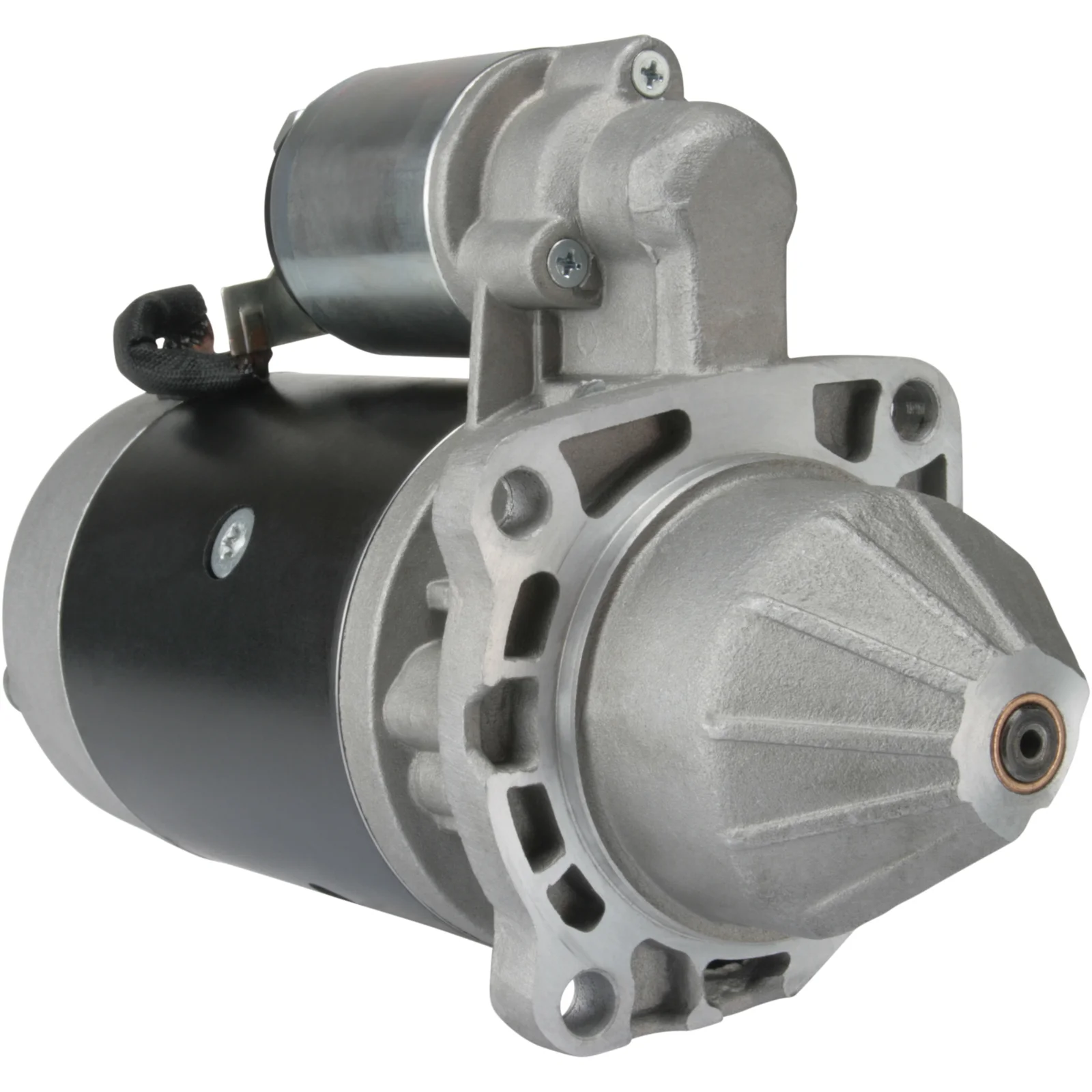

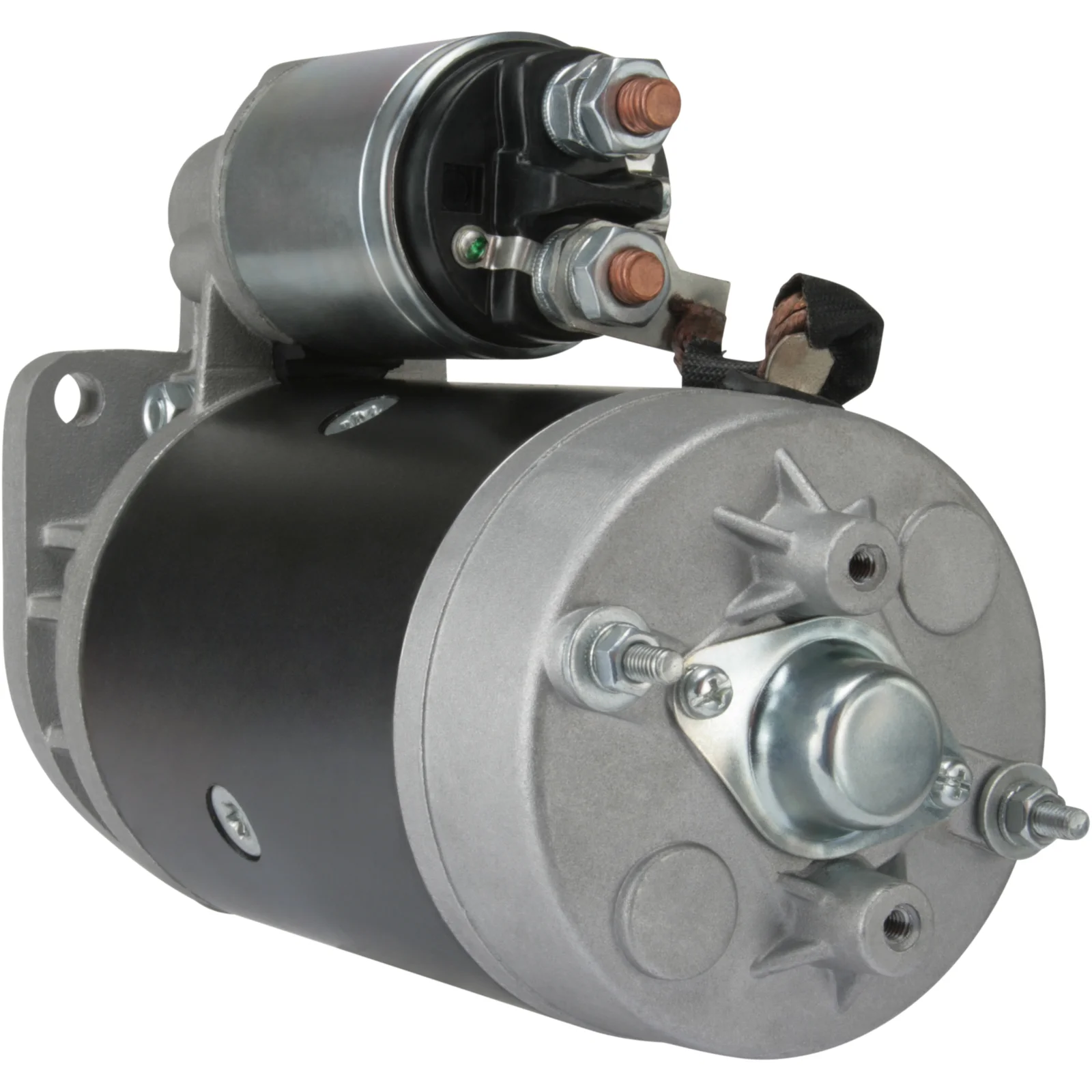

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112555

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 3.1, Antall/tand: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 3,1
Monteringsflens: 89,00
Drevavstand: 28,50
Monteringshull 3 mm: 10,50
Monteringshull 2 mm: 10,50
Monteringshull 1 mm: 10,50
Avstand/bak: 229,50
Avstand/frem: 73,00
Antall/tannhjul: 9
B+: M10
Posisjon/50: 15
Terminal 50: M4
Gavltype: DD
Avstand 2: 90,00
Avstand 3: 90,00
Avstand mm: 127,00
Rotasjon: medur
Total lengde mm: 303,00
Koplingstype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Olje forseglet: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 229.50
Dist./front 73.00
Drive dist. 28.50
Drive type Steel
Gear type DD
kW 3.1
Terminal 50 M4
Voltage 12
Total length 303.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    azj3179, C000900060120, cs887, F032112555, F119900060010, F716903060040, 11.130.567, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 9142803

  • Konkurrentreferens
    BSO7181, CST10361, drs6550, DRS6550N, DRS9020, is0567, lrs00987, MS308, S0174, SR994ZX, STR22060, 2-1889-BO, 8ea737086-001, 25-2110, 88-16.550, 688.015.092, 4150, 10887, 18026, 18026N, 18232N, 33885, 101130, 104790, 220787, 220787A, 11016550, 42016550, 943252299, 0986016550, 0986016557

  • NormaliseratArtNr
    azj3179, bso7181, c000900060120, cs887, cst10361, drs6550, drs6550n, drs9020, f032112555, f119900060010, f716903060040, is0567, lrs00987, ms308, s0174, sr994zx, str22060, 8ea737086001, 4150, 10887, 18026, 18026n, 18232n, 21889bo, 33885, 101130, 104790, 220787, 220787a, 252110, 01179318, 1179318, 01179319, 1179319, 01180805, 1180805, 0001230014, 0001369014, 0001369024, 05712907, 8816550, 9142803, 11016550, 11130567, 42016550, 688015092, 943252299, 0986016550, 0986016557

  • Passar modeller
    Bosch Model: DDOD Model series: DDOD 27 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Bosch Model: DDOD Model series: DDOD 36 Size of motor: 4.0 Brand of engine: F4L912 From date: 01-04-1982 To date: 01-01-1999 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 6807 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: D Series Model series: D 7007 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.10 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.30 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.50 Size of motor: 3.1 Brand of engine: F3L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.60 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.70 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.80 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 3.90 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.10 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.30 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.31 Size of motor: 4.1 Brand of engine: F4L913 From date: 01-01-1991 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.50 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.51 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 4.70 Size of motor: 4.1 Brand of engine: BF4L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.05 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.30 Size of motor: 6.1 Brand of engine: F6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.31 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1990 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.50 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 6.60 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-10-1988 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: DX Model series: DX 7.10 Size of motor: 6.1 Brand of engine: BF6L913 From date: 01-06-1986 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Intrac Model series: Intrac 6.30 Size of motor: 6.0 Brand of engine: BF6L913 From date: 01-01-1989 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 1080 Size of motor: 4.7 Brand of engine: F5L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 1202 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1980 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 2385 Size of motor: 5.7 Brand of engine: F6L912 From date: 01-01-1982 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 3330 Size of motor: 2.8 Brand of engine: F3L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 3360 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-03-1987 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: M Series Model series: M 980 Size of motor: 3.8 Brand of engine: F4L912 From date: 01-01-1981 Fuel: Diesel Approved: Yes
    Deutz-Fahr Model: Various Models Model series: Various Models Approved: Yes
    Fendt Model: Farmer Model series: 200 Series Size of motor: 2.8 Brand of engine: F3L912 From date: 01-02-1974 Fuel: Diesel Approved: Yes
    Fendt Model: Farmer Model series: 204 Size of motor: 3.8 Brand of engine: F4L 912 From date: 01-02-1979 Fuel: Diesel Approved: Yes
    Fendt Model: Various Models Model series: Various Models Approved: Yes
    Irmer Model: Various Models Model series: Various Models Approved: Yes
    Jenbacher Werke Model: Various Models Model series: Various Models Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 2.8 Brand of engine: F3L912.. From date: 01-07-1986 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 3.8 Brand of engine: F4L912 From date: 01-07-1989 Fuel: Diesel Approved: Yes
    KHD Model: Engine Model series: Engine Size of motor: 5.7 Brand of engine: F6L912 From date: 01-05-1990 Fuel: Diesel Approved: Yes
    Kramer Model: Various Models Model series: Various Models Approved: Yes
    Linde Model: H Model series: H 20, 25, 30 Brand of engine: F3L913 Approved: Yes
    Linde Model: H Model series: H 35, 40 Brand of engine: F4L 912 Approved: Yes
    Linde Model: H Model series: H 70 Brand of engine: F6L912 Approved: Yes
    1 / 9
