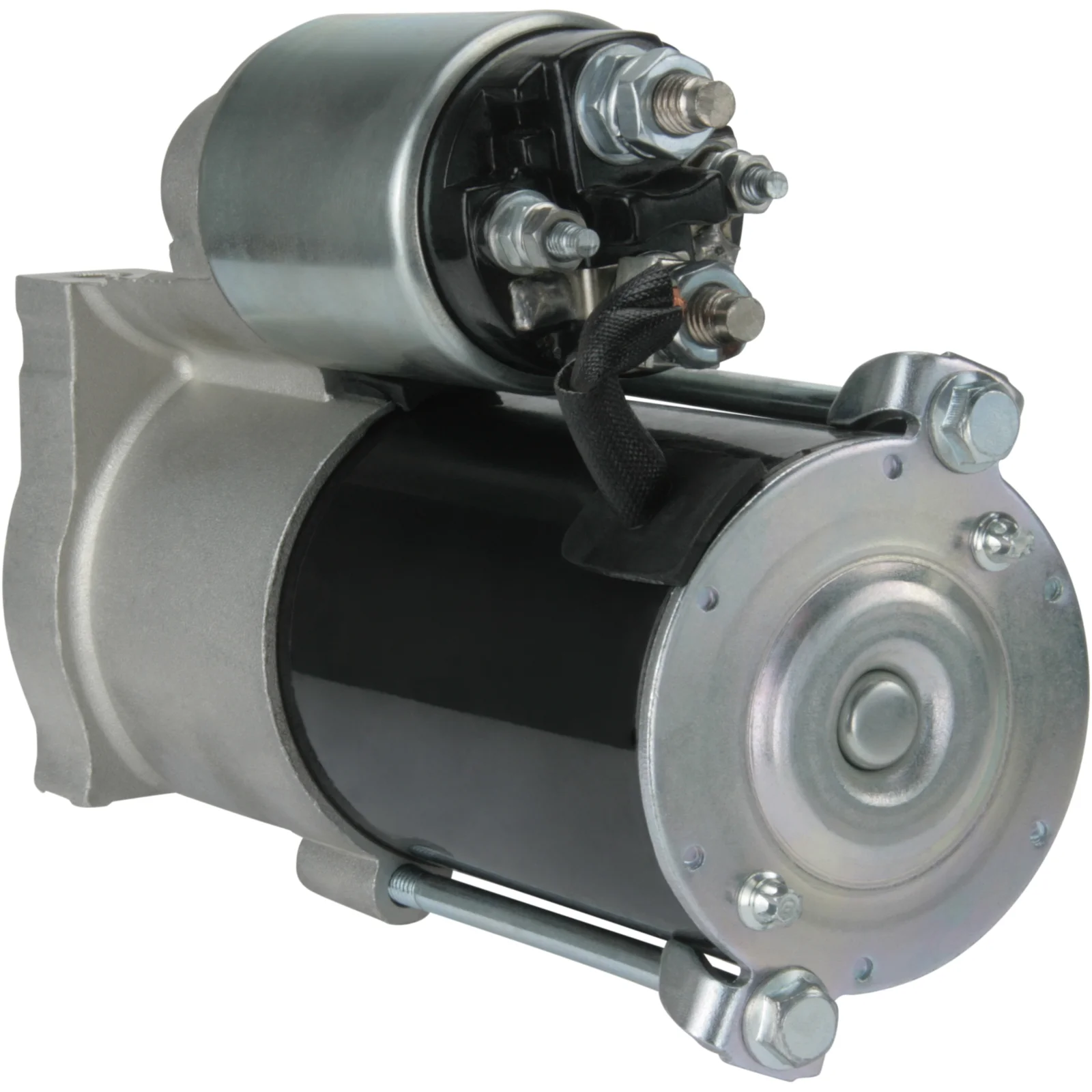

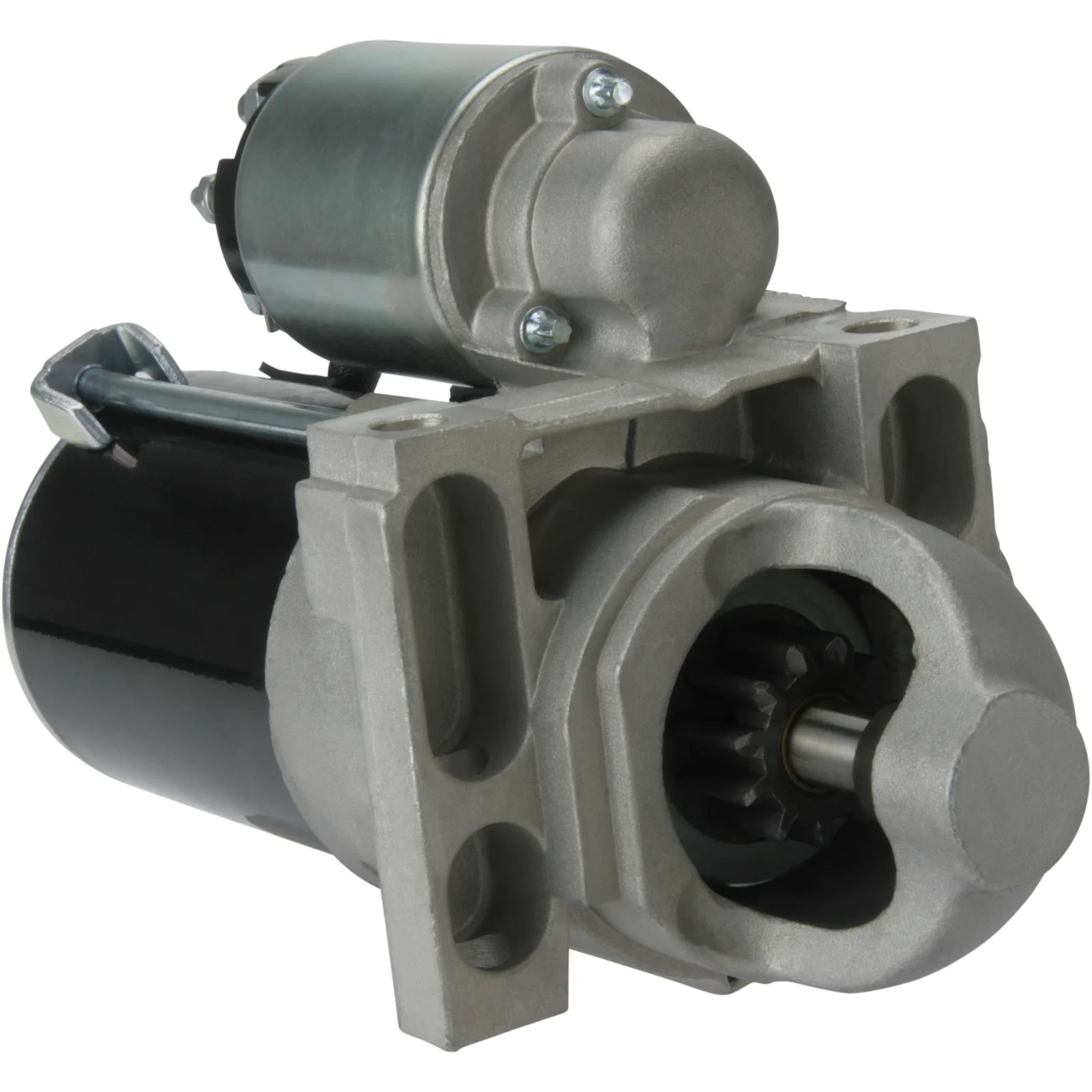

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032112902

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.2, No./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1,2
Drive avstand: 18,00
Festebore 2 mm: 10,00
Festebore 1 mm: 10,00
Avstand/bak: 155,00
Avstand/frem: 57,00
Nr./tenner: 9
B+: M8
Posisjon/50: 55
Terminal 50: M5
Geventype: DD/GR
Avstand mm: 73,50
Rotasjon: CW
Total lengde mm: 214,50
Koblingstype: Våt
Drivningstype: Stål
Prod. info: BN
Vannavstøtende: Nei
Oljeforseglet: Nei
Merknader: Erstatter: PG260F2.
Nr./festeboringer: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Oil sealed No
No./mount. holes 2 (0)
Position/50 55
Clutch type Wet
Prod. info BN
Remarks Replacing: PG260F2.
Rotation CW
Dist./back 155.00
Dist./front 57.00
Drive dist. 18.00
Drive type Steel
Gear type DD/GR
kW 1.2
Terminal 50 M5
Voltage 12
Total length 214.50 mm
Waterproof No
Dist. 73.50 mm
Mount. hole 2 10.00 mm
Mount. hole 1 10.00 mm

  • OEM
    F032112902, 323-1400, 323-1483, 336-2002, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050

  • Konkurrentreferens
    F042003032, F042S03032, S1206S, sdr0070, STR-2618, 2-2054-dr, 2-2054-DR-1, 2-2054-DR-2, 2-2139-dr, 2-2211-dr, 2-2211-DR-2, 6488, 6488N, 6489, 6489N, 6489R, 6492, 6494, 6494N, 6494R, 8000016

  • NormaliseratArtNr
    f032112902, f042003032, f042s03032, s1206s, sdr0070, str2618, 6488, 6488n, 6489, 6489n, 6489r, 6492, 6494, 6494n, 6494r, 22054dr, 22054dr1, 22054dr2, 22139dr, 22211dr, 22211dr2, 3231400, 3231483, 3362002, 8000016, 9000837, 9000842, 9000854, 9000873, 9000925, 9000939, 10465463, 12560672, 12563908, 12573853, 12578050

  • Passar modeller
    Buick Model: Raider Model series: Raider Size of motor: 5.3 From date: 01-01-2004 To date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Cadillac Model: Escalade Model series: Escalade Size of motor: 5.3 From date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: 1500 Model series: 1500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: 1500 Model series: 1500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: 1500 Model series: 1500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Chevrolet Model: 1500 Model series: 1500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Flex Approved: Yes
    Chevrolet Model: 1500 Model series: 1500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: 2500 Model series: 2500 Model type: Suburban Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Avalance Model series: Avalance Size of motor: 5.3 From date: 01-01-2002 To date: 01-12-2002 Approved: Yes
    Chevrolet Model: Avalanche Model series: Avalanche Model type: 1500 Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Avalanche Model series: Avalanche Model type: 1500 Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 4.8 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 4.8 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 4.8 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 5.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 5.3 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 1500 Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Silverado Model series: Silverado Model type: 2500 Size of motor: 5.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Suburban Model series: Suburban Size of motor: 6.0 From date: 01-05-2000 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 4.8 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 4.8 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 4.8 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 5.3 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    Chevrolet Model: Tahoe Model series: Tahoe Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    GMC Model: Envoy Model series: Envoy Model type: XL Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 4.8 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 4.8 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 5.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 5.3 From date: 01-01-2001 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 1500 Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    GMC Model: Sierra Model series: Sierra Model type: 2500 Size of motor: 5.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 1500 Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 1500 Size of motor: 5.3 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 1500 Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 1500 Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Flex Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 1500 Size of motor: 5.3 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Model type: XL 2500 Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 4.8 From date: 01-01-2000 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 4.8 From date: 01-01-2001 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 5.3 From date: 01-01-2000 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Flex Approved: Yes
    GMC Model: Yukon Model series: Yukon Size of motor: 5.3 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    1 / 9
