Varenr.: F032113114

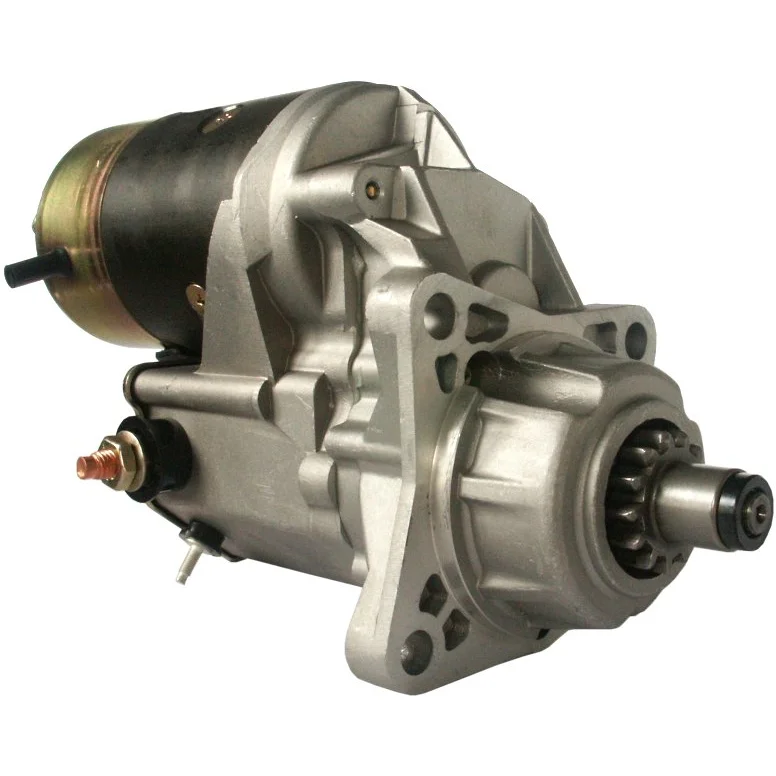

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.7, No./tenner: 13, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2,7
Monteringsflens: 89,00
Driveavstand: 47,00
Monteringshull 3 mm: 11,30
Monteringshull 2 mm: 11,00
Monteringshull 1 mm: 11,00
Avstand/bak: 221,50
Avstand/frem: 73,50
Antall/tannhjul: 13
B+: M10
Posisjon/50: 25
Terminal 50: M5
Gafletype: GR
Avstand 2: 89,50
Avstand 3: 89,50
Avstand mm: 126,50
Rotasjon: CW
Total lengde mm: 301,00
Dreietype: Stål
Prod. info: BN
Vanntett: Nei
Oljeisolert: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 13
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 25
Prod. info BN
Dist. 2 89.50
Dist. 3 89.50
Rotation CW
Dist./back 221.50
Dist./front 73.50
Drive dist. 47.00
Drive type Steel
Gear type GR
kW 2.7
Terminal 50 M5
Voltage 12
Total length 301.00 mm
Waterproof No
Dist. 126.50 mm
Mount. hole 3 11.30 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113114, 228000-2290, 228000-2291, 228000-2292, 3604684rx, 3921682, 4741012, 4746639

  • Konkurrentreferens
    CST40182, ds17548, DSN2120, F042000081, F042S00081, s-8544, s2409, S6070, snd0038, sr6519x, STR-6086, STR30011, STR6086, sz-0023r, 2-1739-nd, 35-2518, 91-29-5245, 17244, 17548, 17548N, 17548R, 255129

  • NormaliseratArtNr
    cst40182, ds17548, dsn2120, f032113114, f042000081, f042s00081, s2409, s6070, s8544, snd0038, sr6519x, str30011, str6086, sz0023r, 17244, 17548, 17548n, 17548r, 21739nd, 255129, 352518, 3604684rx, 3921682, 4741012, 4746639, 91295245, 2280002290, 2280002291, 2280002292

  • Passar modeller
    Cummins Model: B Series Model series: Engine Approved: Yes
    Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1994 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 2,7
    Monteringsflens: 89,00
    Driveavstand: 47,00
    Monteringshull 3 mm: 11,30
    Monteringshull 2 mm: 11,00
    Monteringshull 1 mm: 11,00
    Avstand/bak: 221,50
    Avstand/frem: 73,50
    Antall/tannhjul: 13
    B+: M10
    Posisjon/50: 25
    Terminal 50: M5
    Gafletype: GR
    Avstand 2: 89,50
    Avstand 3: 89,50
    Avstand mm: 126,50
    Rotasjon: CW
    Total lengde mm: 301,00
    Dreietype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljeisolert: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 13
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 25
    Prod. info BN
    Dist. 2 89.50
    Dist. 3 89.50
    Rotation CW
    Dist./back 221.50
    Dist./front 73.50
    Drive dist. 47.00
    Drive type Steel
    Gear type GR
    kW 2.7
    Terminal 50 M5
    Voltage 12
    Total length 301.00 mm
    Waterproof No
    Dist. 126.50 mm
    Mount. hole 3 11.30 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032113114, 228000-2290, 228000-2291, 228000-2292, 3604684rx, 3921682, 4741012, 4746639

    • Konkurrentreferens
      CST40182, ds17548, DSN2120, F042000081, F042S00081, s-8544, s2409, S6070, snd0038, sr6519x, STR-6086, STR30011, STR6086, sz-0023r, 2-1739-nd, 35-2518, 91-29-5245, 17244, 17548, 17548N, 17548R, 255129

    • NormaliseratArtNr
      cst40182, ds17548, dsn2120, f032113114, f042000081, f042s00081, s2409, s6070, s8544, snd0038, sr6519x, str30011, str6086, sz0023r, 17244, 17548, 17548n, 17548r, 21739nd, 255129, 352518, 3604684rx, 3921682, 4741012, 4746639, 91295245, 2280002290, 2280002291, 2280002292

    • Passar modeller
      Cummins Model: B Series Model series: Engine Approved: Yes
      Cummins Model: Engine Model series: Engine Size of motor: 5.9 Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1994 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 2500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Quad Cab Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1997 To date: 01-01-1997 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1998 To date: 01-01-1998 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-1999 To date: 01-01-2001 Fuel: Diesel Approved: Yes
      Dodge Model: Ram Model series: Ram Model type: 3500 Type of engine: Turbo Size of motor: 5.9 Body: Pick Up From date: 01-01-2001 To date: 01-01-2001 Fuel: Diesel Approved: Yes
