Varenr.: F032113313

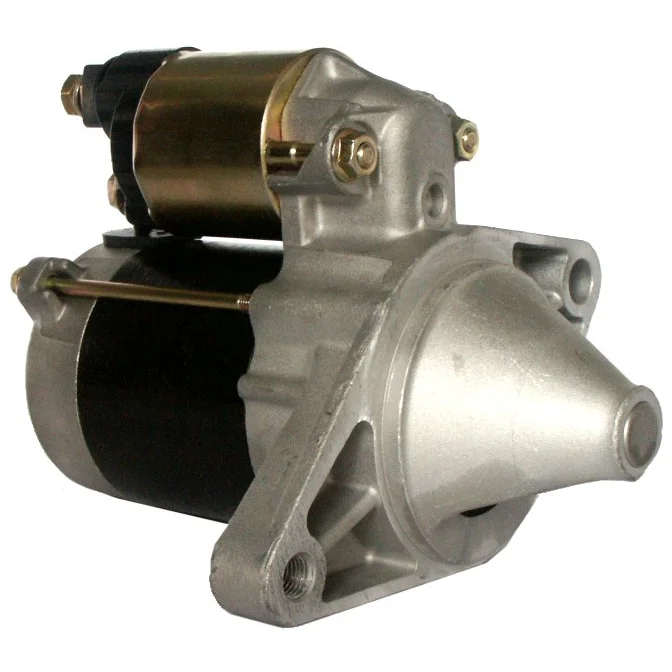

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 0,7, Antall/tenner: 8, Rotasjon: med klokka

Beskrivelse

Spenningsverdi: 12
kW: 0,7
Monteringsflens: 74,00
Dreven avstand: 11,50
Monteringshull 1 mm: 11,50
Avstand/tilbaketrekning: 135,00
Avstand/fremre: 47,50
Antall./tenner: 8
B+: M8
Posisjon/50: 40
Terminal 50: Plugg
Girtype: DD
Avstand mm: 131,50
Rotasjon: med klokka
Total lengde mm: 187,00
Drevtype: Stål
Prod. info: Reman
Vannbestandig: Nei
Oljetett: Nei
Antall./monteringshull: 2 (1)

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (1)
Position/50 40
Prod. info Reman
Rotation CW
Dist./back 135.00
Dist./front 47.50
Drive dist. 11.50
Drive type Steel
Gear type DD
kW 0.7
Terminal 50 Plug
Voltage 12
Total length 187.00 mm
Waterproof No
Dist. 131.50 mm
Mount. hole 1 11.50 mm
  • OEM

    F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530
  • Konkurrentreferens

    DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561
  • NormaliseratArtNr

    drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020
  • Passar modeller

    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenningsverdi: 12
    kW: 0,7
    Monteringsflens: 74,00
    Dreven avstand: 11,50
    Monteringshull 1 mm: 11,50
    Avstand/tilbaketrekning: 135,00
    Avstand/fremre: 47,50
    Antall./tenner: 8
    B+: M8
    Posisjon/50: 40
    Terminal 50: Plugg
    Girtype: DD
    Avstand mm: 131,50
    Rotasjon: med klokka
    Total lengde mm: 187,00
    Drevtype: Stål
    Prod. info: Reman
    Vannbestandig: Nei
    Oljetett: Nei
    Antall./monteringshull: 2 (1)
  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (1)
    Position/50 40
    Prod. info Reman
    Rotation CW
    Dist./back 135.00
    Dist./front 47.50
    Drive dist. 11.50
    Drive type Steel
    Gear type DD
    kW 0.7
    Terminal 50 Plug
    Voltage 12
    Total length 187.00 mm
    Waterproof No
    Dist. 131.50 mm
    Mount. hole 1 11.50 mm
  • Kjøretøymatching
    • OEM

      F032113313, js1299, 28100-0J010, 28100-23020, 228000-8350, 228000-9530
    • Konkurrentreferens

      DRS3864, F042S0H048, J5212110, LRS01452, S6035, STR-H048, 8EA011610-741, 25-2381, 335.075.082, 105520, 201299, 220759, 220759A, 8020561, 11040680, 0986020561
    • NormaliseratArtNr

      drs3864, f032113313, f042s0h048, j5212110, js1299, lrs01452, s6035, strh048, 8ea011610741, 105520, 201299, 220759, 220759a, 252381, 281000j010, 8020561, 11040680, 335075082, 0986020561, 2280008350, 2280009530, 2810023020
    • Passar modeller

      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
