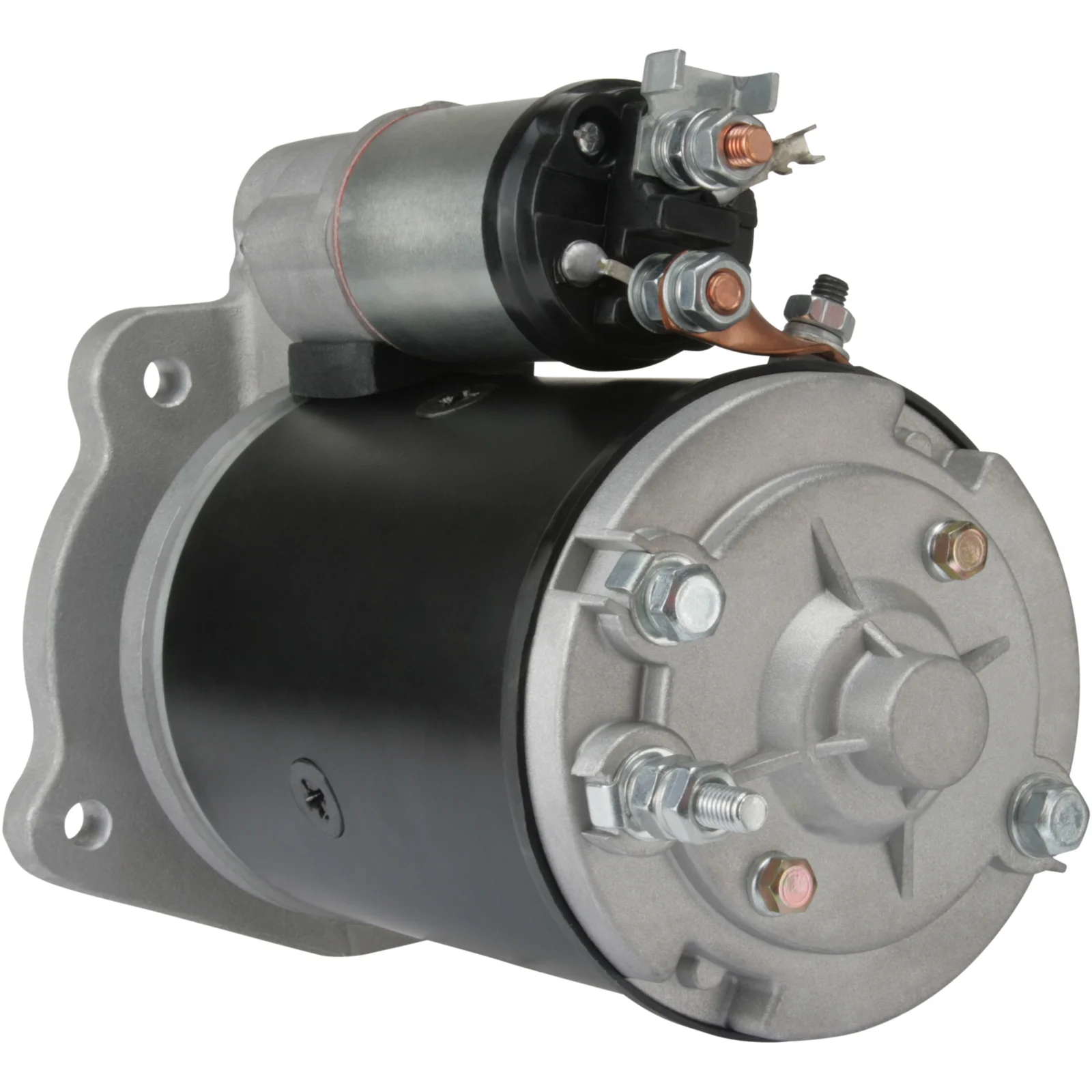

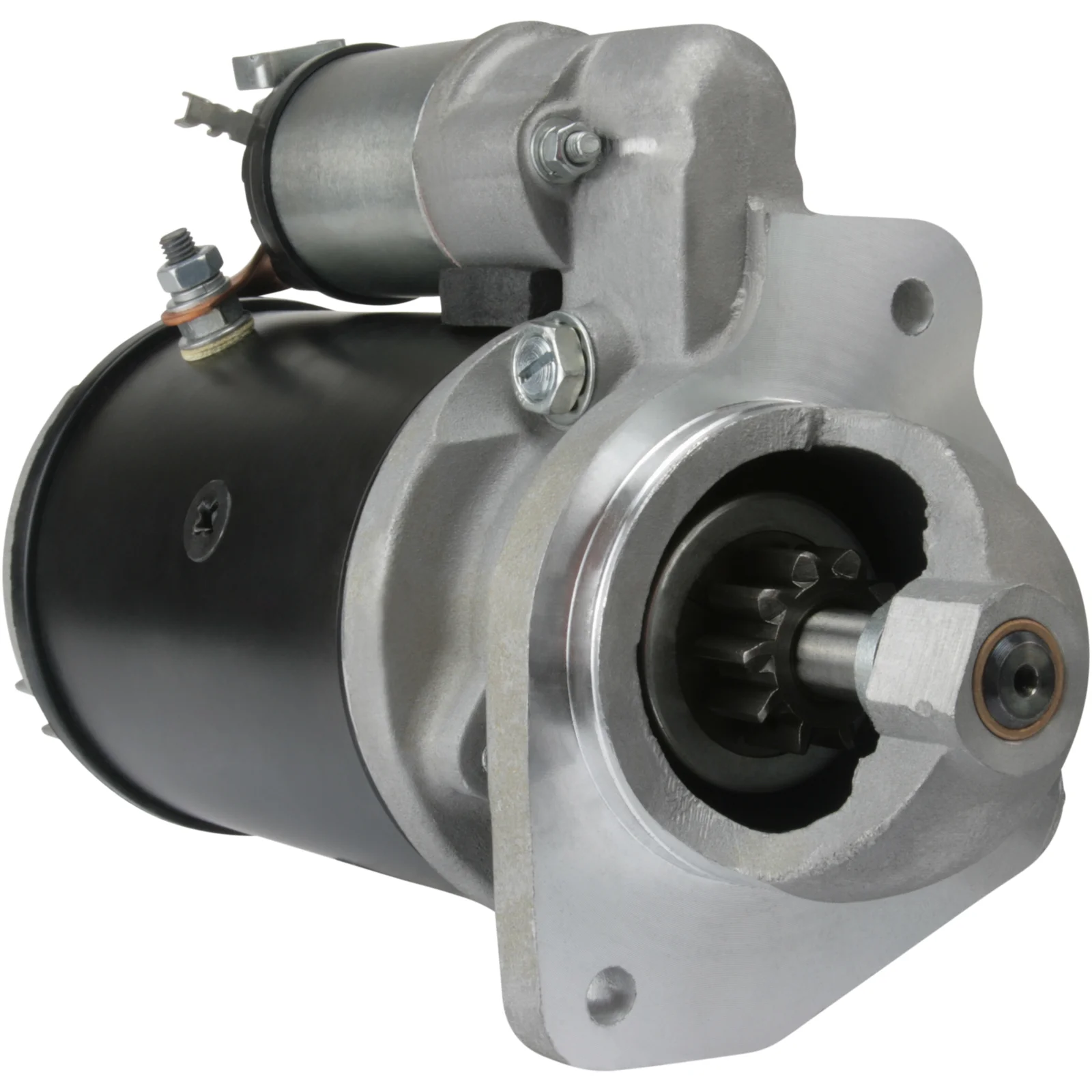

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113380

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.8, No./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.8
Monteringsflens: 92.00
Dreiavstand: 20.00
Monteringhull 3 mm: 10.50
Monteringhull 2 mm: 10.50
Monteringhull 1 mm: 10.50
Avstand/bak: 227.00
Avstand/frem: 71.00
Antall/tenner: 10
B+: M8
Gjengetykkelse mm: 20.00
Posisjon/50: 10
Gresstype: DD
Avstand 2: 103.50
Avstand 3: 146.50
Avstand mm: 103.50
Rotasjon: CW
Posisjon/b-: 45
B-: M8
Total lengde mm: 311.50
Dreiartype: Stål
Prod. info: BN
Vanntett: Nei
Oljepakning: Nei
Merknader: Terminal 50 er der ledningen skal loddes.
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
B- M8
No./teeth 10
Mount. flange 92.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 10
Position/b- 45
Prod. info BN
Dist. 2 103.50
Remarks Terminal 50 is where the wire needs to be soldered.
Dist. 3 146.50
Rotation CW
Dist./back 227.00
Dist./front 71.00
Drive dist. 20.00
Drive type Steel
Gear type DD
kW 2.8
Voltage 12
Total length 311.50 mm
Waterproof No
Dist. 103.50 mm
Thread length 20.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    cs345, F032113380, NSB534, R82DB11000EA, 83DB11000BB, 26305, 26305a, 26305b, 26305d, 26305h, 26305j, 26305n, 26312, 26329, 26329a, 26329b, 26329d, 26329k, 26329l, 26430, 26430a, 26430d, 27504, 27504a, 27504b, 27507, 27507a, 27507b, 27553, 27553a, 27553d, 860106, 0001367056, 1516742R, 6092295

  • Konkurrentreferens
    BSO7237, CST25119, drs0950, drs3197, drs5040, lrs00484, S4008, S4072S, vs223, 8ea726093-001, 25-0343, 25-1011, 88-11.240, 88-13.190, 619.002.102, 1593, 10345, 33452, 11013190, 20500484, 063227553, 0986013190, 063227553010

  • NormaliseratArtNr
    bso7237, cs345, cst25119, drs0950, drs3197, drs5040, f032113380, lrs00484, nsb534, r82db11000ea, s4008, s4072s, vs223, 8ea726093001, 83db11000bb, 1593, 10345, 26305, 26305a, 26305b, 26305d, 26305h, 26305j, 26305n, 26312, 26329, 26329a, 26329b, 26329d, 26329k, 26329l, 26430, 26430a, 26430d, 27504, 27504a, 27504b, 27507, 27507a, 27507b, 27553, 27553a, 27553d, 33452, 250343, 251011, 860106, 0001367056, 1516742r, 6092295, 8811240, 8813190, 11013190, 20500484, 063227553, 619002102, 0986013190, 063227553010

  • Passar modeller
    Ford Model: Cargo Model series: 1115 Size of motor: 6.0 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: Cargo Model series: 1215 Size of motor: 5.9 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: Cargo Model series: 711 Size of motor: 5.9 Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: Cargo Model series: 913 Size of motor: 6.2 Brand of engine: 130/7AA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Ford Model: Cargo Model series: 915 Size of motor: 5.9 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.8
    Monteringsflens: 92.00
    Dreiavstand: 20.00
    Monteringhull 3 mm: 10.50
    Monteringhull 2 mm: 10.50
    Monteringhull 1 mm: 10.50
    Avstand/bak: 227.00
    Avstand/frem: 71.00
    Antall/tenner: 10
    B+: M8
    Gjengetykkelse mm: 20.00
    Posisjon/50: 10
    Gresstype: DD
    Avstand 2: 103.50
    Avstand 3: 146.50
    Avstand mm: 103.50
    Rotasjon: CW
    Posisjon/b-: 45
    B-: M8
    Total lengde mm: 311.50
    Dreiartype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljepakning: Nei
    Merknader: Terminal 50 er der ledningen skal loddes.
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    B- M8
    No./teeth 10
    Mount. flange 92.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 10
    Position/b- 45
    Prod. info BN
    Dist. 2 103.50
    Remarks Terminal 50 is where the wire needs to be soldered.
    Dist. 3 146.50
    Rotation CW
    Dist./back 227.00
    Dist./front 71.00
    Drive dist. 20.00
    Drive type Steel
    Gear type DD
    kW 2.8
    Voltage 12
    Total length 311.50 mm
    Waterproof No
    Dist. 103.50 mm
    Thread length 20.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      cs345, F032113380, NSB534, R82DB11000EA, 83DB11000BB, 26305, 26305a, 26305b, 26305d, 26305h, 26305j, 26305n, 26312, 26329, 26329a, 26329b, 26329d, 26329k, 26329l, 26430, 26430a, 26430d, 27504, 27504a, 27504b, 27507, 27507a, 27507b, 27553, 27553a, 27553d, 860106, 0001367056, 1516742R, 6092295

    • Konkurrentreferens
      BSO7237, CST25119, drs0950, drs3197, drs5040, lrs00484, S4008, S4072S, vs223, 8ea726093-001, 25-0343, 25-1011, 88-11.240, 88-13.190, 619.002.102, 1593, 10345, 33452, 11013190, 20500484, 063227553, 0986013190, 063227553010

    • NormaliseratArtNr
      bso7237, cs345, cst25119, drs0950, drs3197, drs5040, f032113380, lrs00484, nsb534, r82db11000ea, s4008, s4072s, vs223, 8ea726093001, 83db11000bb, 1593, 10345, 26305, 26305a, 26305b, 26305d, 26305h, 26305j, 26305n, 26312, 26329, 26329a, 26329b, 26329d, 26329k, 26329l, 26430, 26430a, 26430d, 27504, 27504a, 27504b, 27507, 27507a, 27507b, 27553, 27553a, 27553d, 33452, 250343, 251011, 860106, 0001367056, 1516742r, 6092295, 8811240, 8813190, 11013190, 20500484, 063227553, 619002102, 0986013190, 063227553010

    • Passar modeller
      Ford Model: Cargo Model series: 1115 Size of motor: 6.0 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Ford Model: Cargo Model series: 1215 Size of motor: 5.9 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Ford Model: Cargo Model series: 711 Size of motor: 5.9 Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Ford Model: Cargo Model series: 913 Size of motor: 6.2 Brand of engine: 130/7AA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Ford Model: Cargo Model series: 915 Size of motor: 5.9 Brand of engine: 150/6CA-Dover Body: Platform / Chassis From date: 01-01-1982 To date: 01-01-1996 Fuel: Diesel Approved: Yes
