Varenr.: F032113381

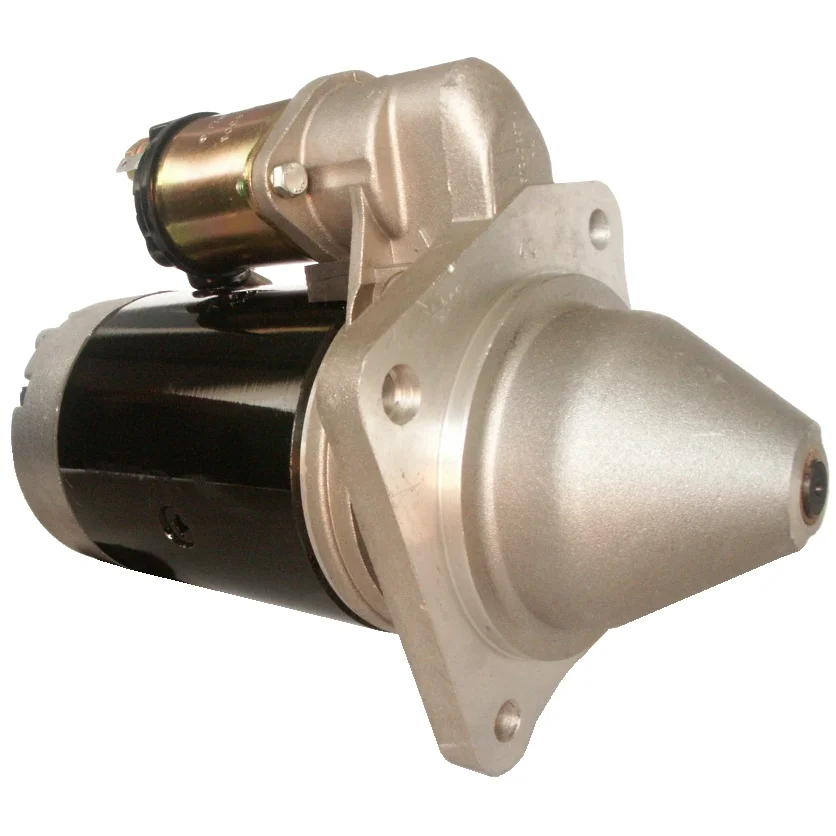

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 2,5, Antall/tothjul: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 12
kW: 2.5
Monteringsflens: 110.00
Drevavstand: 26.00
Monteringshull 3 mm: 12.00
Monteringshull 2 mm: 12.00
Monteringshull 1 mm: 12.00
Avstand/bak: 258.00
Avstand/frem: 75.00
Antall/tannhjul: 9
B+: M10
Posisjon/50: 8
Terminal 50: 6.30
Gavltype: DD
Avstand 2: 103.00
Avstand 3: 103.00
Avstand mm: 146.00
Rotasjon: medur
Posisjon/b-: 33
B-: M8
Total lengde mm: 340.00
Drevetype: Stål
Prod. info: BN
Vanntett: Nei
Oljetett: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
B- M8
No./teeth 9
Mount. flange 110.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 8
Position/b- 33
Prod. info BN
Dist. 2 103.00
Dist. 3 103.00
Rotation CW
Dist./back 258.00
Dist./front 75.00
Drive dist. 26.00
Drive type Steel
Gear type DD
kW 2.5
Terminal 50 6.30
Voltage 12
Total length 340.00 mm
Waterproof No
Dist. 146.00 mm
Mount. hole 3 12.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    azj3145, azj3195, AZJ3462, cs795, CT6005706634, F032113381, v450dt, 11.130.510, 11.130.618, 11.139.456, 27430, 27430b, 5111319, 20404082, 63217121, 6005706634

  • Konkurrentreferens
    BSO7054, CST21157, drs2670, drs3405, is0618, IS9448, LES0031, lrs00554, lrs00944, MS107, MS224, S9203(LETRIKA), 8ea731785-001, 25-1268, 618.003.092, 4130, 10795, 33416, 104848, 943217121

  • NormaliseratArtNr
    azj3145, azj3195, azj3462, bso7054, cs795, cst21157, ct6005706634, drs2670, drs3405, f032113381, is0618, is9448, les0031, lrs00554, lrs00944, ms107, ms224, s9203letrika, v450dt, 8ea731785001, 4130, 10795, 27430, 27430b, 33416, 104848, 251268, 5111319, 11130510, 11130618, 11139456, 20404082, 63217121, 618003092, 943217121, 6005706634

  • Passar modeller
    Farymann Model: Engine Model series: Various Models Approved: Yes
    Farymann Model: Various Models Model series: Various Models Approved: Yes
    Fiat Model: 400 Model series: 404 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 420 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 440 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 450 From date: 01-06-1972 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 455 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 470 From date: 01-01-1984 Fuel: Diesel Approved: Yes
    Fiat Model: 400 Model series: 480 Approved: Yes
    Fiat Model: 500 Model series: 500, DT Brand of engine: 8035.02.201 From date: 01-06-1973 Fuel: Diesel Approved: Yes
    Fiat Model: 500 Model series: 500S From date: 01-01-1978 To date: 01-01-1982 Fuel: Diesel Approved: Yes
    Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
    Goldoni Model: Various Models Model series: Various Models Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsnivå: 12
    kW: 2.5
    Monteringsflens: 110.00
    Drevavstand: 26.00
    Monteringshull 3 mm: 12.00
    Monteringshull 2 mm: 12.00
    Monteringshull 1 mm: 12.00
    Avstand/bak: 258.00
    Avstand/frem: 75.00
    Antall/tannhjul: 9
    B+: M10
    Posisjon/50: 8
    Terminal 50: 6.30
    Gavltype: DD
    Avstand 2: 103.00
    Avstand 3: 103.00
    Avstand mm: 146.00
    Rotasjon: medur
    Posisjon/b-: 33
    B-: M8
    Total lengde mm: 340.00
    Drevetype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljetett: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    B- M8
    No./teeth 9
    Mount. flange 110.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 8
    Position/b- 33
    Prod. info BN
    Dist. 2 103.00
    Dist. 3 103.00
    Rotation CW
    Dist./back 258.00
    Dist./front 75.00
    Drive dist. 26.00
    Drive type Steel
    Gear type DD
    kW 2.5
    Terminal 50 6.30
    Voltage 12
    Total length 340.00 mm
    Waterproof No
    Dist. 146.00 mm
    Mount. hole 3 12.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      azj3145, azj3195, AZJ3462, cs795, CT6005706634, F032113381, v450dt, 11.130.510, 11.130.618, 11.139.456, 27430, 27430b, 5111319, 20404082, 63217121, 6005706634

    • Konkurrentreferens
      BSO7054, CST21157, drs2670, drs3405, is0618, IS9448, LES0031, lrs00554, lrs00944, MS107, MS224, S9203(LETRIKA), 8ea731785-001, 25-1268, 618.003.092, 4130, 10795, 33416, 104848, 943217121

    • NormaliseratArtNr
      azj3145, azj3195, azj3462, bso7054, cs795, cst21157, ct6005706634, drs2670, drs3405, f032113381, is0618, is9448, les0031, lrs00554, lrs00944, ms107, ms224, s9203letrika, v450dt, 8ea731785001, 4130, 10795, 27430, 27430b, 33416, 104848, 251268, 5111319, 11130510, 11130618, 11139456, 20404082, 63217121, 618003092, 943217121, 6005706634

    • Passar modeller
      Farymann Model: Engine Model series: Various Models Approved: Yes
      Farymann Model: Various Models Model series: Various Models Approved: Yes
      Fiat Model: 400 Model series: 404 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 420 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 440 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 450 From date: 01-06-1972 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 455 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 470 From date: 01-01-1984 Fuel: Diesel Approved: Yes
      Fiat Model: 400 Model series: 480 Approved: Yes
      Fiat Model: 500 Model series: 500, DT Brand of engine: 8035.02.201 From date: 01-06-1973 Fuel: Diesel Approved: Yes
      Fiat Model: 500 Model series: 500S From date: 01-01-1978 To date: 01-01-1982 Fuel: Diesel Approved: Yes
      Fiat-Allis Model: Various Models Model series: Various Models Fuel: Diesel Approved: Yes
      Goldoni Model: Various Models Model series: Various Models Approved: Yes
