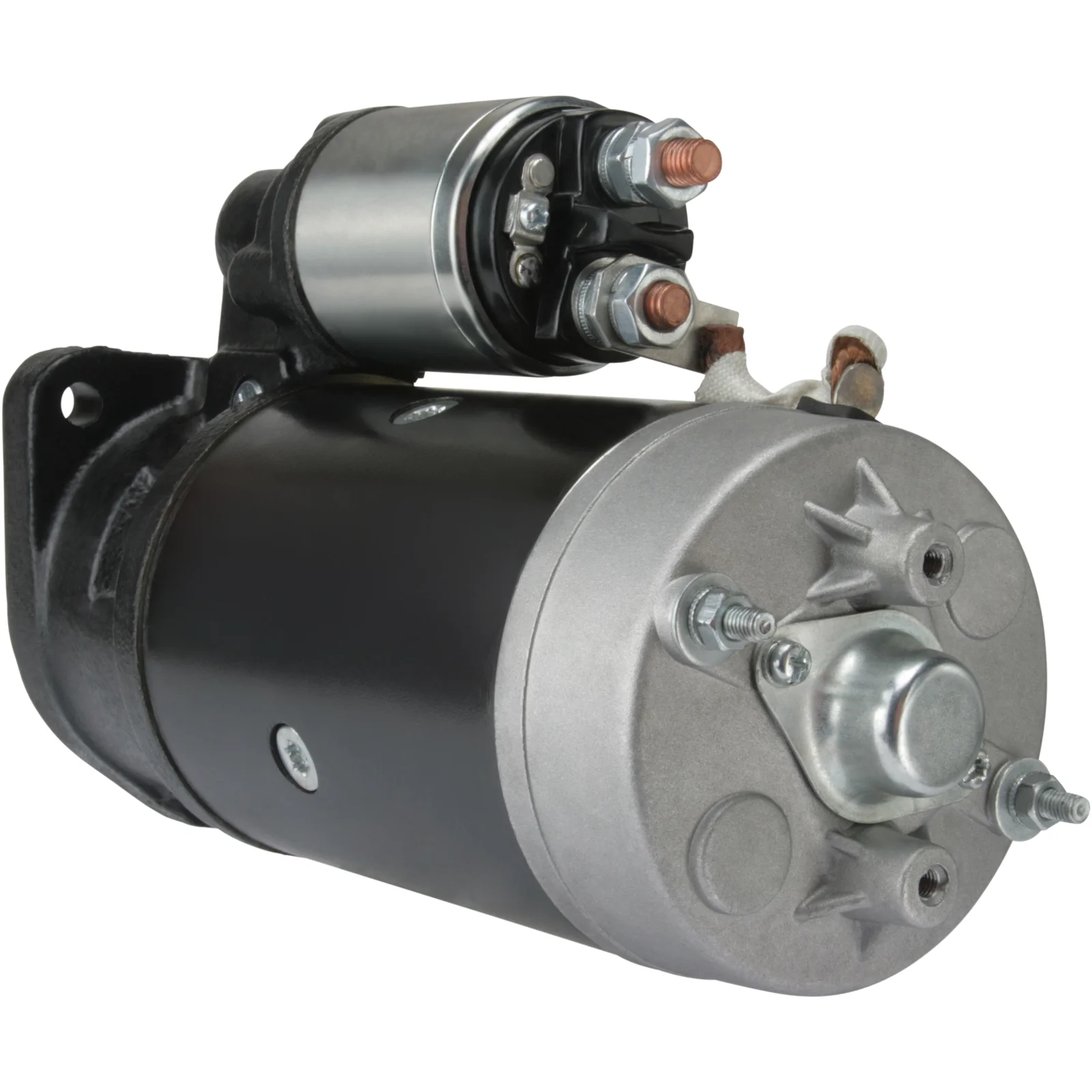

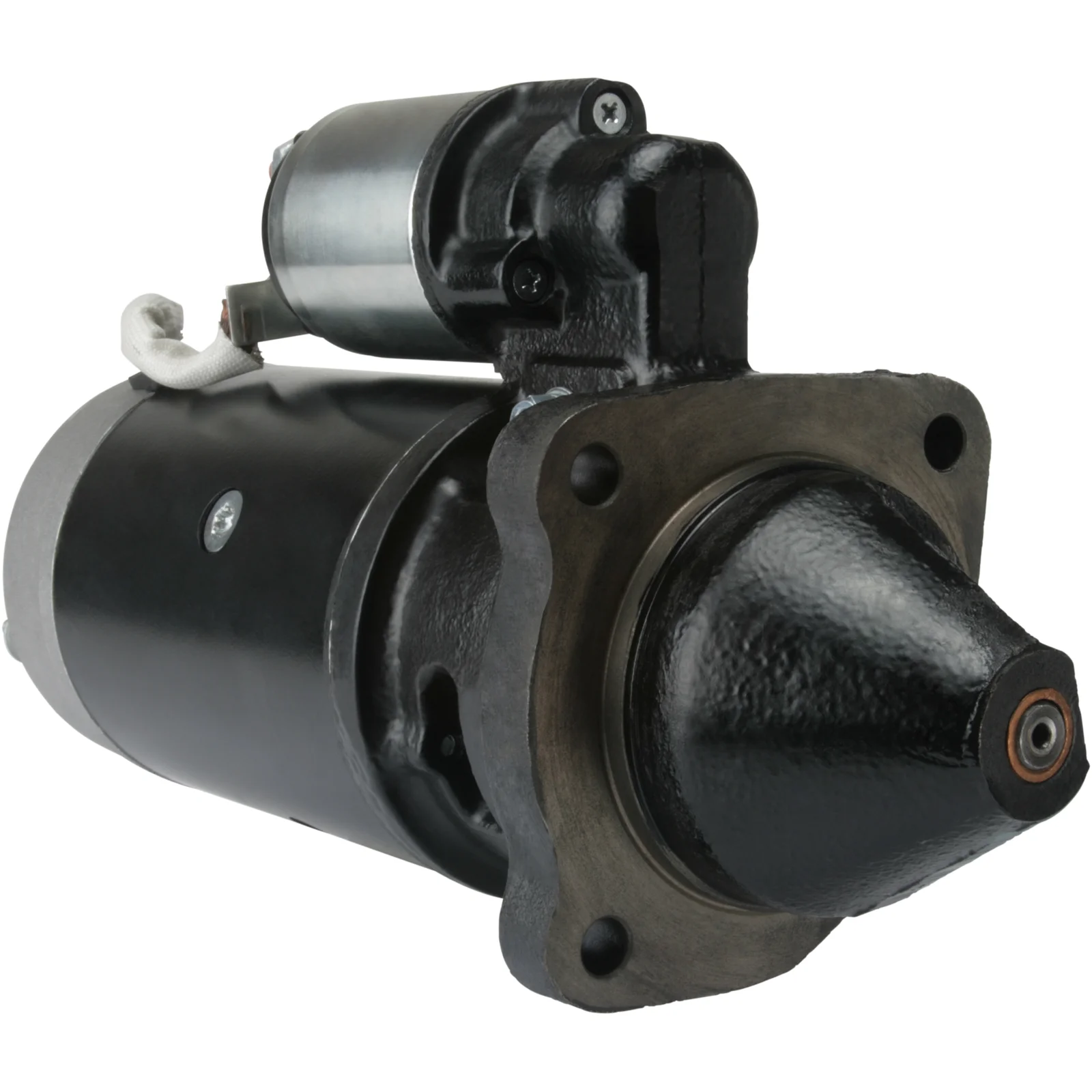

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113465

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 3,0kW, Antall tann: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 3.0
Monteringsflens: 89.00
Drevavstand: 21.50
Monteringshull 3 mm: 11.00
Monteringshull 2 mm: 11.00
Monteringshull 1 mm: 11.00
Avstand/tilbaketrekning: 266.00
Avstand/frem: 70.50
Antall/tannhjul: 10
B+: M10
Posisjon/50: 45
Terminal 50: M4
Geværtype: DD
Avstand 2: 90.00
Avstand 3: 90.00
Avstand mm: 127.00
Rotasjon: CW
Total lengde mm: 338.00
Koblingstype: Tørr
Drevtype: Stål
Prod. info: BN
Vanntett: Nei
Oljeutenforseglet: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 45
Clutch type Dry
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 266.00
Dist./front 70.50
Drive dist. 21.50
Drive type Steel
Gear type DD
kW 3.0
Terminal 50 M4
Voltage 12
Total length 338.00 mm
Waterproof No
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    A5.00055-9361, azj3187, d11e104, d11e119, d11e119t, F032113465, ND53301B, 11.130.596, 50.26201-7078, 81.26201-9010, 12760, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785R, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684

  • Konkurrentreferens
    drs0960, is0596, lrs00631, MS328, MSR734, S0739S, S1127, sr924x, 8ea730177-001, 25-0362, 50-9123, 88-10.960, 600.006.102, 1586, 6602N, 10607, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308A, 436091, 11010960, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 943252273010

  • NormaliseratArtNr
    a5000559361, azj3187, d11e104, d11e119, d11e119t, drs0960, f032113465, is0596, lrs00631, ms328, msr734, nd53301b, s0739s, s1127, sr924x, 8ea730177001, 1586, 6602n, 10607, 12760, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308a, 250362, 436091, 509123, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785r, 8810960, 11010960, 11130596, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 600006102, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684, 50262017078, 81262019010, 943252273010

  • Passar modeller
    Renault V.I. Model: G Series Model series: G 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Body: Platform / Chassis From date: 01-05-1983 To date: 01-02-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 110.06 Size of motor: 5.5 Brand of engine: 797-21 Type description: Midliner Body: Platform / Chassis From date: 01-06-1985 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 130.07 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 130.08 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 6.2 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-04-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 150.14 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1983 To date: 01-03-1993 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Semi-Trailer From date: 01-10-1984 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Dump Truck From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
    Renault V.I. Model: Midliner Model series: S 170.15 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1982 To date: 01-09-1993 Fuel: Diesel Approved: Yes
    1 / 6
  • Beskrivelse
    Spenningsverdi: 12
    kW: 3.0
    Monteringsflens: 89.00
    Drevavstand: 21.50
    Monteringshull 3 mm: 11.00
    Monteringshull 2 mm: 11.00
    Monteringshull 1 mm: 11.00
    Avstand/tilbaketrekning: 266.00
    Avstand/frem: 70.50
    Antall/tannhjul: 10
    B+: M10
    Posisjon/50: 45
    Terminal 50: M4
    Geværtype: DD
    Avstand 2: 90.00
    Avstand 3: 90.00
    Avstand mm: 127.00
    Rotasjon: CW
    Total lengde mm: 338.00
    Koblingstype: Tørr
    Drevtype: Stål
    Prod. info: BN
    Vanntett: Nei
    Oljeutenforseglet: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 45
    Clutch type Dry
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 266.00
    Dist./front 70.50
    Drive dist. 21.50
    Drive type Steel
    Gear type DD
    kW 3.0
    Terminal 50 M4
    Voltage 12
    Total length 338.00 mm
    Waterproof No
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      A5.00055-9361, azj3187, d11e104, d11e119, d11e119t, F032113465, ND53301B, 11.130.596, 50.26201-7078, 81.26201-9010, 12760, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785R, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684

    • Konkurrentreferens
      drs0960, is0596, lrs00631, MS328, MSR734, S0739S, S1127, sr924x, 8ea730177-001, 25-0362, 50-9123, 88-10.960, 600.006.102, 1586, 6602N, 10607, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308A, 436091, 11010960, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 943252273010

    • NormaliseratArtNr
      a5000559361, azj3187, d11e104, d11e119, d11e119t, drs0960, f032113465, is0596, lrs00631, ms328, msr734, nd53301b, s0739s, s1127, sr924x, 8ea730177001, 1586, 6602n, 10607, 12760, 16207, 33408, 33603, 33819, 073042, 103420, 220308, 220308a, 250362, 436091, 509123, 0001358034, 0001359008, 0001359095, 0001367070, 0001367302, 1516785r, 8810960, 11010960, 11130596, 0025841019, 00025841035, 0025841035, 25841035, 0025841042, 600006102, 943252273, 0986001173, 0986010960, 0986010961, 0986010967, 5000049124, 5000559361, 5001014187, 5010090371, 5010090684, 50262017078, 81262019010, 943252273010

    • Passar modeller
      Renault V.I. Model: G Series Model series: G 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Body: Platform / Chassis From date: 01-05-1983 To date: 01-02-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 110.06 Size of motor: 5.5 Brand of engine: 797-21 Type description: Midliner Body: Platform / Chassis From date: 01-06-1985 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 130.07 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 130.08 Size of motor: 5.5 Brand of engine: 797 Type description: Midliner Body: Platform / Chassis From date: 01-09-1983 To date: 01-01-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.08 Size of motor: 6.2 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Dump Truck From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: 798-10 Type description: Midliner Body: Platform / Chassis From date: 01-05-1983 To date: 01-07-1986 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.09 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.11 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Dump Truck From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-04-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.13 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: Platform / Chassis From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 150.14 Size of motor: 5.5 Brand of engine: MIDS06.02.12B Type description: Midliner Body: General Purpose Vehicle From date: 01-05-1986 To date: 01-09-1990 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.11 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1983 To date: 01-03-1993 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.13 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Semi-Trailer From date: 01-10-1984 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Dump Truck From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1983 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.14 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: Platform / Chassis From date: 01-10-1987 To date: 01-05-1989 Fuel: Diesel Approved: Yes
      Renault V.I. Model: Midliner Model series: S 170.15 Size of motor: 5.5 Brand of engine: MIDR06.02.12D Type description: Midliner Body: General Purpose Vehicle From date: 01-10-1982 To date: 01-09-1993 Fuel: Diesel Approved: Yes
      1 / 6
