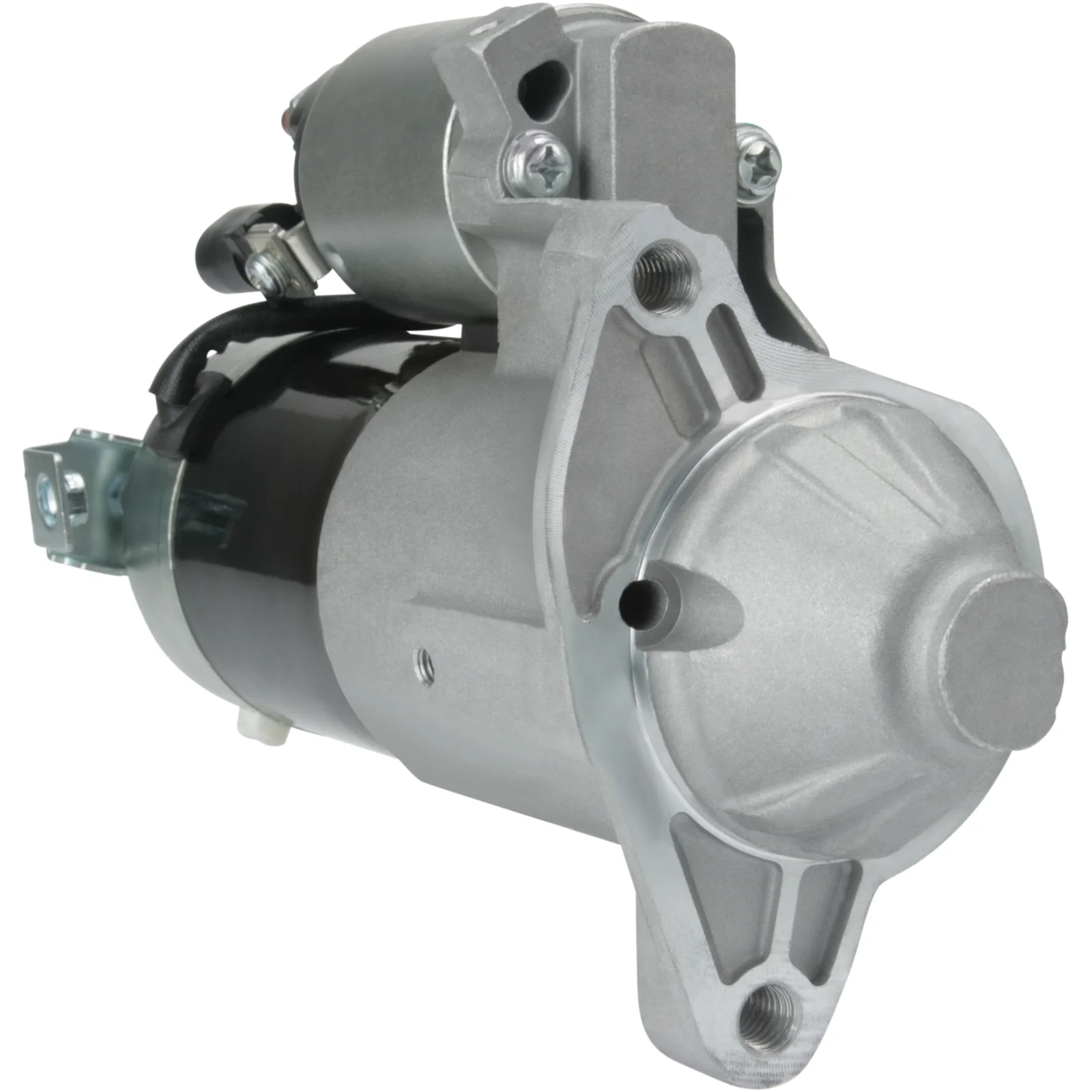

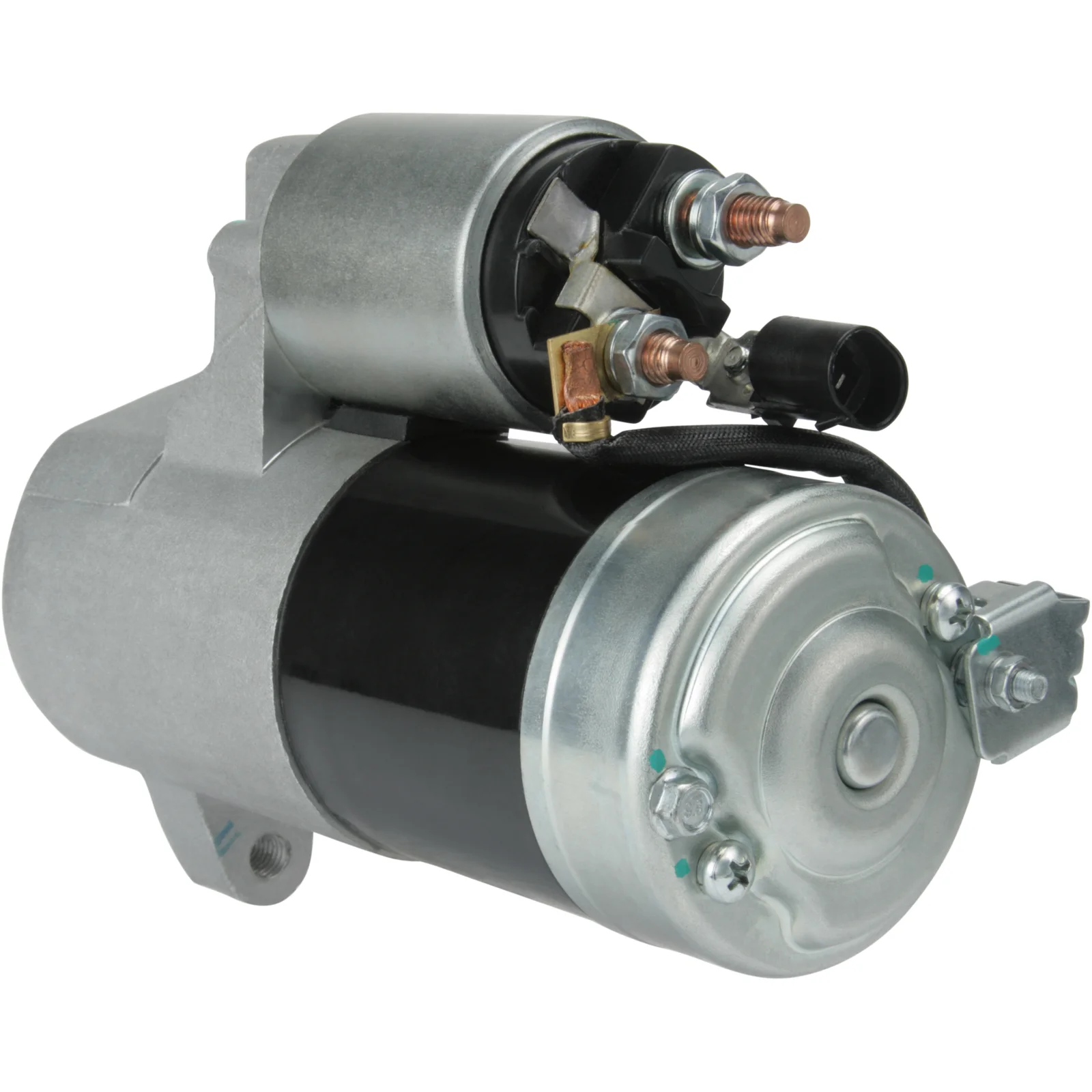

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113642

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1,6, Ant./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsnivå: 12
kW: 1.6
Feste flange: 65,00
Drive avstand: 5,50
Feste hull 2 mm: M10
Feste hull 1 mm: M10
Avstand/bak: 182,50
Avstand/front: 42,00
Antall/tenner: 10
B+: M8
Posisjon/B+: 5
Gjengetykkelse mm: 8,00
Posisjon/50: 20
Terminal 50: Plugg
Geartype: DD/GR
Avstand mm: 105,50
Rotasjon: CW
Total lengde mm: 228,50
Koppl. type: Våt
Drev. type: Stål
Prod. info: BN
Vannavstøtende: Nei
Olje forseglet: Nei
Antall festehull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 65.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 20
Clutch type Wet
Position/B+ 5
Prod. info BN
Rotation CW
Dist./back 182.50
Dist./front 42.00
Drive dist. 5.50
Drive type Steel
Gear type DD/GR
kW 1.6
Terminal 50 Plug
Voltage 12
Total length 228.50 mm
Waterproof No
Dist. 105.50 mm
Thread length 8.00 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    F032113642, M001T86782ZC, M001T86883ZC, M001T86884ZC, M1T86782, m1t86782zc, m1t86883zc, m1t86884zc, 6942, 56041136ab, 56041436AA, 56041436AB, 56041436ac, 56041641ac, 56041641ad

  • Konkurrentreferens
    CST35232, CST35338, DRS0756, DRS0763, F042001085, F042S01085, s-80042, S5054, S5134, sc-0097r, STR-3119, 2-2342-MI, 25-5155, 25-5243, 44-6835, 670.028.102, 17839, 17839N, 17877N, 17877R, 17882, 17882N, 17882R, 107332, 254352, 11040943

  • NormaliseratArtNr
    cst35232, cst35338, drs0756, drs0763, f032113642, f042001085, f042s01085, m001t86782zc, m001t86883zc, m001t86884zc, m1t86782, m1t86782zc, m1t86883zc, m1t86884zc, s5054, s5134, s80042, sc0097r, str3119, 6942, 17839, 17839n, 17877n, 17877r, 17882, 17882n, 17882r, 22342mi, 107332, 254352, 255155, 255243, 446835, 11040943, 56041136ab, 56041436aa, 56041436ab, 56041436ac, 56041641ac, 56041641ad, 670028102

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Size of motor: 3.7 Brand of engine: EKG Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2001 To date: 01-01-2008 Fuel: Petrol Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: Sport Size of motor: 2.4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
    Jeep Model: Wrangler Model series: Wrangler Model type: SE Size of motor: 2.4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsnivå: 12
    kW: 1.6
    Feste flange: 65,00
    Drive avstand: 5,50
    Feste hull 2 mm: M10
    Feste hull 1 mm: M10
    Avstand/bak: 182,50
    Avstand/front: 42,00
    Antall/tenner: 10
    B+: M8
    Posisjon/B+: 5
    Gjengetykkelse mm: 8,00
    Posisjon/50: 20
    Terminal 50: Plugg
    Geartype: DD/GR
    Avstand mm: 105,50
    Rotasjon: CW
    Total lengde mm: 228,50
    Koppl. type: Våt
    Drev. type: Stål
    Prod. info: BN
    Vannavstøtende: Nei
    Olje forseglet: Nei
    Antall festehull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 65.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 20
    Clutch type Wet
    Position/B+ 5
    Prod. info BN
    Rotation CW
    Dist./back 182.50
    Dist./front 42.00
    Drive dist. 5.50
    Drive type Steel
    Gear type DD/GR
    kW 1.6
    Terminal 50 Plug
    Voltage 12
    Total length 228.50 mm
    Waterproof No
    Dist. 105.50 mm
    Thread length 8.00 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 M10 mm
  • Kjøretøymatching

    • OEM
      F032113642, M001T86782ZC, M001T86883ZC, M001T86884ZC, M1T86782, m1t86782zc, m1t86883zc, m1t86884zc, 6942, 56041136ab, 56041436AA, 56041436AB, 56041436ac, 56041641ac, 56041641ad

    • Konkurrentreferens
      CST35232, CST35338, DRS0756, DRS0763, F042001085, F042S01085, s-80042, S5054, S5134, sc-0097r, STR-3119, 2-2342-MI, 25-5155, 25-5243, 44-6835, 670.028.102, 17839, 17839N, 17877N, 17877R, 17882, 17882N, 17882R, 107332, 254352, 11040943

    • NormaliseratArtNr
      cst35232, cst35338, drs0756, drs0763, f032113642, f042001085, f042s01085, m001t86782zc, m001t86883zc, m001t86884zc, m1t86782, m1t86782zc, m1t86883zc, m1t86884zc, s5054, s5134, s80042, sc0097r, str3119, 6942, 17839, 17839n, 17877n, 17877r, 17882, 17882n, 17882r, 22342mi, 107332, 254352, 255155, 255243, 446835, 11040943, 56041136ab, 56041436aa, 56041436ab, 56041436ac, 56041641ac, 56041641ad, 670028102

    • Passar modeller
      Jeep Model: Cherokee Model series: Cherokee Size of motor: 3.7 Brand of engine: EKG Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2001 To date: 01-01-2008 Fuel: Petrol Approved: Yes
      Jeep Model: Liberty Model series: Liberty Model type: Sport Size of motor: 2.4 From date: 01-01-2005 Fuel: Gasoline Approved: Yes
      Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2002 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
      Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
      Jeep Model: Liberty Model series: Liberty Size of motor: 2.4 From date: 01-01-2004 Fuel: Gasoline Approved: Yes
      Jeep Model: Wrangler Model series: Wrangler Model type: SE Size of motor: 2.4 From date: 01-01-2003 To date: 01-01-2003 Fuel: Gasoline Approved: Yes
