Varenr.: F032113665

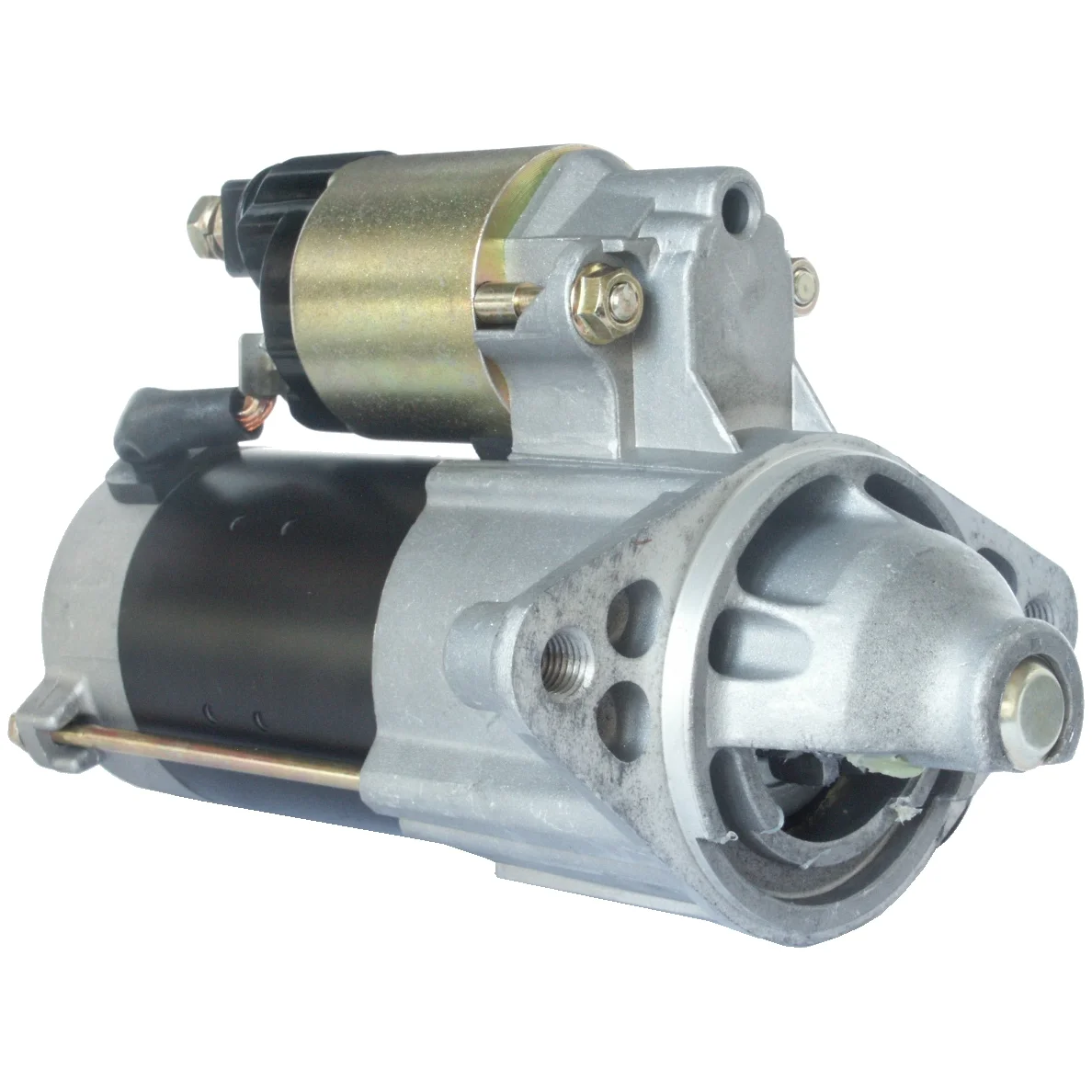

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, Ktr.: 0,8, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 0.8
Monteringsflens: 74.00
Drevavstand: 5.00
Avstand/bak: 164.00
Avstand/front: 40.00
Num./tenner: 9
B+: M8
Posisjon/B+: 60
Posisjon/50: 42
Terminal 50: Kontakt
Girtype: DD/GR
Avstand mm: 114.00
Rotasjon: medur ←→høyre
Total lengde mm: 206.50
Kopplings type: Vått
Drevetype: Stål
Prod. info: BN
Vannavvisende: Nei
Oljesett: Nei
Num./monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
Oil sealed No
No./mount. holes 2 (2)
Position/50 42
Clutch type Wet
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 164.00
Dist./front 40.00
Drive dist. 5.00
Drive type Steel
Gear type DD/GR
kW 0.8
Terminal 50 Plug
Voltage 12
Total length 206.50 mm
Waterproof No
Dist. 114.00 mm

  • OEM
    F032113665, js1023, 6858, 28100-11060, 28100-11080, 28100-11140, 228000-4020, 228000-6730

  • Konkurrentreferens
    CST44110, drs3379, F042000201, F042S00201, s-8907, S6321S, snd0220, st-00147r, STR-8261, STR8279, 2-1840-nd, 8EA011611-271, 8ea737356-001, 25-2218, 25-2234, 44-6741, 335.045.092, 335.212.092, 4508, 17285, 17679, 17679N, 103726, 105021, 201023, 11040611, 11040612, 11040624, 0986018741, 0986019111, 0986019121

  • NormaliseratArtNr
    cst44110, drs3379, f032113665, f042000201, f042s00201, js1023, s6321s, s8907, snd0220, st00147r, str8261, str8279, 8ea011611271, 8ea737356001, 4508, 6858, 17285, 17679, 17679n, 21840nd, 103726, 105021, 201023, 252218, 252234, 446741, 11040611, 11040612, 11040624, 335045092, 335212092, 0986018741, 0986019111, 0986019121, 2280004020, 2280006730, 2810011060, 2810011080, 2810011140

  • Passar modeller
    Toyota Model: Corolla Model series: Corolla Model type: GLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Estate From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes Manufacture type: Wagon
    Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 4E-FE Type description: _E11_ From date: 01-05-1997 To date: 01-09-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Estate From date: 01-04-1997 To date: 01-02-2000 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Hatchback From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Model type: Convertible Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE Body: Hatchback From date: 01-01-1996 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
    Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE,2E Type description: _P9_ Body: Hatchback From date: 01-11-1996 To date: 01-07-1999 Fuel: Petrol Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
    Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spenning: 12
    kW: 0.8
    Monteringsflens: 74.00
    Drevavstand: 5.00
    Avstand/bak: 164.00
    Avstand/front: 40.00
    Num./tenner: 9
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 42
    Terminal 50: Kontakt
    Girtype: DD/GR
    Avstand mm: 114.00
    Rotasjon: medur ←→høyre
    Total lengde mm: 206.50
    Kopplings type: Vått
    Drevetype: Stål
    Prod. info: BN
    Vannavvisende: Nei
    Oljesett: Nei
    Num./monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    Oil sealed No
    No./mount. holes 2 (2)
    Position/50 42
    Clutch type Wet
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 164.00
    Dist./front 40.00
    Drive dist. 5.00
    Drive type Steel
    Gear type DD/GR
    kW 0.8
    Terminal 50 Plug
    Voltage 12
    Total length 206.50 mm
    Waterproof No
    Dist. 114.00 mm
  • Kjøretøymatching

    • OEM
      F032113665, js1023, 6858, 28100-11060, 28100-11080, 28100-11140, 228000-4020, 228000-6730

    • Konkurrentreferens
      CST44110, drs3379, F042000201, F042S00201, s-8907, S6321S, snd0220, st-00147r, STR-8261, STR8279, 2-1840-nd, 8EA011611-271, 8ea737356-001, 25-2218, 25-2234, 44-6741, 335.045.092, 335.212.092, 4508, 17285, 17679, 17679N, 103726, 105021, 201023, 11040611, 11040612, 11040624, 0986018741, 0986019111, 0986019121

    • NormaliseratArtNr
      cst44110, drs3379, f032113665, f042000201, f042s00201, js1023, s6321s, s8907, snd0220, st00147r, str8261, str8279, 8ea011611271, 8ea737356001, 4508, 6858, 17285, 17679, 17679n, 21840nd, 103726, 105021, 201023, 252218, 252234, 446741, 11040611, 11040612, 11040624, 335045092, 335212092, 0986018741, 0986019111, 0986019121, 2280004020, 2280006730, 2810011060, 2810011080, 2810011140

    • Passar modeller
      Toyota Model: Corolla Model series: Corolla Model type: GLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Estate From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: E10 Body: Hatchback From date: 01-08-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Hatchback From date: 01-07-1992 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 From date: 01-09-1995 To date: 01-04-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.3 Brand of engine: 4E-FE Type description: EE101 Body: Estate From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes Manufacture type: Wagon
      Toyota Model: Corolla Model series: Corolla Model type: XLi Type of engine: 16V Size of motor: 1.4 Brand of engine: 4E-FE Type description: EE101 From date: 01-07-1992 To date: 01-09-1995 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 4E-FE Type description: _E11_ From date: 01-05-1997 To date: 01-09-1999 Fuel: Petrol Approved: Yes
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Estate From date: 01-04-1997 To date: 01-02-2000 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE Body: Hatchback From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.4 Brand of engine: 4E-FE From date: 01-05-1997 To date: 01-09-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Model type: Convertible Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1996 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Convertible From date: 01-10-1996 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      Toyota Model: Paseo Model series: Paseo Type of engine: 16V Size of motor: 1.5 Brand of engine: 5E-FE Type description: EL54 Body: Coupe From date: 01-08-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE Body: Hatchback From date: 01-01-1996 To date: 01-10-1999 Fuel: Gasoline Approved: Yes
      Toyota Model: Starlet Model series: Starlet Size of motor: 1.3 Brand of engine: 4E-FE,2E Type description: _P9_ Body: Hatchback From date: 01-11-1996 To date: 01-07-1999 Fuel: Petrol Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1997 To date: 01-01-1997 Fuel: Gasoline Approved: Yes
      Toyota Model: Tercel Model series: Tercel Model type: CE Size of motor: 1.5 Brand of engine: 5E-FE From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
      1 / 5
