Varenr.: F032113677

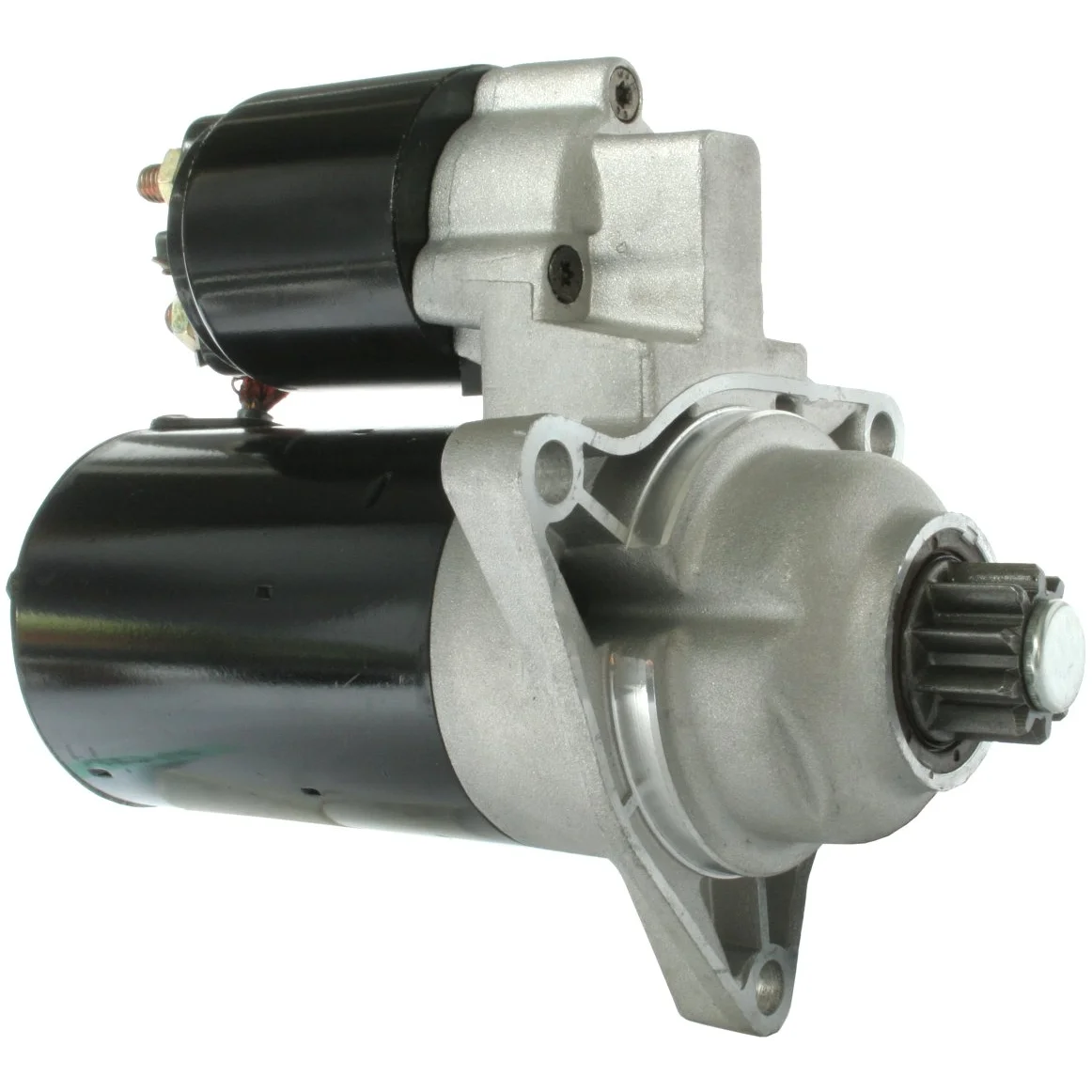

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.1, Antall/tenner: 10, Rotasjon: CCW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.1
Festebrakett: 76.20
Drevavstand: 52.50
Festebore 3 mm: 9.00
Festebore 2 mm: 9.00
Festebore 1 mm: 9.00
Avstand/bak: 142.00
Avstand/framme: 56.50
Nummer/tannhjul: 10
B+: M8
Posisjon/50: 15
Terminal 50: 6.30
Gavltype: GR
Avstand 2: 106.00
Avstand 3: 101.50
Avstand mm: 101.50
Rotasjon: Mot klokka
Total lengde mm: 213.00
Kopplings type: Tørr
Dreven type: Stål
Prod. info: BN
Vann­tett: Nei
Oljetett: Nei
Nummer/festeboringer: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 76.20
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Clutch type Dry
Prod. info BN
Dist. 2 106.00
Dist. 3 101.50
Rotation CCW
Dist./back 142.00
Dist./front 56.50
Drive dist. 52.50
Drive type Steel
Gear type GR
kW 1.1
Terminal 50 6.30
Voltage 12
Total length 213.00 mm
Waterproof No
Dist. 101.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    aze2640, cs1176, cs597, F032113677, 02b911023b, 02B911023BX, 02b911023f, 02B911023FX, 11.131.178, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679R, 1516781R, 9141390, 443115141319

  • Konkurrentreferens
    CST10327, drs6750, drs6990, F042002024, F042S02024, F042S0H058, lrs00893, LRS02033, MS412, QS1942, S0131, S0401, STR-2030, STR-H058, STR2030, 8ea726221-001, 8EA737742-001, 25-1312, 25-2451, 41-16.750, 311.040.102, 311.062.092, 311.084.092, 1455, 3025, 10597, 11717, 33031N, 101176, 103415, 104553, 455979, 8016750, 11016750, 11018470, 42016750, 0986016750, 0986018470, 943241009010, 943253159010, 944280167500

  • NormaliseratArtNr
    aze2640, cs1176, cs597, cst10327, drs6750, drs6990, f032113677, f042002024, f042s02024, f042s0h058, lrs00893, lrs02033, ms412, qs1942, s0131, s0401, str2030, strh058, 02b911023b, 02b911023bx, 02b911023f, 02b911023fx, 8ea726221001, 8ea737742001, 1455, 3025, 10597, 11717, 33031n, 101176, 103415, 104553, 251312, 252451, 455979, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679r, 1516781r, 4116750, 8016750, 9141390, 11016750, 11018470, 11131178, 42016750, 311040102, 311062092, 311084092, 0986016750, 0986018470, 443115141319, 943241009010, 943253159010, 944280167500

  • Passar modeller
    VW Model: Multivan Model series: Multivan Size of motor: 2.0 Brand of engine: AXA Type description: 7HM Body: MPV From date: 01-11-2003 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Bus From date: 01-09-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Platform / Chassis From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
    VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Van From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 1.1
    Festebrakett: 76.20
    Drevavstand: 52.50
    Festebore 3 mm: 9.00
    Festebore 2 mm: 9.00
    Festebore 1 mm: 9.00
    Avstand/bak: 142.00
    Avstand/framme: 56.50
    Nummer/tannhjul: 10
    B+: M8
    Posisjon/50: 15
    Terminal 50: 6.30
    Gavltype: GR
    Avstand 2: 106.00
    Avstand 3: 101.50
    Avstand mm: 101.50
    Rotasjon: Mot klokka
    Total lengde mm: 213.00
    Kopplings type: Tørr
    Dreven type: Stål
    Prod. info: BN
    Vann­tett: Nei
    Oljetett: Nei
    Nummer/festeboringer: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 76.20
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Clutch type Dry
    Prod. info BN
    Dist. 2 106.00
    Dist. 3 101.50
    Rotation CCW
    Dist./back 142.00
    Dist./front 56.50
    Drive dist. 52.50
    Drive type Steel
    Gear type GR
    kW 1.1
    Terminal 50 6.30
    Voltage 12
    Total length 213.00 mm
    Waterproof No
    Dist. 101.50 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      aze2640, cs1176, cs597, F032113677, 02b911023b, 02B911023BX, 02b911023f, 02B911023FX, 11.131.178, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679R, 1516781R, 9141390, 443115141319

    • Konkurrentreferens
      CST10327, drs6750, drs6990, F042002024, F042S02024, F042S0H058, lrs00893, LRS02033, MS412, QS1942, S0131, S0401, STR-2030, STR-H058, STR2030, 8ea726221-001, 8EA737742-001, 25-1312, 25-2451, 41-16.750, 311.040.102, 311.062.092, 311.084.092, 1455, 3025, 10597, 11717, 33031N, 101176, 103415, 104553, 455979, 8016750, 11016750, 11018470, 42016750, 0986016750, 0986018470, 943241009010, 943253159010, 944280167500

    • NormaliseratArtNr
      aze2640, cs1176, cs597, cst10327, drs6750, drs6990, f032113677, f042002024, f042s02024, f042s0h058, lrs00893, lrs02033, ms412, qs1942, s0131, s0401, str2030, strh058, 02b911023b, 02b911023bx, 02b911023f, 02b911023fx, 8ea726221001, 8ea737742001, 1455, 3025, 10597, 11717, 33031n, 101176, 103415, 104553, 251312, 252451, 455979, 0001107005, 0001107006, 0001108096, 0001108097, 0001121010, 0001121011, 1516679r, 1516781r, 4116750, 8016750, 9141390, 11016750, 11018470, 11131178, 42016750, 311040102, 311062092, 311084092, 0986016750, 0986018470, 443115141319, 943241009010, 943253159010, 944280167500

    • Passar modeller
      VW Model: Multivan Model series: Multivan Size of motor: 2.0 Brand of engine: AXA Type description: 7HM Body: MPV From date: 01-11-2003 To date: 01-08-2015 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Bus From date: 01-09-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Platform / Chassis From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
      VW Model: Transporter Model series: Transporter Model type: T4 Size of motor: 2.0 Brand of engine: AAC Body: Van From date: 01-07-1990 To date: 01-04-2003 Fuel: Gasoline Approved: Yes
