Varenr.: F032113745

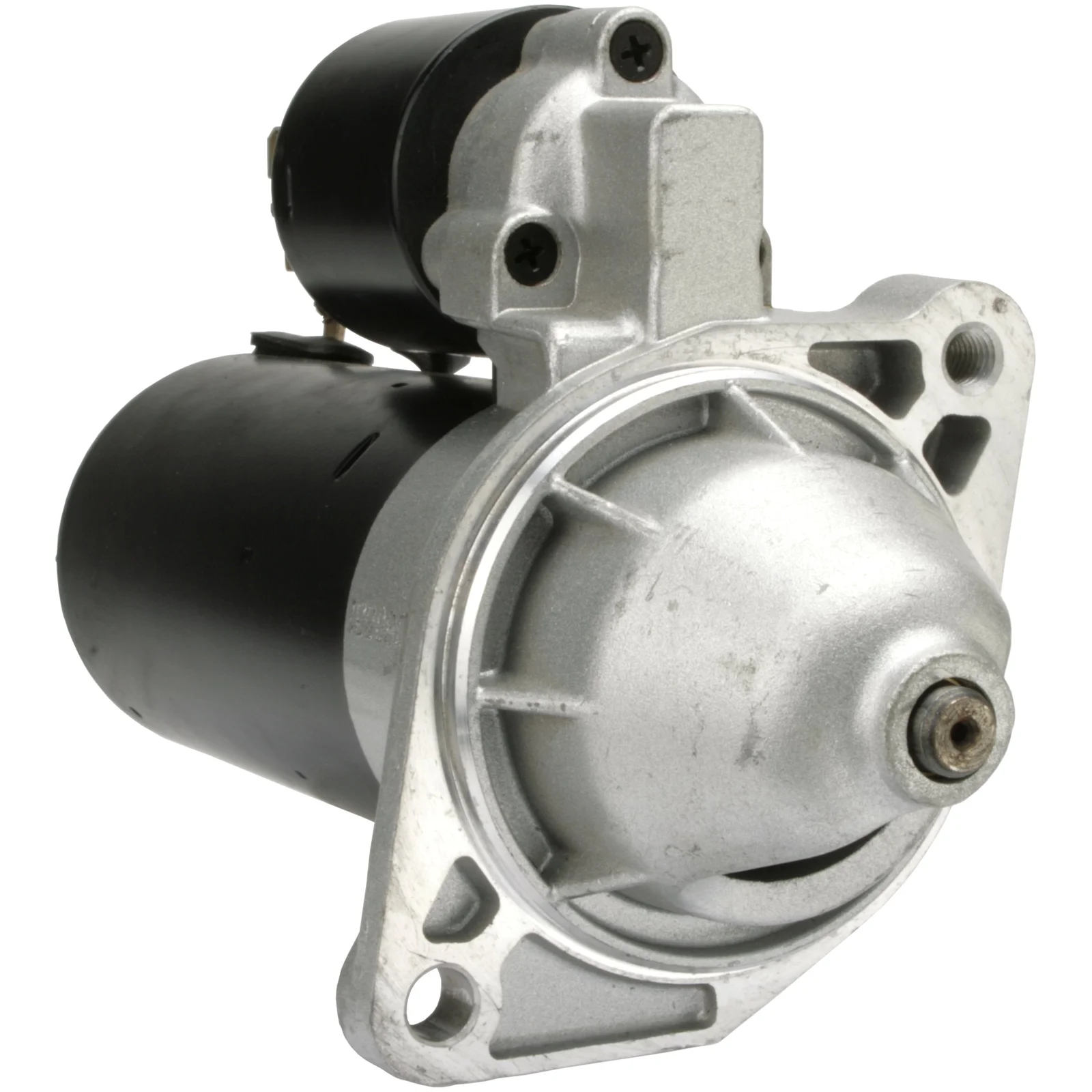

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.4, No./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 1.4
Festebensfilter: 89.00
Drevavstand: 26.50
Festebolte 2 mm: 10.50
Avstand/bak: 187.50
Avstand/frem: 65.00
Antall./tenner: 9
B+: M8
Posisjon/15a: 20
Terminal 15a: M4
Posisjon/50: 10
Terminal 50: M4
Girtype: GR
Avstand mm: 127.00
Rotasjon: Med urviseren
Total lengde mm: 267.00
Koblingstype: Tørr
Drevetype: Stål
Produs. info: BN
Vanntett: Nei
Oljetett: Nei
Antall./festebolter: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 89.00
Oil sealed No
No./mount. holes 2 (1)
Position/15a 20
Position/50 10
Clutch type Dry
Prod. info BN
Rotation CW
Dist./back 187.50
Dist./front 65.00
Drive dist. 26.50
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M4
Voltage 12
Total length 267.00 mm
Waterproof No
Dist. 127.00 mm
Terminal 15A M4 mm
Mount. hole 2 10.50 mm

  • OEM
    cs588, DAC8837R, DBC1939N, DBC2937, dbc2937e, dbc2937n, DBC6923, DBC6923E, DBC6923N, F032113745, vs371, 25692, 25692a, 25692F, 25692H, 25692j, 25755, 25755a, 25756, 25756a, 0001110011

  • Konkurrentreferens
    CST10324, DRS3467, drs5740, F042S0H059, lrs00152, lrs00525, lrt00160, S0719S, STR-H059, 8ea726212-001, 25-15.740, 25-2287, 26-0014, 26-2287, 300.031.092, 314.013.092, 314.113.092, 4069, 10588, 11568, 11699, 17149N, 17149R, 30525R, 458545, 11015740, 0986015740, 0986015747, 943241088010

  • NormaliseratArtNr
    cs588, cst10324, dac8837r, dbc1939n, dbc2937, dbc2937e, dbc2937n, dbc6923, dbc6923e, dbc6923n, drs3467, drs5740, f032113745, f042s0h059, lrs00152, lrs00525, lrt00160, s0719s, strh059, vs371, 8ea726212001, 4069, 10588, 11568, 11699, 17149n, 17149r, 25692, 25692a, 25692f, 25692h, 25692j, 25755, 25755a, 25756, 25756a, 30525r, 252287, 260014, 262287, 458545, 0001110011, 2515740, 11015740, 300031092, 314013092, 314113092, 0986015740, 0986015747, 943241088010

  • Passar modeller
    Jaguar Model: Vanden Plas Saloon Model series: Vanden Plas Saloon Size of motor: 4.0 Brand of engine: 9EPCNA Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Jaguar Model: XJ Model series: XJ 6 Size of motor: 2.9 Brand of engine: AJ6 From date: 01-10-1986 To date: 01-08-1990 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Size of motor: 3.6 Brand of engine: AJ6 From date: 01-10-1986 To date: 01-08-1989 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Size of motor: 3.6 Brand of engine: AJ6.4 From date: 01-10-1986 To date: 01-08-1989 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Size of motor: 4.0 Brand of engine: 9EPCNA From date: 01-09-1989 To date: 01-11-1994 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Type of engine: 24V Size of motor: 3.2 Brand of engine: 9BPMNA From date: 01-09-1990 To date: 01-11-1994 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ Model type: 6 Size of motor: 3.6 Brand of engine: 9D Body: Saloon Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Model type: 6 Size of motor: 4.0 Brand of engine: 9E Body: Saloon Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ S Size of motor: 3.6 Brand of engine: 9DPALA Body: Coupe From date: 01-01-1988 To date: 01-05-1991 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ S Size of motor: 3.6 Brand of engine: 9DPANA Body: Coupe From date: 01-01-1988 To date: 01-05-1991 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ S Size of motor: 3.6 Brand of engine: AJ6 Body: Coupe From date: 01-10-1983 To date: 01-12-1988 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ S Size of motor: 3.6 Brand of engine: AJ6 Body: Coupe From date: 01-10-1983 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ S Size of motor: 4.0 Brand of engine: 9EPCNA Body: Coupe From date: 01-05-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes
    Jaguar Model: XJ Model series: XJ SC Size of motor: 3.6 Brand of engine: AJ6 Body: Convertible From date: 01-08-1987 To date: 01-05-1991 Fuel: Gasoline Approved: Yes Manufacture type: convertibl
    Jaguar Model: XJ Model series: XJ SC Size of motor: 3.6 Brand of engine: AJ6 Body: Convertible From date: 01-10-1986 To date: 01-12-1988 Fuel: Gasoline Approved: Yes Manufacture type: Convertibl
    Jaguar Model: XJ Model series: XJ SC Size of motor: 4.0 Brand of engine: 9EPCNA Body: Convertible From date: 01-05-1991 To date: 01-09-1994 Fuel: Gasoline Approved: Yes Manufacture type: Convertibl
    Jaguar Model: XJ Model series: XJ Size of motor: 3.6 Brand of engine: 9DPANA Body: Coupe Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Brand of engine: 9JPFRB Type description: X300, X330 Body: Saloon From date: 01-11-1994 To date: 01-07-1997 Fuel: Petrol Approved: Yes
    Jaguar Model: Xjsc Convertible Model series: Xjsc Convertible Size of motor: 3.6 Brand of engine: 9DPANA Type description: X27 Body: Convertible Fuel: Petrol Approved: Yes
