Varenr.: F032113757

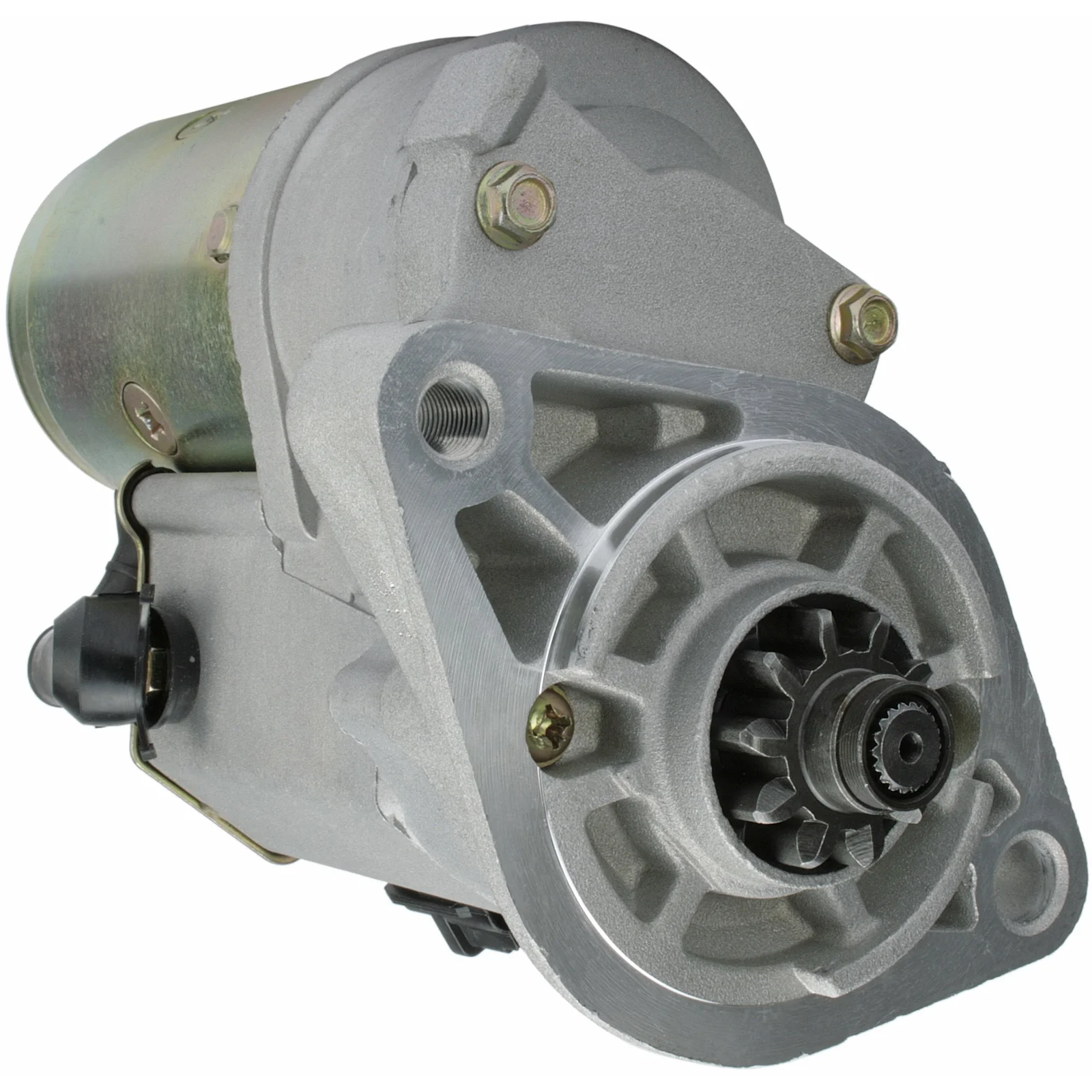

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.2, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Toyota 4Runner D.AT, 94> Start 12V - 2.2kW, 10k 12V - 2.2kW, 10k For Yourrex produkt bestilling 91-555-7030 Spenningsnivå: 12 kW: 2.2 Montering flange: 82.50 Kjøreavstand: 18.50 Monteringshull 2 mm: 13.50 Monteringshull 1 mm: M12-1.25 Avstand/rygg: 154.00 Avstand/frem: 30.00 No./tenner: 10 B+: M8 Posisjon/B+: 15 Posisjon/50: 25 Terminal 50: Plugg Kasse type: GR Avstand mm: 130.00 Rotasjon: CW Total lengde mm: 235.00 Koblingstype: Tørr Drevtype: Steel Prod. info: BN Vanntett: Nei Olje forseglet: Nei No./monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (1)
Position/50 25
Clutch type Dry
Position/B+ 15
Prod. info BN
Rotation CW
Dist./back 154.00
Dist./front 30.00
Drive dist. 18.50
Drive type Steel
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 235.00 mm
Waterproof No
Dist. 130.00 mm
Mount. hole 2 13.50 mm
Mount. hole 1 M12-1.25 mm

  • OEM
    F004A94008, F032113757, js1154, 1986S00967, 28100-0L040, 28100-0L041, 28100-0L042, 28100-0l080, 28100-30060, 28100-67030, 28100-67050, 28100-67051, 28100-67052, 228000-1780, 228000-5020, 228000-5021, 228000-5022, 228000-5023, 228000-5024, 228000-5025, 428000-0260, 428000-2311, 428000-2313

  • Konkurrentreferens
    CST40463, DRS3855, DSN1001, DSN1211, DSN1374, F042S0H060, J5212097, LES0303, LRS01414, S6011, S6060, S6222S, S6375S, STR-H060, 8EA011610-651, 8ea737711-001, 25-2311, 190.595.092, 190.931.102, 190.975.102, 335.070.102, 4624, 9725, 19662N, 32414N, 32414R, 32415N, 105252, 105368, 201154, 220361, 220361A, 458776, 600373, 8020601, 11040654, 944280206, 0986020601, 944280206010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    cst40463, drs3855, dsn1001, dsn1211, dsn1374, f004a94008, f032113757, f042s0h060, j5212097, js1154, les0303, lrs01414, s6011, s6060, s6222s, s6375s, strh060, 8ea011610651, 8ea737711001, 1986s00967, 4624, 9725, 19662n, 32414n, 32414r, 32415n, 105252, 105368, 201154, 220361, 220361a, 252311, 281000l040, 281000l041, 281000l042, 281000l080, 458776, 600373, 8020601, 11040654, 190595092, 190931102, 190975102, 335070102, 944280206, 0986020601, 2280001780, 2280005020, 2280005021, 2280005022, 2280005023, 2280005024, 2280005025, 2810030060, 2810067030, 2810067050, 2810067051, 2810067052, 4280000260, 4280002311, 4280002313, 944280206010

  • Passar modeller
    Toyota Model: 4 Runner Model series: 4 Runner Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: N130 From date: 01-10-1993 To date: 01-03-1996 Fuel: Diesel Approved: Yes
    Toyota Model: 4 Runner Model series: 4 Runner Model type: 4x4 Type of engine: TDi Size of motor: 3.0 From date: 01-09-2000 To date: 01-07-2002 Fuel: Diesel Approved: Yes
    Toyota Model: 4 Runner Model series: 4 Runner Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T From date: 01-11-1995 To date: 01-11-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna Type of engine: D-4D Size of motor: 3.0 Type description: KD_, LY_ Body: Platform / Chassis From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus From date: 01-11-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _H1_, _H2_ Body: Van From date: 01-08-2001 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4x4 Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Bus From date: 01-09-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Van From date: 01-09-2006 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: D-4D 4WD (KUN26) Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: D-4D (KUN15) Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser 150 Type of engine: TDi Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: KDJ15_, GRJ15_ From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 150 Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J15 From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE From date: 01-04-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: GX 90 Custom 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J8_ From date: 01-01-1990 To date: 01-09-1991 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-07-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: J12 From date: 01-09-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: D-4D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _J9_ From date: 01-08-2000 To date: 01-08-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Body: Convertible From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J7_ Body: Closed Off-Road Vehicle From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Van Model type: 4WD Type of engine: D4-D Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _J15_ From date: 01-01-2011 Fuel: Diesel Approved: Yes
    Toyota Model: Land Model series: Land Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE Type description: _J9_ Body: Closed Off-Road Vehicle From date: 01-03-2000 To date: 01-02-2003 Fuel: Diesel Approved: Yes
    Toyota Series: 4-Runner (_N130) Model: 3.0 TD MAN Engine volume: 3.0 Engine type: 1KZ-T Year: 10.93-10.96
    Toyota Series: Hi Ace IV Model: 2.5 D-4D 4WD Engine volume: 2.5 Engine type: 2KD-FTV Year: 09.06-11.11
    Toyota Series: Land Cruiser (_J7_) Model: 3.0 TD Engine volume: 3.0 Engine type: 1KZ-T Year: 05.93-06.96
    Toyota Series: Land Cruiser (_J9_) Model: 3.0 TD Engine volume: 3.0 Engine type: 1KZ-TE Year: 04.96-
