Varenr.: F032113893

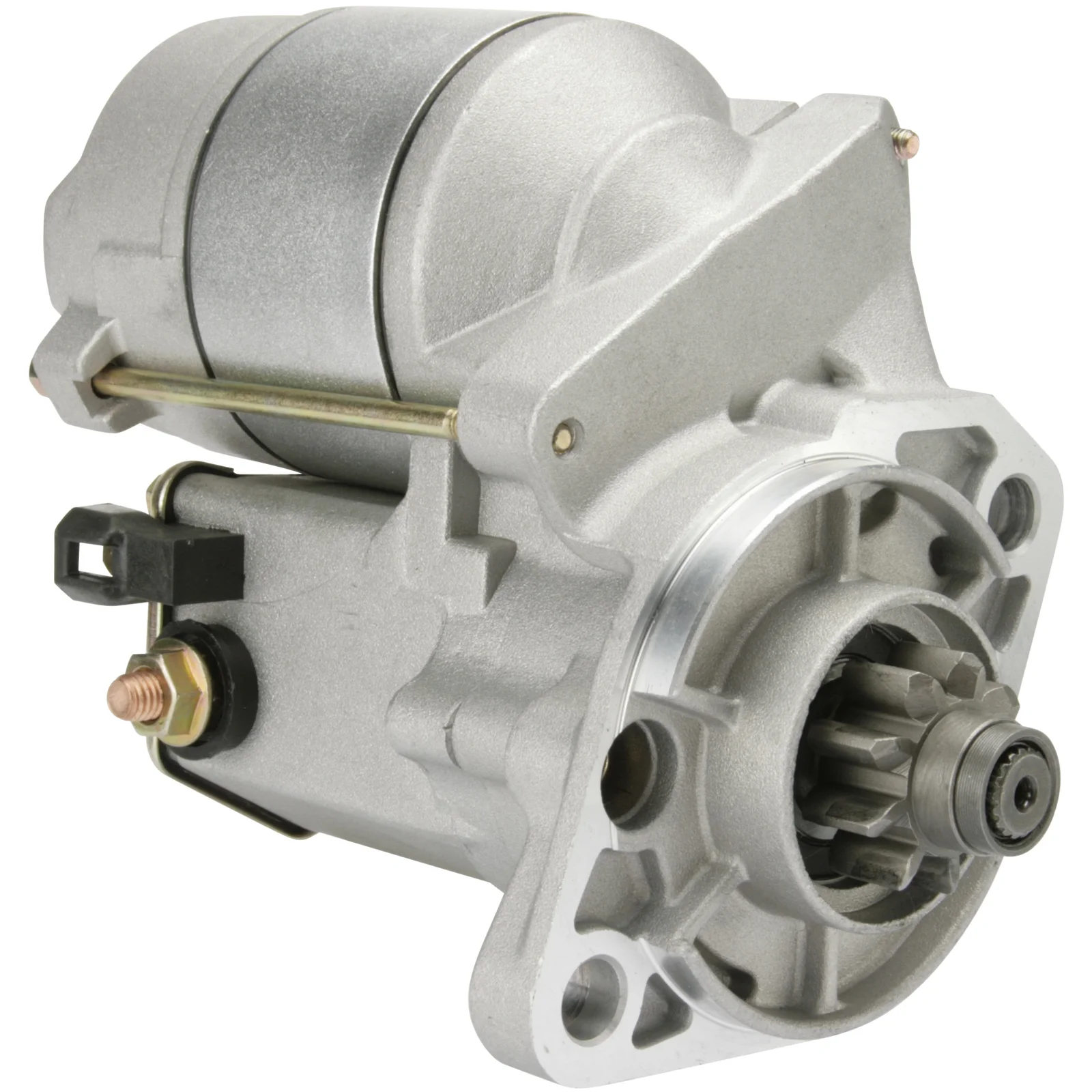

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.2, Antall/tann: 9, Festeflens: 82.50

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.2
Festeblokk: 82.50
Dreven lengde: 25.00
Festebore 2 mm: 11.00
Festebore 1 mm: 11.00
Dreven/tilbake: 118.50
Dreven/frem: 37.00
Antall/tannhjul: 9
B+: M8
Posisjon/50: 40
Terminal 50: 6.30
Gavl type: GR
Dreven mm: 105.00
Total lengde mm: 178.50
Kopling type: Våt
Dreven type: Stål
Vannavvisende: Nei
Oljetett: Nei
Antall/festeborer: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
Oil sealed No
No./mount. holes 2 (0)
Position/50 40
Clutch type Wet
Dist./back 118.50
Dist./front 37.00
Drive dist. 25.00
Drive type Steel
Gear type GR
kW 1.2
Terminal 50 6.30
Voltage 12
Total length 178.50 mm
Waterproof No
Dist. 105.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

  • Konkurrentreferens
    CST40530, DSN2132, snd0324, 2-2734-nd, 91-29-5349, 690.538.092, 18145, 18145N, 255131

  • NormaliseratArtNr
    cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803

  • Passar modeller
    Atlas Copco Model: CC1100 (PLUS) & CC1100C (PLUS) Model series: CC1100 (PLUS) & CC1100C (PLUS) Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Atlas Copco Model: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model series: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325 & 329 Model series: 325 & 329 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325 Model series: 325 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 325G Model series: 325G Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 328 Model series: 328 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bobcat Model: 328G Model series: 328G Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-4 Model series: BW 100 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model series: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AC-5 Model series: BW 100 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-4 Model series: BW 100 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model series: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 100 AD-5 Model series: BW 100 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
    Bomag Model: BW 120 AC-4 Model series: BW 120 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AC-5 Model series: BW 120 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AD-4 Model series: BW 120 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 120 AD-5 Model series: BW 120 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
    Bomag Model: BW 125 AC-4 Model series: BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Bomag Model: BW 125 AD-4 Model series: BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Hitachi Model: EX33MU Model series: EX33MU Model type: Excavators Brand of engine: D1503-E Approved: Yes
    JCB Model: VMT260 Model series: VMT260 Model type: Rollers Brand of engine: D1503-E Approved: Yes
    Kubota Model: FT28 Model series: FT28 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: FT30 Model series: FT30 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: KL27R Model series: KL27R Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
    Kubota Model: KX135-3S Model series: KX135-3S Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
    Kubota Model: KX91-3S2 Model series: KX91-3S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: L Model series: L2250 Brand of engine: D1302 Approved: Yes
    Kubota Model: L Model series: L2500 Brand of engine: D1403 Approved: Yes
    Kubota Model: L Model series: L2550 Brand of engine: D1402 Approved: Yes
    Kubota Model: L Model series: L2650 Brand of engine: D1402 Approved: Yes
    Kubota Model: L Model series: L2800 Brand of engine: D1403 Approved: Yes
    Kubota Model: L Model series: L2900 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L2950 Brand of engine: D1462 Approved: Yes
    Kubota Model: L Model series: L3010 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L3130 Brand of engine: D1503 Approved: Yes
    Kubota Model: L Model series: L3300 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3400 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3410 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L3430 Brand of engine: D1703 Approved: Yes
    Kubota Model: L Model series: L35 Brand of engine: D1703 Approved: Yes
    Kubota Model: L27R Model series: L27R Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
    Kubota Model: L28RF Model series: L28RF Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
    Kubota Model: L2900-2 Model series: L2900-2 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
    Kubota Model: L2900-4 Model series: L2900-4 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
    Kubota Model: L3008/L3608 Model series: L3008/L3608 Model type: Ag Tractors Brand of engine: D1503-M-DI Approved: Yes
    Kubota Model: RA401 Model series: RA401 Model type: Wheel Loaders and Dozers Brand of engine: D1503-E Approved: Yes
    Kubota Model: U30-5 Model series: U30-5 Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
    Kubota Model: U30-6 Model series: U30-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35-3A Model series: U35-3A Model type: Excavators Brand of engine: D1503-E Approved: Yes
    Kubota Model: U35-4 Model series: U35-4 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35-6 Model series: U35-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Kubota Model: U35S2 Model series: U35S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2 Model series: TA2 Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2E Model series: TA2E Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2H Model series: TA2H Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2S Model series: TA2S Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SE Model series: TA2SE Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SEH Model series: TA2SEH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TA2SH Model series: TA2SH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1000 Model series: TV1000 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1000-1 Model series: TV1000-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1200 & TV1200H Model series: TV1200 & TV1200H Model type: Rollers Brand of engine: D1703-M Approved: Yes
    Terex Model: TV1200-1 & TV12200H-1 Model series: TV1200-1 & TV12200H-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
    1 / 13
  • Beskrivelse
    Spenning: 12
    kW: 1.2
    Festeblokk: 82.50
    Dreven lengde: 25.00
    Festebore 2 mm: 11.00
    Festebore 1 mm: 11.00
    Dreven/tilbake: 118.50
    Dreven/frem: 37.00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 40
    Terminal 50: 6.30
    Gavl type: GR
    Dreven mm: 105.00
    Total lengde mm: 178.50
    Kopling type: Våt
    Dreven type: Stål
    Vannavvisende: Nei
    Oljetett: Nei
    Antall/festeborer: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    Oil sealed No
    No./mount. holes 2 (0)
    Position/50 40
    Clutch type Wet
    Dist./back 118.50
    Dist./front 37.00
    Drive dist. 25.00
    Drive type Steel
    Gear type GR
    kW 1.2
    Terminal 50 6.30
    Voltage 12
    Total length 178.50 mm
    Waterproof No
    Dist. 105.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032113893, 34070-16081, 34070-16083, 34070-16800, 34070-16801, 34070-16803, 128000-8460, 128000-8461, 128000-8462

    • Konkurrentreferens
      CST40530, DSN2132, snd0324, 2-2734-nd, 91-29-5349, 690.538.092, 18145, 18145N, 255131

    • NormaliseratArtNr
      cst40530, dsn2132, f032113893, snd0324, 18145, 18145n, 22734nd, 255131, 91295349, 690538092, 1280008460, 1280008461, 1280008462, 3407016081, 3407016083, 3407016800, 3407016801, 3407016803

    • Passar modeller
      Atlas Copco Model: CC1100 (PLUS) & CC1100C (PLUS) Model series: CC1100 (PLUS) & CC1100C (PLUS) Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Atlas Copco Model: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model series: CC1200 (PLUS), CC1200C (PLUS) & CC1250 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325 & 329 Model series: 325 & 329 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325 Model series: 325 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 325G Model series: 325G Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 328 Model series: 328 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bobcat Model: 328G Model series: 328G Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-4 Model series: BW 100 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model series: BW 100 AC-4, BW 120 AC-4 & BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AC-5 Model series: BW 100 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-4 Model series: BW 100 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model series: BW 100 AD-4, BW 120 AD-4 & BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 100 AD-5 Model series: BW 100 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
      Bomag Model: BW 120 AC-4 Model series: BW 120 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AC-5 Model series: BW 120 AC-5 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AD-4 Model series: BW 120 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 120 AD-5 Model series: BW 120 AD-5 Model type: Rollers Brand of engine: D1703-M-E Approved: Yes
      Bomag Model: BW 125 AC-4 Model series: BW 125 AC-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Bomag Model: BW 125 AD-4 Model series: BW 125 AD-4 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Hitachi Model: EX33MU Model series: EX33MU Model type: Excavators Brand of engine: D1503-E Approved: Yes
      JCB Model: VMT260 Model series: VMT260 Model type: Rollers Brand of engine: D1503-E Approved: Yes
      Kubota Model: FT28 Model series: FT28 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: FT30 Model series: FT30 Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: KL27R Model series: KL27R Model type: Ag Tractors Brand of engine: D1703-M-E Body: Tractor Approved: Yes
      Kubota Model: KX135-3S Model series: KX135-3S Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
      Kubota Model: KX91-3S2 Model series: KX91-3S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: L Model series: L2250 Brand of engine: D1302 Approved: Yes
      Kubota Model: L Model series: L2500 Brand of engine: D1403 Approved: Yes
      Kubota Model: L Model series: L2550 Brand of engine: D1402 Approved: Yes
      Kubota Model: L Model series: L2650 Brand of engine: D1402 Approved: Yes
      Kubota Model: L Model series: L2800 Brand of engine: D1403 Approved: Yes
      Kubota Model: L Model series: L2900 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L2950 Brand of engine: D1462 Approved: Yes
      Kubota Model: L Model series: L3010 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L3130 Brand of engine: D1503 Approved: Yes
      Kubota Model: L Model series: L3300 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3400 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3410 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L3430 Brand of engine: D1703 Approved: Yes
      Kubota Model: L Model series: L35 Brand of engine: D1703 Approved: Yes
      Kubota Model: L27R Model series: L27R Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
      Kubota Model: L28RF Model series: L28RF Model type: Ag Tractors Brand of engine: D1703-M Body: Tractor Approved: Yes
      Kubota Model: L2900-2 Model series: L2900-2 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
      Kubota Model: L2900-4 Model series: L2900-4 Model type: Ag Tractors Brand of engine: D1503-E Body: Tractor Approved: Yes
      Kubota Model: L3008/L3608 Model series: L3008/L3608 Model type: Ag Tractors Brand of engine: D1503-M-DI Approved: Yes
      Kubota Model: RA401 Model series: RA401 Model type: Wheel Loaders and Dozers Brand of engine: D1503-E Approved: Yes
      Kubota Model: U30-5 Model series: U30-5 Model type: Excavators Brand of engine: D1703-M-E Approved: Yes
      Kubota Model: U30-6 Model series: U30-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35-3A Model series: U35-3A Model type: Excavators Brand of engine: D1503-E Approved: Yes
      Kubota Model: U35-4 Model series: U35-4 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35-6 Model series: U35-6 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Kubota Model: U35S2 Model series: U35S2 Model type: Excavators Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2 Model series: TA2 Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2E Model series: TA2E Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2H Model series: TA2H Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2S Model series: TA2S Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SE Model series: TA2SE Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SEH Model series: TA2SEH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TA2SH Model series: TA2SH Model type: Dumpers/Tenders Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1000 Model series: TV1000 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1000-1 Model series: TV1000-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1200 & TV1200H Model series: TV1200 & TV1200H Model type: Rollers Brand of engine: D1703-M Approved: Yes
      Terex Model: TV1200-1 & TV12200H-1 Model series: TV1200-1 & TV12200H-1 Model type: Rollers Brand of engine: D1703-M Approved: Yes
      1 / 13

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
