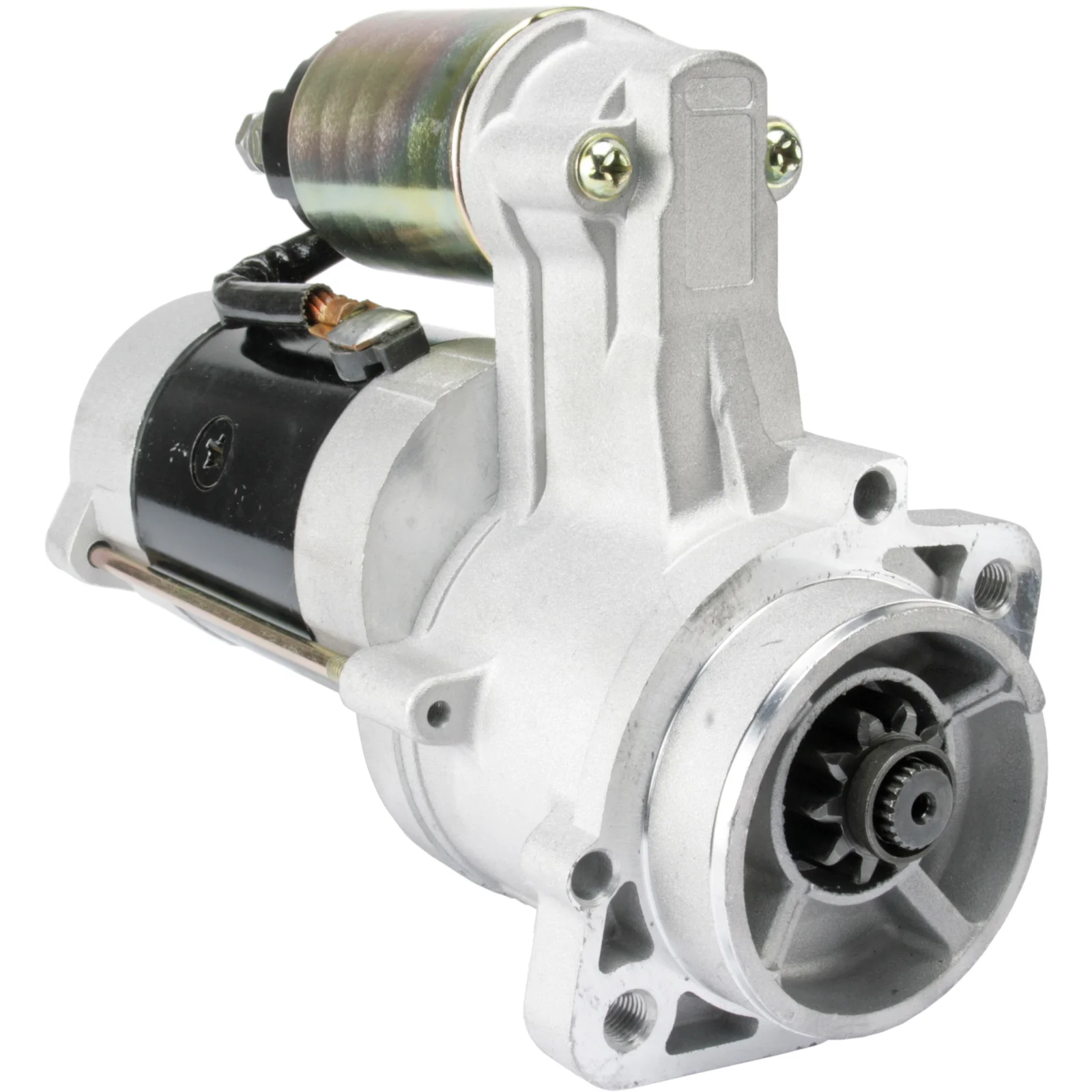

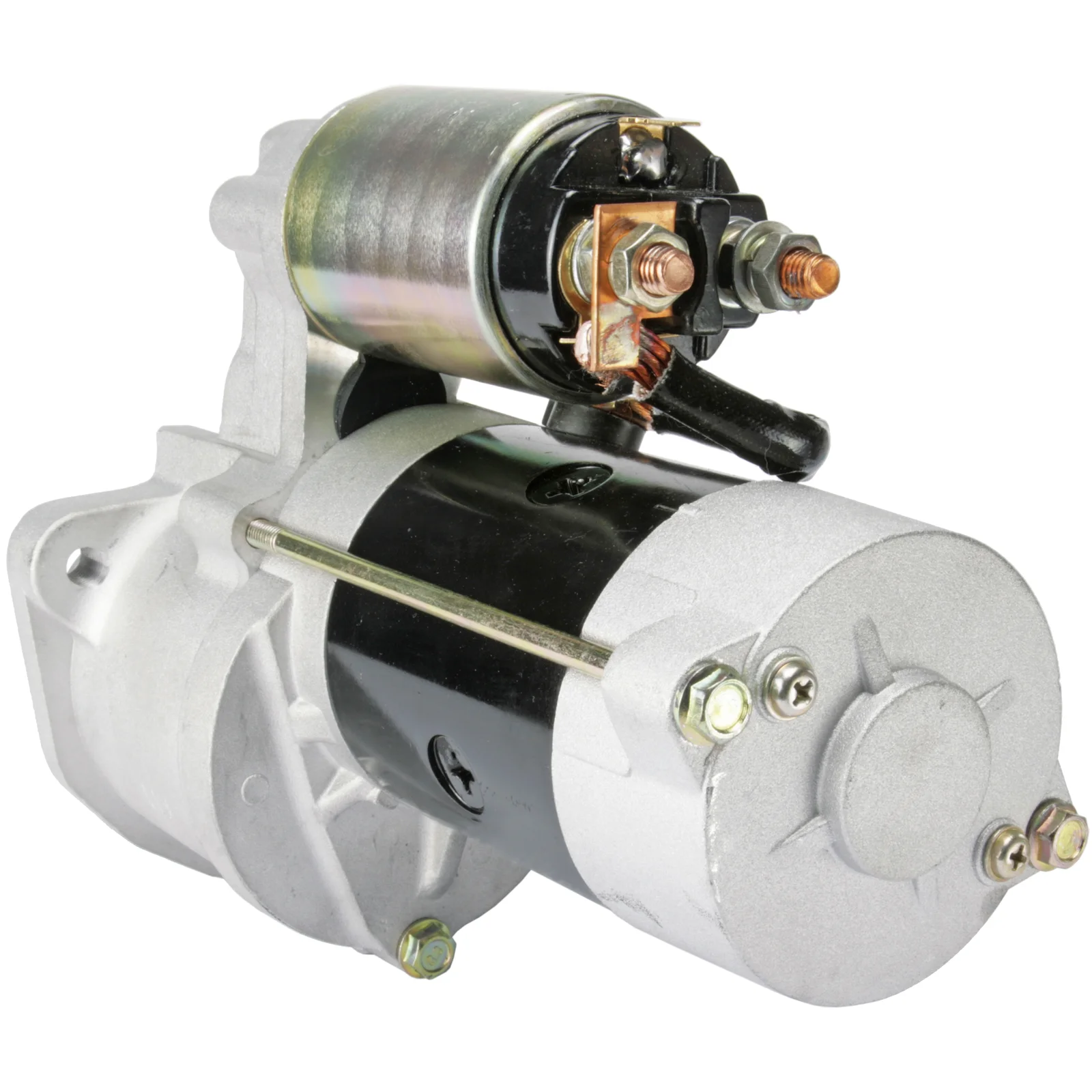

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032113937

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.2, Ant./tenner: 10, Rotasjon: CW

Beskrivelse

Spenningsnivå: 12
kW: 2.2
Monteringsflens: 78,00
Drev avstand: 19,00
Avstand/bak: 205,00
Avstand/frem: 26,00
Nummer/tagger: 10
B+: M8
Posisjon/50: 60
Terminal 50: 6,30
Akslingtype: GR
Avstand mm: 104,00
Rotasjon: med klokken
Total lengde mm: 240,00
Nummer/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 78.00
No./mount. holes 2 (2)
Position/50 60
Rotation CW
Dist./back 205.00
Dist./front 26.00
Drive dist. 19.00
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 240.00 mm
Dist. 104.00 mm

  • OEM
    F032113937, js1355, TM000A23601, TM000V23601, 36100-4A000, 36100-4a010, 1250128

  • Konkurrentreferens
    CST32106, CST32126, DRS0037, DRS0037X, DRS0329, F042S07028, F042S0H077, J5210512, LES0212, lrs01712, LRS02303, S3062, STR-4628, STR-H077, 8EA011610-811, 8EA738258-131, 25-3267, 25-3475, 250.506.102, 324.036.102, 324.058.102, 9781, 32712N, 32712R, 105700, 106866, 201355, 220350, 220350A, 220497, 220497A, 458440, 600077, 600248, 8080265, 11040709, 063522628, 0986023220, 063522628010

  • NormaliseratArtNr
    cst32106, cst32126, drs0037, drs0037x, drs0329, f032113937, f042s07028, f042s0h077, j5210512, js1355, les0212, lrs01712, lrs02303, s3062, str4628, strh077, tm000a23601, tm000v23601, 8ea011610811, 8ea738258131, 9781, 32712n, 32712r, 105700, 106866, 201355, 220350, 220350a, 220497, 220497a, 253267, 253475, 361004a000, 361004a010, 458440, 600077, 600248, 1250128, 8080265, 11040709, 063522628, 250506102, 324036102, 324058102, 0986023220, 063522628010

  • Passar modeller
    Hyundai Model: H-1 / Starex Model series: H-1 / Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: MPV From date: 01-12-2002 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-01-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Cargo Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB-W Body: Van From date: 01-08-2009 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Bus From date: 01-07-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-08-2003 To date: 01-12-2007 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Model series: H-1 Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-07-2010 Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Model type: CRDI Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus Fuel: Diesel Approved: Yes
    Hyundai Model: H-1 Travel Model series: H-1 Travel Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: TQ Body: Bus From date: 01-02-2008 Fuel: Diesel Approved: Yes
    Hyundai Model: H100 Model series: H100 Model type: TD Type of engine: Diesel Size of motor: 2.5 Brand of engine: D4CB Type description: HR Body: Platform/Chassis Fuel: Diesel Approved: Yes
    Hyundai Model: Porter Model series: Porter Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Pick Up From date: 01-02-2003 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Porter Model series: Porter Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Body: Van From date: 01-02-2003 To date: 01-04-2004 Fuel: Diesel Approved: Yes
    Hyundai Model: Starex Model series: Starex Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: H1 Body: MPV From date: 01-12-2002 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: Box Body / Estate From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Model type: CRDi 4WD Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV From date: 01-08-2002 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC Body: SUV From date: 01-12-2006 Fuel: Diesel Approved: Yes
    Kia Model: Sorento Model series: Sorento Type of engine: CRDi Size of motor: 2.5 Brand of engine: D4CB Type description: JC From date: 01-05-2006 Fuel: Diesel Approved: Yes
