Varenr.: F032113966

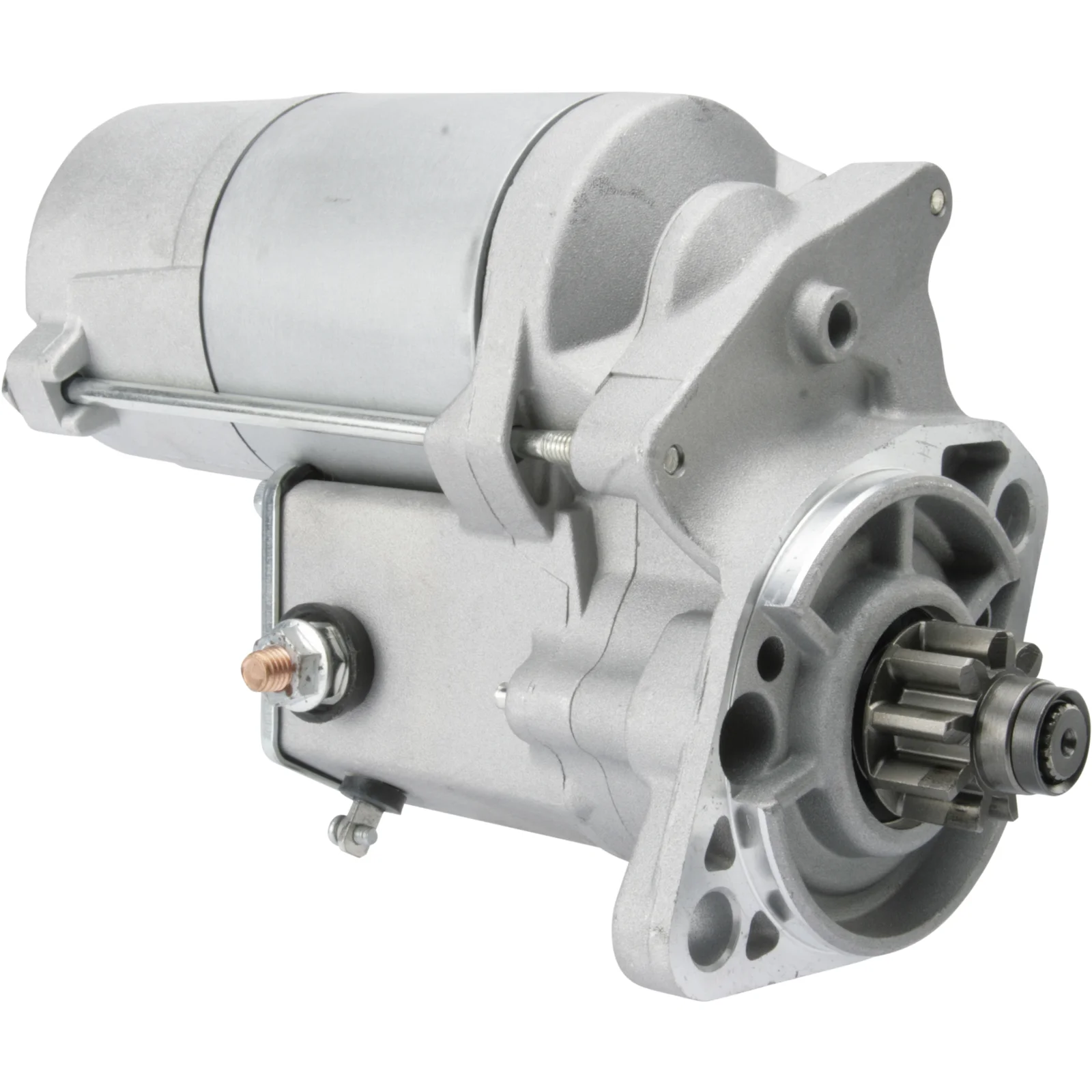

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.4, No./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 1.4
Monteringsflens: 82,50
Drivingsavstand: 25,50
Monteringshull 2 mm: 11,50
Monteringshull 1 mm: 11,50
Avstand/tilbakestilling: 122,00
Avstand/fremre: 38,00
Nummer/tänder: 9
B+: M8
Posisjon/50: 23
Terminal 50: M4
Girtype: GR
Avstand mm: 105,00
Rotasjon: CW
Total lengde mm: 220,00
Drive type: Steel
Prod. info: BN
Nummer/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 23
Prod. info BN
Rotation CW
Dist./back 122.00
Dist./front 38.00
Drive dist. 25.50
Drive type Steel
Gear type GR
kW 1.4
Terminal 50 M4
Voltage 12
Total length 220.00 mm
Dist. 105.00 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032113966, 15461-63013, 15461-63014, 15641-63014, 228000-1020, 228000-1021

  • Konkurrentreferens
    DSN2084, S6046, S6046(DENSO), 25-2127, 683.006.092, 11040502

  • NormaliseratArtNr
    dsn2084, f032113966, s6046, s6046denso, 252127, 11040502, 683006092, 1546163013, 1546163014, 1564163014, 2280001020, 2280001021

  • Passar modeller
    Bobcat Model: 331 & 335 Model series: 331 & 335 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: 430 Model series: 430 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: E 50 Model series: E 50 Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Bobcat Model: MT 55 Model series: MT 55 Model type: Skid Steer Loaders Brand of engine: D902-E Approved: Yes
    Caterpillar Model: 017 CR Model series: 017 CR Model type: Excavators Brand of engine: D902-E Approved: Yes
    Doosan Model: C185WKUB Model series: C185WKUB Model type: Air Compressors Brand of engine: V2403-M Approved: Yes
    Hako Model: SWEEPMASTER D1500 RH Model series: SWEEPMASTER D1500 RH Model type: Scrubbers and Sweepers Brand of engine: D902-E Approved: Yes
    Hyundai Model: R17Z-9A Model series: R17Z-9A Model type: Excavators Brand of engine: D902-E Approved: Yes
    Kubota Model: 4LBZ-105(PRO208) Model series: 4LBZ-105(PRO208) Model type: Combines Brand of engine: D902-E Approved: Yes
    Kubota Model: AEROSTAR RACLEAD ER220 Model series: AEROSTAR RACLEAD ER220 Model type: Combines Brand of engine: D902-E Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: D1302 From date: 01-01-1986 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: D1402 From date: 01-01-1979 Fuel: Diesel Approved: Yes
    Kubota Model: Engine Model series: Engine Brand of engine: V1502 Fuel: Diesel Approved: Yes
    Kubota Model: ER220 Model series: ER220 Model type: Combines Brand of engine: D902-E Approved: Yes
    Kubota Model: KX018-4 Model series: KX018-4 Model type: Excavators Brand of engine: D902-E Approved: Yes
    Kubota Model: KX161-3A Model series: KX161-3A Model type: Excavators Brand of engine: V2403-M Approved: Yes
    Kubota Model: KX41-3V Model series: KX41-3V Model type: Excavators Brand of engine: D902-E Approved: Yes
    Kubota Model: RTV-X 900 Model series: RTV-X 900 Model type: Utility Vehicles Brand of engine: D902-E Approved: Yes
    Kubota Model: RTV900 Model series: RTV900 Model type: Utility Vehicles Brand of engine: D902-E Approved: Yes
    Kubota Model: RTV900XT Model series: RTV900XT Model type: Utility Vehicles Brand of engine: D902-E Approved: Yes
    Kubota Model: U17 Model series: U17 Model type: Excavators Brand of engine: D902-E Approved: Yes
    Manitou Model: 160 ATJ+ / 200 ATJ Model series: 160 ATJ+ / 200 ATJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: 260 TJ / 280 TJ Model series: 260 TJ / 280 TJ Model type: Aerial Lifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model series: TMT 25 I, TMT 25 S, TMT 27 S, TMT 27 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 25 P Model series: TMT 25 P Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55 /HT/ST/HT-4W/XT-4W Model series: TMT 55 /HT/ST/HT-4W/XT-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55-FL-4W Model series: TMT 55-FL-4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
    Manitou Model: TMT 55/HT/HT 4W/XT/XT 4W Model series: TMT 55/HT/HT 4W/XT/XT 4W Model type: Rough Terrain Forklifts Brand of engine: V2403-M Approved: Yes
