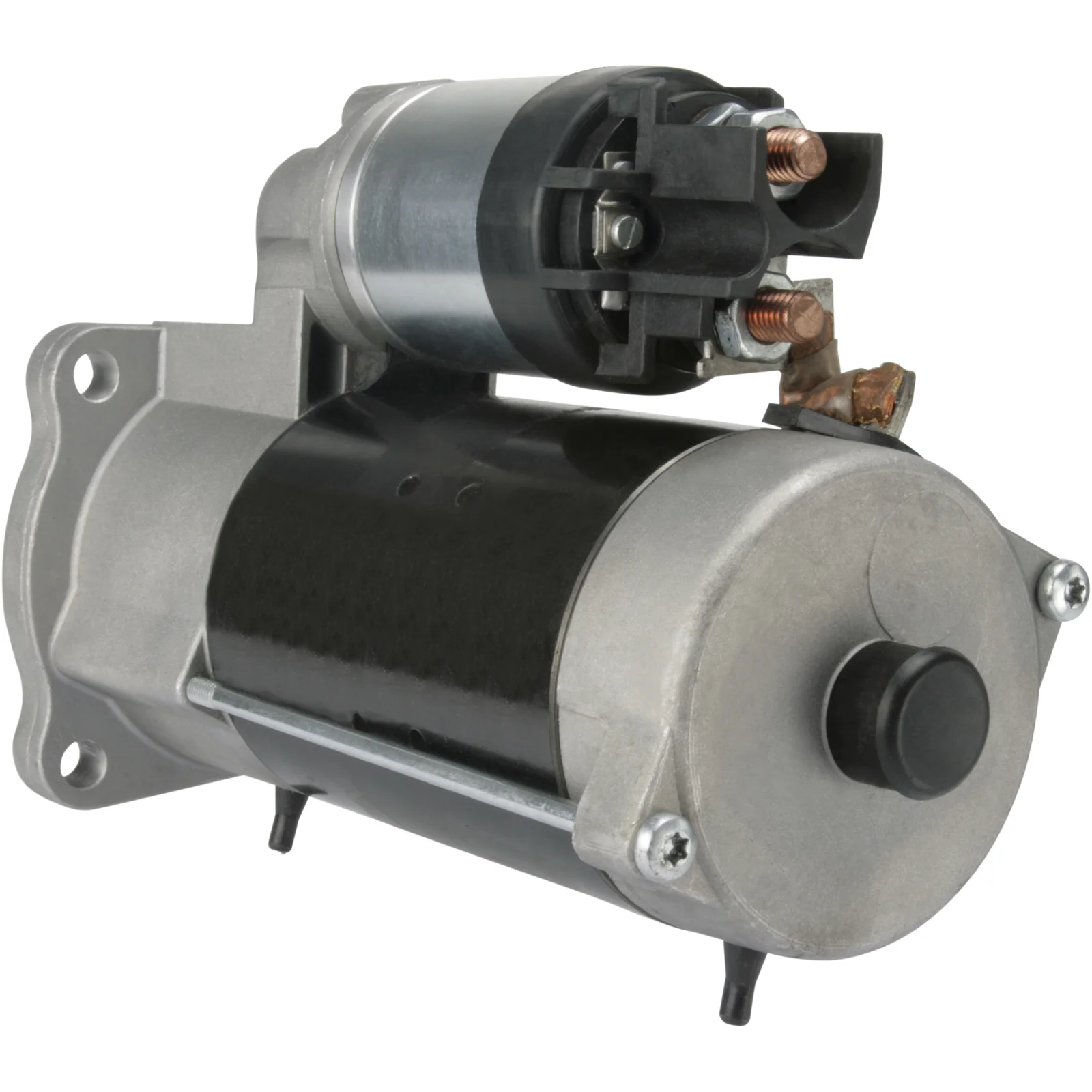

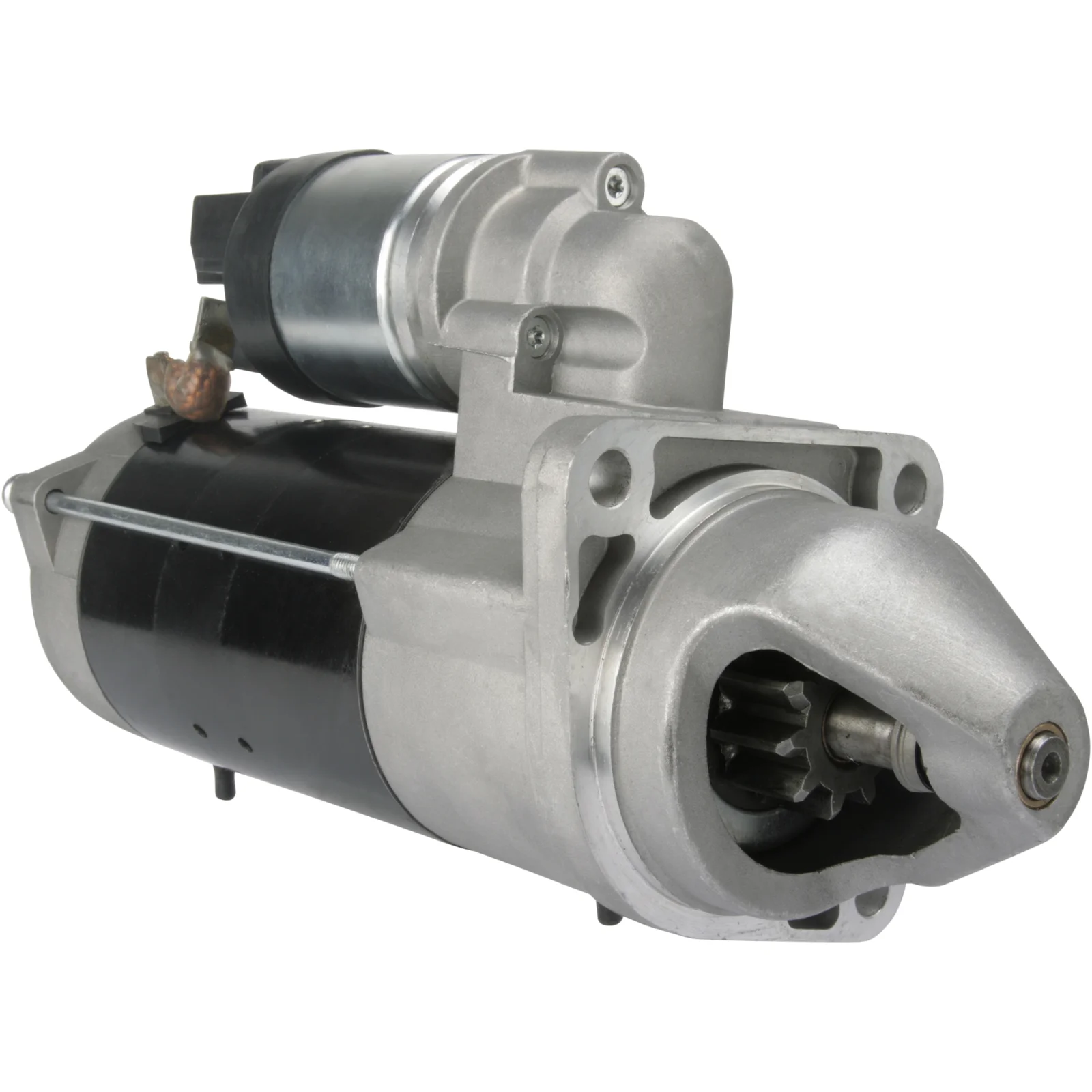

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114002

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 4,2, Ant./tann: 10, Rotasjon: CW

Beskrivelse

Spenningsnivå: 12
kW: 4.2
Monteringsflens: 89.00
Drivingsavstand: 27.00
Monteringshull 3 mm: 10.50
Monteringshull 2 mm: 10.50
Monteringshull 1 mm: 10.50
Avstand/tilbake: 228.00
Avstand/framme: 76.00
Antall/tenner: 10
B+: M10
Posisjon/50: 15
Terminal 50: M4-6.30
Girtype: GR
Avstand 2: 127.00
Avstand 3: 90.00
Avstand mm: 90.00
Rotasjon: Høyre
Total lengde mm: 316.00
Drevtype: Stål
Produs.informasjon: BN
Vanntett: Nei
Olje forseglet: Nei
Antall/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 10
Mount. flange 89.00
Oil sealed No
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 127.00
Dist. 3 90.00
Rotation CW
Dist./back 228.00
Dist./front 76.00
Drive dist. 27.00
Drive type Steel
Gear type GR
kW 4.2
Terminal 50 M4-6.30
Voltage 12
Total length 316.00 mm
Waterproof No
Dist. 90.00 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    AZF4591, EA504357109, F032114002, 11.131.352, 11.132.260, 285217, 394677, 0001230021, 0001230026, 0001250003, 0001250004, 0001262021, 0001262022, 2859528, 8094570, 0011383370, 11383370, 47132888, 47137534, 47137538, 50435711, 50436476, 51635200, 84208903, 87337538, 0000504031929, 0000504036476, 504036476, 0000504357109, 0000504357110, 504357110, 0005801577137, 5801577138, 5802094025, 5802430573

  • Konkurrentreferens
    CST10268, CST10538, DRS0026, DRS0267, IS1109, MS168, MS677, S0256, S0786S, S0810S, S9232, 500.572.103, 19792N, 19861N, 19980N, 255227

  • NormaliseratArtNr
    azf4591, cst10268, cst10538, drs0026, drs0267, ea504357109, f032114002, is1109, ms168, ms677, s0256, s0786s, s0810s, s9232, 19792n, 19861n, 19980n, 255227, 285217, 394677, 0001230021, 0001230026, 0001250003, 0001250004, 0001262021, 0001262022, 2859528, 8094570, 11131352, 11132260, 0011383370, 11383370, 47132888, 47137534, 47137538, 50435711, 50436476, 51635200, 84208903, 87337538, 500572103, 0000504031929, 0000504036476, 504036476, 0000504357109, 0000504357110, 504357110, 0005801577137, 5801577138, 5802094025, 5802430573

  • Passar modeller
    Agrifac Model: Condor Clereance Model series: Condor Clereance Model type: Sprayers Brand of engine: N67ENT Approved: Yes
    Agrifac Model: Condor Model series: Condor Model type: Sprayers Brand of engine: N67ENT Approved: Yes
    Agrifac Model: Condor Wide Track Plus Model series: Condor Wide Track Plus Model type: Sprayers Brand of engine: N67ENT Approved: Yes
    Case IH Model: AF 5130 Model series: AF 5130 Model type: Combines Brand of engine: N67ENT Approved: Yes
    Case IH Model: FARMALL 125A Model series: FARMALL 125A Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: FARMALL 140A Model series: FARMALL 140A Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: MAGNUM 180 Model series: MAGNUM 180 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: MAGNUM 190 Model series: MAGNUM 190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: MAGNUM 210 Model series: MAGNUM 210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: MAGNUM 225 Model series: MAGNUM 225 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: MX275 MFD Model series: MX275 MFD Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PATRIOT 3230 Model series: PATRIOT 3230 Model type: Sprayers Brand of engine: N67ENT Approved: Yes
    Case IH Model: PATRIOT 3330 Model series: PATRIOT 3330 Model type: Sprayers Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 130 Model series: PUMA 130 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 145 Model series: PUMA 145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 160 Model series: PUMA 160 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 165 Model series: PUMA 165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 170 Model series: PUMA 170 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 185 Model series: PUMA 185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 200 Model series: PUMA 200 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 215 Model series: PUMA 215 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: PUMA 230 Model series: PUMA 230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Case IH Model: WD1903 Model series: WD1903 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    Case IH Model: WD2303 Model series: WD2303 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    Case IH Model: WDX1903 Model series: WDX1903 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    Case IH Model: WDX2303 Model series: WDX2303 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    Case Model: 400 Series Model series: 420CT Size of motor: 3.2 Brand of engine: 432T/M From date: 01-01-2008 Fuel: Diesel Approved: Yes
    Case Model: 836C SERIES Model series: 836C SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
    Case Model: 856C SERIES Model series: 856C SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
    Case Model: 865B Model series: 865B Model type: Graders Brand of engine: N67ENT Approved: Yes
    Case Model: 885B Model series: 885B Model type: Graders Brand of engine: N67ENT Approved: Yes
    Case Model: 921F Model series: 921F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    Case Model: CX220C Model series: CX220C Model type: Excavators Brand of engine: N67ENT Approved: Yes
    Case Model: P215 Model series: P215 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
    Claas Model: AXION 800 SER. (800-850) Model series: AXION 800 SER. (800-850) Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: POWERMASTER 190 Model series: POWERMASTER 190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-145 Model series: SERIE 7-145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-165 Model series: SERIE 7-165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-180 4i Model series: SERIE 7-180 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-185 Model series: SERIE 7-185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-190 Model series: SERIE 7-190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-195 4i Model series: SERIE 7-195 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-205 4i Model series: SERIE 7-205 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-210 Model series: SERIE 7-210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-220 4i Model series: SERIE 7-220 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-230 Model series: SERIE 7-230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Landini Model: SERIE 7-235 4i Model series: SERIE 7-235 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Manitou Model: MLT629 20 in / MLT 629 20 in C / MLT 629 24 in Model series: MLT629 20 in / MLT 629 20 in C / MLT 629 24 in Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    Manitou Model: MT 1135H / MT1135HA Model series: MT 1135H / MT1135HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    Manitou Model: MT 1335 H / MT 1335 HA Model series: MT 1335 H / MT 1335 HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    Manitou Model: MT 1440 H / HA Model series: MT 1440 H / HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    Manitou Model: MT 1840 H / MT 1840 HA Model series: MT 1840 H / MT 1840 HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    Manitou Model: MT835 / MT835H Model series: MT835 / MT835H Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
    McCormick Model: TTX190 Model series: TTX190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: TTX210 Model series: TTX210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: TTX230 Model series: TTX230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: X70.40 Model series: X70.40 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: X70.50 Model series: X70.50 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: X70.60 Model series: X70.60 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: X70.70 Model series: X70.70 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: X70.80 Model series: X70.80 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: XTX145 Model series: XTX145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: XTX165 Model series: XTX165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: XTX185 Model series: XTX185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    McCormick Model: XTX185/200/215 Model series: XTX185/200/215 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Mitsubishi Model: FD70N Model series: FD70N Model type: Forklifts Brand of engine: F34ENT Approved: Yes
    New Holland Model: 12D Model series: 12D Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 621E Model series: 621E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 621F Model series: 621F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 721E Model series: 721E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 721F Model series: 721F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 821E Model series: 821E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 821F Model series: 821F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: 921F Model series: 921F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: cr580 Model series: cr580 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: CX5080 Model series: CX5080 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: CX5090 SERIES Model series: CX5090 SERIES Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: CX6080 Model series: CX6080 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: D140B Model series: D140B Model type: Crawlers Brand of engine: N67ENT Approved: Yes
    New Holland Model: D150B Model series: D150B Model type: Crawlers Brand of engine: N67ENT Approved: Yes
    New Holland Model: D180C Model series: D180C Model type: Crawlers Brand of engine: N67ENT Approved: Yes
    New Holland Model: F106.7 SERIES Model series: F106.7 SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
    New Holland Model: F157.7 SERIES Model series: F157.7 SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
    New Holland Model: H8060 Model series: H8060 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    New Holland Model: H8080 Model series: H8080 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
    New Holland Model: P240 Model series: P240 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
    New Holland Model: PUMA2254 Model series: PUMA2254 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: RG140B Model series: RG140B Model type: Graders Brand of engine: N67ENT Approved: Yes
    New Holland Model: RG170B Model series: RG170B Model type: Graders Brand of engine: N67ENT Approved: Yes
    New Holland Model: RG200B Model series: RG200B Model type: Graders Brand of engine: N67ENT Approved: Yes
    New Holland Model: S215 Model series: S215 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
    New Holland Model: S240 Model series: S240 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
    New Holland Model: T 4.105 - Tier 4A Model series: T 4.105 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 4.115 - Tier 4A Model series: T 4.115 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 4.85 - Tier 4A Model series: T 4.85 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 4.95 - Tier 4A Model series: T 4.95 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 5.105 Model series: T 5.105 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 5.115 Model series: T 5.115 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T 5.95 Model series: T 5.95 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: T2014 Model series: T2014 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T6.155 Model series: T6.155 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T6.165 Model series: T6.165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T6.175 Model series: T6.175 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.170 Model series: T7.170 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.185 Model series: T7.185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.200 Model series: T7.200 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.210 Model series: T7.210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.220 Model series: T7.220 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.235 Model series: T7.235 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.245 Model series: T7.245 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.250 Model series: T7.250 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.260 Model series: T7.260 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7.270 Model series: T7.270 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7030 Model series: T7030 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7040 Model series: T7040 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7050 Model series: T7050 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7060 Model series: T7060 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: T7070 Model series: T7070 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: TC 5070 Model series: TC 5070 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: TC 5080 Model series: TC 5080 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: TC5070 Model series: TC5070 Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: TC5080 Hilside Model series: TC5080 Hilside Model type: Combines Brand of engine: N67ENT Approved: Yes
    New Holland Model: TD 5.105 Model series: TD 5.105 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TD 5.115 Model series: TD 5.115 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TD 5.85 Model series: TD 5.85 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TD 5.95 Model series: TD 5.95 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TK 4040 Model series: TK 4040 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TK 4040M Model series: TK 4040M Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
    New Holland Model: TS6.125 Model series: TS6.125 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: TS6.140 Model series: TS6.140 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: TV6070 BIDIRECTIONAL Model series: TV6070 BIDIRECTIONAL Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    New Holland Model: W130 Model series: W130 Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: W170B Model series: W170B Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    New Holland Model: W190B Model series: W190B Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6115 Profi Model series: 6115 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6125 Profi Classic Model series: 6125 Profi Classic Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6125 Profi Model series: 6125 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6130 CVT Model series: 6130 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6140 CVT Model series: 6140 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6140 Profi Classic Model series: 6140 Profi Classic Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6140 Profi Model series: 6140 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6145 CVT Model series: 6145 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6150 CVT Model series: 6150 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6160 CVT Model series: 6160 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6165 CVT Model series: 6165 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6170 CVT Model series: 6170 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6175 CVT Model series: 6175 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6180 CVT Model series: 6180 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6185 CVT Model series: 6185 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6195 CVT Model series: 6195 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6200 CVT Model series: 6200 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6205 CVT Model series: 6205 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6210 CVT Model series: 6210 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6215 CVT Model series: 6215 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    Steyr Model: 6225 CVT Model series: 6225 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
    1 / 31
  • Beskrivelse
    Spenningsnivå: 12
    kW: 4.2
    Monteringsflens: 89.00
    Drivingsavstand: 27.00
    Monteringshull 3 mm: 10.50
    Monteringshull 2 mm: 10.50
    Monteringshull 1 mm: 10.50
    Avstand/tilbake: 228.00
    Avstand/framme: 76.00
    Antall/tenner: 10
    B+: M10
    Posisjon/50: 15
    Terminal 50: M4-6.30
    Girtype: GR
    Avstand 2: 127.00
    Avstand 3: 90.00
    Avstand mm: 90.00
    Rotasjon: Høyre
    Total lengde mm: 316.00
    Drevtype: Stål
    Produs.informasjon: BN
    Vanntett: Nei
    Olje forseglet: Nei
    Antall/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 10
    Mount. flange 89.00
    Oil sealed No
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 127.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 228.00
    Dist./front 76.00
    Drive dist. 27.00
    Drive type Steel
    Gear type GR
    kW 4.2
    Terminal 50 M4-6.30
    Voltage 12
    Total length 316.00 mm
    Waterproof No
    Dist. 90.00 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      AZF4591, EA504357109, F032114002, 11.131.352, 11.132.260, 285217, 394677, 0001230021, 0001230026, 0001250003, 0001250004, 0001262021, 0001262022, 2859528, 8094570, 0011383370, 11383370, 47132888, 47137534, 47137538, 50435711, 50436476, 51635200, 84208903, 87337538, 0000504031929, 0000504036476, 504036476, 0000504357109, 0000504357110, 504357110, 0005801577137, 5801577138, 5802094025, 5802430573

    • Konkurrentreferens
      CST10268, CST10538, DRS0026, DRS0267, IS1109, MS168, MS677, S0256, S0786S, S0810S, S9232, 500.572.103, 19792N, 19861N, 19980N, 255227

    • NormaliseratArtNr
      azf4591, cst10268, cst10538, drs0026, drs0267, ea504357109, f032114002, is1109, ms168, ms677, s0256, s0786s, s0810s, s9232, 19792n, 19861n, 19980n, 255227, 285217, 394677, 0001230021, 0001230026, 0001250003, 0001250004, 0001262021, 0001262022, 2859528, 8094570, 11131352, 11132260, 0011383370, 11383370, 47132888, 47137534, 47137538, 50435711, 50436476, 51635200, 84208903, 87337538, 500572103, 0000504031929, 0000504036476, 504036476, 0000504357109, 0000504357110, 504357110, 0005801577137, 5801577138, 5802094025, 5802430573

    • Passar modeller
      Agrifac Model: Condor Clereance Model series: Condor Clereance Model type: Sprayers Brand of engine: N67ENT Approved: Yes
      Agrifac Model: Condor Model series: Condor Model type: Sprayers Brand of engine: N67ENT Approved: Yes
      Agrifac Model: Condor Wide Track Plus Model series: Condor Wide Track Plus Model type: Sprayers Brand of engine: N67ENT Approved: Yes
      Case IH Model: AF 5130 Model series: AF 5130 Model type: Combines Brand of engine: N67ENT Approved: Yes
      Case IH Model: FARMALL 125A Model series: FARMALL 125A Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: FARMALL 140A Model series: FARMALL 140A Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: MAGNUM 180 Model series: MAGNUM 180 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: MAGNUM 190 Model series: MAGNUM 190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: MAGNUM 210 Model series: MAGNUM 210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: MAGNUM 225 Model series: MAGNUM 225 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: MX275 MFD Model series: MX275 MFD Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PATRIOT 3230 Model series: PATRIOT 3230 Model type: Sprayers Brand of engine: N67ENT Approved: Yes
      Case IH Model: PATRIOT 3330 Model series: PATRIOT 3330 Model type: Sprayers Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 130 Model series: PUMA 130 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 145 Model series: PUMA 145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 160 Model series: PUMA 160 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 165 Model series: PUMA 165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 170 Model series: PUMA 170 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 185 Model series: PUMA 185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 200 Model series: PUMA 200 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 215 Model series: PUMA 215 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: PUMA 230 Model series: PUMA 230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Case IH Model: WD1903 Model series: WD1903 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      Case IH Model: WD2303 Model series: WD2303 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      Case IH Model: WDX1903 Model series: WDX1903 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      Case IH Model: WDX2303 Model series: WDX2303 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      Case Model: 400 Series Model series: 420CT Size of motor: 3.2 Brand of engine: 432T/M From date: 01-01-2008 Fuel: Diesel Approved: Yes
      Case Model: 836C SERIES Model series: 836C SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
      Case Model: 856C SERIES Model series: 856C SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
      Case Model: 865B Model series: 865B Model type: Graders Brand of engine: N67ENT Approved: Yes
      Case Model: 885B Model series: 885B Model type: Graders Brand of engine: N67ENT Approved: Yes
      Case Model: 921F Model series: 921F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      Case Model: CX220C Model series: CX220C Model type: Excavators Brand of engine: N67ENT Approved: Yes
      Case Model: P215 Model series: P215 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
      Claas Model: AXION 800 SER. (800-850) Model series: AXION 800 SER. (800-850) Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: POWERMASTER 190 Model series: POWERMASTER 190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-145 Model series: SERIE 7-145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-165 Model series: SERIE 7-165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-180 4i Model series: SERIE 7-180 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-185 Model series: SERIE 7-185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-190 Model series: SERIE 7-190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-195 4i Model series: SERIE 7-195 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-205 4i Model series: SERIE 7-205 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-210 Model series: SERIE 7-210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-220 4i Model series: SERIE 7-220 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-230 Model series: SERIE 7-230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Landini Model: SERIE 7-235 4i Model series: SERIE 7-235 4i Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Manitou Model: MLT629 20 in / MLT 629 20 in C / MLT 629 24 in Model series: MLT629 20 in / MLT 629 20 in C / MLT 629 24 in Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      Manitou Model: MT 1135H / MT1135HA Model series: MT 1135H / MT1135HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      Manitou Model: MT 1335 H / MT 1335 HA Model series: MT 1335 H / MT 1335 HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      Manitou Model: MT 1440 H / HA Model series: MT 1440 H / HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      Manitou Model: MT 1840 H / MT 1840 HA Model series: MT 1840 H / MT 1840 HA Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      Manitou Model: MT835 / MT835H Model series: MT835 / MT835H Model type: Rough Terrain Forklifts Brand of engine: F34ENT Approved: Yes
      McCormick Model: TTX190 Model series: TTX190 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: TTX210 Model series: TTX210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: TTX230 Model series: TTX230 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: X70.40 Model series: X70.40 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: X70.50 Model series: X70.50 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: X70.60 Model series: X70.60 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: X70.70 Model series: X70.70 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: X70.80 Model series: X70.80 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: XTX145 Model series: XTX145 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: XTX165 Model series: XTX165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: XTX185 Model series: XTX185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      McCormick Model: XTX185/200/215 Model series: XTX185/200/215 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Mitsubishi Model: FD70N Model series: FD70N Model type: Forklifts Brand of engine: F34ENT Approved: Yes
      New Holland Model: 12D Model series: 12D Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 621E Model series: 621E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 621F Model series: 621F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 721E Model series: 721E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 721F Model series: 721F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 821E Model series: 821E Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 821F Model series: 821F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: 921F Model series: 921F Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: cr580 Model series: cr580 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: CX5080 Model series: CX5080 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: CX5090 SERIES Model series: CX5090 SERIES Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: CX6080 Model series: CX6080 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: D140B Model series: D140B Model type: Crawlers Brand of engine: N67ENT Approved: Yes
      New Holland Model: D150B Model series: D150B Model type: Crawlers Brand of engine: N67ENT Approved: Yes
      New Holland Model: D180C Model series: D180C Model type: Crawlers Brand of engine: N67ENT Approved: Yes
      New Holland Model: F106.7 SERIES Model series: F106.7 SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
      New Holland Model: F157.7 SERIES Model series: F157.7 SERIES Model type: Graders Brand of engine: N67ENT Approved: Yes
      New Holland Model: H8060 Model series: H8060 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      New Holland Model: H8080 Model series: H8080 Model type: Windrowers Brand of engine: N67ENT Approved: Yes
      New Holland Model: P240 Model series: P240 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
      New Holland Model: PUMA2254 Model series: PUMA2254 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: RG140B Model series: RG140B Model type: Graders Brand of engine: N67ENT Approved: Yes
      New Holland Model: RG170B Model series: RG170B Model type: Graders Brand of engine: N67ENT Approved: Yes
      New Holland Model: RG200B Model series: RG200B Model type: Graders Brand of engine: N67ENT Approved: Yes
      New Holland Model: S215 Model series: S215 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
      New Holland Model: S240 Model series: S240 Model type: Irrigation Sets Brand of engine: N67ENT Approved: Yes
      New Holland Model: T 4.105 - Tier 4A Model series: T 4.105 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 4.115 - Tier 4A Model series: T 4.115 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 4.85 - Tier 4A Model series: T 4.85 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 4.95 - Tier 4A Model series: T 4.95 - Tier 4A Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 5.105 Model series: T 5.105 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 5.115 Model series: T 5.115 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T 5.95 Model series: T 5.95 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: T2014 Model series: T2014 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T6.155 Model series: T6.155 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T6.165 Model series: T6.165 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T6.175 Model series: T6.175 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.170 Model series: T7.170 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.185 Model series: T7.185 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.200 Model series: T7.200 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.210 Model series: T7.210 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.220 Model series: T7.220 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.235 Model series: T7.235 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.245 Model series: T7.245 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.250 Model series: T7.250 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.260 Model series: T7.260 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7.270 Model series: T7.270 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7030 Model series: T7030 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7040 Model series: T7040 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7050 Model series: T7050 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7060 Model series: T7060 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: T7070 Model series: T7070 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: TC 5070 Model series: TC 5070 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: TC 5080 Model series: TC 5080 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: TC5070 Model series: TC5070 Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: TC5080 Hilside Model series: TC5080 Hilside Model type: Combines Brand of engine: N67ENT Approved: Yes
      New Holland Model: TD 5.105 Model series: TD 5.105 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TD 5.115 Model series: TD 5.115 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TD 5.85 Model series: TD 5.85 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TD 5.95 Model series: TD 5.95 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TK 4040 Model series: TK 4040 Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TK 4040M Model series: TK 4040M Model type: Ag Tractors Brand of engine: F34ENT Approved: Yes
      New Holland Model: TS6.125 Model series: TS6.125 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: TS6.140 Model series: TS6.140 Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: TV6070 BIDIRECTIONAL Model series: TV6070 BIDIRECTIONAL Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      New Holland Model: W130 Model series: W130 Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: W170B Model series: W170B Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      New Holland Model: W190B Model series: W190B Model type: Wheel Loaders and Dozers Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6115 Profi Model series: 6115 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6125 Profi Classic Model series: 6125 Profi Classic Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6125 Profi Model series: 6125 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6130 CVT Model series: 6130 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6140 CVT Model series: 6140 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6140 Profi Classic Model series: 6140 Profi Classic Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6140 Profi Model series: 6140 Profi Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6145 CVT Model series: 6145 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6150 CVT Model series: 6150 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6160 CVT Model series: 6160 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6165 CVT Model series: 6165 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6170 CVT Model series: 6170 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6175 CVT Model series: 6175 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6180 CVT Model series: 6180 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6185 CVT Model series: 6185 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6195 CVT Model series: 6195 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6200 CVT Model series: 6200 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6205 CVT Model series: 6205 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6210 CVT Model series: 6210 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6215 CVT Model series: 6215 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      Steyr Model: 6225 CVT Model series: 6225 CVT Model type: Ag Tractors Brand of engine: N67ENT Approved: Yes
      1 / 31

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
