HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114059

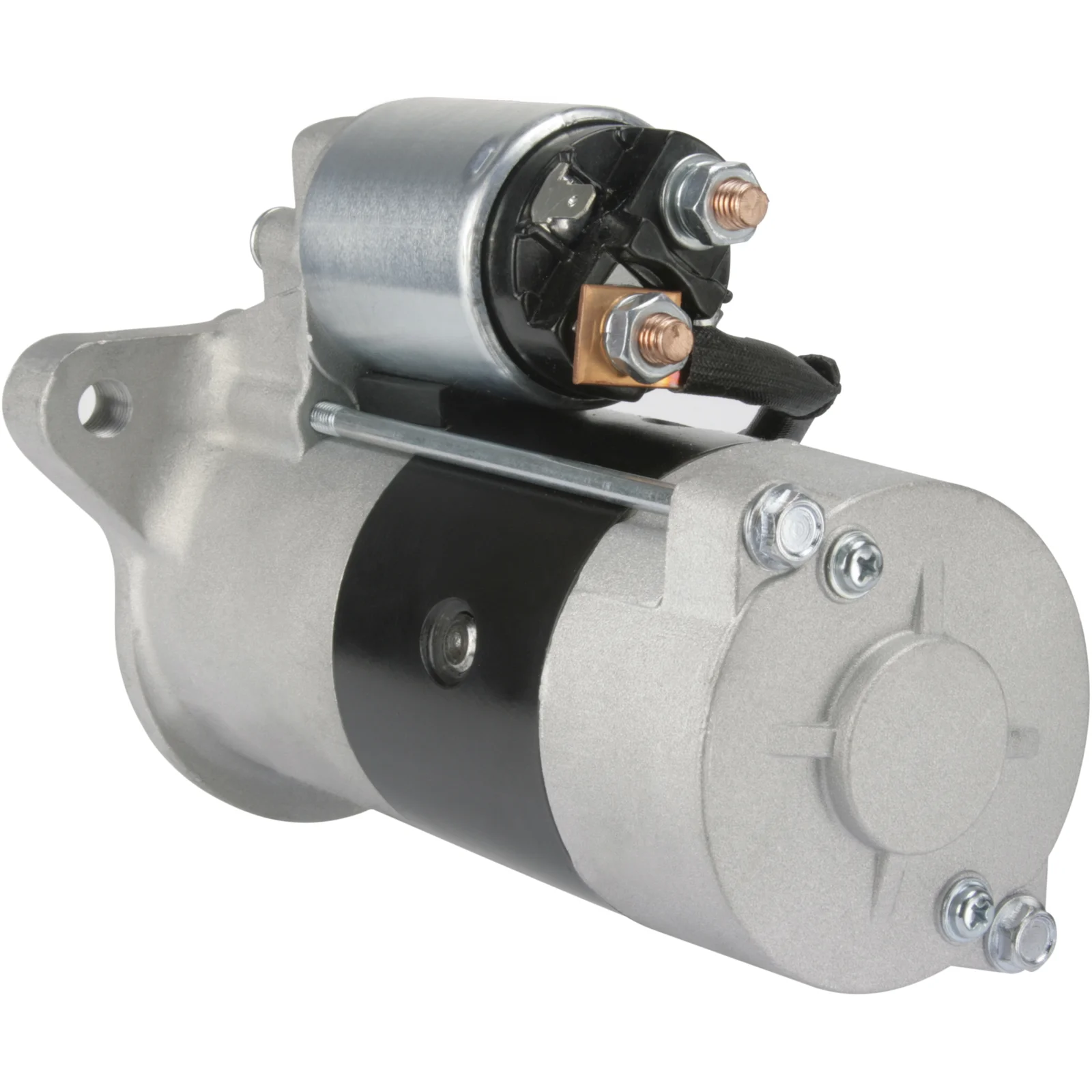

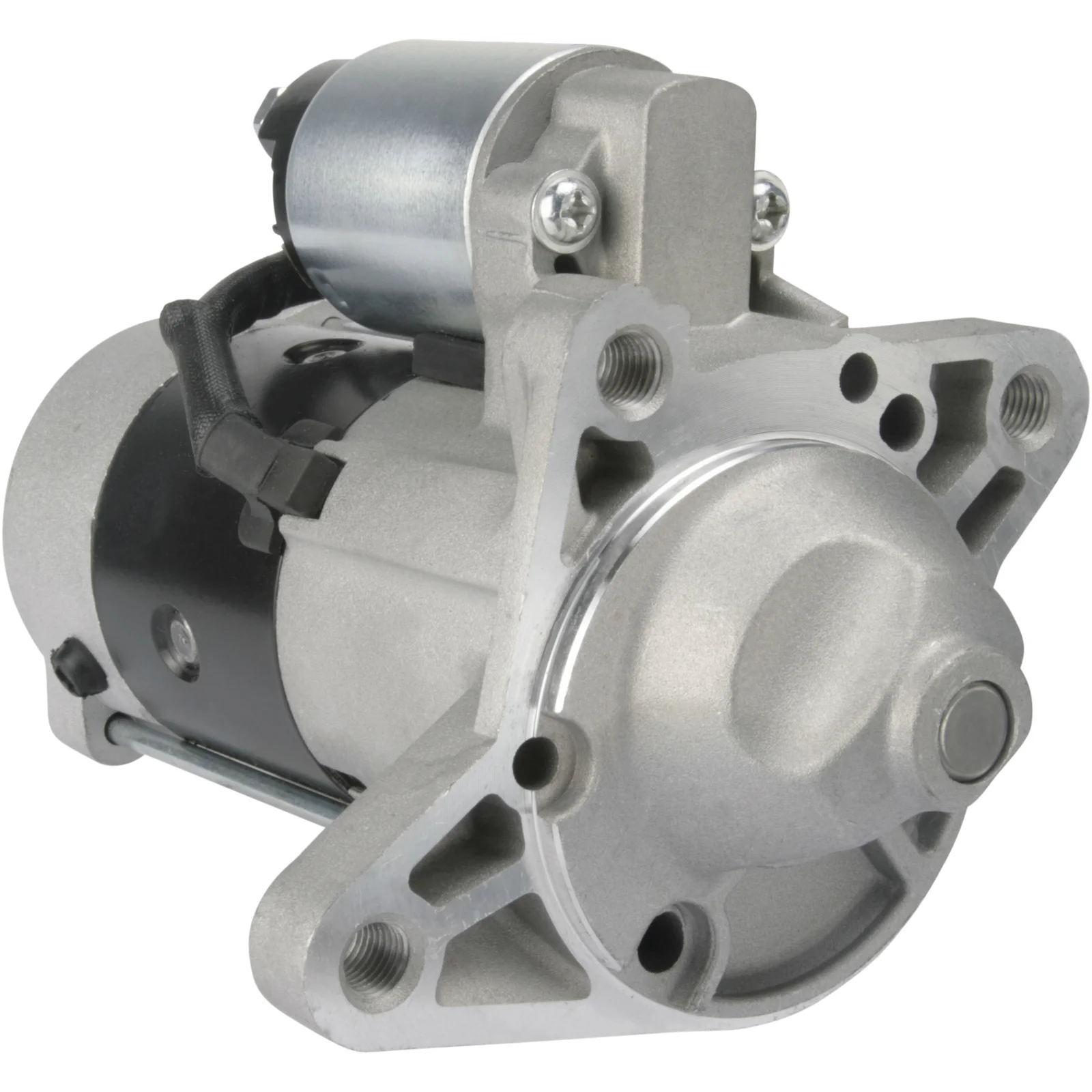

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kullbørstesett: 2.3, Antall / Tenner: 12, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Gavl: 12
kW: 2,3
Monteringsflens: 88,00
Drivlengde: 5,00
Monteringshull 3 mm: M12-1.50
Avstand/bak: 186,00
Avstand/frem: 41,50
Antall/tenner: 12
B+: M8
Posisjon/50: 50
Terminal 50: 6,30
Type gir: GR
Avstand 2: 90,00
Avstand 3: 80,00
Avstand mm: 140,00
Rotasjon: medklokke
Total lengde mm: 226,00
Prod. info: BN
Antall/monteringshull: 3 (3)

Filer

Spesifikasjon

B+ M8
No./teeth 12
Mount. flange 88.00
No./mount. holes 3 (3)
Position/50 50
Prod. info BN
Dist. 2 90.00
Dist. 3 80.00
Rotation CW
Dist./back 186.00
Dist./front 41.50
Drive dist. 5.00
Gear type GR
kW 2.3
Terminal 50 6.30
Voltage 12
Total length 226.00 mm
Dist. 140.00 mm
Mount. hole 3 M12-1.50 mm

  • OEM
    F032114059, js1296, M002T88671, m2t88671, RF5C-18-400, RF5C-18-400RE, 1986S01287

  • Konkurrentreferens
    CST35146, DRS3915, J5213046, LRS01714, S5045, 8EA011610-721, 8EA738039-001, 25-3269, 324.040.122, 9657, 32714N, 105410, 201296, 220520, 220520A, 8213108, 11040684, 0986024240

  • NormaliseratArtNr
    cst35146, drs3915, f032114059, j5213046, js1296, lrs01714, m002t88671, m2t88671, rf5c18400, rf5c18400re, s5045, 8ea011610721, 8ea738039001, 1986s01287, 9657, 32714n, 105410, 201296, 220520, 220520a, 253269, 8213108, 11040684, 324040122, 0986024240

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK12 From date: 01-12-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK14 Body: Hatchback From date: 01-07-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Model type: RF7J Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: GH Body: Estate From date: 01-12-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes Manufacture type: kombi
    Mazda Model: 6 Model series: 6 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: GH Body: Hatchback From date: 01-08-2007 To date: 01-10-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: GH From date: 01-08-2007 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG Body: Hatchback From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-06-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GG From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: GY Body: Estate From date: 01-08-2002 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG Body: Hatchback From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GY Body: Estate From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: MPV Model series: MPV Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF5C Type description: LW Body: MPV From date: 01-07-2002 To date: 01-02-2006 Fuel: Diesel Approved: Yes
