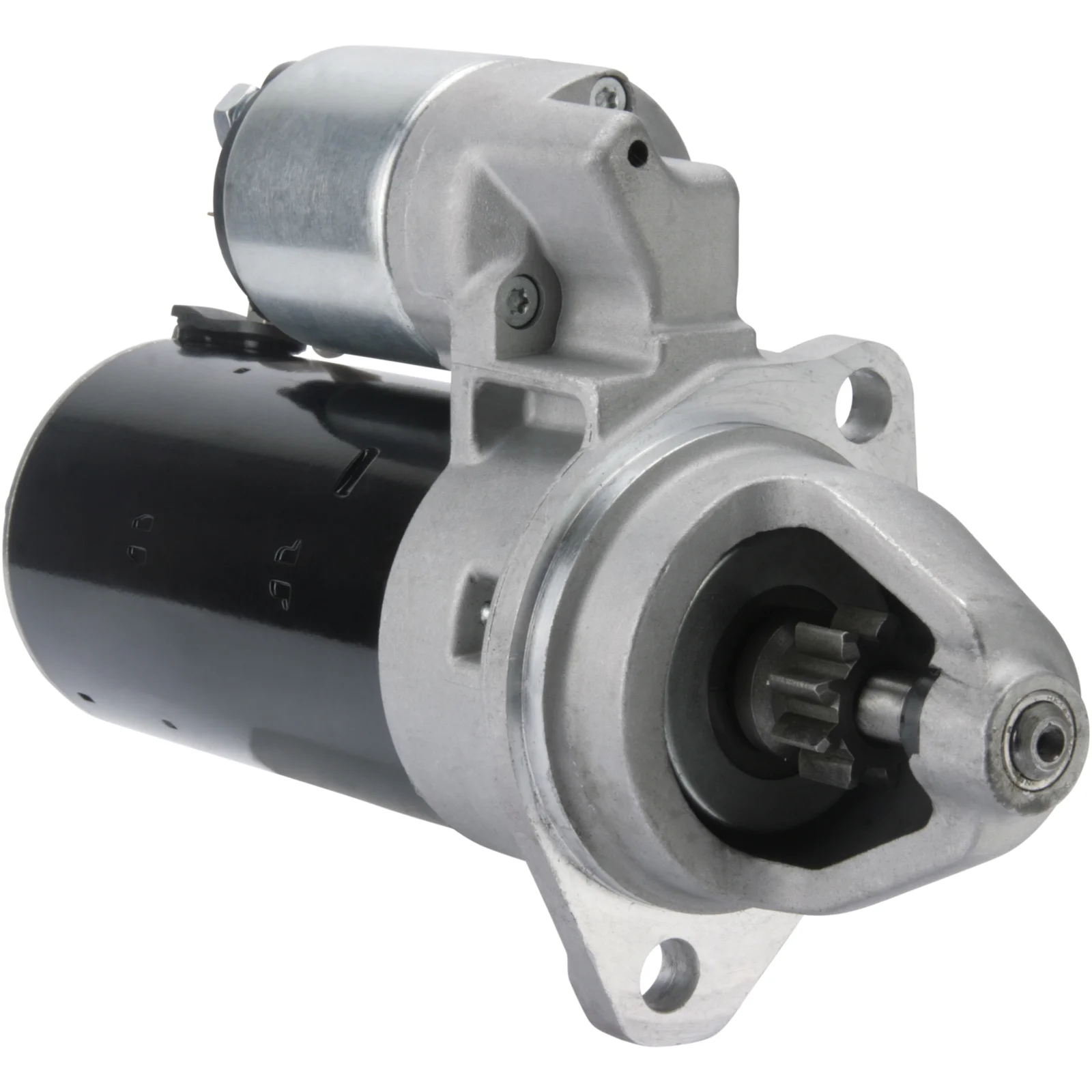

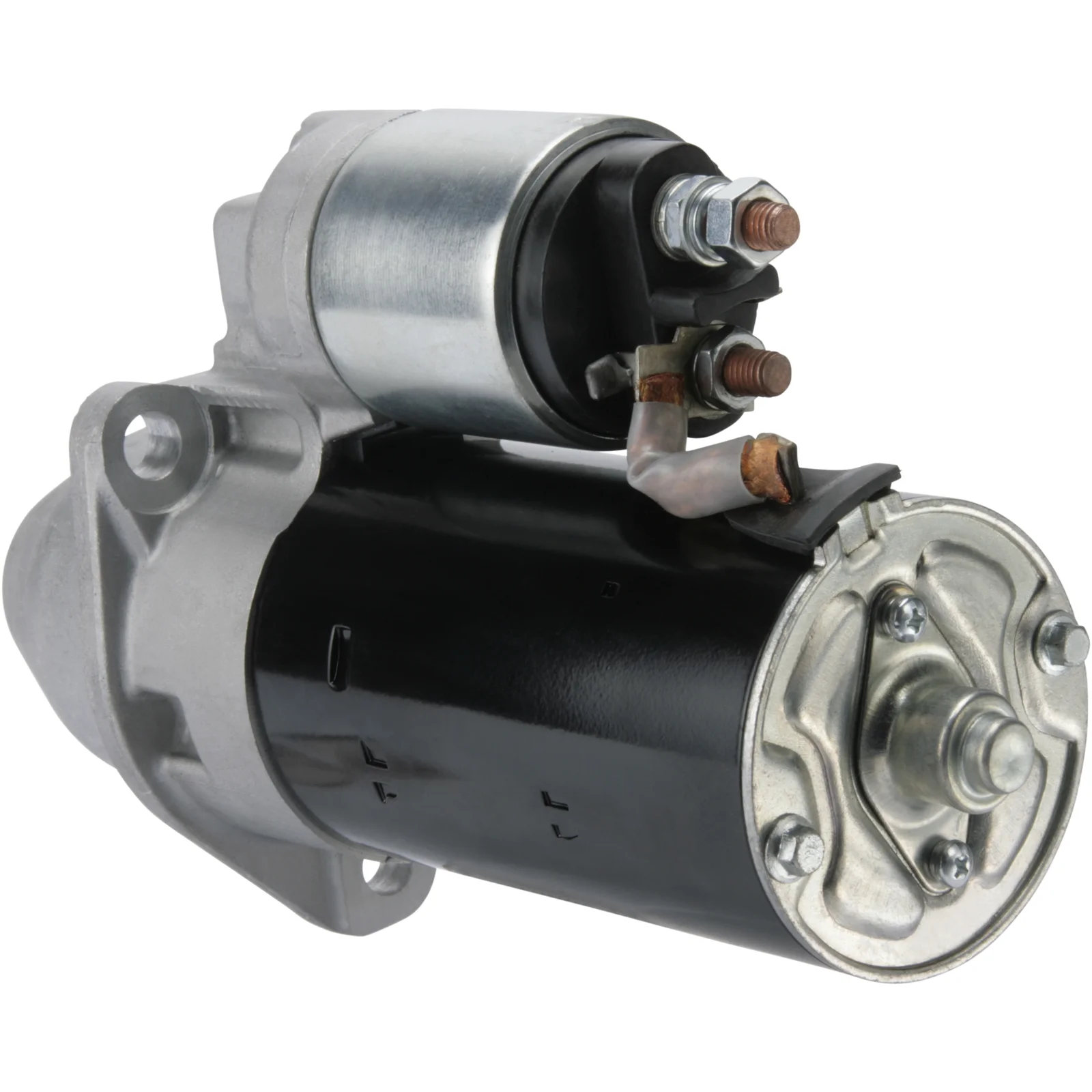

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114106

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1,6, Antall/tann: 9, Rotasjon: CW

Beskrivelse

HC-Cargo Startmotor

Spenningsnivå: 12
kW: 1.6
Monteringsflens: 82.50
Drevavstand: 40.00
Monteringshull 2 mm: 12.00
Monteringshull 1 mm: 12.00
Avstand/bak: 170.00
Avstand/fram: 86.00
Antall/tannhjul: 9
B+: M8
Posisjon/50: 15
Terminal 50: 6.30
Avstand mm: 102.00
Rotasjon: medur
Total lengde mm: 263.00
Antall/monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 15
Rotation CW
Dist./back 170.00
Dist./front 86.00
Drive dist. 40.00
kW 1.6
Terminal 50 6.30
Voltage 12
Total length 263.00 mm
Dist. 102.00 mm
Mount. hole 2 12.00 mm
Mount. hole 1 12.00 mm

  • OEM
    F032114106, 1986S00720, 0001109008, 0001109043, 50353510, 50353511

  • Konkurrentreferens
    CST10245, drs3974, lrs01330, S0211, 25-2124, 680.008.092, 30253N, 101340, 11090100

  • NormaliseratArtNr
    cst10245, drs3974, f032114106, lrs01330, s0211, 1986s00720, 30253n, 101340, 252124, 0001109008, 0001109043, 11090100, 50353510, 50353511, 680008092

  • Passar modeller
    Hatz Model: Engine Model series: Engine Size of motor: 0.3 Brand of engine: 1D20 From date: 01-04-1989 Approved: Yes
    Hatz Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 1D30 From date: 01-04-1989 Approved: Yes
    Hatz Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 1D40 From date: 01-04-1989 Approved: Yes
  • Beskrivelse
    HC-Cargo Startmotor

    Spenningsnivå: 12
    kW: 1.6
    Monteringsflens: 82.50
    Drevavstand: 40.00
    Monteringshull 2 mm: 12.00
    Monteringshull 1 mm: 12.00
    Avstand/bak: 170.00
    Avstand/fram: 86.00
    Antall/tannhjul: 9
    B+: M8
    Posisjon/50: 15
    Terminal 50: 6.30
    Avstand mm: 102.00
    Rotasjon: medur
    Total lengde mm: 263.00
    Antall/monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 15
    Rotation CW
    Dist./back 170.00
    Dist./front 86.00
    Drive dist. 40.00
    kW 1.6
    Terminal 50 6.30
    Voltage 12
    Total length 263.00 mm
    Dist. 102.00 mm
    Mount. hole 2 12.00 mm
    Mount. hole 1 12.00 mm
  • Kjøretøymatching

    • OEM
      F032114106, 1986S00720, 0001109008, 0001109043, 50353510, 50353511

    • Konkurrentreferens
      CST10245, drs3974, lrs01330, S0211, 25-2124, 680.008.092, 30253N, 101340, 11090100

    • NormaliseratArtNr
      cst10245, drs3974, f032114106, lrs01330, s0211, 1986s00720, 30253n, 101340, 252124, 0001109008, 0001109043, 11090100, 50353510, 50353511, 680008092

    • Passar modeller
      Hatz Model: Engine Model series: Engine Size of motor: 0.3 Brand of engine: 1D20 From date: 01-04-1989 Approved: Yes
      Hatz Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 1D30 From date: 01-04-1989 Approved: Yes
      Hatz Model: Engine Model series: Engine Size of motor: 0.4 Brand of engine: 1D40 From date: 01-04-1989 Approved: Yes
