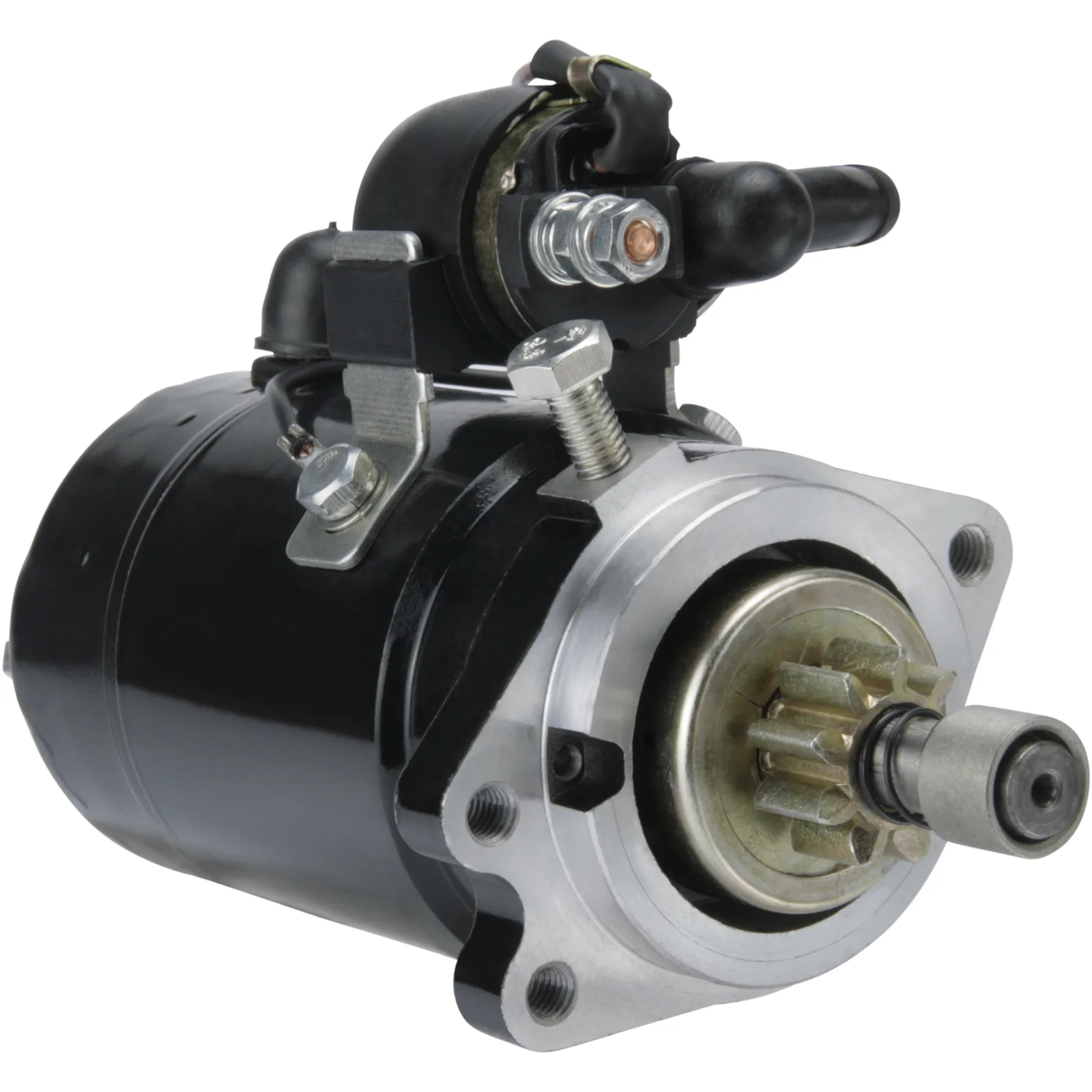

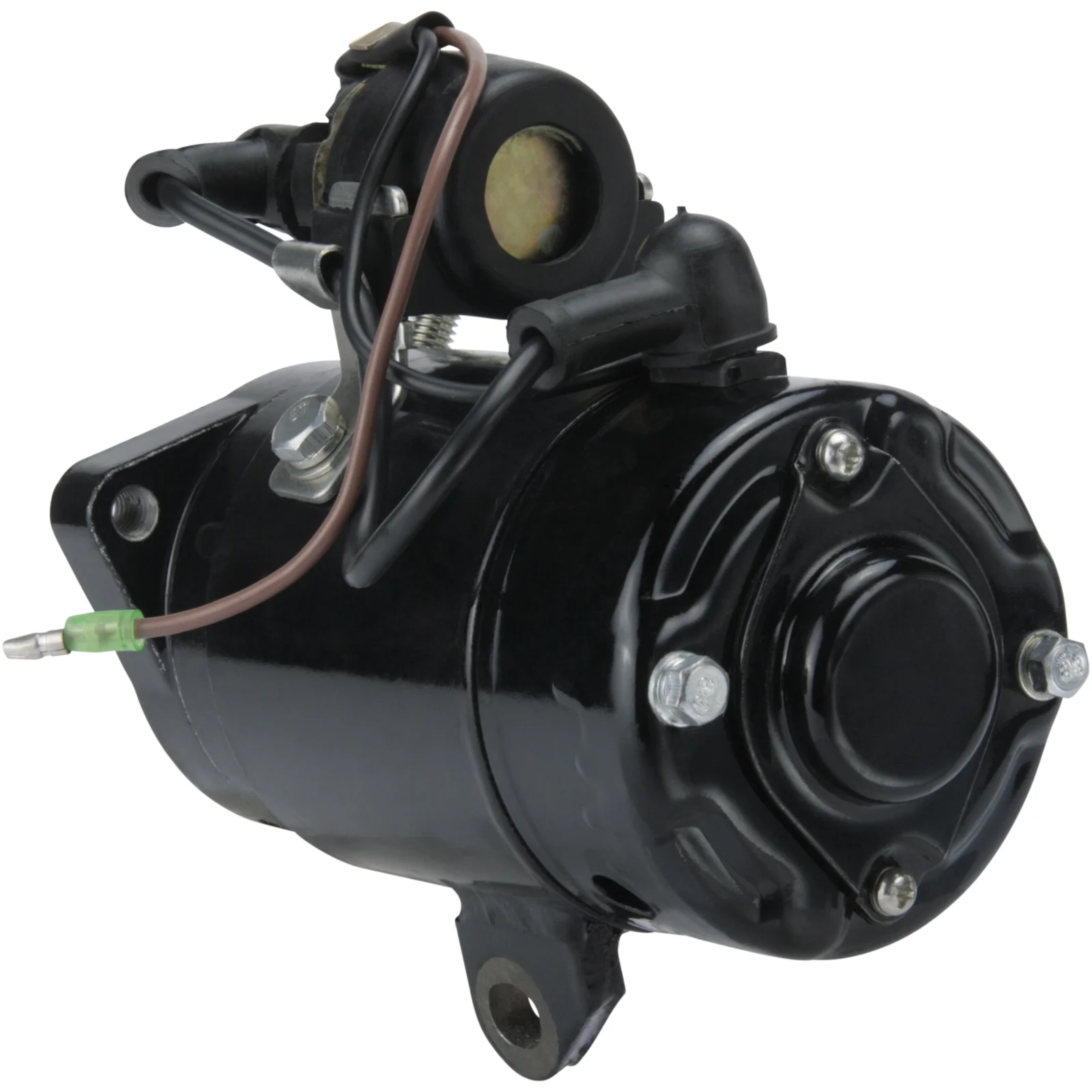

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114261

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.0, Antall/tenner: 9, Rotasjon: CCW

Beskrivelse

Spenningsverdi: 12
kW: 1.0
Mondingsflens: 66.50
Drevavstand: 31.50
Mondingshull 3 mm: M8
Avstand/bak: 134.00
Avstand/frem: 58.00
Nummer/tand: 9
B+: M6
Terminal 50: Plugg
Gavl type: DD
Avstand 2: 26.00
Avstand 3: 86.00
Avstand mm: 89.00
Rotasjon: CCW
Total lengde mm: 198.00
Prod. info: BN
Nummer/mondingshull: 3 (3)

Filer

Spesifikasjon

B+ M6
No./teeth 9
Mount. flange 66.50
No./mount. holes 3 (3)
Prod. info BN
Dist. 2 26.00
Dist. 3 86.00
Rotation CCW
Dist./back 134.00
Dist./front 58.00
Drive dist. 31.50
Gear type DD
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 198.00 mm
Dist. 89.00 mm
Mount. hole 3 M8 mm

  • OEM
    F032114261, S114-220, s114-221, S114-221E, S114-221F, S114-221G, S114-221H, S114-221J, 676-81800-10, 697-81800-10, 697-81800-11, 697-81800-12, 697-81800-13

  • Konkurrentreferens
    CST20249, 400.516.093, 18313, 18313N, 33774, 254929

  • NormaliseratArtNr
    cst20249, f032114261, s114220, s114221, s114221e, s114221f, s114221g, s114221h, s114221j, 18313, 18313n, 33774, 254929, 400516093, 6768180010, 6978180010, 6978180011, 6978180012, 6978180013

  • Passar modeller
    Mercury Model: Outboat Motors Model series: 40E36 From date: 01-01-1978 Approved: Yes
    Mercury Model: Outboat Motors Model series: 40EL36 From date: 01-01-1978 Approved: Yes
    Mercury Model: Outboat Motors Model series: 55E From date: 01-01-1978 Approved: Yes
    Mercury Model: Outboat Motors Model series: 60EL From date: 01-01-1978 Approved: Yes
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1.0
    Mondingsflens: 66.50
    Drevavstand: 31.50
    Mondingshull 3 mm: M8
    Avstand/bak: 134.00
    Avstand/frem: 58.00
    Nummer/tand: 9
    B+: M6
    Terminal 50: Plugg
    Gavl type: DD
    Avstand 2: 26.00
    Avstand 3: 86.00
    Avstand mm: 89.00
    Rotasjon: CCW
    Total lengde mm: 198.00
    Prod. info: BN
    Nummer/mondingshull: 3 (3)

    Filer

  • Spesifikasjon
    B+ M6
    No./teeth 9
    Mount. flange 66.50
    No./mount. holes 3 (3)
    Prod. info BN
    Dist. 2 26.00
    Dist. 3 86.00
    Rotation CCW
    Dist./back 134.00
    Dist./front 58.00
    Drive dist. 31.50
    Gear type DD
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 198.00 mm
    Dist. 89.00 mm
    Mount. hole 3 M8 mm
  • Kjøretøymatching

    • OEM
      F032114261, S114-220, s114-221, S114-221E, S114-221F, S114-221G, S114-221H, S114-221J, 676-81800-10, 697-81800-10, 697-81800-11, 697-81800-12, 697-81800-13

    • Konkurrentreferens
      CST20249, 400.516.093, 18313, 18313N, 33774, 254929

    • NormaliseratArtNr
      cst20249, f032114261, s114220, s114221, s114221e, s114221f, s114221g, s114221h, s114221j, 18313, 18313n, 33774, 254929, 400516093, 6768180010, 6978180010, 6978180011, 6978180012, 6978180013

    • Passar modeller
      Mercury Model: Outboat Motors Model series: 40E36 From date: 01-01-1978 Approved: Yes
      Mercury Model: Outboat Motors Model series: 40EL36 From date: 01-01-1978 Approved: Yes
      Mercury Model: Outboat Motors Model series: 55E From date: 01-01-1978 Approved: Yes
      Mercury Model: Outboat Motors Model series: 60EL From date: 01-01-1978 Approved: Yes
