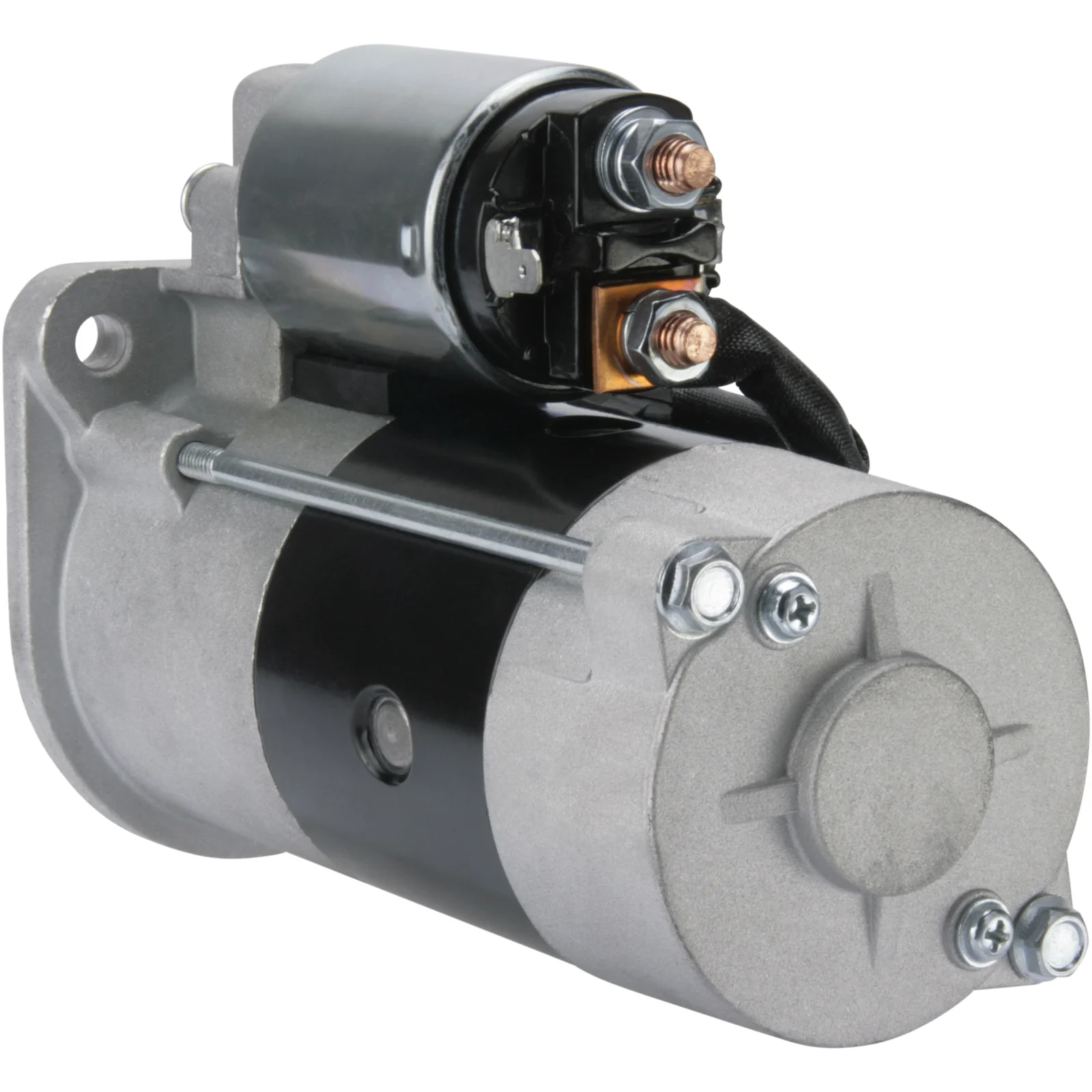

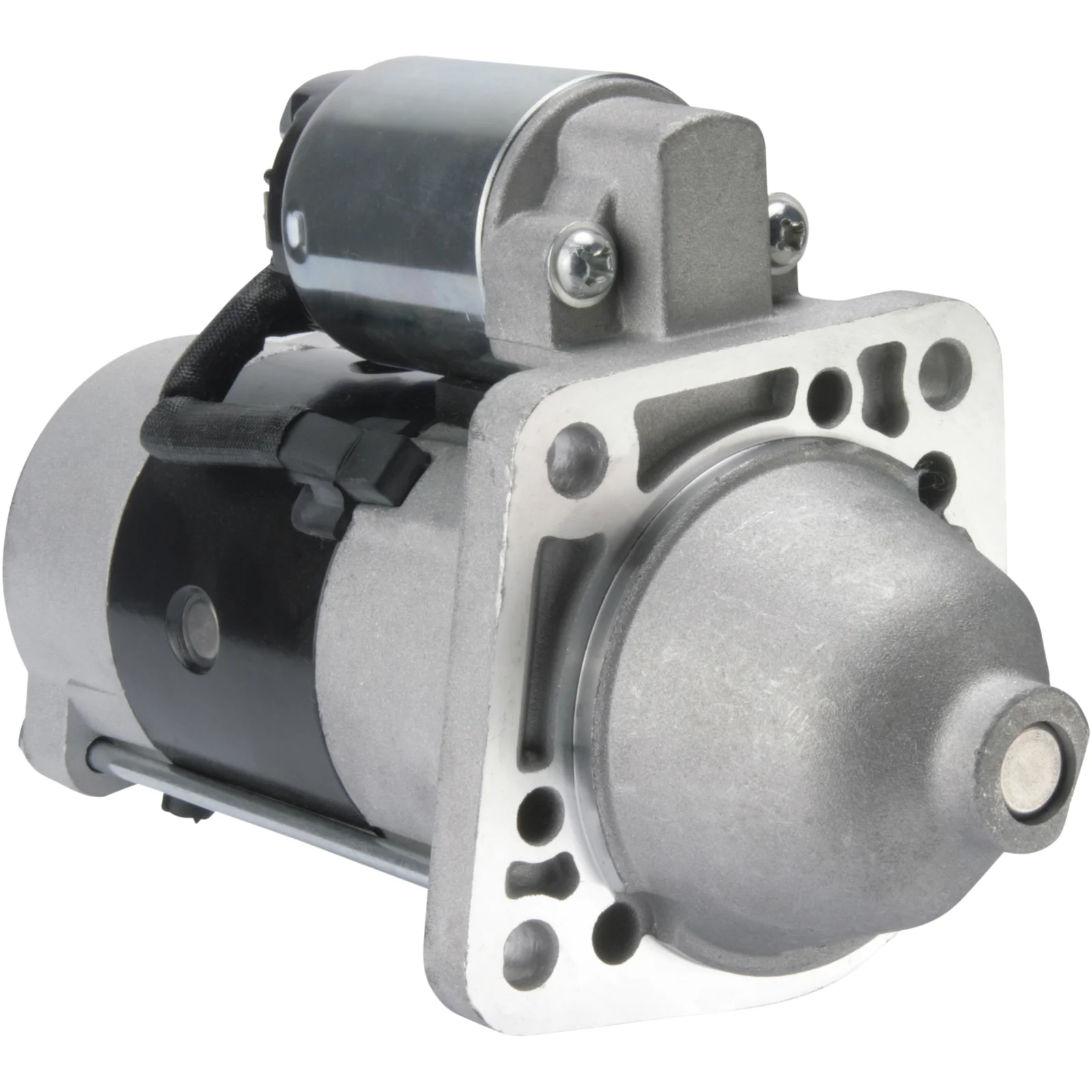

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114279

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 2.2, Ant./tenner: 10, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 2.2
Festeringsflens: 82,50
Drevavstand: 19,00
Festeringshull 3 mm: 9,00
Festeringshull 2 mm: 9,00
Festeringshull 1 mm: 9,00
Avstand/rygg: 170,00
Avstand/frem: 55,50
Num./tenner: 10
B+: M8
Posisjon/50: 45
Terminal 50: 6,30
Kugge: GR
Avstand 2: 73,00
Avstand 3: 73,00
Avstand mm: 113,50
Rotasjon: medur → CW
Total lengde mm: 227,50
Num./festeringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 10
Mount. flange 82.50
No./mount. holes 3 (0)
Position/50 45
Dist. 2 73.00
Dist. 3 73.00
Rotation CW
Dist./back 170.00
Dist./front 55.50
Drive dist. 19.00
Gear type GR
kW 2.2
Terminal 50 6.30
Voltage 12
Total length 227.50 mm
Dist. 113.50 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    cs1507, F032114279, M002T88372, M002T88372ZC, M2T88372, M2T88372ZC, 56041579ab

  • Konkurrentreferens
    CST35169, DRS0213, lrs02166, S5031, 25-3340, 670.009.102, 17652N, 17940N, 17940R, 106856, 220718, 220718A, 254296, 8080271, 11040763, 0986024750

  • NormaliseratArtNr
    cs1507, cst35169, drs0213, f032114279, lrs02166, m002t88372, m002t88372zc, m2t88372, m2t88372zc, s5031, 17652n, 17940n, 17940r, 106856, 220718, 220718a, 253340, 254296, 8080271, 11040763, 56041579ab, 670009102, 0986024750

  • Passar modeller
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.5 Brand of engine: R425 (DOHC) Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-11-2002 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ From date: 01-11-2004 To date: 01-01-2008 Fuel: Diesel Approved: Yes
    Jeep Model: Liberty Model series: Liberty Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-08-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.2
    Festeringsflens: 82,50
    Drevavstand: 19,00
    Festeringshull 3 mm: 9,00
    Festeringshull 2 mm: 9,00
    Festeringshull 1 mm: 9,00
    Avstand/rygg: 170,00
    Avstand/frem: 55,50
    Num./tenner: 10
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6,30
    Kugge: GR
    Avstand 2: 73,00
    Avstand 3: 73,00
    Avstand mm: 113,50
    Rotasjon: medur → CW
    Total lengde mm: 227,50
    Num./festeringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 10
    Mount. flange 82.50
    No./mount. holes 3 (0)
    Position/50 45
    Dist. 2 73.00
    Dist. 3 73.00
    Rotation CW
    Dist./back 170.00
    Dist./front 55.50
    Drive dist. 19.00
    Gear type GR
    kW 2.2
    Terminal 50 6.30
    Voltage 12
    Total length 227.50 mm
    Dist. 113.50 mm
    Mount. hole 3 9.00 mm
    Mount. hole 2 9.00 mm
    Mount. hole 1 9.00 mm
  • Kjøretøymatching

    • OEM
      cs1507, F032114279, M002T88372, M002T88372ZC, M2T88372, M2T88372ZC, 56041579ab

    • Konkurrentreferens
      CST35169, DRS0213, lrs02166, S5031, 25-3340, 670.009.102, 17652N, 17940N, 17940R, 106856, 220718, 220718A, 254296, 8080271, 11040763, 0986024750

    • NormaliseratArtNr
      cs1507, cst35169, drs0213, f032114279, lrs02166, m002t88372, m002t88372zc, m2t88372, m2t88372zc, s5031, 17652n, 17940n, 17940r, 106856, 220718, 220718a, 253340, 254296, 8080271, 11040763, 56041579ab, 670009102, 0986024750

    • Passar modeller
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.5 Brand of engine: R425 (DOHC) Type description: KJ From date: 01-09-2001 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-11-2002 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Jeep Model: Cherokee Model series: Cherokee Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR Type description: KJ From date: 01-11-2004 To date: 01-01-2008 Fuel: Diesel Approved: Yes
      Jeep Model: Liberty Model series: Liberty Model type: 4x4 Type of engine: CRD Size of motor: 2.8 Brand of engine: ENR From date: 01-08-2005 To date: 01-12-2007 Fuel: Diesel Approved: Yes
