HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114444

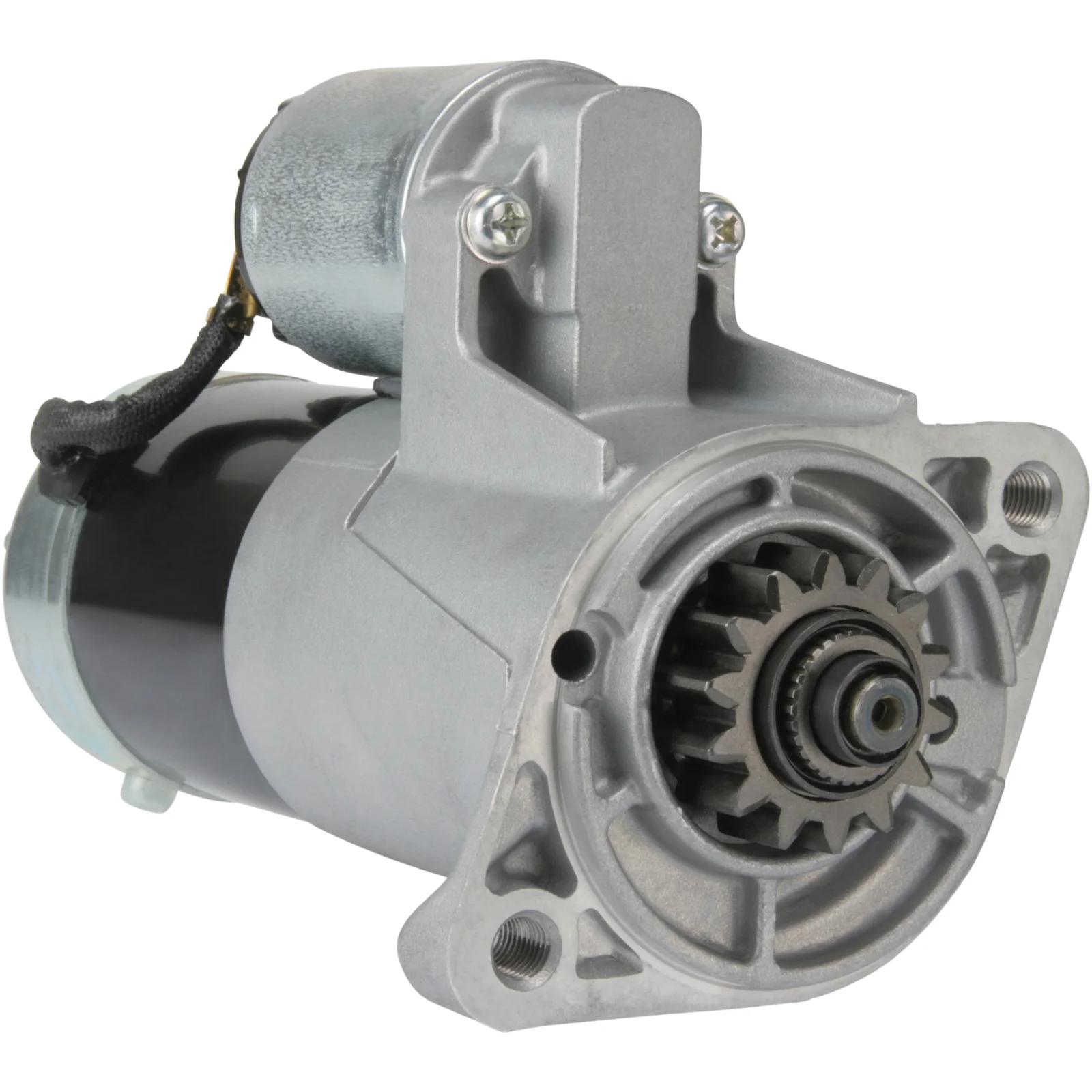

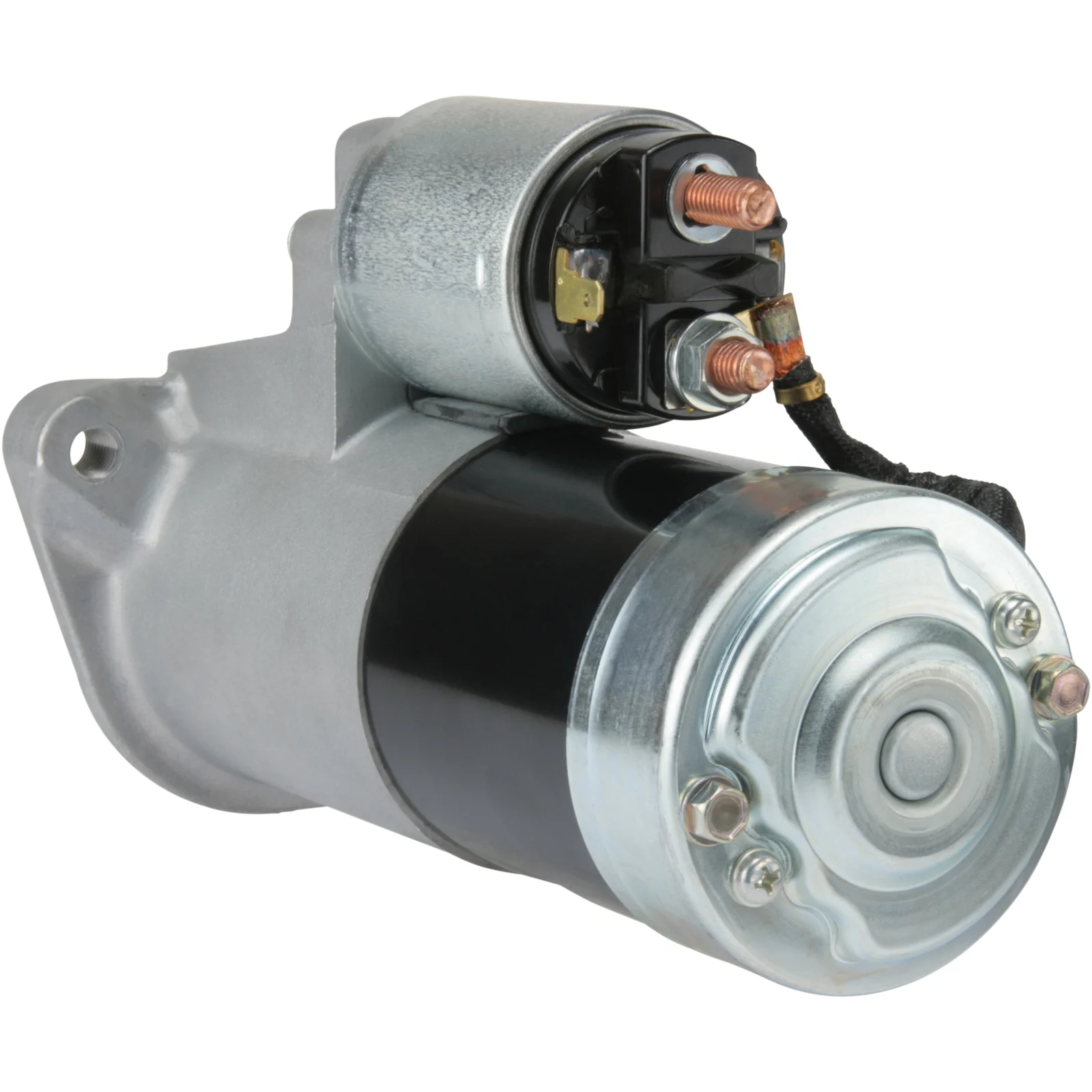

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.6, Antall/tenner: 14, Rotasjon: CW

Beskrivelse

Spenningsvolt: 12
kW: 1.6
Montering flange: 77.00
Drevavstand: 17.00
Avstand/bak: 194.00
Avstand/frem: 30.50
Nummer/tannhjul: 14
B+: M8
Posisjon/50: 60
Terminal 50: 6.30
Geværype: GR
Avstand mm: 105.00
Rotasjon: CW
Total lengde mm: 228.00
Prod. info: BN
Nummer/monteringshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 14
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 60
Prod. info BN
Rotation CW
Dist./back 194.00
Dist./front 30.50
Drive dist. 17.00
Gear type GR
kW 1.6
Terminal 50 6.30
Voltage 12
Total length 228.00 mm
Dist. 105.00 mm

  • OEM
    F032114444, M001T68381, m1t68381, O1T68381, 30L66-10500

  • Konkurrentreferens
    CST35190, DRS0291, LRS02388, S5469S, 25-4060, 326.058.142, 19609, 19609N, 254517

  • NormaliseratArtNr
    cst35190, drs0291, f032114444, lrs02388, m001t68381, m1t68381, o1t68381, s5469s, 30l6610500, 19609, 19609n, 254060, 254517, 326058142

  • Passar modeller
    Case Model: CX17B Model series: CX17B Model type: Excavators Brand of engine: L3E Approved: Yes
    Case Model: Excavator Model series: CX17B Brand of engine: mitsubishi Equipped Approved: Yes
    Caterpillar Model: 301.6C Model series: 301.6C Model type: Excavators Brand of engine: L3E Approved: Yes
    Caterpillar Model: 301.8C Model series: 301.8C Model type: Excavators Brand of engine: L3E Approved: Yes
    Doosan Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
    Doosan Model: SOLAR 015 PLUS Model series: SOLAR 015 PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
    Hyundai Model: R16-9 Model series: R16-9 Model type: Excavators Brand of engine: L3E Approved: Yes
    Ingersoll-Rand Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
    Kobelco Model: SK17SR Model series: SK17SR Model type: Excavators Brand of engine: L3E Approved: Yes
    Mahindra Model: 1816 4WD HST Model series: 1816 4WD HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: 7000 SERIES Model series: 7000 SERIES Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: ME/MX SERIES Model series: ME/MX SERIES Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MM15T Model series: MM15T Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MM20T Model series: MM20T Model type: Excavators Brand of engine: L3E Approved: Yes
    Mitsubishi Model: MT1800 & MT1800 HST Model series: MT1800 & MT1800 HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
    Mitsubishi Model: VM218 Model series: VM218 Model type: Combines Brand of engine: L3E Approved: Yes
    New Holland Model: Excavator Model series: E18 Model type: Excavator Approved: Yes
    Terex Model: TC15 Model series: TC15 Model type: Excavators Brand of engine: L3E Approved: Yes
    Terex Model: TC16 Model series: TC16 Model type: Excavators Brand of engine: L3E Approved: Yes
    Terex Model: TC20 Model series: TC20 Model type: Excavators Brand of engine: L3E Approved: Yes
    Vetus Model: GHS14SI Model series: GHS14SI Model type: Marine Auxiliary Brand of engine: L3E Approved: Yes
    Volvo Model: EB 150 SRS Model series: EB 150 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: EB 200 SRS Model series: EB 200 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: SIRIUS PLUS Model series: SIRIUS PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC14 Model series: VOLVO EC14 Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC15 Model series: VOLVO EC15 Model type: Excavators Brand of engine: L3E Approved: Yes
    Volvo Model: VOLVO EC20 Model series: VOLVO EC20 Model type: Excavators Brand of engine: L3E Approved: Yes
    1 / 6
  • Beskrivelse
    Spenningsvolt: 12
    kW: 1.6
    Montering flange: 77.00
    Drevavstand: 17.00
    Avstand/bak: 194.00
    Avstand/frem: 30.50
    Nummer/tannhjul: 14
    B+: M8
    Posisjon/50: 60
    Terminal 50: 6.30
    Geværype: GR
    Avstand mm: 105.00
    Rotasjon: CW
    Total lengde mm: 228.00
    Prod. info: BN
    Nummer/monteringshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 14
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 60
    Prod. info BN
    Rotation CW
    Dist./back 194.00
    Dist./front 30.50
    Drive dist. 17.00
    Gear type GR
    kW 1.6
    Terminal 50 6.30
    Voltage 12
    Total length 228.00 mm
    Dist. 105.00 mm
  • Kjøretøymatching

    • OEM
      F032114444, M001T68381, m1t68381, O1T68381, 30L66-10500

    • Konkurrentreferens
      CST35190, DRS0291, LRS02388, S5469S, 25-4060, 326.058.142, 19609, 19609N, 254517

    • NormaliseratArtNr
      cst35190, drs0291, f032114444, lrs02388, m001t68381, m1t68381, o1t68381, s5469s, 30l6610500, 19609, 19609n, 254060, 254517, 326058142

    • Passar modeller
      Case Model: CX17B Model series: CX17B Model type: Excavators Brand of engine: L3E Approved: Yes
      Case Model: Excavator Model series: CX17B Brand of engine: mitsubishi Equipped Approved: Yes
      Caterpillar Model: 301.6C Model series: 301.6C Model type: Excavators Brand of engine: L3E Approved: Yes
      Caterpillar Model: 301.8C Model series: 301.8C Model type: Excavators Brand of engine: L3E Approved: Yes
      Doosan Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
      Doosan Model: SOLAR 015 PLUS Model series: SOLAR 015 PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
      Hyundai Model: R16-9 Model series: R16-9 Model type: Excavators Brand of engine: L3E Approved: Yes
      Ingersoll-Rand Model: LSC Model series: LSC Model type: Light Plants and Signal B Brand of engine: L3E Approved: Yes
      Kobelco Model: SK17SR Model series: SK17SR Model type: Excavators Brand of engine: L3E Approved: Yes
      Mahindra Model: 1816 4WD HST Model series: 1816 4WD HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
      Mitsubishi Model: 7000 SERIES Model series: 7000 SERIES Model type: Ag Tractors Brand of engine: L3E Approved: Yes
      Mitsubishi Model: ME/MX SERIES Model series: ME/MX SERIES Model type: Excavators Brand of engine: L3E Approved: Yes
      Mitsubishi Model: MM15T Model series: MM15T Model type: Excavators Brand of engine: L3E Approved: Yes
      Mitsubishi Model: MM20T Model series: MM20T Model type: Excavators Brand of engine: L3E Approved: Yes
      Mitsubishi Model: MT1800 & MT1800 HST Model series: MT1800 & MT1800 HST Model type: Ag Tractors Brand of engine: L3E Approved: Yes
      Mitsubishi Model: VM218 Model series: VM218 Model type: Combines Brand of engine: L3E Approved: Yes
      New Holland Model: Excavator Model series: E18 Model type: Excavator Approved: Yes
      Terex Model: TC15 Model series: TC15 Model type: Excavators Brand of engine: L3E Approved: Yes
      Terex Model: TC16 Model series: TC16 Model type: Excavators Brand of engine: L3E Approved: Yes
      Terex Model: TC20 Model series: TC20 Model type: Excavators Brand of engine: L3E Approved: Yes
      Vetus Model: GHS14SI Model series: GHS14SI Model type: Marine Auxiliary Brand of engine: L3E Approved: Yes
      Volvo Model: EB 150 SRS Model series: EB 150 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
      Volvo Model: EB 200 SRS Model series: EB 200 SRS Model type: Excavators Brand of engine: L3E Approved: Yes
      Volvo Model: SIRIUS PLUS Model series: SIRIUS PLUS Model type: Excavators Brand of engine: L3E Approved: Yes
      Volvo Model: VOLVO EC14 Model series: VOLVO EC14 Model type: Excavators Brand of engine: L3E Approved: Yes
      Volvo Model: VOLVO EC15 Model series: VOLVO EC15 Model type: Excavators Brand of engine: L3E Approved: Yes
      Volvo Model: VOLVO EC20 Model series: VOLVO EC20 Model type: Excavators Brand of engine: L3E Approved: Yes
      1 / 6
