HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114761

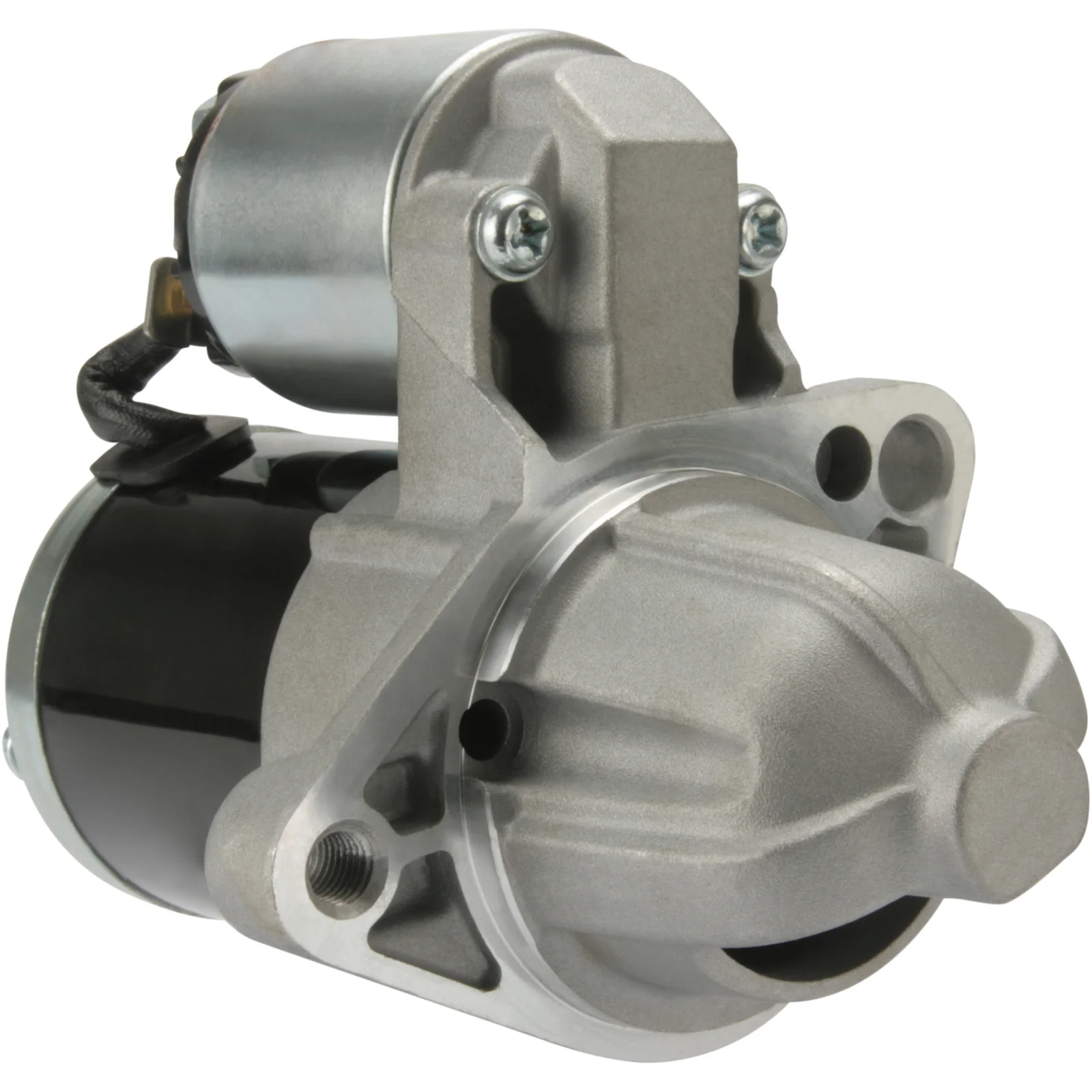

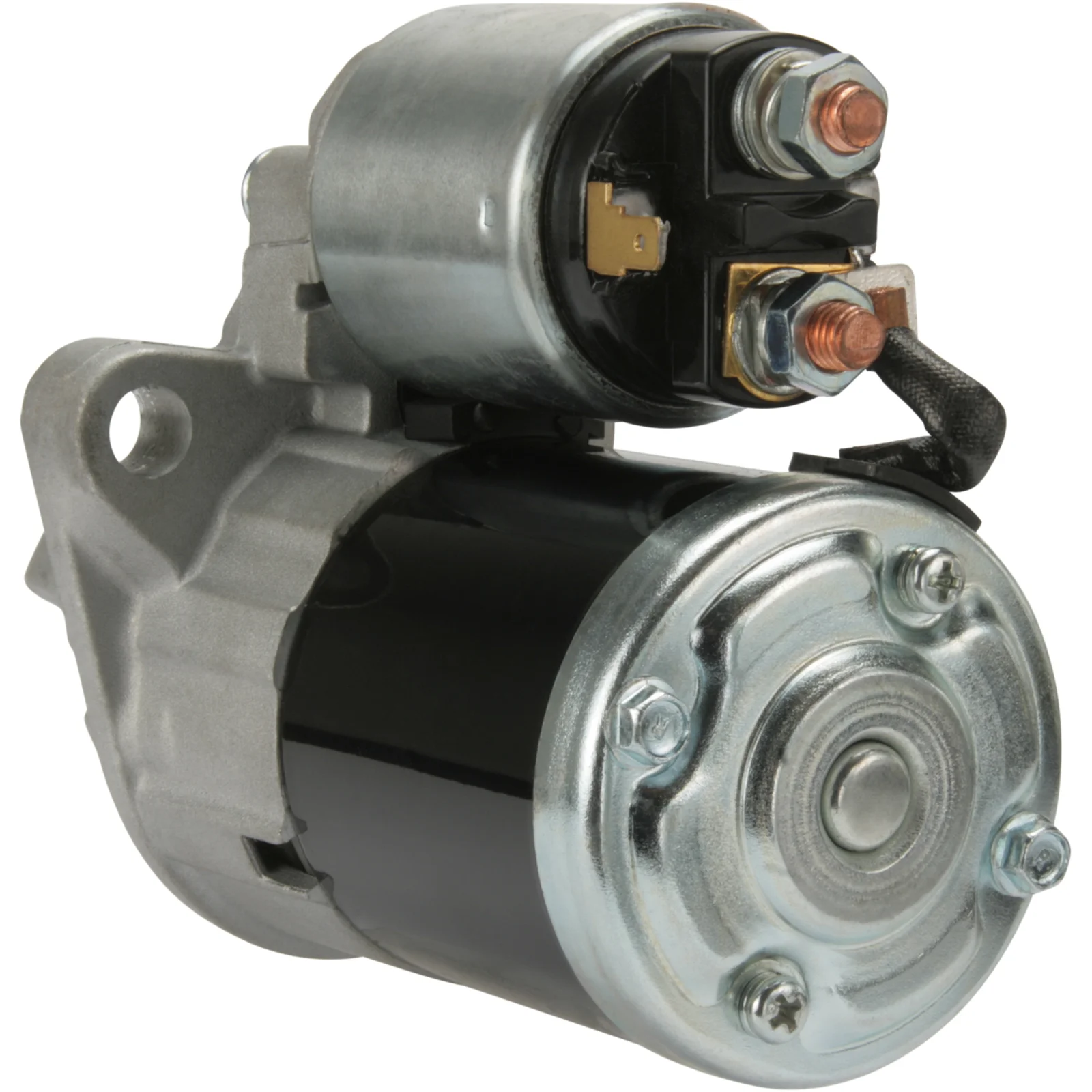

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.0, Ant./tenner: 8, Rotasjon: Døgngående (CW)

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsverdi: 12
kW: 1,0
Festingflens: 70,00
Drivingsavstand: 29,00
Festerhull 1 mm: 11,50
Avstand/bak: 116,00
Avstand/frem: 60,00
Antall/tänder: 8
B+: M8
Posisjon/50: 45
Terminal 50: 6,30
Girtype: GR
Avstand mm: 101,00
Snu: med klokken
Total lengde mm: 176,00
Prod. info: BN
Antall/festebolter: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 70.00
No./mount. holes 2 (1)
Position/50 45
Prod. info BN
Rotation CW
Dist./back 116.00
Dist./front 60.00
Drive dist. 29.00
Gear type GR
kW 1.0
Terminal 50 6.30
Voltage 12
Total length 176.00 mm
Dist. 101.00 mm
Mount. hole 1 11.50 mm

  • OEM
    cs1539, F032114761, M000T33071, M000T33071ZM, M0T33071, M0T33071ZM, 1986S01256, 23300-4a00b, 31100-61M00, 31100-M68K10

  • Konkurrentreferens
    DRS0653, LRS02503, S5198, 8EA011611-731, 25-4175, 160.584.082, 345.028.082, 31245N, 220894, 220894A, 254488, 438394, 11040809, 11040835, 0986025310

  • NormaliseratArtNr
    cs1539, drs0653, f032114761, lrs02503, m000t33071, m000t33071zm, m0t33071, m0t33071zm, s5198, 8ea011611731, 1986s01256, 31100m68k10, 31245n, 220894, 220894a, 233004a00b, 254175, 254488, 438394, 3110061m00, 11040809, 11040835, 160584082, 345028082, 0986025310

  • Passar modeller
    Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
    Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
    Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
    Suzuki Model: SX4 Model series: SX4 S-CROSS Model type: AllGrip (AKK416) Size of motor: 1.6 Brand of engine: M16A Type description: JY Body: Hatchback From date: 01-12-2013 Fuel: Petrol Approved: Yes
    Suzuki Model: SX4 Model series: SX4 S-CROSS Size of motor: 1.6 Brand of engine: M16A Type description: JY Body: Hatchback From date: 01-12-2013 Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1,0
    Festingflens: 70,00
    Drivingsavstand: 29,00
    Festerhull 1 mm: 11,50
    Avstand/bak: 116,00
    Avstand/frem: 60,00
    Antall/tänder: 8
    B+: M8
    Posisjon/50: 45
    Terminal 50: 6,30
    Girtype: GR
    Avstand mm: 101,00
    Snu: med klokken
    Total lengde mm: 176,00
    Prod. info: BN
    Antall/festebolter: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 70.00
    No./mount. holes 2 (1)
    Position/50 45
    Prod. info BN
    Rotation CW
    Dist./back 116.00
    Dist./front 60.00
    Drive dist. 29.00
    Gear type GR
    kW 1.0
    Terminal 50 6.30
    Voltage 12
    Total length 176.00 mm
    Dist. 101.00 mm
    Mount. hole 1 11.50 mm
  • Kjøretøymatching

    • OEM
      cs1539, F032114761, M000T33071, M000T33071ZM, M0T33071, M0T33071ZM, 1986S01256, 23300-4a00b, 31100-61M00, 31100-M68K10

    • Konkurrentreferens
      DRS0653, LRS02503, S5198, 8EA011611-731, 25-4175, 160.584.082, 345.028.082, 31245N, 220894, 220894A, 254488, 438394, 11040809, 11040835, 0986025310

    • NormaliseratArtNr
      cs1539, drs0653, f032114761, lrs02503, m000t33071, m000t33071zm, m0t33071, m0t33071zm, s5198, 8ea011611731, 1986s01256, 31100m68k10, 31245n, 220894, 220894a, 233004a00b, 254175, 254488, 438394, 3110061m00, 11040809, 11040835, 160584082, 345028082, 0986025310

    • Passar modeller
      Nissan Model: Pixo Model series: Pixo Model type: LPG Type of engine: LPG Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Petrol/Electro Approved: Yes
      Nissan Model: Pixo Model series: Pixo Size of motor: 1.0 Brand of engine: K10B Type description: UA0 Body: Hatchback From date: 01-06-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto K10 Size of motor: 1.0 Brand of engine: K10B Body: Hatchback From date: 01-10-2012 To date: 01-11-2014 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-01-2009 Fuel: Gasoline Approved: Yes
      Suzuki Model: Alto Model series: Alto Size of motor: 1.0 Brand of engine: K10B Type description: GF Body: Hatchback From date: 01-10-2012 Fuel: Gasoline Approved: Yes
      Suzuki Model: SX4 Model series: SX4 S-CROSS Model type: AllGrip (AKK416) Size of motor: 1.6 Brand of engine: M16A Type description: JY Body: Hatchback From date: 01-12-2013 Fuel: Petrol Approved: Yes
      Suzuki Model: SX4 Model series: SX4 S-CROSS Size of motor: 1.6 Brand of engine: M16A Type description: JY Body: Hatchback From date: 01-12-2013 Fuel: Petrol Approved: Yes
