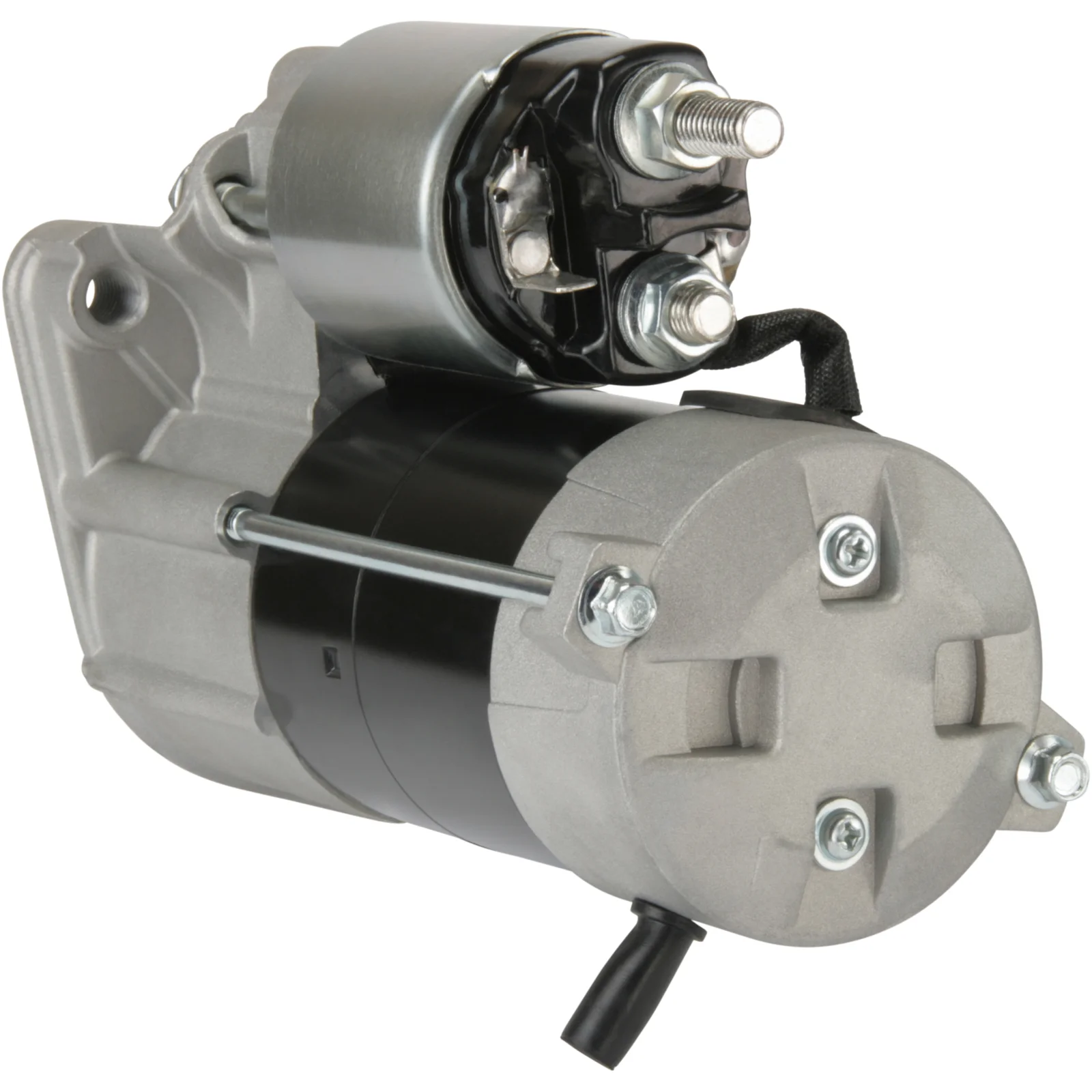

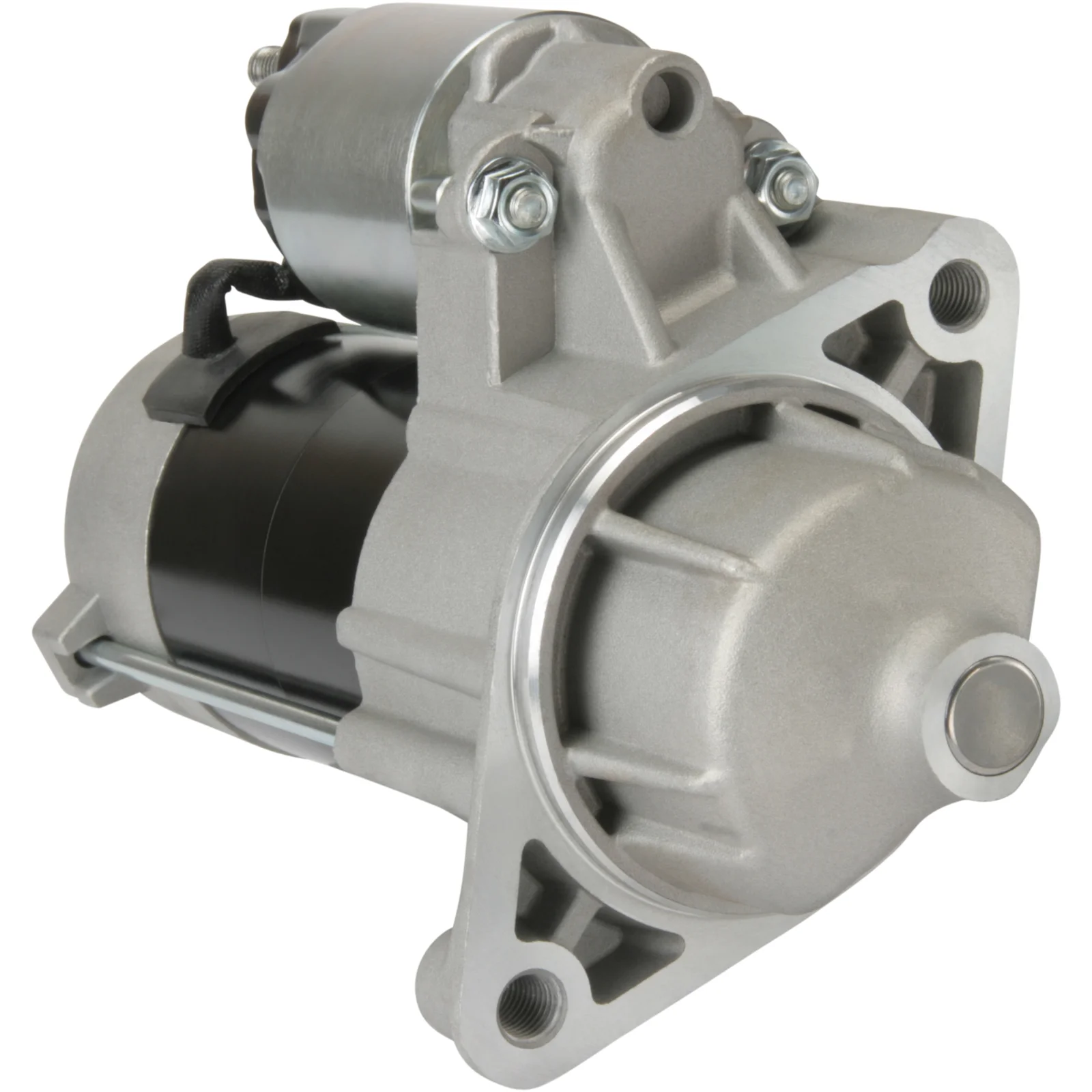

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114860

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.1, Antall/tann: 13, Rotasjon: CW

Beskrivelse

Spenningskilde: 12
kW: 1.1
Fasningsflens: 74.00
Driveavstand: 20.50
Avstand/tilbake: 159.00
Avstand/frem: 54.00
Ant./tenner: 13
B+: M8
Posisjon/B+: 60
Posisjon/50: 45
Terminal 50: 6.30
Gavltype: GR
Drev. mm: 115.00
Rotasjon: CW
Total lengde mm: 214.00
Posisjon/30h: 30
Prod. info: BN
Ant./fasningshull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 74.00
No./mount. holes 2 (2)
Position/30h 30
Position/50 45
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 159.00
Dist./front 54.00
Drive dist. 20.50
Gear type GR
kW 1.1
Terminal 50 6.30
Voltage 12
Total length 214.00 mm
Dist. 115.00 mm

  • OEM
    F032114860, 6281-100-014-0, 228000-8160, 228000-8161, 228000-9450, 368543M91, 3608543M91, 628110001400, 628110002300

  • Konkurrentreferens
    CST40353, DRS1003, MS656, SND0730, 25-4431, 600.244.132, 650.506.132, 19786, 19786N

  • NormaliseratArtNr
    cst40353, drs1003, f032114860, ms656, snd0730, 19786, 19786n, 254431, 368543m91, 3608543m91, 600244132, 650506132, 2280008160, 2280008161, 2280009450, 62811000140, 628110001400, 628110002300

  • Passar modeller
    Iseki Model: TH185 Model series: TH185 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Iseki Model: TM16 Model series: TM16 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Iseki Model: TM3215 Model series: TM3215 Model type: Compact Tractor Brand of engine: ISEKI 3112 Approved: Yes
    Iseki Model: TM3245 Model series: TM3245 Model type: Compact Tractor Brand of engine: ISEKI 3112 Approved: Yes
    Iseki Model: TQ13 Model series: TQ13 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Iseki Model: TQ15 Model series: TQ15 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Iseki Model: TQ17 Model series: TQ17 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Iseki Model: TXG237 Model series: TXG237 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: GC Series Model series: GC2400 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: GC Series Model series: GC2410 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: GC Series Model series: GC2600 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Massey Ferguson Model: GC Series Model series: GC2610 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningskilde: 12
    kW: 1.1
    Fasningsflens: 74.00
    Driveavstand: 20.50
    Avstand/tilbake: 159.00
    Avstand/frem: 54.00
    Ant./tenner: 13
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 45
    Terminal 50: 6.30
    Gavltype: GR
    Drev. mm: 115.00
    Rotasjon: CW
    Total lengde mm: 214.00
    Posisjon/30h: 30
    Prod. info: BN
    Ant./fasningshull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 13
    Mount. flange 74.00
    No./mount. holes 2 (2)
    Position/30h 30
    Position/50 45
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 159.00
    Dist./front 54.00
    Drive dist. 20.50
    Gear type GR
    kW 1.1
    Terminal 50 6.30
    Voltage 12
    Total length 214.00 mm
    Dist. 115.00 mm
  • Kjøretøymatching

    • OEM
      F032114860, 6281-100-014-0, 228000-8160, 228000-8161, 228000-9450, 368543M91, 3608543M91, 628110001400, 628110002300

    • Konkurrentreferens
      CST40353, DRS1003, MS656, SND0730, 25-4431, 600.244.132, 650.506.132, 19786, 19786N

    • NormaliseratArtNr
      cst40353, drs1003, f032114860, ms656, snd0730, 19786, 19786n, 254431, 368543m91, 3608543m91, 600244132, 650506132, 2280008160, 2280008161, 2280009450, 62811000140, 628110001400, 628110002300

    • Passar modeller
      Iseki Model: TH185 Model series: TH185 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Iseki Model: TM16 Model series: TM16 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Iseki Model: TM3215 Model series: TM3215 Model type: Compact Tractor Brand of engine: ISEKI 3112 Approved: Yes
      Iseki Model: TM3245 Model series: TM3245 Model type: Compact Tractor Brand of engine: ISEKI 3112 Approved: Yes
      Iseki Model: TQ13 Model series: TQ13 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Iseki Model: TQ15 Model series: TQ15 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Iseki Model: TQ17 Model series: TQ17 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Iseki Model: TXG237 Model series: TXG237 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: GC Series Model series: GC2400 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: GC Series Model series: GC2410 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: GC Series Model series: GC2600 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Massey Ferguson Model: GC Series Model series: GC2610 Model type: Compact Tractor Brand of engine: ISEKI 3112 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      1 / 3
