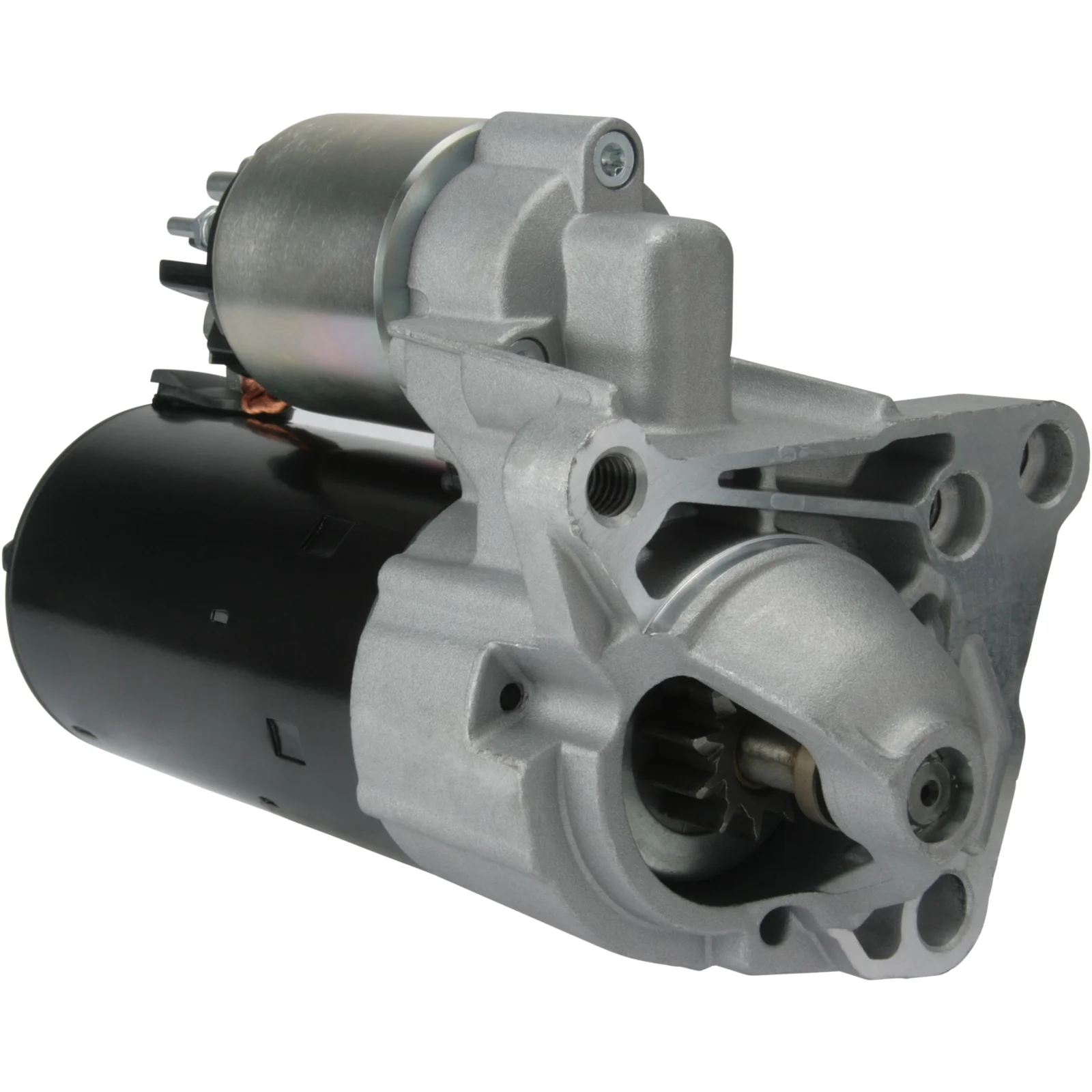

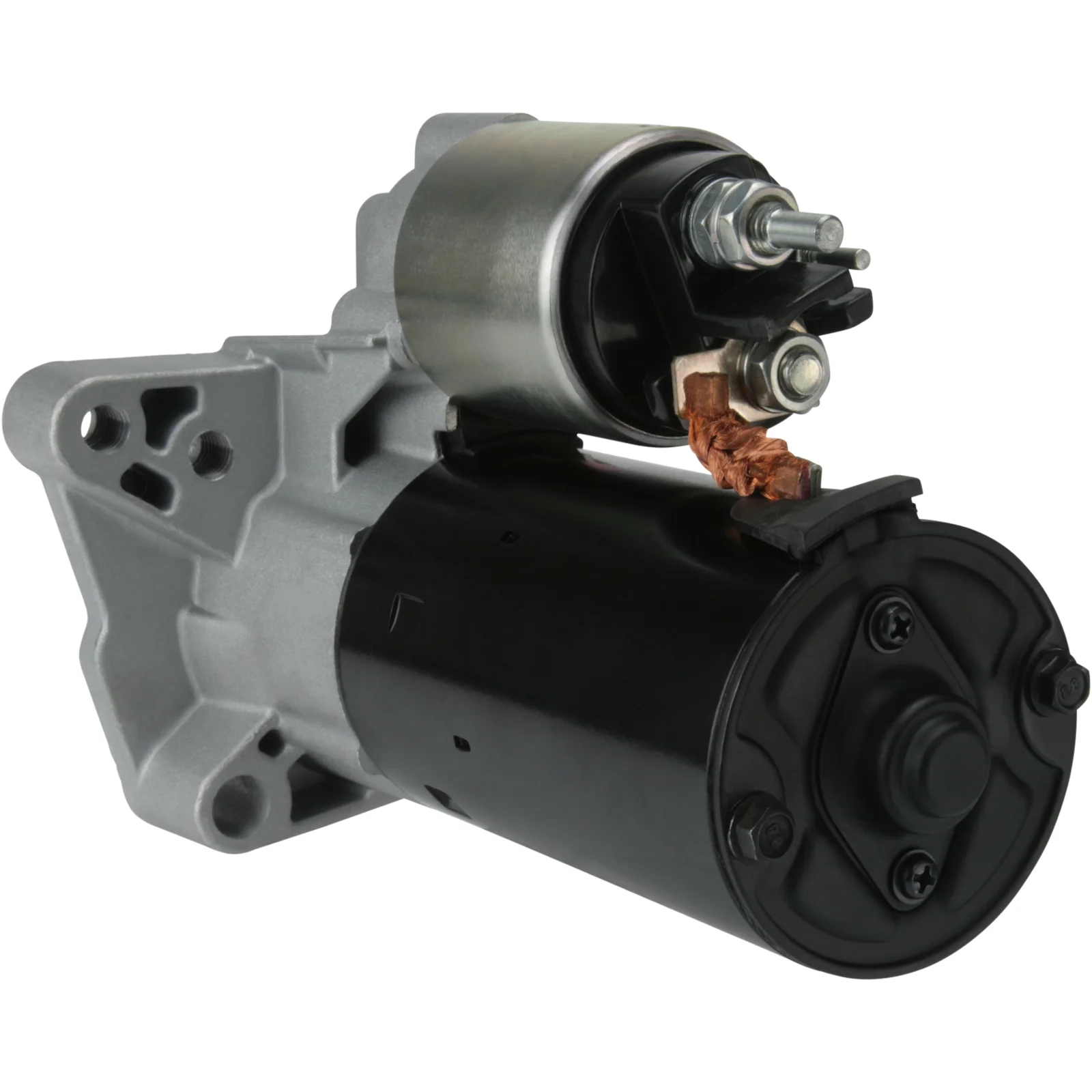

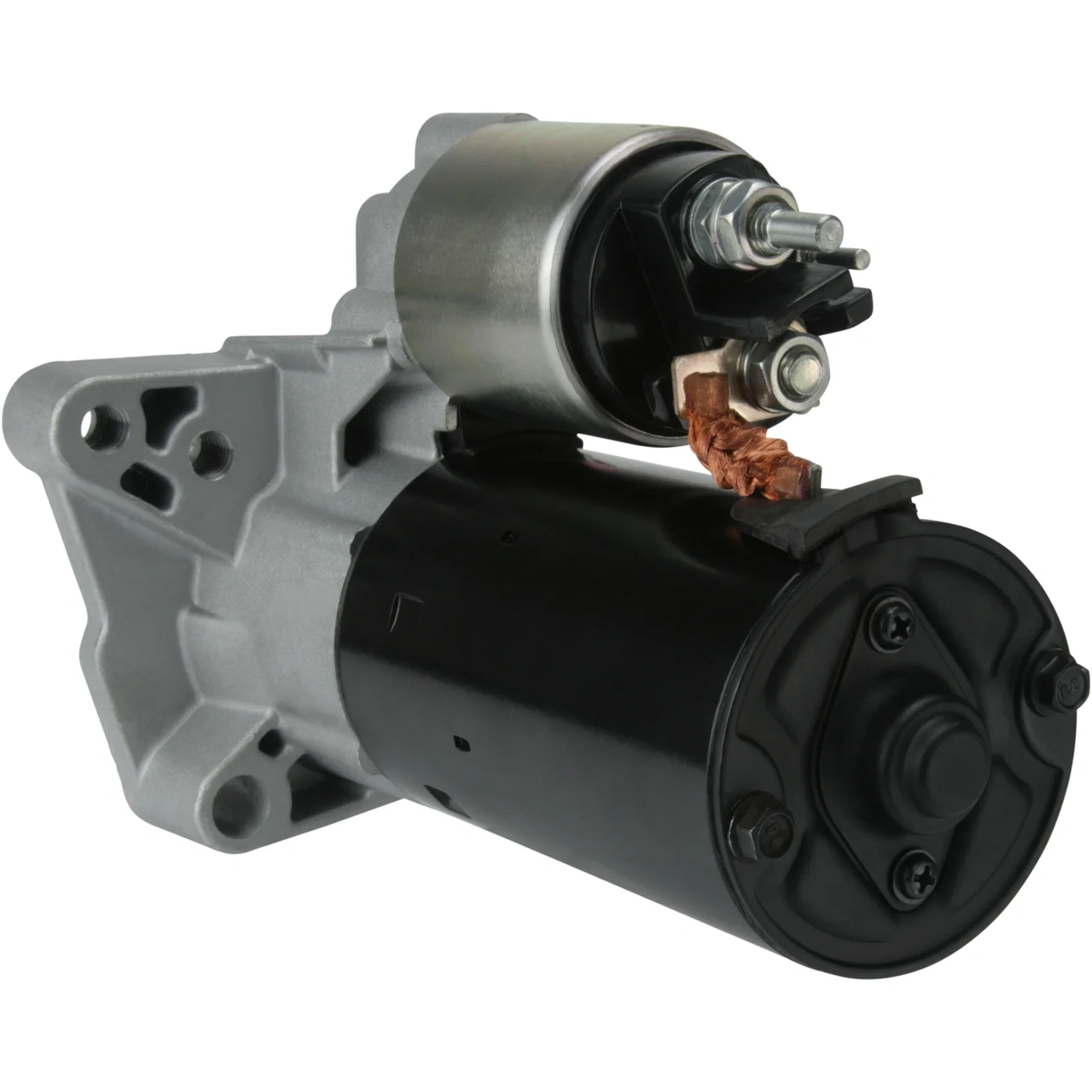

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032114869

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kjel: 1.4, S/n/t: 11, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spennings: 12
kW: 1.4
Montering flens: 66.00
Drive avstand: 0.50
Monteringshull 4 mm: M10
Monteringshull 3 mm: 12.00
Monteringshull 2 mm: M10
Monteringshull 1 mm: M10
Avstand/bak: 174.00
Avstand/frem: 33.50
Nummer/tannhjul: 11
B+: M8
Posisjon/50: 10
Terminal 50: M5
Girtype: GR
Avstand 2: 74.00
Avstand 3: 104.50
Avstand 4: 72.50
Avstand mm: 22.00
Rotasjon: CW
Total lengde mm: 214.00
Produsentinfo: BN
Antall/monteringshull: 4 (3)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 66.00
No./mount. holes 4 (3)
Position/50 10
Prod. info BN
Dist. 2 74.00
Dist. 3 104.50
Dist. 4 72.50
Rotation CW
Dist./back 174.00
Dist./front 33.50
Drive dist. 0.50
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 214.00 mm
Dist. 22.00 mm
Mount. hole 4 M10 mm
Mount. hole 3 12.00 mm
Mount. hole 2 M10 mm
Mount. hole 1 M10 mm

  • OEM
    F032114869, 1986S00707, 0001108428, 0001108429, 8200741476

  • Konkurrentreferens
    CST10442, DRS0232, LRS02404, S0497, 25-4076, 330.056.112, 3087, 30364N, 220882, 220882A, 458815, 11024130, 0986024130

  • NormaliseratArtNr
    cst10442, drs0232, f032114869, lrs02404, s0497, 1986s00707, 3087, 30364n, 220882, 220882a, 254076, 458815, 0001108428, 0001108429, 11024130, 330056112, 0986024130, 8200741476

  • Passar modeller
    Renault Model: Megane Model series: Megane CC Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Convertible From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Coupe From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: Hatchback From date: 01-11-2008 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: KZ0/1 Body: Estate From date: 01-05-2009 Fuel: Diesel Approved: Yes Manufacture type: Kombi
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Grand Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Type description: JZ0/1_ Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q870 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Sc nic Model series: Sc nic Type of engine: DCi Size of motor: 1.9 Brand of engine: F9Q872 Body: MPV From date: 01-02-2009 Fuel: Diesel Approved: Yes
    Renault Model: Scenic Model series: Scenic Type of engine: DCI Size of motor: 1.9 Brand of engine: F9Q870,F9Q872 Type description: JZ0/1_ Body: Van From date: 01-01-2013 Fuel: Diesel Approved: Yes
