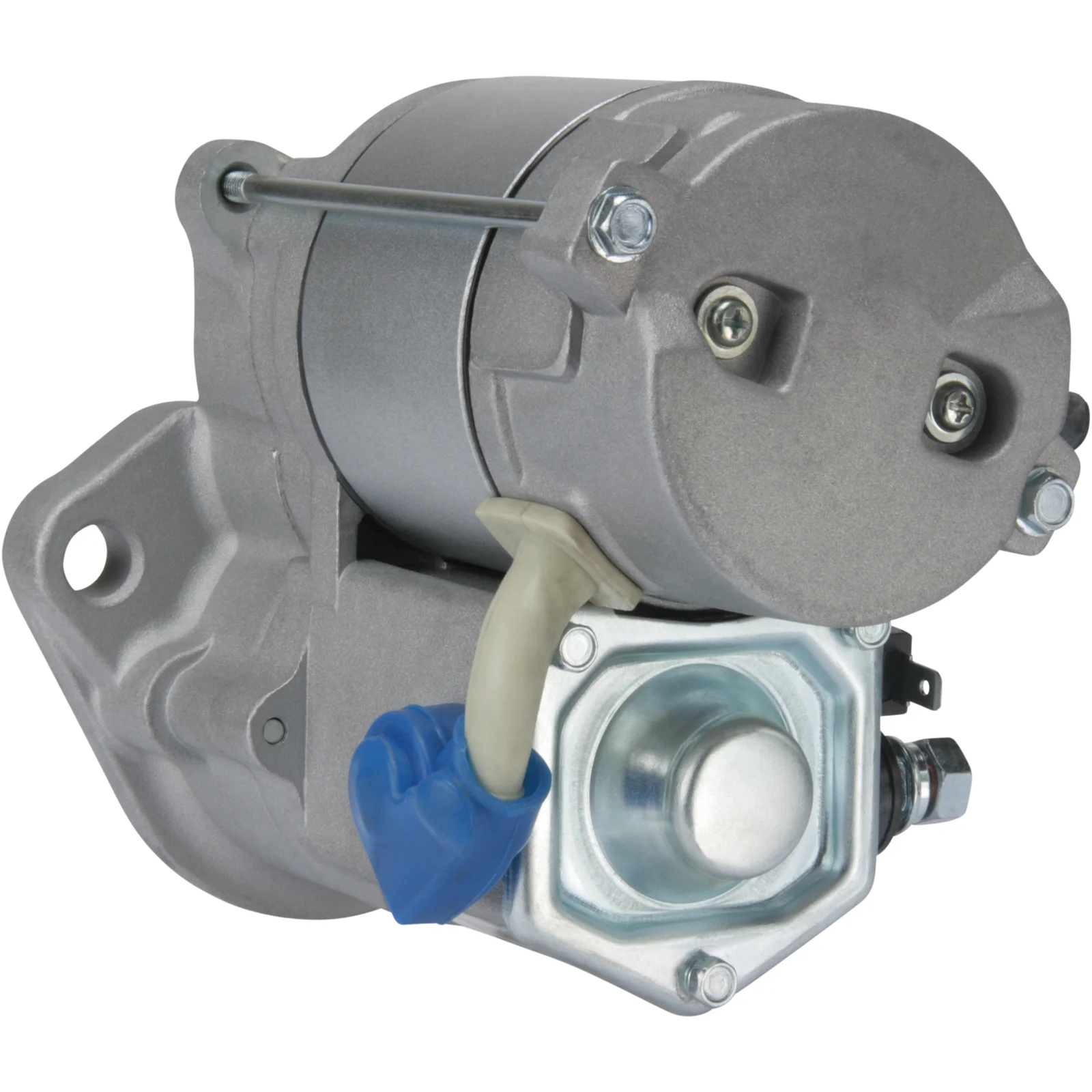

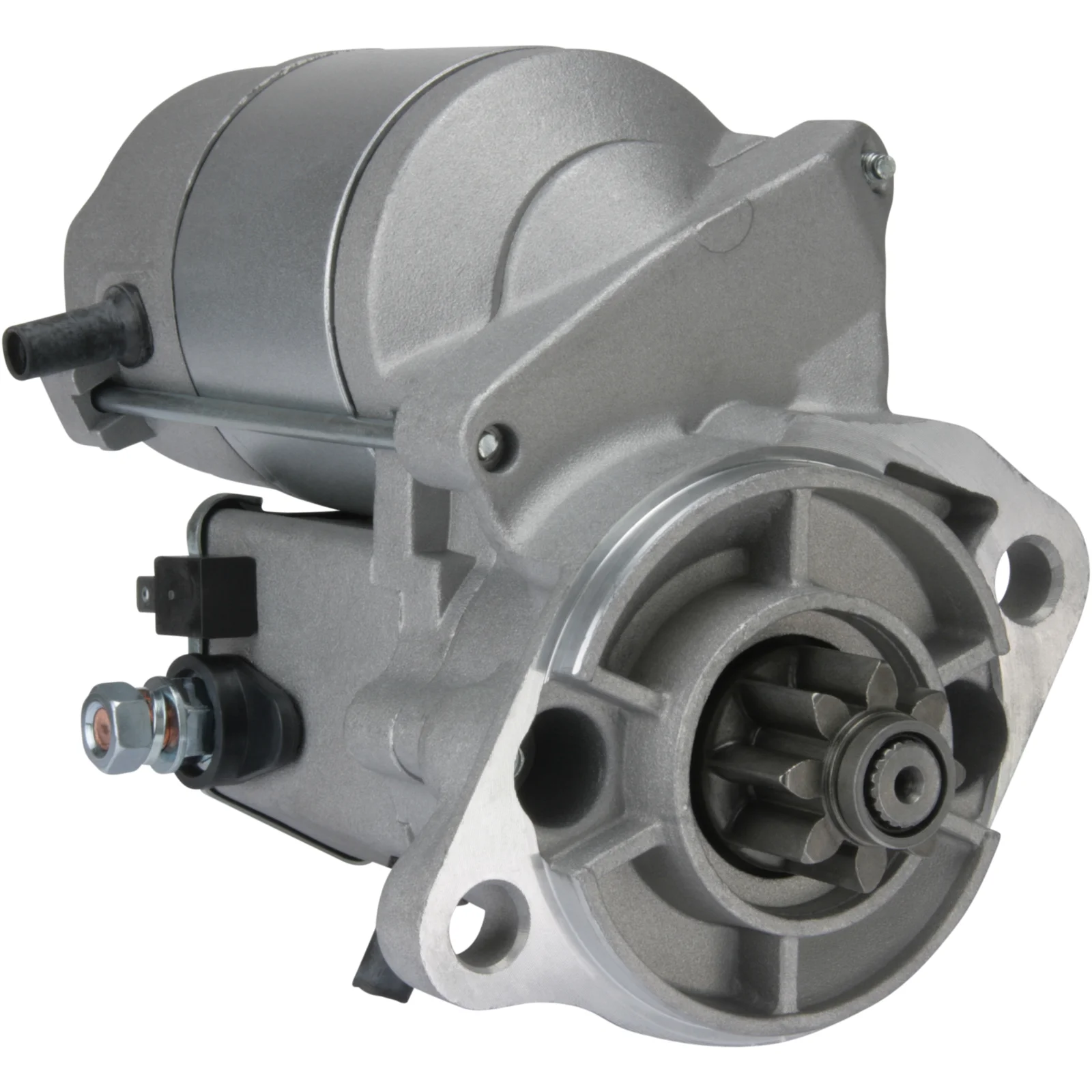

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115322

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 1.4 kW, Antall/tannhjul: 8, Rotasjon: medurs

Beskrivelse

Spenningsverdi: 12
kW: 1.4
Montasje. flens: 82.50
Drev. avstand: 24.50
Montasje. hull 2 mm: 11.50
Montasje. hull 1 mm: 11.50
Avstand./bak: 124.00
Avstand./forside: 31.50
Nummer./tenner: 8
B+: M8
Posisjon/50: 12
Terminal 50: 6.30
Gavl type: GR
Avstand. mm: 104.50
Rotasjon: med urviseren
Total lengde mm: 188.00
Prod. info: BN
Nummer./monteringshull: 2 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 82.50
No./mount. holes 2 (0)
Position/50 12
Prod. info BN
Rotation CW
Dist./back 124.00
Dist./front 31.50
Drive dist. 24.50
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 188.00 mm
Dist. 104.50 mm
Mount. hole 2 11.50 mm
Mount. hole 1 11.50 mm

  • OEM
    F032115322, RC411-53200, RC411-53201, RC411-53202, T1150-16800, T1150-16801, 228000-8690, 228000-8691, 228000-9800, 228000-9801

  • Konkurrentreferens
    CST40389, DSN2089, 25-5235, 690.532.082, 19161, 19161N, 106362, 255035

  • NormaliseratArtNr
    cst40389, dsn2089, f032115322, rc41153200, rc41153201, rc41153202, t115016800, t115016801, 19161, 19161n, 106362, 255035, 255235, 690532082, 2280008690, 2280008691, 2280009800, 2280009801

  • Passar modeller
    Bobcat Model: E32 & E35 Model series: E32 & E35 Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Bobcat Model: E32 Model series: E32 Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Bobcat Model: E32i Model series: E32i Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Bobcat Model: E35 Model series: E35 Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Bobcat Model: E35i Model series: E35i Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Kubota Model: AEROSTAR DYNALITE ER438 Model series: AEROSTAR DYNALITE ER438 Model type: Combines Brand of engine: D1803-M Approved: Yes
    Kubota Model: Compact Tractor Model series: L3540 Brand of engine: D1803 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Kubota Model: Compact Tractor Model series: L3830 Brand of engine: D1803 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Kubota Model: Compact Tractor Model series: L3940 Brand of engine: V2006 From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Kubota Model: KL31R Model series: KL31R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
    Kubota Model: KL34R Model series: KL34R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
    Kubota Model: KX101-3a3 Model series: KX101-3a3 Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Kubota Model: L28R Model series: L28R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
    Kubota Model: L31RF Model series: L31RF Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
    Kubota Model: U35-3a3 Model series: U35-3a3 Model type: Excavators Brand of engine: D1803-M Approved: Yes
    Volvo Model: DD25 Model series: DD25 Model type: Rollers Brand of engine: D1803-M Approved: Yes
    1 / 4
  • Beskrivelse
    Spenningsverdi: 12
    kW: 1.4
    Montasje. flens: 82.50
    Drev. avstand: 24.50
    Montasje. hull 2 mm: 11.50
    Montasje. hull 1 mm: 11.50
    Avstand./bak: 124.00
    Avstand./forside: 31.50
    Nummer./tenner: 8
    B+: M8
    Posisjon/50: 12
    Terminal 50: 6.30
    Gavl type: GR
    Avstand. mm: 104.50
    Rotasjon: med urviseren
    Total lengde mm: 188.00
    Prod. info: BN
    Nummer./monteringshull: 2 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 82.50
    No./mount. holes 2 (0)
    Position/50 12
    Prod. info BN
    Rotation CW
    Dist./back 124.00
    Dist./front 31.50
    Drive dist. 24.50
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 188.00 mm
    Dist. 104.50 mm
    Mount. hole 2 11.50 mm
    Mount. hole 1 11.50 mm
  • Kjøretøymatching

    • OEM
      F032115322, RC411-53200, RC411-53201, RC411-53202, T1150-16800, T1150-16801, 228000-8690, 228000-8691, 228000-9800, 228000-9801

    • Konkurrentreferens
      CST40389, DSN2089, 25-5235, 690.532.082, 19161, 19161N, 106362, 255035

    • NormaliseratArtNr
      cst40389, dsn2089, f032115322, rc41153200, rc41153201, rc41153202, t115016800, t115016801, 19161, 19161n, 106362, 255035, 255235, 690532082, 2280008690, 2280008691, 2280009800, 2280009801

    • Passar modeller
      Bobcat Model: E32 & E35 Model series: E32 & E35 Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Bobcat Model: E32 Model series: E32 Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Bobcat Model: E32i Model series: E32i Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Bobcat Model: E35 Model series: E35 Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Bobcat Model: E35i Model series: E35i Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Kubota Model: AEROSTAR DYNALITE ER438 Model series: AEROSTAR DYNALITE ER438 Model type: Combines Brand of engine: D1803-M Approved: Yes
      Kubota Model: Compact Tractor Model series: L3540 Brand of engine: D1803 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Kubota Model: Compact Tractor Model series: L3830 Brand of engine: D1803 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Kubota Model: Compact Tractor Model series: L3940 Brand of engine: V2006 From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Kubota Model: KL31R Model series: KL31R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
      Kubota Model: KL34R Model series: KL34R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
      Kubota Model: KX101-3a3 Model series: KX101-3a3 Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Kubota Model: L28R Model series: L28R Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
      Kubota Model: L31RF Model series: L31RF Model type: Ag Tractors Brand of engine: D1803-M Approved: Yes
      Kubota Model: U35-3a3 Model series: U35-3a3 Model type: Excavators Brand of engine: D1803-M Approved: Yes
      Volvo Model: DD25 Model series: DD25 Model type: Rollers Brand of engine: D1803-M Approved: Yes
      1 / 4
