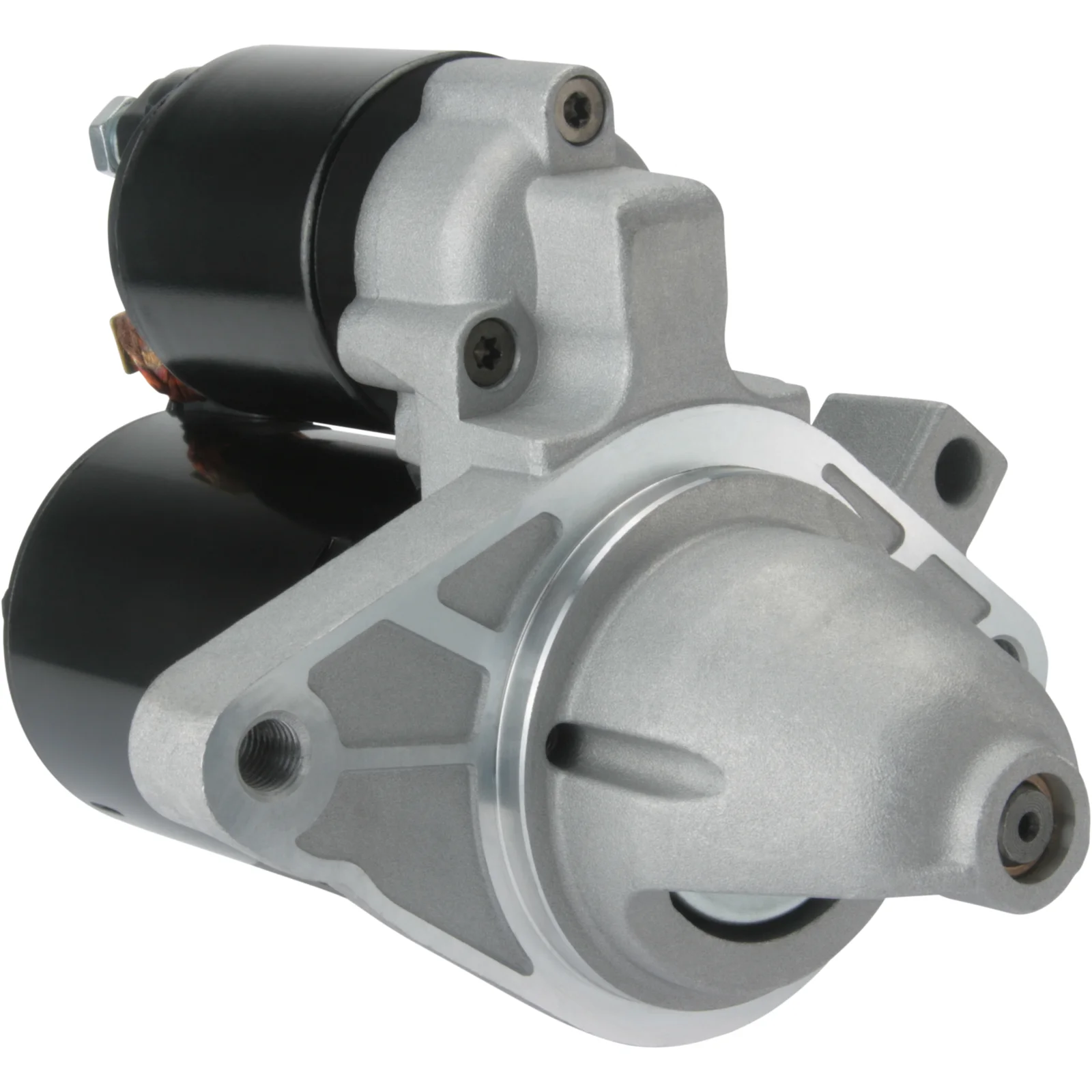

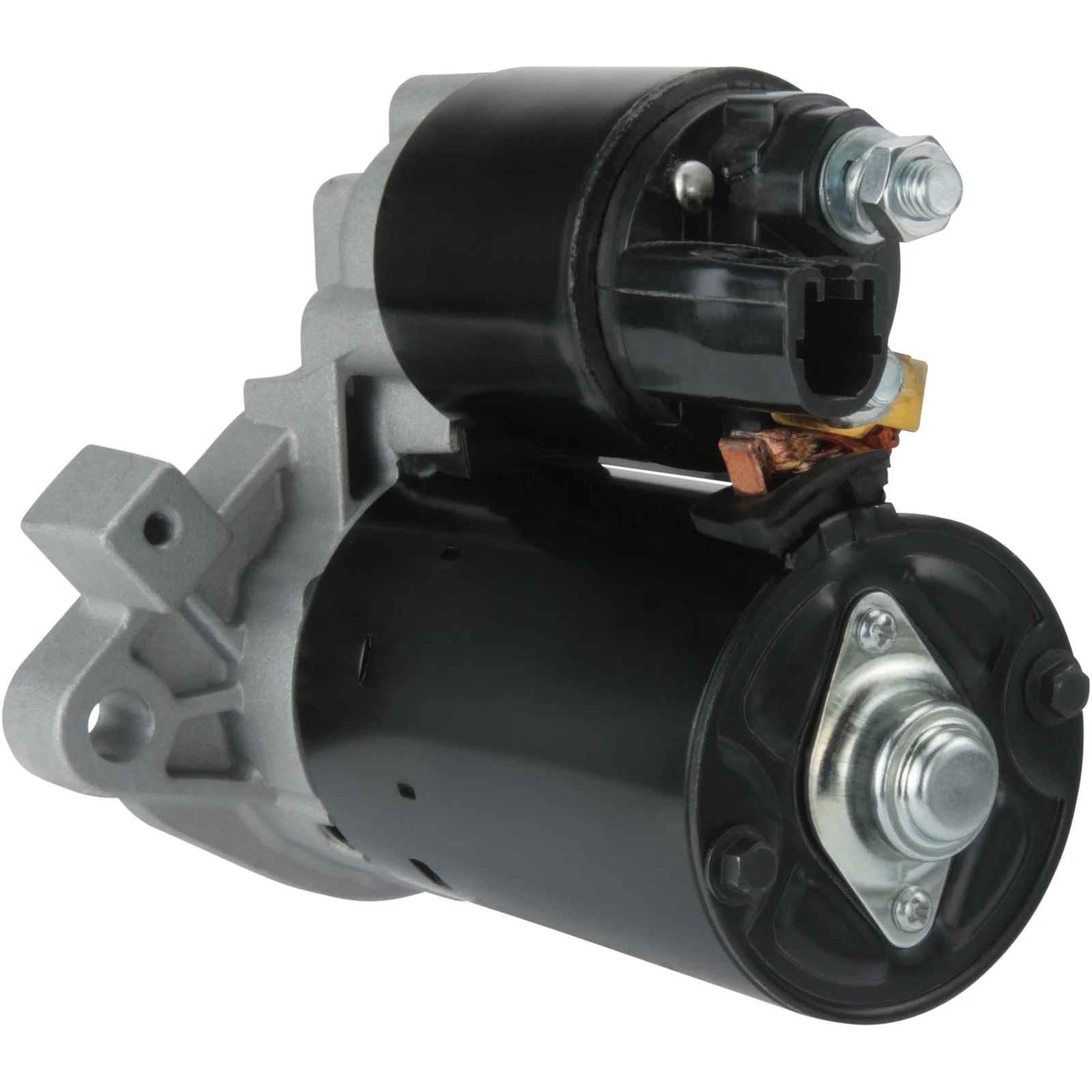

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115524

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 0,85, Antall/tenner: 8, Rotasjon: CW

Beskrivelse

HC-Cargo Startmotor 12V - 0.85kW, 8

Spenning: 12
kW: 0.85
Monteringsflate: 74.00
Drevavstand: 25.50
Monteringshull 1 mm: 11.00
Avstand/bak: 143.00
Avstand/fram: 61.00
Nr./tenner: 8
B+: M8
Posisjon/B+: 60
Posisjon/50: 40
Terminal 50: Kontakt
Geværtype: DD
Avstand mm: 130.00
Rotasjon: CW
Total lengde mm: 205.00
Prod. info: BN
Nr./monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 8
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 40
Position/B+ 60
Prod. info BN
Rotation CW
Dist./back 143.00
Dist./front 61.00
Drive dist. 25.50
Gear type DD
kW 0.85
Terminal 50 Plug
Voltage 12
Total length 205.00 mm
Dist. 130.00 mm
Mount. hole 1 11.00 mm

  • OEM
    CS1490, cs1490, F000AL0321, f000al0321, F032113489, F032115524, 28100-0Q031, 28100-0q031, 28100-0Q080, 28100-0Q081, 28100-40070, 28100-40071, 28100-40090, 28100-40091, 115524, 428000-3470, 428000-3471, 428000-3472, 428000-3480, 428000-8630

  • Konkurrentreferens
    CST40323, DRS0837, DRS0875, DSN988, LRS02592, LRS02605, S6220S, 25-4265, 335.238.082, 220677, 220677A, 220723, 220723A, 255243, 458946, 11040838, 0986025640

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    cs1490, cst40323, drs0837, drs0875, dsn988, f000al0321, f032113489, f032115524, lrs02592, lrs02605, s6220s, 115524, 220677, 220677a, 220723, 220723a, 254265, 255243, 281000q031, 281000q080, 281000q081, 458946, 11040838, 335238082, 0986025640, 2810040070, 2810040071, 2810040090, 2810040091, 4280003470, 4280003471, 4280003472, 4280003480, 4280008630

  • Passar modeller
    Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
    Toyota Series: Yaris (_P9_) Model: 1.0 VVT-i Engine volume: 1.0 Engine type: 1KR-FE Year: 08.05-12.11
    Toyota Series: YARIS Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 06.18-06.20
    Toyota Series: Yaris Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 12.10-06.20
    Toyota Series: Yaris Model: 1.0 GPL Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-12.11
    Toyota Series: YARIS SKÅP/HALVKOMBI Model: 1.0 VVTi Engine volume: 1.0 Engine type: 1KR-FE Year: 06.18-06.20
    1 / 3
  • Beskrivelse
    HC-Cargo Startmotor 12V - 0.85kW, 8

    Spenning: 12
    kW: 0.85
    Monteringsflate: 74.00
    Drevavstand: 25.50
    Monteringshull 1 mm: 11.00
    Avstand/bak: 143.00
    Avstand/fram: 61.00
    Nr./tenner: 8
    B+: M8
    Posisjon/B+: 60
    Posisjon/50: 40
    Terminal 50: Kontakt
    Geværtype: DD
    Avstand mm: 130.00
    Rotasjon: CW
    Total lengde mm: 205.00
    Prod. info: BN
    Nr./monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 8
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 40
    Position/B+ 60
    Prod. info BN
    Rotation CW
    Dist./back 143.00
    Dist./front 61.00
    Drive dist. 25.50
    Gear type DD
    kW 0.85
    Terminal 50 Plug
    Voltage 12
    Total length 205.00 mm
    Dist. 130.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      CS1490, cs1490, F000AL0321, f000al0321, F032113489, F032115524, 28100-0Q031, 28100-0q031, 28100-0Q080, 28100-0Q081, 28100-40070, 28100-40071, 28100-40090, 28100-40091, 115524, 428000-3470, 428000-3471, 428000-3472, 428000-3480, 428000-8630

    • Konkurrentreferens
      CST40323, DRS0837, DRS0875, DSN988, LRS02592, LRS02605, S6220S, 25-4265, 335.238.082, 220677, 220677A, 220723, 220723A, 255243, 458946, 11040838, 0986025640

    • Bilmärken
      Toyota

    • NormaliseratArtNr
      cs1490, cst40323, drs0837, drs0875, dsn988, f000al0321, f032113489, f032115524, lrs02592, lrs02605, s6220s, 115524, 220677, 220677a, 220723, 220723a, 254265, 255243, 281000q031, 281000q080, 281000q081, 458946, 11040838, 335238082, 0986025640, 2810040070, 2810040071, 2810040090, 2810040091, 4280003470, 4280003471, 4280003472, 4280003480, 4280008630

    • Passar modeller
      Toyota Model: Vitz Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-06-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Hatchback From date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-01-2006 To date: 01-12-2011 Fuel: Bi-Fuel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Body: Hatchback From date: 01-08-2005 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P13_ Body: Box From date: 01-06-2018 Fuel: Petrol Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.0 Brand of engine: 1KR-FE Type description: _P9_ Body: Hatchback From date: 01-11-2005 To date: 01-11-2010 Fuel: Petrol Approved: Yes
      Toyota Series: Yaris (_P9_) Model: 1.0 VVT-i Engine volume: 1.0 Engine type: 1KR-FE Year: 08.05-12.11
      Toyota Series: YARIS Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 06.18-06.20
      Toyota Series: Yaris Model: 1.0 Engine volume: 1.0 Engine type: 1KR-FE Year: 12.10-06.20
      Toyota Series: Yaris Model: 1.0 GPL Engine volume: 1.0 Engine type: 1KR-FE Year: 01.06-12.11
      Toyota Series: YARIS SKÅP/HALVKOMBI Model: 1.0 VVTi Engine volume: 1.0 Engine type: 1KR-FE Year: 06.18-06.20
