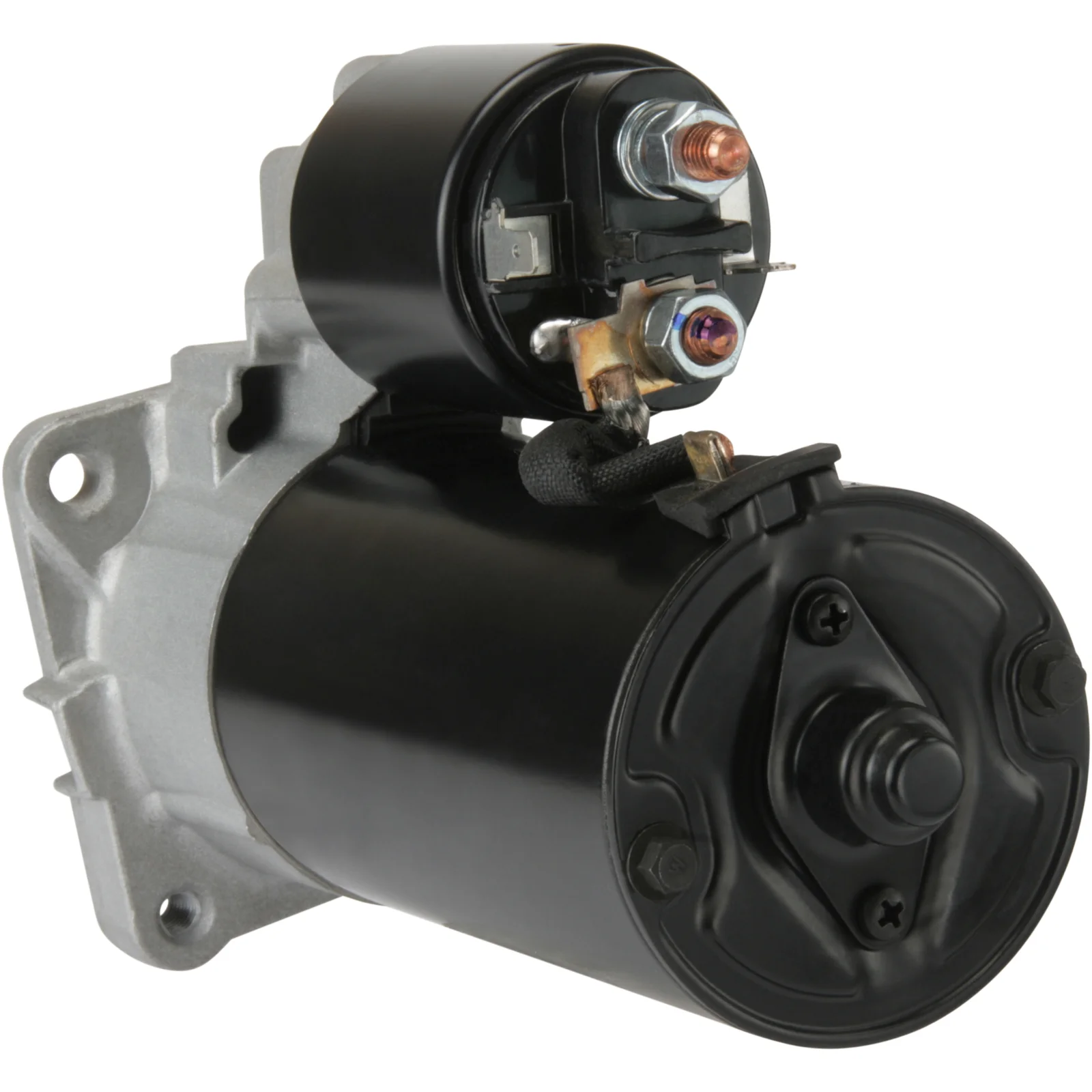

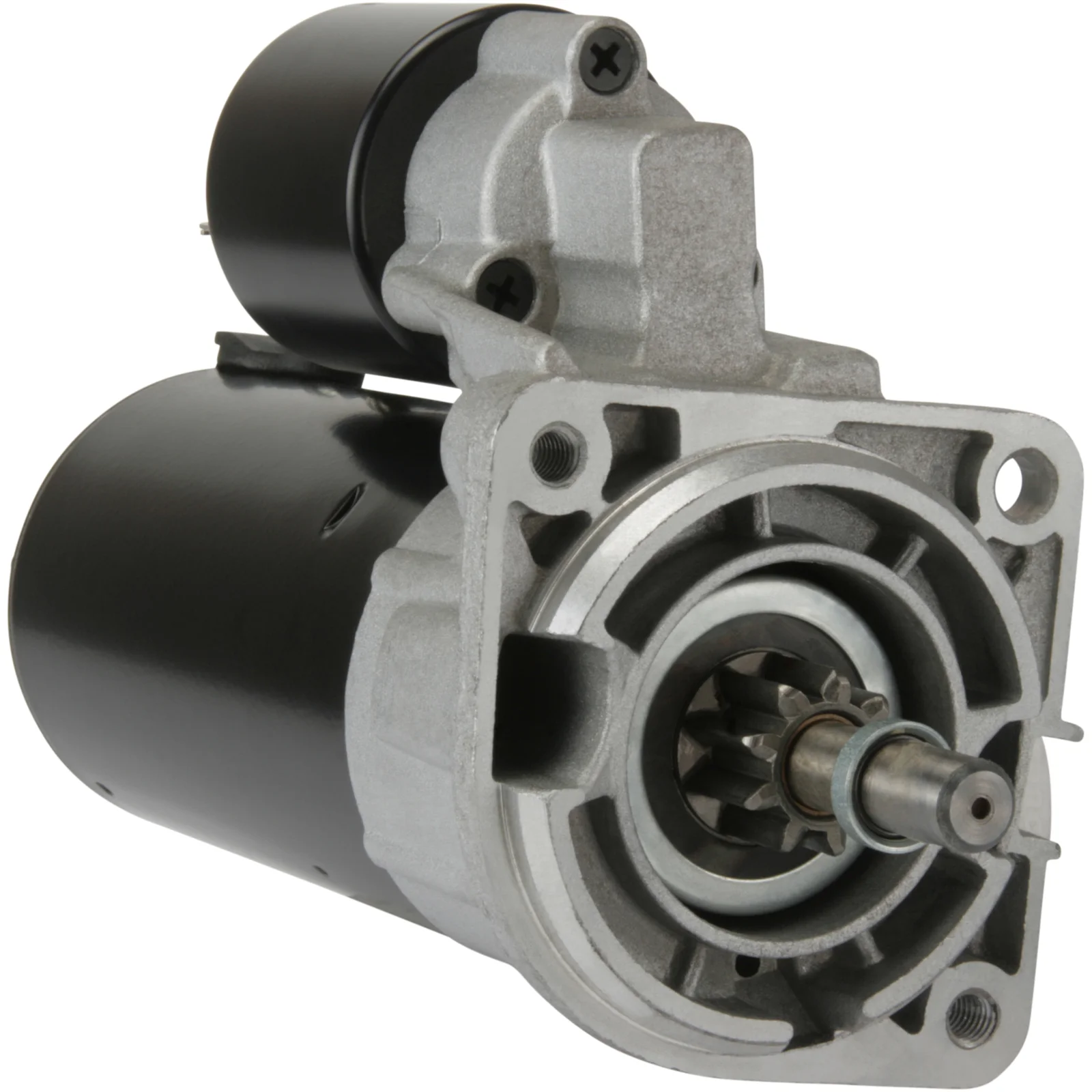

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115540

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.4, No./tenner: 9, Rotasjon: CW

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenning: 12
kW: 1.4
Fester for montering: 82.50
Drivingsavstand: 14.00
Monteringshull 3 mm: M8
Monteringshull 1 mm: 8.50
Avstand/bak: 181.00
Avstand/fram: 52.00
Antall/tann.gear: 9
B+: M8
Posisjon/15a: 45
Terminal 15a: 6.30
Posisjon/50: 15
Terminal 50: 6.30
Gustype: GR
Avstand 2: 105.00
Avstand 3: 74.50
Avstand/mm: 74.50
Rotasjon: medurs
Total lengde mm: 245.00
Produsentinfo: BN
Antall/monteringshull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 3 (2)
Position/15a 45
Position/50 15
Prod. info BN
Dist. 2 105.00
Dist. 3 74.50
Rotation CW
Dist./back 181.00
Dist./front 52.00
Drive dist. 14.00
Gear type GR
kW 1.4
Terminal 50 6.30
Voltage 12
Total length 245.00 mm
Dist. 74.50 mm
Terminal 15A 6.30 mm
Mount. hole 3 M8 mm
Mount. hole 1 8.50 mm

  • OEM
    cs500, F032115540, 0001109001, 0001109002, 031911023, 031911023a, 031911023AX, 031911023X

  • Konkurrentreferens
    CST10204, drs4580, lrs00890, S0187, 8EA012528-121, 25-1360, 41-14.580, 311.033.092, 3642, 10500, 11409, 33039R, 220095, 220095A, 436047, 438495, 8014580, 11014580, 943251433, 0986014580

  • NormaliseratArtNr
    cs500, cst10204, drs4580, f032115540, lrs00890, s0187, 8ea012528121, 3642, 10500, 11409, 33039r, 220095, 220095a, 251360, 436047, 438495, 0001109001, 0001109002, 4114580, 8014580, 11014580, 031911023, 031911023a, 031911023ax, 031911023x, 311033092, 943251433, 0986014580

  • Passar modeller
    Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Estate From date: 01-03-1990 To date: 01-12-1994 Fuel: Diesel Approved: Yes
    Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Van From date: 01-03-1990 To date: 01-02-1992 Fuel: Diesel Approved: Yes
    Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Estate From date: 01-10-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Van From date: 01-10-1990 To date: 01-02-1992 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Coupe From date: 01-08-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Hatchback From date: 01-08-1986 To date: 01-07-1990 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN From date: 01-08-1986 To date: 01-12-1988 Fuel: Diesel Approved: Yes Manufacture type: classic
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Coupe From date: 01-08-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Hatchback From date: 01-10-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Van From date: 01-08-1992 To date: 01-07-1994 Fuel: Diesel Approved: Yes
    VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Type description: 86C, 80 From date: 01-10-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes Manufacture type: classic
    1 / 3
  • Beskrivelse
    Spenning: 12
    kW: 1.4
    Fester for montering: 82.50
    Drivingsavstand: 14.00
    Monteringshull 3 mm: M8
    Monteringshull 1 mm: 8.50
    Avstand/bak: 181.00
    Avstand/fram: 52.00
    Antall/tann.gear: 9
    B+: M8
    Posisjon/15a: 45
    Terminal 15a: 6.30
    Posisjon/50: 15
    Terminal 50: 6.30
    Gustype: GR
    Avstand 2: 105.00
    Avstand 3: 74.50
    Avstand/mm: 74.50
    Rotasjon: medurs
    Total lengde mm: 245.00
    Produsentinfo: BN
    Antall/monteringshull: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 3 (2)
    Position/15a 45
    Position/50 15
    Prod. info BN
    Dist. 2 105.00
    Dist. 3 74.50
    Rotation CW
    Dist./back 181.00
    Dist./front 52.00
    Drive dist. 14.00
    Gear type GR
    kW 1.4
    Terminal 50 6.30
    Voltage 12
    Total length 245.00 mm
    Dist. 74.50 mm
    Terminal 15A 6.30 mm
    Mount. hole 3 M8 mm
    Mount. hole 1 8.50 mm
  • Kjøretøymatching

    • OEM
      cs500, F032115540, 0001109001, 0001109002, 031911023, 031911023a, 031911023AX, 031911023X

    • Konkurrentreferens
      CST10204, drs4580, lrs00890, S0187, 8EA012528-121, 25-1360, 41-14.580, 311.033.092, 3642, 10500, 11409, 33039R, 220095, 220095A, 436047, 438495, 8014580, 11014580, 943251433, 0986014580

    • NormaliseratArtNr
      cs500, cst10204, drs4580, f032115540, lrs00890, s0187, 8ea012528121, 3642, 10500, 11409, 33039r, 220095, 220095a, 251360, 436047, 438495, 0001109001, 0001109002, 4114580, 8014580, 11014580, 031911023, 031911023a, 031911023ax, 031911023x, 311033092, 943251433, 0986014580

    • Passar modeller
      Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Estate From date: 01-03-1990 To date: 01-12-1994 Fuel: Diesel Approved: Yes
      Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Van From date: 01-03-1990 To date: 01-02-1992 Fuel: Diesel Approved: Yes
      Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Estate From date: 01-10-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
      Seat Model: Terra Model series: Terra Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Van From date: 01-10-1990 To date: 01-02-1992 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Coupe From date: 01-08-1986 To date: 01-08-1990 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN Body: Hatchback From date: 01-08-1986 To date: 01-07-1990 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.3 Brand of engine: MN From date: 01-08-1986 To date: 01-12-1988 Fuel: Diesel Approved: Yes Manufacture type: classic
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Coupe From date: 01-08-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Hatchback From date: 01-10-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Body: Van From date: 01-08-1992 To date: 01-07-1994 Fuel: Diesel Approved: Yes
      VW Model: Polo Model series: Polo Type of engine: Diesel Size of motor: 1.4 Brand of engine: 1W Type description: 86C, 80 From date: 01-10-1990 To date: 01-09-1994 Fuel: Diesel Approved: Yes Manufacture type: classic
      1 / 3
