HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115594

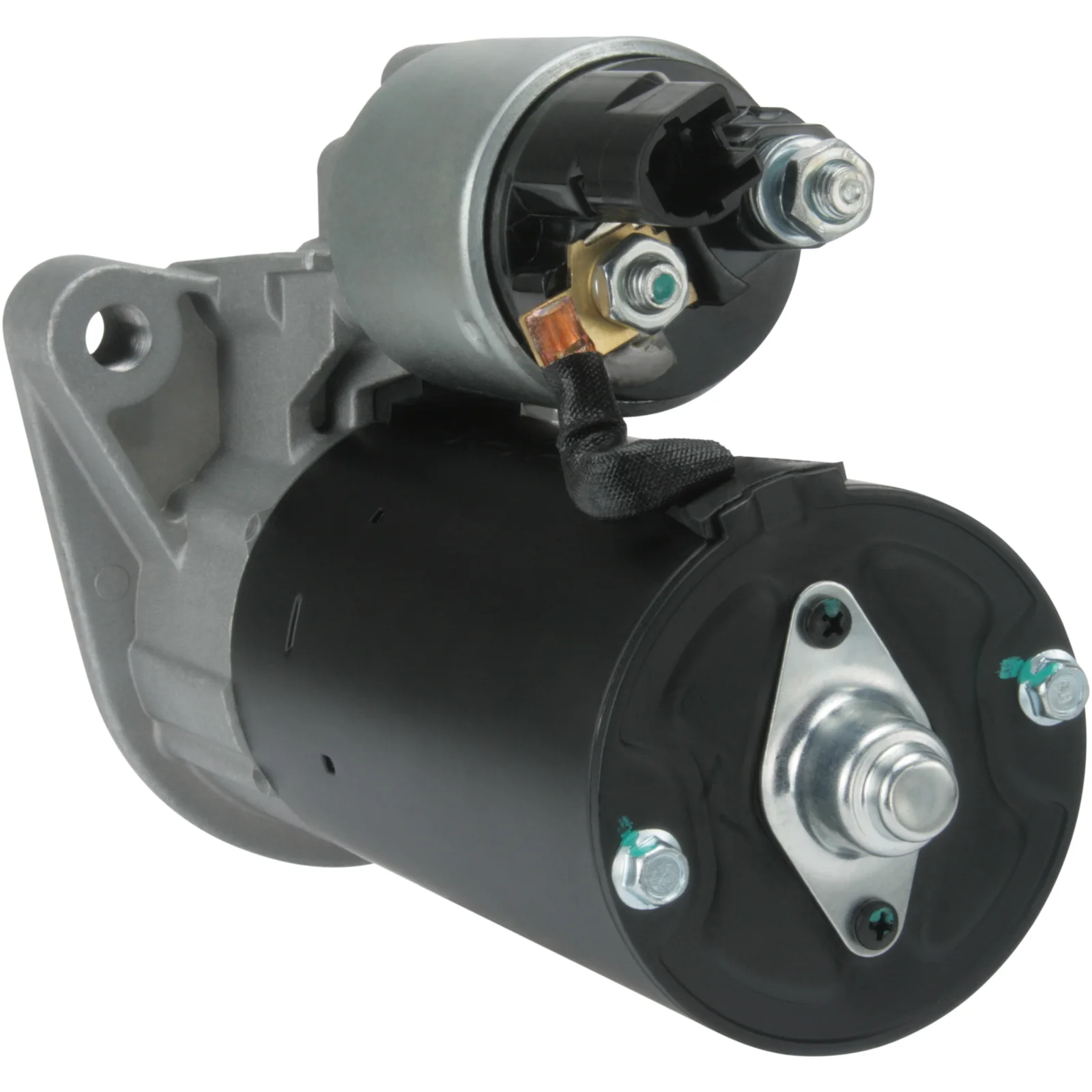

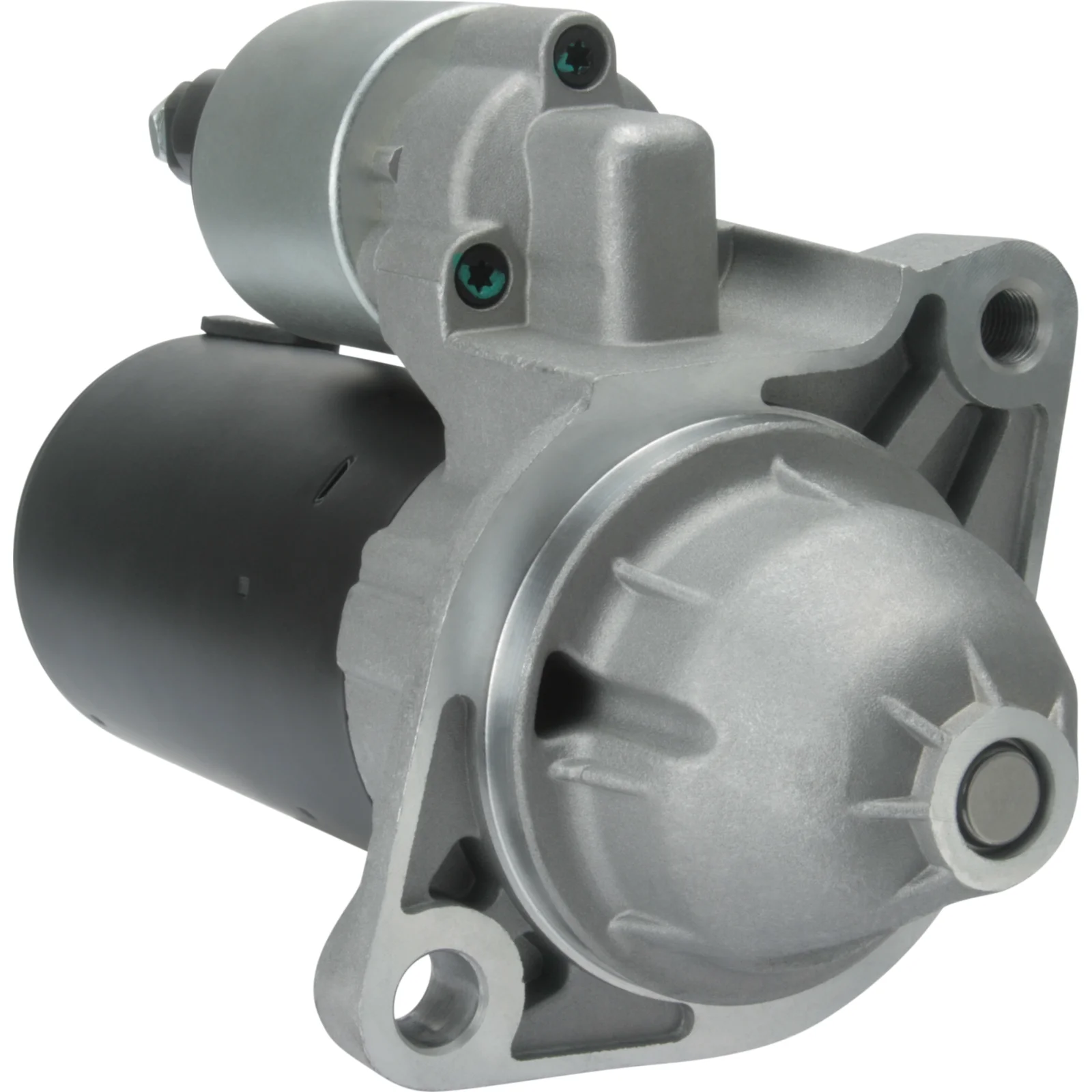

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 2.2, Antall/tann: 9, Rotasjon: medurs

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningskilde: 12
kW: 2.2
Monteringsflens: 82.50
Drevavstand: 18.00
Monteringshull 2 mm: 13.00
Avstand/bak: 180.00
Avstand/frem: 57.50
Num./tenner: 9
B+: M8
Posisjon/50: 55
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 129.00
Rotasjon: CW
Total lengde mm: 250.50
Prod. info: BN
Num./monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 82.50
No./mount. holes 2 (1)
Position/50 55
Prod. info BN
Rotation CW
Dist./back 180.00
Dist./front 57.50
Drive dist. 18.00
Gear type GR
kW 2.2
Terminal 50 Plug
Voltage 12
Total length 250.50 mm
Dist. 129.00 mm
Mount. hole 2 13.00 mm

  • OEM
    F000AL0111, F000AL0153, F004A94011, F032115594, 1986S00567, 28100-0L070, 28100-0L072, 28100-0L081, 28100-0L082

  • Konkurrentreferens
    CST10A05, CST40103, S0718S, 8EA011612-491, 25-4491, 190.595.092, 335.244.092, 19662N, 11040900

  • NormaliseratArtNr
    cst10a05, cst40103, f000al0111, f000al0153, f004a94011, f032115594, s0718s, 8ea011612491, 1986s00567, 19662n, 254491, 281000l070, 281000l072, 281000l081, 281000l082, 11040900, 190595092, 335244092

  • Passar modeller
    Toyota Model: Fortuner Model series: Fortuner Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: N2_ From date: 01-06-2004 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: N25 Body: Pick Up From date: 01-12-2007 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Model type: Tdi 4x4 (KUN26) Type of engine: TDI Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Pickup Model type: D-4D (KUN15) Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-05-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningskilde: 12
    kW: 2.2
    Monteringsflens: 82.50
    Drevavstand: 18.00
    Monteringshull 2 mm: 13.00
    Avstand/bak: 180.00
    Avstand/frem: 57.50
    Num./tenner: 9
    B+: M8
    Posisjon/50: 55
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 129.00
    Rotasjon: CW
    Total lengde mm: 250.50
    Prod. info: BN
    Num./monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 82.50
    No./mount. holes 2 (1)
    Position/50 55
    Prod. info BN
    Rotation CW
    Dist./back 180.00
    Dist./front 57.50
    Drive dist. 18.00
    Gear type GR
    kW 2.2
    Terminal 50 Plug
    Voltage 12
    Total length 250.50 mm
    Dist. 129.00 mm
    Mount. hole 2 13.00 mm
  • Kjøretøymatching

    • OEM
      F000AL0111, F000AL0153, F004A94011, F032115594, 1986S00567, 28100-0L070, 28100-0L072, 28100-0L081, 28100-0L082

    • Konkurrentreferens
      CST10A05, CST40103, S0718S, 8EA011612-491, 25-4491, 190.595.092, 335.244.092, 19662N, 11040900

    • NormaliseratArtNr
      cst10a05, cst40103, f000al0111, f000al0153, f004a94011, f032115594, s0718s, 8ea011612491, 1986s00567, 19662n, 254491, 281000l070, 281000l072, 281000l081, 281000l082, 11040900, 190595092, 335244092

    • Passar modeller
      Toyota Model: Fortuner Model series: Fortuner Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: N2_ From date: 01-06-2004 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: N25 Body: Pick Up From date: 01-12-2007 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: 4x4 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Model type: Tdi 4x4 (KUN26) Type of engine: TDI Size of motor: 3.0 Brand of engine: 1KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Pickup Model type: D-4D (KUN15) Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Type description: _N1_, _N2_, _N3_ Body: Pickup From date: 01-08-2005 To date: 01-10-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: D-4D Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-03-2005 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 2.5 Brand of engine: 2KD-FTV Body: Pick Up From date: 01-05-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      Toyota Model: Hilux Model series: Hilux Type of engine: Diesel Size of motor: 3.0 Brand of engine: 1KD-FTV Body: Pick Up From date: 01-08-2006 To date: 01-05-2015 Fuel: Diesel Approved: Yes
      1 / 2
