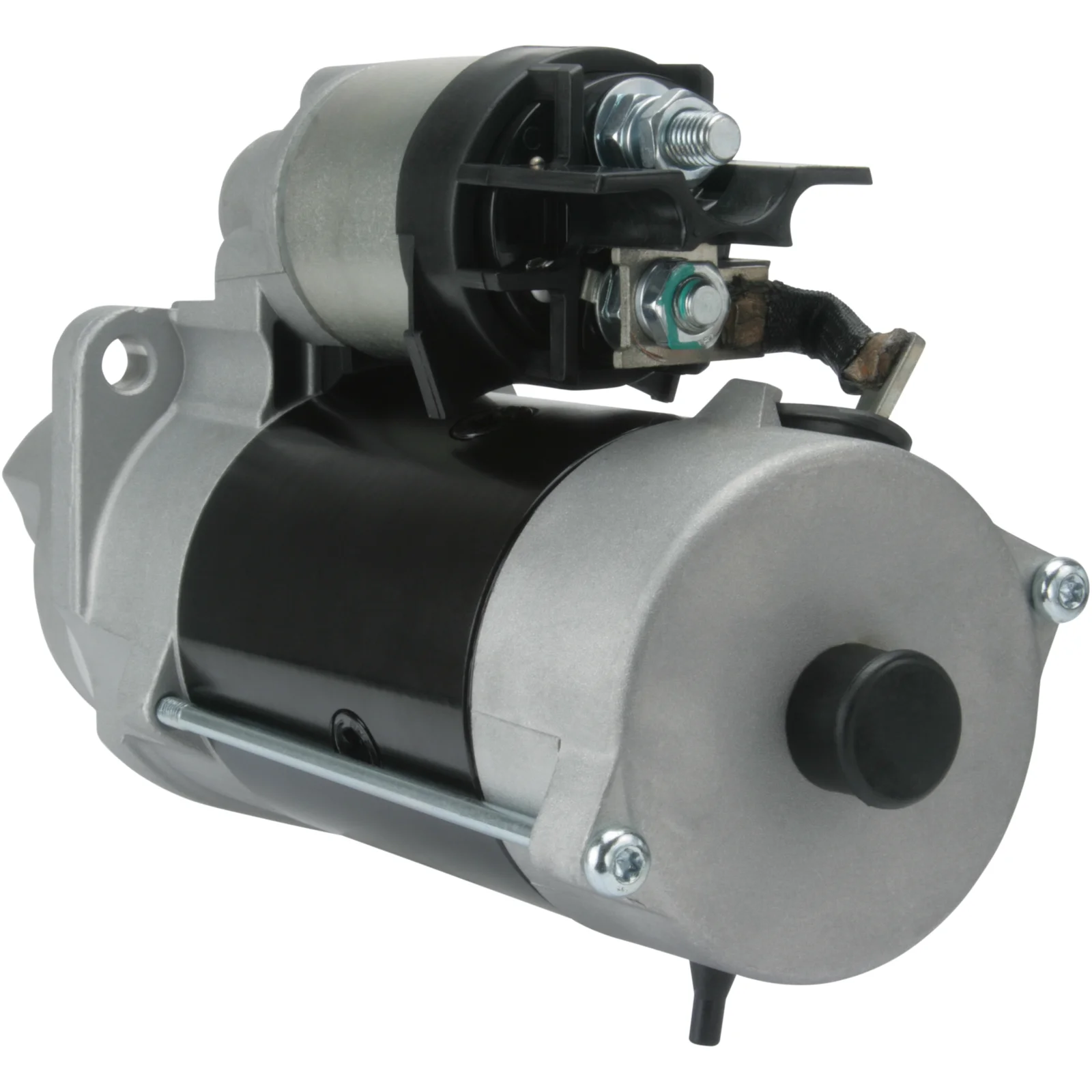

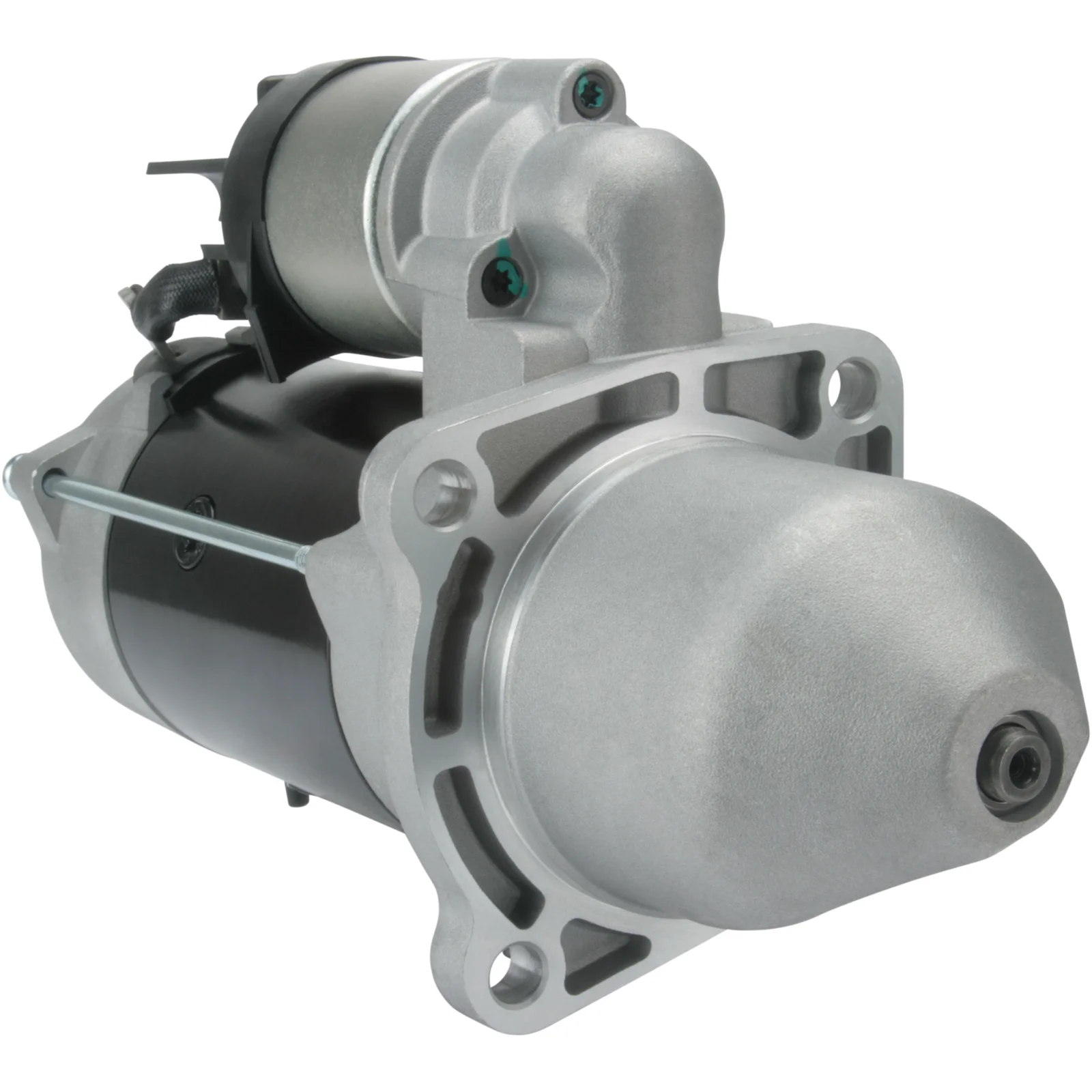

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115609

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 3.0, Antal/tænder: 11, Rotasjon: medurs

Beskrivelse

Spenningsverdi: 12
kW: 3.0
Feste flens: 89.00
Drivingsavstand: 48.00
Festeringshull 3 mm: 11.00
Festeringshull 2 mm: 11.00
Festeringshull 1 mm: 11.00
Avstand/tilbake: 208.50
Avstand/frem: 95.00
Num./tenner: 11
B+: M10
Posisjon/50: 15
Terminal 50: M5
Geværtype: GR
Avstand 2: 90.00
Avstand 3: 90.00
Avstand mm: 127.00
Rotasjon: CW
Total lengde mm: 315.50
Prod. info: BN
Info: Direkte drift Startmotor: HC-CARGO 112442.
Num./festehull: 3 (0)

Filer

Spesifikasjon

B+ M10
No./teeth 11
Mount. flange 89.00
No./mount. holes 3 (0)
Position/50 15
Prod. info BN
Dist. 2 90.00
Dist. 3 90.00
Rotation CW
Dist./back 208.50
Dist./front 95.00
Drive dist. 48.00
Gear type GR
Info Direct Drive Starter: HC-CARGO 112442.
kW 3.0
Terminal 50 M5
Voltage 12
Total length 315.50 mm
Dist. 127.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 11.00 mm
Mount. hole 1 11.00 mm

  • OEM
    cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

  • Konkurrentreferens
    DRS0067, les0407, LRS01563, S0297, S9274(LETRIKA), 8EA015642-251, 18361N, 105469, 220915, 220915A, 11090152, 0986023990, 0986023993

  • NormaliseratArtNr
    cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993

  • Passar modeller
    John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spenningsverdi: 12
    kW: 3.0
    Feste flens: 89.00
    Drivingsavstand: 48.00
    Festeringshull 3 mm: 11.00
    Festeringshull 2 mm: 11.00
    Festeringshull 1 mm: 11.00
    Avstand/tilbake: 208.50
    Avstand/frem: 95.00
    Num./tenner: 11
    B+: M10
    Posisjon/50: 15
    Terminal 50: M5
    Geværtype: GR
    Avstand 2: 90.00
    Avstand 3: 90.00
    Avstand mm: 127.00
    Rotasjon: CW
    Total lengde mm: 315.50
    Prod. info: BN
    Info: Direkte drift Startmotor: HC-CARGO 112442.
    Num./festehull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M10
    No./teeth 11
    Mount. flange 89.00
    No./mount. holes 3 (0)
    Position/50 15
    Prod. info BN
    Dist. 2 90.00
    Dist. 3 90.00
    Rotation CW
    Dist./back 208.50
    Dist./front 95.00
    Drive dist. 48.00
    Gear type GR
    Info Direct Drive Starter: HC-CARGO 112442.
    kW 3.0
    Terminal 50 M5
    Voltage 12
    Total length 315.50 mm
    Dist. 127.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 11.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      cs1376, F032115609, RE503226, RE504807, 1986S10057, 0001230002, 87524725

    • Konkurrentreferens
      DRS0067, les0407, LRS01563, S0297, S9274(LETRIKA), 8EA015642-251, 18361N, 105469, 220915, 220915A, 11090152, 0986023990, 0986023993

    • NormaliseratArtNr
      cs1376, drs0067, f032115609, les0407, lrs01563, re503226, re504807, s0297, s9274letrika, 8ea015642251, 1986s10057, 18361n, 105469, 220915, 220915a, 0001230002, 11090152, 87524725, 0986023990, 0986023993

    • Passar modeller
      John Deere Model: 6000 Series Model series: 6205 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6505 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6506 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6510 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6520 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6610 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6620 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6810 Size of motor: 10.0 From date: 01-08-1991 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6820 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6910 From date: 01-01-1994 Fuel: Diesel Approved: Yes
      John Deere Model: 6000 Series Model series: 6920 From date: 01-01-1994 Fuel: Diesel Approved: Yes
