HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115613

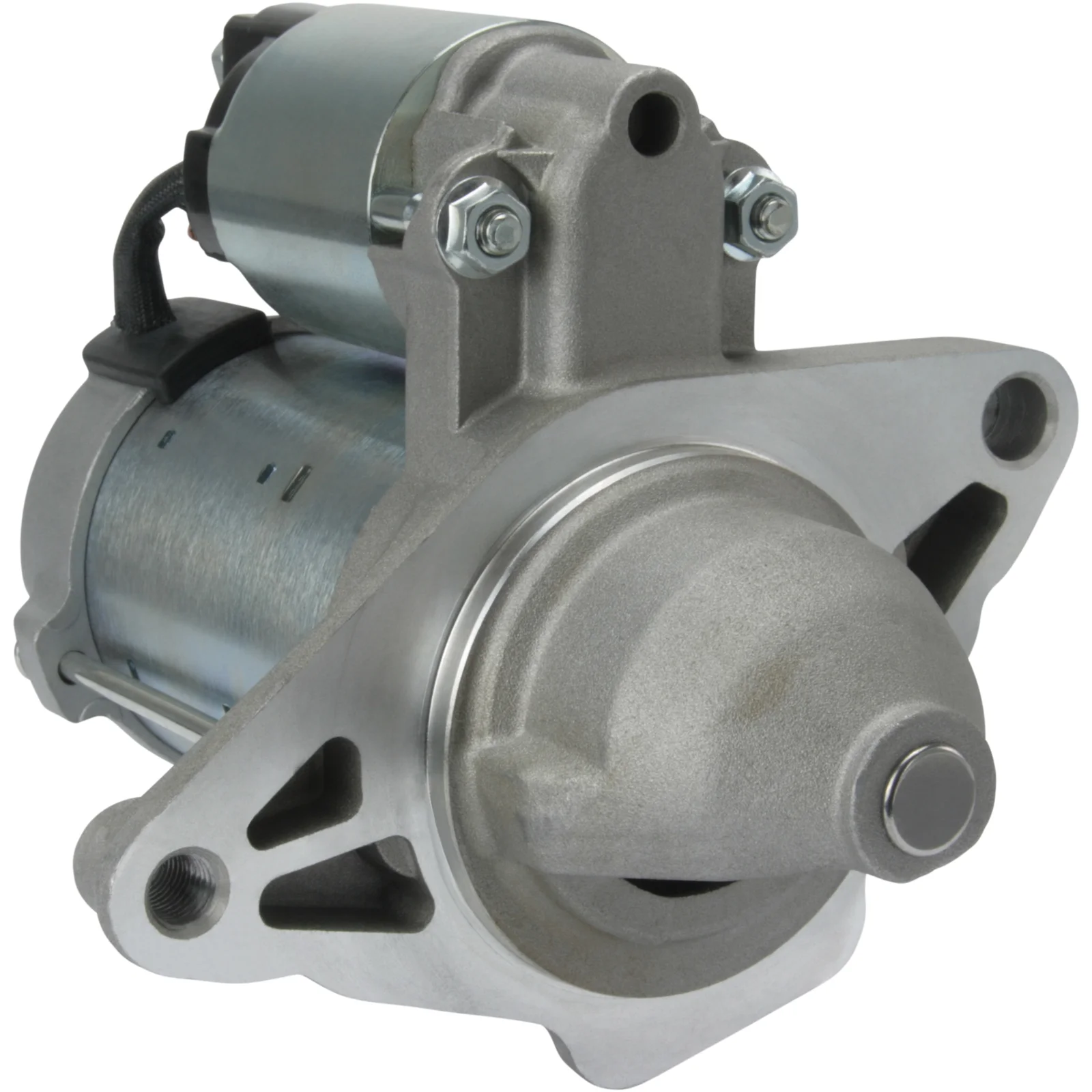

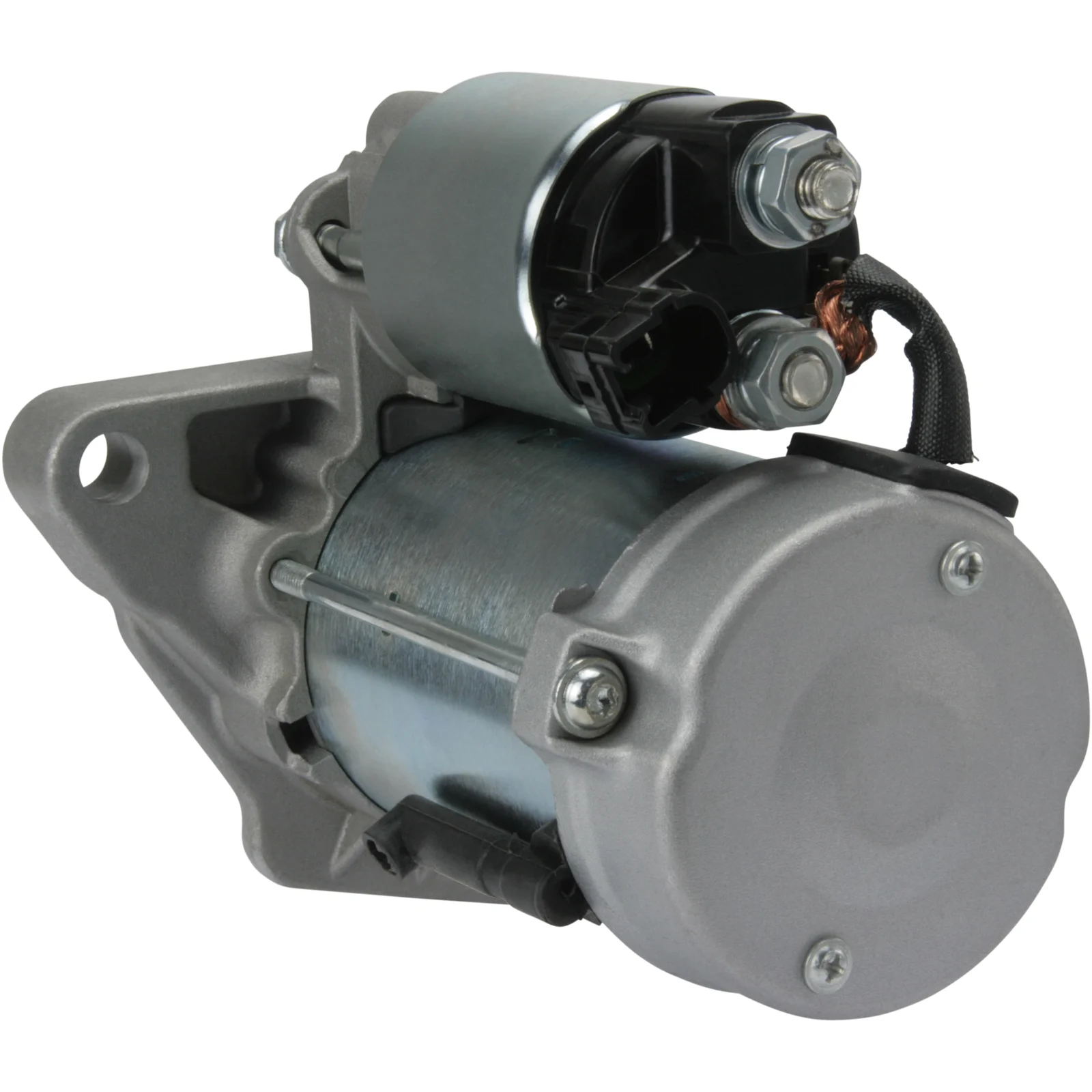

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kumulert effekt: 1,0 kW, Antall tennplugger/tenner: 9, Rotasjon: medur

Produktet er midlertidig utsolgt i Norge og Sverige. Ønsker du et tilbud? Send oss en forespørsel, så hjelper vi deg gjerne.

Beskrivelse

Spenningsspenning: 12
kW: 1.0
Monteringsflens: 74.00
Drivingsavstand: 24.00
Monteringshull 1 mm: 11.00
Avstand/bak: 132.00
Avstand/frem: 57.00
Nummer/tænder: 9
B+: M8
Posisjon/50: 37
Terminal 50: Plugg
Geværtype: GR
Avstand mm: 139.00
Vridning: med klokka
Total lengde mm: 188.50
Produsentinfo: BN
Antall monteringshull: 2 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 2 (1)
Position/50 37
Prod. info BN
Rotation CW
Dist./back 132.00
Dist./front 57.00
Drive dist. 24.00
Gear type GR
kW 1.0
Terminal 50 Plug
Voltage 12
Total length 188.50 mm
Dist. 139.00 mm
Mount. hole 1 11.00 mm

  • OEM
    F032115613, 1986S00979, 1986S01198, 28100-0y010, 28100-0Y030, 28100-47120, 28100-47121, 28100-47122, 28100-47130, 28100-47131, 28100-47132, 428000-6180, 428000-6181, 428000-6210, 428000-6211

  • Konkurrentreferens
    CST40287, DRS0521, DRS0521X, DSN949, LRS02523, MSN8076, S6042, S6042(DENSO), 8EA011612-551, 25-4195, 190.905.092, 335.234.092, 31248N, 107283, 220637, 220637A, 458952, 8080343, 11040791, 0986027350, 063280076010

  • NormaliseratArtNr
    cst40287, drs0521, drs0521x, dsn949, f032115613, lrs02523, msn8076, s6042, s6042denso, 8ea011612551, 1986s00979, 1986s01198, 31248n, 107283, 220637, 220637a, 254195, 281000y010, 281000y030, 458952, 8080343, 11040791, 190905092, 335234092, 0986027350, 2810047120, 2810047121, 2810047122, 2810047130, 2810047131, 2810047132, 4280006180, 4280006181, 4280006210, 4280006211, 063280076010

  • Passar modeller
    Daihatsu Model: Charade Model series: Charade Type of engine: 16V Size of motor: 1.3 Brand of engine: 1NR-FE Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NRE150 From date: 01-12-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP110 Body: Hatchback From date: 01-04-2009 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP110 Body: Hatchback From date: 01-01-2009 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP90 Body: Hatchback From date: 01-11-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P9_ Body: Hatchback From date: 01-07-2010 To date: 01-05-2011 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningsspenning: 12
    kW: 1.0
    Monteringsflens: 74.00
    Drivingsavstand: 24.00
    Monteringshull 1 mm: 11.00
    Avstand/bak: 132.00
    Avstand/frem: 57.00
    Nummer/tænder: 9
    B+: M8
    Posisjon/50: 37
    Terminal 50: Plugg
    Geværtype: GR
    Avstand mm: 139.00
    Vridning: med klokka
    Total lengde mm: 188.50
    Produsentinfo: BN
    Antall monteringshull: 2 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 74.00
    No./mount. holes 2 (1)
    Position/50 37
    Prod. info BN
    Rotation CW
    Dist./back 132.00
    Dist./front 57.00
    Drive dist. 24.00
    Gear type GR
    kW 1.0
    Terminal 50 Plug
    Voltage 12
    Total length 188.50 mm
    Dist. 139.00 mm
    Mount. hole 1 11.00 mm
  • Kjøretøymatching

    • OEM
      F032115613, 1986S00979, 1986S01198, 28100-0y010, 28100-0Y030, 28100-47120, 28100-47121, 28100-47122, 28100-47130, 28100-47131, 28100-47132, 428000-6180, 428000-6181, 428000-6210, 428000-6211

    • Konkurrentreferens
      CST40287, DRS0521, DRS0521X, DSN949, LRS02523, MSN8076, S6042, S6042(DENSO), 8EA011612-551, 25-4195, 190.905.092, 335.234.092, 31248N, 107283, 220637, 220637A, 458952, 8080343, 11040791, 0986027350, 063280076010

    • NormaliseratArtNr
      cst40287, drs0521, drs0521x, dsn949, f032115613, lrs02523, msn8076, s6042, s6042denso, 8ea011612551, 1986s00979, 1986s01198, 31248n, 107283, 220637, 220637a, 254195, 281000y010, 281000y030, 458952, 8080343, 11040791, 190905092, 335234092, 0986027350, 2810047120, 2810047121, 2810047122, 2810047130, 2810047131, 2810047132, 4280006180, 4280006181, 4280006210, 4280006211, 063280076010

    • Passar modeller
      Daihatsu Model: Charade Model series: Charade Type of engine: 16V Size of motor: 1.3 Brand of engine: 1NR-FE Body: Hatchback From date: 01-05-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NRE150 From date: 01-12-2008 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP110 Body: Hatchback From date: 01-04-2009 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
      Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP110 Body: Hatchback From date: 01-01-2009 To date: 01-03-2016 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: NSP90 Body: Hatchback From date: 01-11-2008 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 1NR-FE Type description: _P9_ Body: Hatchback From date: 01-07-2010 To date: 01-05-2011 Fuel: Gasoline Approved: Yes
      1 / 2
