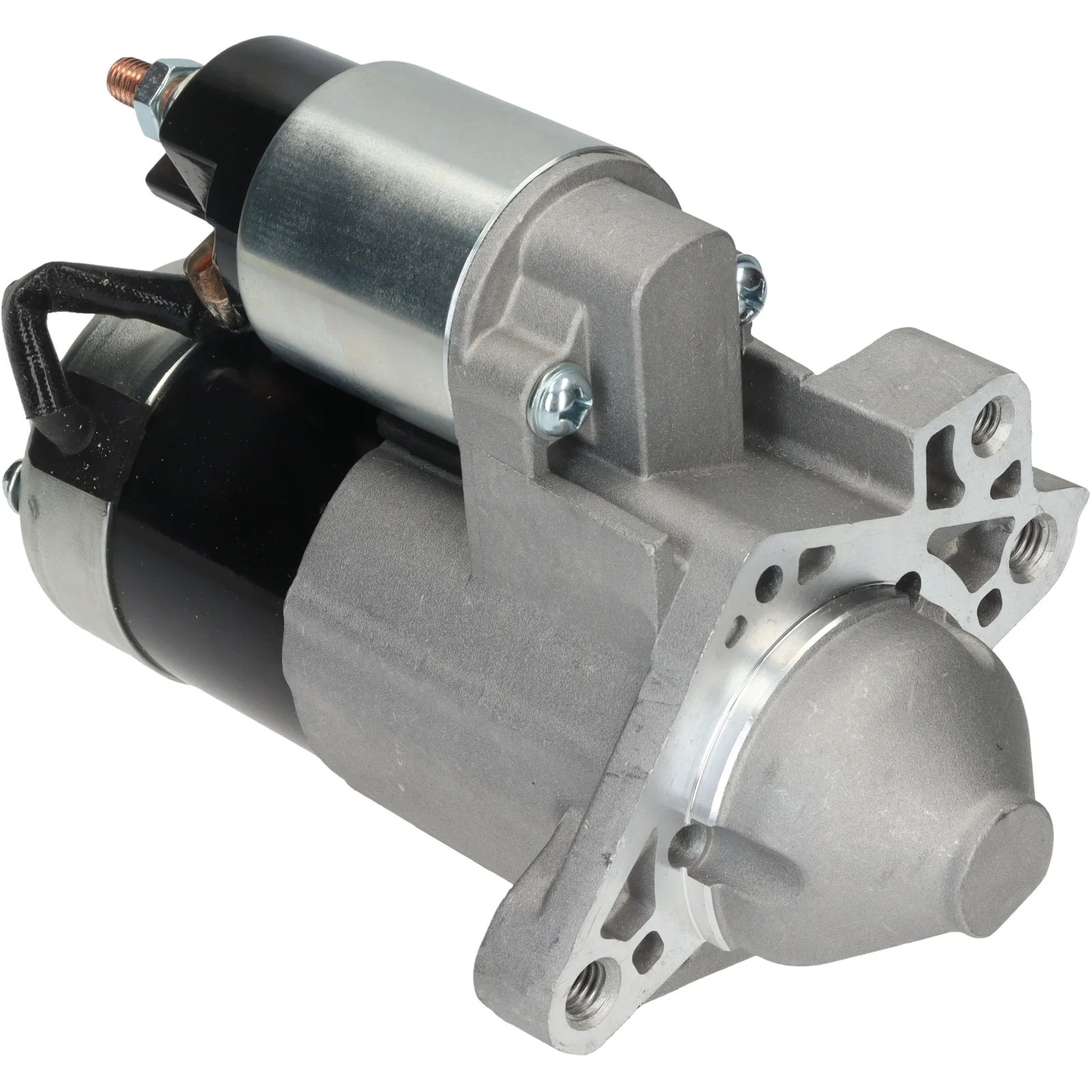

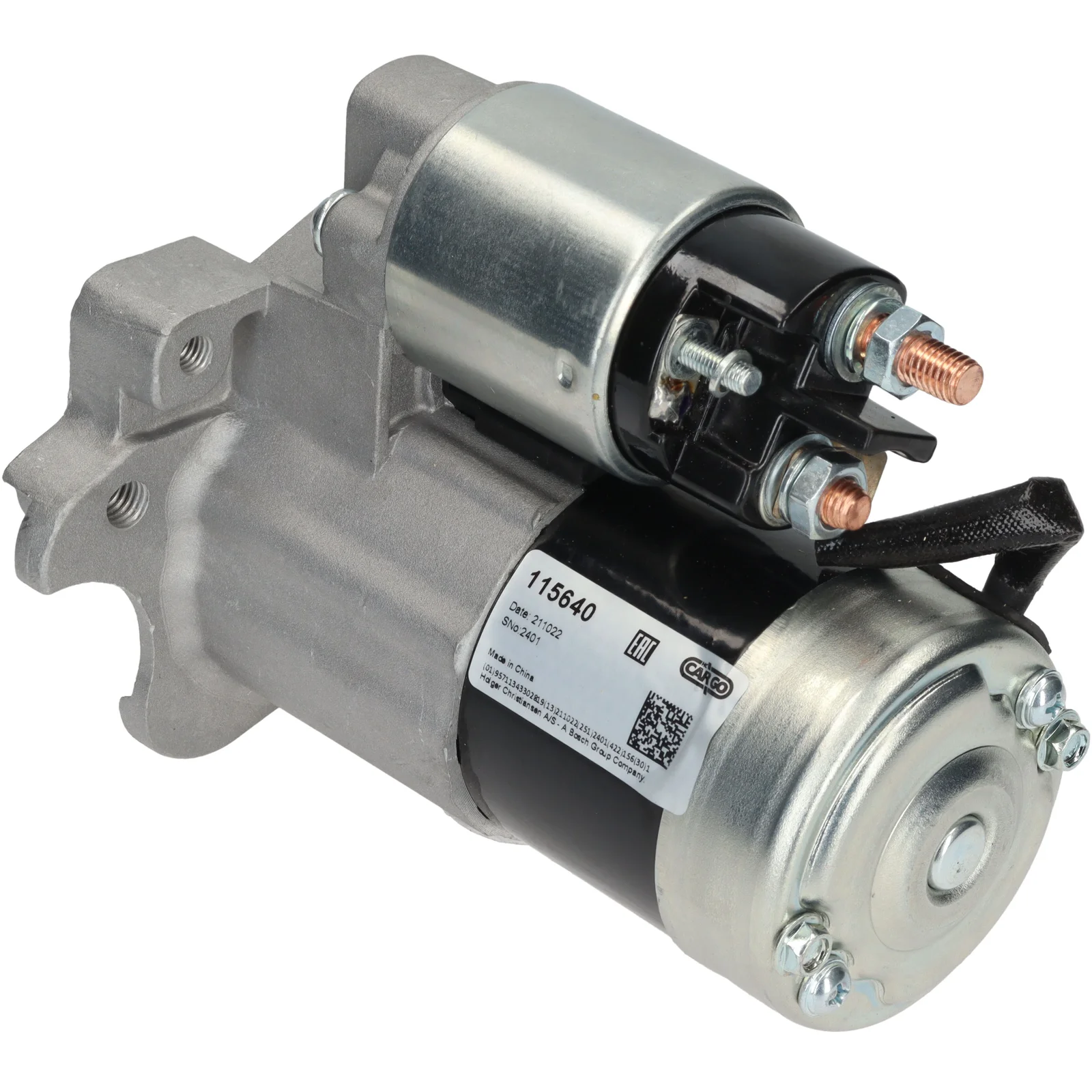

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115640

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, kW: 1.0, Antall/tenner: 12, Rotasjon: CW

Beskrivelse

Spennings: 12
kW: 1.0
Festebunningsflens: 63.00
Drevingsavstand: 0.00
Festebunningshull 3 mm: M10
Avstand/bak: 158.50
Avstand/frem: 35.50
Antall/tänder: 12
B+: M8
Posisjon/B+: 5
Posisjon/50: 50
Terminals 50: M5
Geværtype: GR
Avstand 2: 105.00
Avstand 3: 106.50
Avstand mm: 29.00
Rotasjon: medurs
Total lengde mm: 194.00
Antall/festebunner: 3 (3)

Filer

Spesifikasjon

B+ M8
No./teeth 12
Mount. flange 63.00
No./mount. holes 3 (3)
Position/50 50
Position/B+ 5
Dist. 2 105.00
Dist. 3 106.50
Rotation CW
Dist./back 158.50
Dist./front 35.50
Drive dist. 0.00
Gear type GR
kW 1.0
Terminal 50 M5
Voltage 12
Total length 194.00 mm
Dist. 29.00 mm
Mount. hole 3 M10 mm

  • OEM
    F032115640, M000T92981, M0T92981, 7711368264, 8200413215, 8200584847

  • Konkurrentreferens
    CST35248, DRS0727, DRS0727N, LRS02703, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230

  • NormaliseratArtNr
    cst35248, drs0727, drs0727n, f032115640, lrs02703, m000t92981, m0t92981, 254375, 438510, 458909, 11090230, 330055122, 570566123, 7711368264, 8200413215, 8200584847

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: KR0/1_ Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Spennings: 12
    kW: 1.0
    Festebunningsflens: 63.00
    Drevingsavstand: 0.00
    Festebunningshull 3 mm: M10
    Avstand/bak: 158.50
    Avstand/frem: 35.50
    Antall/tänder: 12
    B+: M8
    Posisjon/B+: 5
    Posisjon/50: 50
    Terminals 50: M5
    Geværtype: GR
    Avstand 2: 105.00
    Avstand 3: 106.50
    Avstand mm: 29.00
    Rotasjon: medurs
    Total lengde mm: 194.00
    Antall/festebunner: 3 (3)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 12
    Mount. flange 63.00
    No./mount. holes 3 (3)
    Position/50 50
    Position/B+ 5
    Dist. 2 105.00
    Dist. 3 106.50
    Rotation CW
    Dist./back 158.50
    Dist./front 35.50
    Drive dist. 0.00
    Gear type GR
    kW 1.0
    Terminal 50 M5
    Voltage 12
    Total length 194.00 mm
    Dist. 29.00 mm
    Mount. hole 3 M10 mm
  • Kjøretøymatching

    • OEM
      F032115640, M000T92981, M0T92981, 7711368264, 8200413215, 8200584847

    • Konkurrentreferens
      CST35248, DRS0727, DRS0727N, LRS02703, 25-4375, 330.055.122, 570.566.123, 438510, 458909, 11090230

    • NormaliseratArtNr
      cst35248, drs0727, drs0727n, f032115640, lrs02703, m000t92981, m0t92981, 254375, 438510, 458909, 11090230, 330055122, 570566123, 7711368264, 8200413215, 8200584847

    • Passar modeller
      Renault Model: Clio Model series: Clio Size of motor: 1.6 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-09-2005 To date: 01-12-2010 Fuel: Petrol Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.4 Brand of engine: K4J780 Type description: KR0/1_ Body: Estate From date: 01-02-2010 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M800 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M801 Type description: KR0/1_ Body: Estate From date: 01-02-2008 Fuel: Gasoline Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M804 Type description: BR0/1, CR0/1 Body: Hatchback From date: 01-06-2005 To date: 01-10-2007 Fuel: Gasoline Approved: Yes
      Renault Model: Clio Model series: Clio Type of engine: 16V Size of motor: 1.6 Brand of engine: K4M862 Type description: KR0/1_ Body: Estate From date: 01-11-2008 Fuel: Gasoline Approved: Yes Manufacture type: GRANDTOUR
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 770 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.4 Brand of engine: K4J 780 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M790 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M800 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Size of motor: 1.6 Brand of engine: K4M801 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M791 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M792 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
      Renault Model: Modus Model series: Modus Type of engine: i 16V Size of motor: 1.6 Brand of engine: K4M794 Body: Hatchback From date: 01-12-2004 Fuel: Gasoline Approved: Yes
