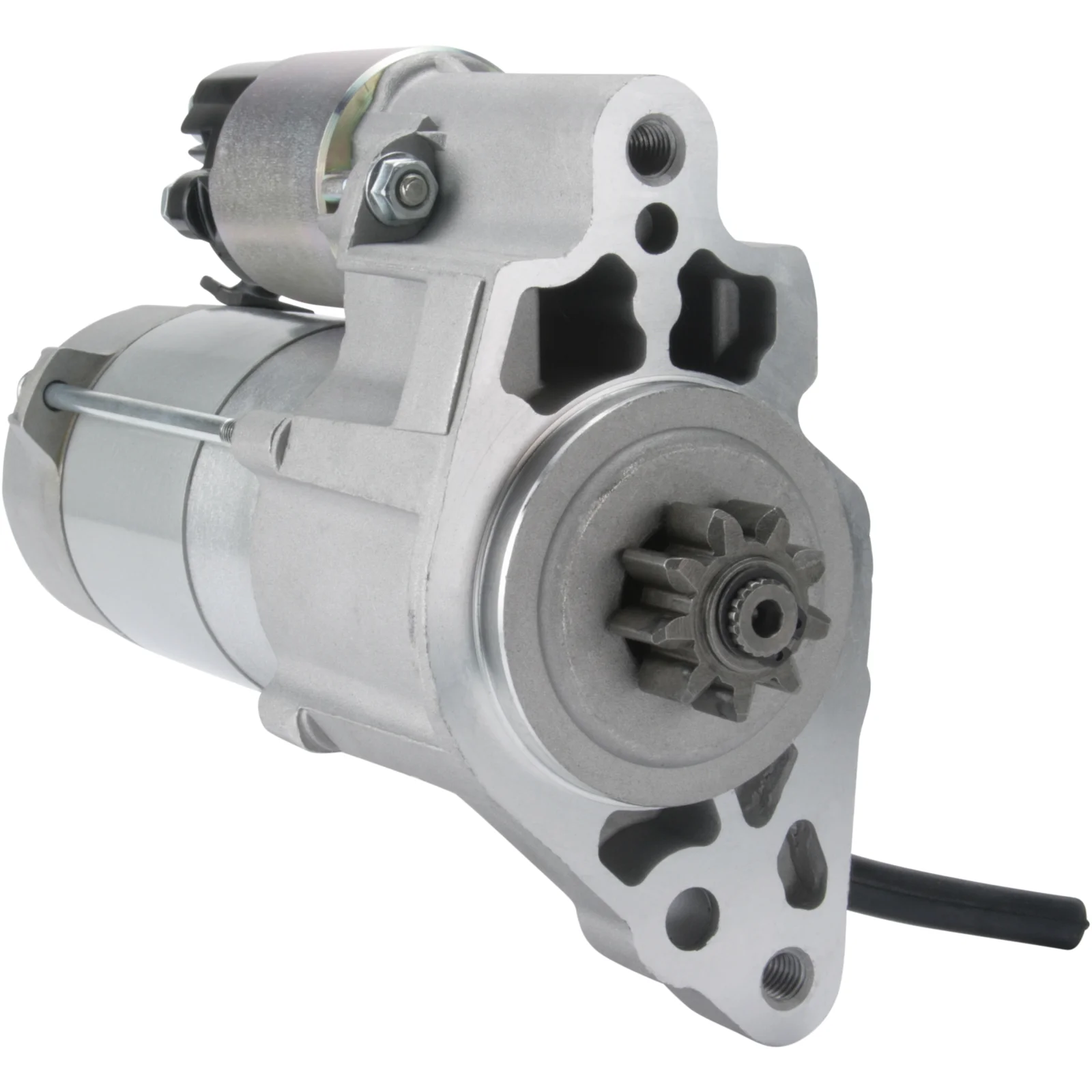

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115642

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Ant./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 2.0
Festebrått: 70.00
Drevavstand: 25.00
Festeboring 3 mm: 10.50
Avstand/bak: 211.00
Avstand/frem: 30.50
Nummer/tannhjul: 9
B+: M8
Posisjon/50: 20
Terminal 50: M6
Geværtype: GR
Avstand 2: 24.00
Avstand 3: 130.00
Avstand mm: 146.00
Rotasjon: CW
Total lengde mm: 242.00
Prod. info: BN
Nummer/festeboringer: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 70.00
No./mount. holes 3 (2)
Position/50 20
Prod. info BN
Dist. 2 24.00
Dist. 3 130.00
Rotation CW
Dist./back 211.00
Dist./front 30.50
Drive dist. 25.00
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 242.00 mm
Dist. 146.00 mm
Mount. hole 3 10.50 mm

  • OEM
    cs1468, F032115642, LR039482, LR087021, NAD500080, NAD500080E, NAD500330, 1986S00595, 428000-1940, 428000-1941, 428000-4880, 428000-4881

  • Konkurrentreferens
    CST40318, DRS0055, DSN944, F042200091, LRS02413, MSN8068, S6043, S6043(DENSO), 8EA011613-181, 25-4085, 25-5287, 339.020.092, 339.021.092, 450.520.092, 3178, 31131N, 101468, 106691, 220653, 220653A, 8080344, 11040829, 0986027080, 063280068010

  • NormaliseratArtNr
    cs1468, cst40318, drs0055, dsn944, f032115642, f042200091, lr039482, lr087021, lrs02413, msn8068, nad500080, nad500080e, nad500330, s6043, s6043denso, 8ea011613181, 1986s00595, 3178, 31131n, 101468, 106691, 220653, 220653a, 254085, 255287, 8080344, 11040829, 339020092, 339021092, 450520092, 0986027080, 4280001940, 4280001941, 4280004880, 4280004881, 063280068010

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Van From date: 01-01-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: TD 4x4 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: LR4 From date: 01-09-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Diesel Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Type of engine: TDVM Size of motor: 2.7 Brand of engine: 276DT Type description: LS From date: 01-02-2005 To date: 01-03-2013 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spenning: 12
    kW: 2.0
    Festebrått: 70.00
    Drevavstand: 25.00
    Festeboring 3 mm: 10.50
    Avstand/bak: 211.00
    Avstand/frem: 30.50
    Nummer/tannhjul: 9
    B+: M8
    Posisjon/50: 20
    Terminal 50: M6
    Geværtype: GR
    Avstand 2: 24.00
    Avstand 3: 130.00
    Avstand mm: 146.00
    Rotasjon: CW
    Total lengde mm: 242.00
    Prod. info: BN
    Nummer/festeboringer: 3 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 9
    Mount. flange 70.00
    No./mount. holes 3 (2)
    Position/50 20
    Prod. info BN
    Dist. 2 24.00
    Dist. 3 130.00
    Rotation CW
    Dist./back 211.00
    Dist./front 30.50
    Drive dist. 25.00
    Gear type GR
    kW 2.0
    Terminal 50 M6
    Voltage 12
    Total length 242.00 mm
    Dist. 146.00 mm
    Mount. hole 3 10.50 mm
  • Kjøretøymatching

    • OEM
      cs1468, F032115642, LR039482, LR087021, NAD500080, NAD500080E, NAD500330, 1986S00595, 428000-1940, 428000-1941, 428000-4880, 428000-4881

    • Konkurrentreferens
      CST40318, DRS0055, DSN944, F042200091, LRS02413, MSN8068, S6043, S6043(DENSO), 8EA011613-181, 25-4085, 25-5287, 339.020.092, 339.021.092, 450.520.092, 3178, 31131N, 101468, 106691, 220653, 220653A, 8080344, 11040829, 0986027080, 063280068010

    • NormaliseratArtNr
      cs1468, cst40318, drs0055, dsn944, f032115642, f042200091, lr039482, lr087021, lrs02413, msn8068, nad500080, nad500080e, nad500330, s6043, s6043denso, 8ea011613181, 1986s00595, 3178, 31131n, 101468, 106691, 220653, 220653a, 254085, 255287, 8080344, 11040829, 339020092, 339021092, 450520092, 0986027080, 4280001940, 4280001941, 4280004880, 4280004881, 063280068010

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Model type: 4x4 Type of engine: TDI Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Van From date: 01-01-2007 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: TD 4x4 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: L319 Body: Closed Off-Road Vehicle From date: 01-09-2004 To date: 01-08-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Model type: TDV6 Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: LR4 From date: 01-09-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Discovery Model series: Discovery Type of engine: TD Size of motor: 2.7 Brand of engine: 276DT Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Diesel Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Type of engine: TDVM Size of motor: 2.7 Brand of engine: 276DT Type description: LS From date: 01-02-2005 To date: 01-03-2013 Fuel: Diesel Approved: Yes
