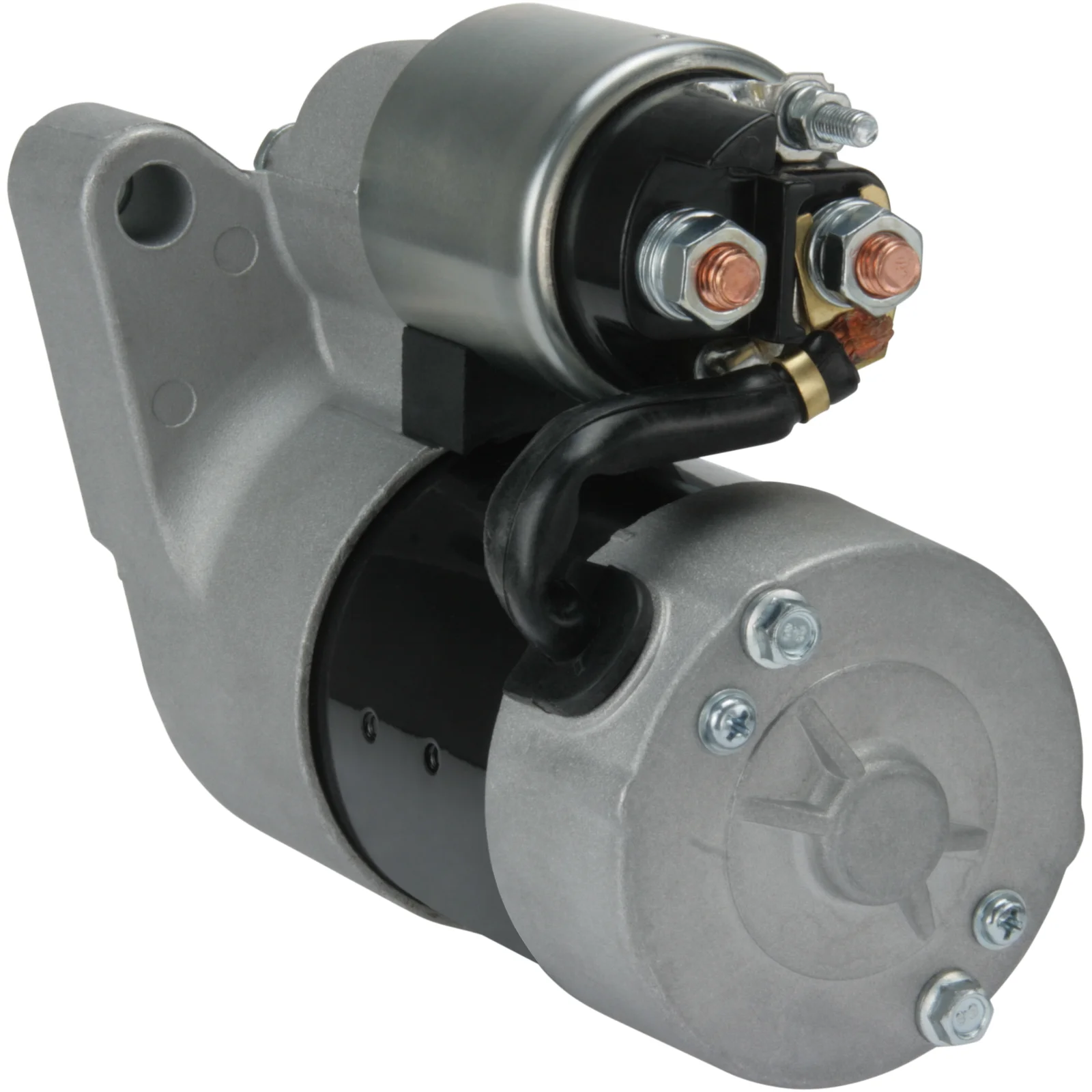

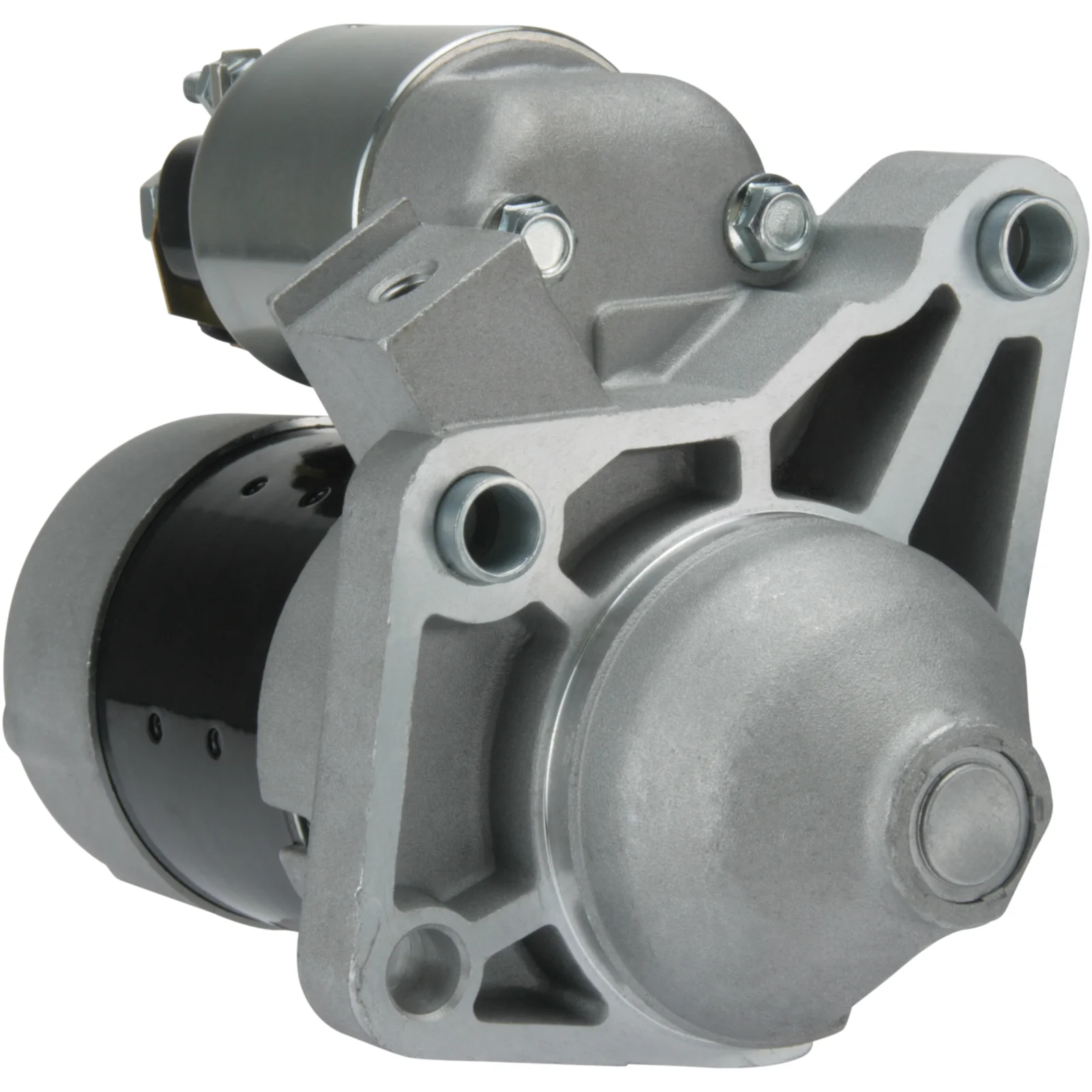

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115686

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Kjel: 1.4, S/n/t: 11, Rotasjon: CW

Beskrivelse

Spenningskategori: 12
kW: 1,4
Montering flange: 68,00
Drevavstand: 9,00
Monteringshull 3 mm: 10,50
Monteringshull 2 mm: 10,50
Monteringshull 1 mm: 10,50
Avstand/bak: 150,00
Avstand/frem: 43,00
Nummer/tænder: 11
B+: M8
Posisjon/50: 7
Terminal 50: M5
G вже typu: GR
Avstand 2: 54,50
Avstand 3: 89,00
Avstand mm: 125,50
Rotasjon: Kloks retning
Total lengde mm: 193,00
Prod. info: BN
Nummer/monteringshull: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 68.00
No./mount. holes 3 (0)
Position/50 7
Prod. info BN
Dist. 2 54.50
Dist. 3 89.00
Rotation CW
Dist./back 150.00
Dist./front 43.00
Drive dist. 9.00
Gear type GR
kW 1.4
Terminal 50 M5
Voltage 12
Total length 193.00 mm
Dist. 125.50 mm
Mount. hole 3 10.50 mm
Mount. hole 2 10.50 mm
Mount. hole 1 10.50 mm

  • OEM
    F032115686, S114-877, S114-877A, s114-877b, S114-877C, S114-877D, 8200126298, 8200730813

  • Konkurrentreferens
    CST20159, DRS0739, LRS02617, S2025, 25-4290, 330.064.112, 570.559.113, 458786, 11040823

  • NormaliseratArtNr
    cst20159, drs0739, f032115686, lrs02617, s114877, s114877a, s114877b, s114877c, s114877d, s2025, 254290, 458786, 11040823, 330064112, 570559113, 8200126298, 8200730813

  • Passar modeller
    Renault Model: Espace Model series: Espace Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y711 Type description: JKo/1_ Body: MPV From date: 01-11-2002 Fuel: Gasoline Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y715 Type description: JKo/1_ Body: MPV From date: 01-11-2002 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y713 Type description: BT0/1 Body: Hatchback From date: 01-04-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y713 Type description: KT0/1 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sport Tour
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y701 Type description: BJ0V,U Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y711 Type description: BJ0V,U Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spenningskategori: 12
    kW: 1,4
    Montering flange: 68,00
    Drevavstand: 9,00
    Monteringshull 3 mm: 10,50
    Monteringshull 2 mm: 10,50
    Monteringshull 1 mm: 10,50
    Avstand/bak: 150,00
    Avstand/frem: 43,00
    Nummer/tænder: 11
    B+: M8
    Posisjon/50: 7
    Terminal 50: M5
    G вже typu: GR
    Avstand 2: 54,50
    Avstand 3: 89,00
    Avstand mm: 125,50
    Rotasjon: Kloks retning
    Total lengde mm: 193,00
    Prod. info: BN
    Nummer/monteringshull: 3 (0)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 11
    Mount. flange 68.00
    No./mount. holes 3 (0)
    Position/50 7
    Prod. info BN
    Dist. 2 54.50
    Dist. 3 89.00
    Rotation CW
    Dist./back 150.00
    Dist./front 43.00
    Drive dist. 9.00
    Gear type GR
    kW 1.4
    Terminal 50 M5
    Voltage 12
    Total length 193.00 mm
    Dist. 125.50 mm
    Mount. hole 3 10.50 mm
    Mount. hole 2 10.50 mm
    Mount. hole 1 10.50 mm
  • Kjøretøymatching

    • OEM
      F032115686, S114-877, S114-877A, s114-877b, S114-877C, S114-877D, 8200126298, 8200730813

    • Konkurrentreferens
      CST20159, DRS0739, LRS02617, S2025, 25-4290, 330.064.112, 570.559.113, 458786, 11040823

    • NormaliseratArtNr
      cst20159, drs0739, f032115686, lrs02617, s114877, s114877a, s114877b, s114877c, s114877d, s2025, 254290, 458786, 11040823, 330064112, 570559113, 8200126298, 8200730813

    • Passar modeller
      Renault Model: Espace Model series: Espace Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y711 Type description: JKo/1_ Body: MPV From date: 01-11-2002 Fuel: Gasoline Approved: Yes
      Renault Model: Espace Model series: Espace Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y715 Type description: JKo/1_ Body: MPV From date: 01-11-2002 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y713 Type description: BT0/1 Body: Hatchback From date: 01-04-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Renault Model: Laguna Model series: Laguna Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y713 Type description: KT0/1 Body: Estate From date: 01-04-2008 To date: 01-12-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sport Tour
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y701 Type description: BJ0V,U Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
      Renault Model: Vel Satis Model series: Vel Satis Type of engine: V6 Size of motor: 3.5 Brand of engine: V4Y711 Type description: BJ0V,U Body: MPV From date: 01-06-2002 Fuel: Gasoline Approved: Yes
      1 / 2
