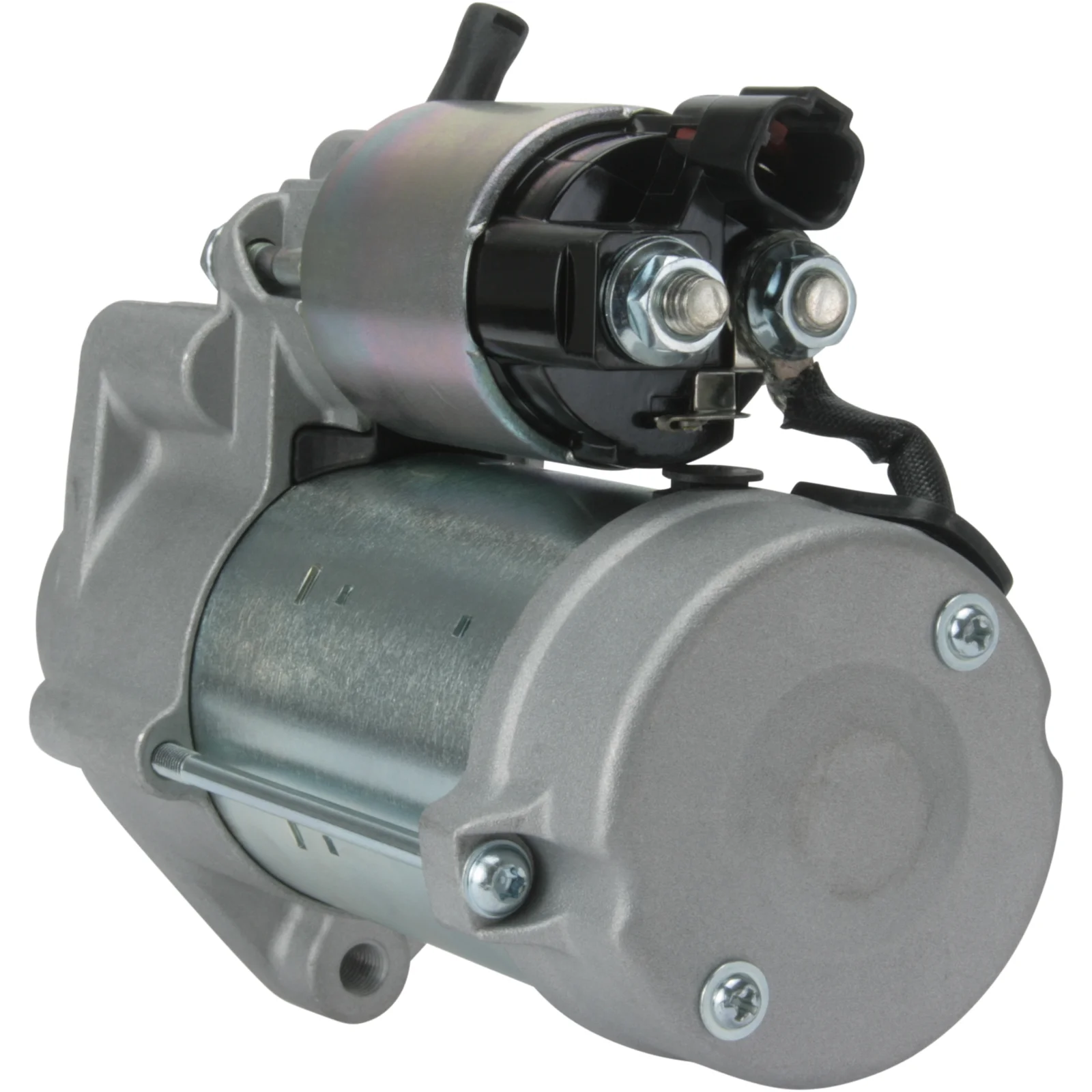

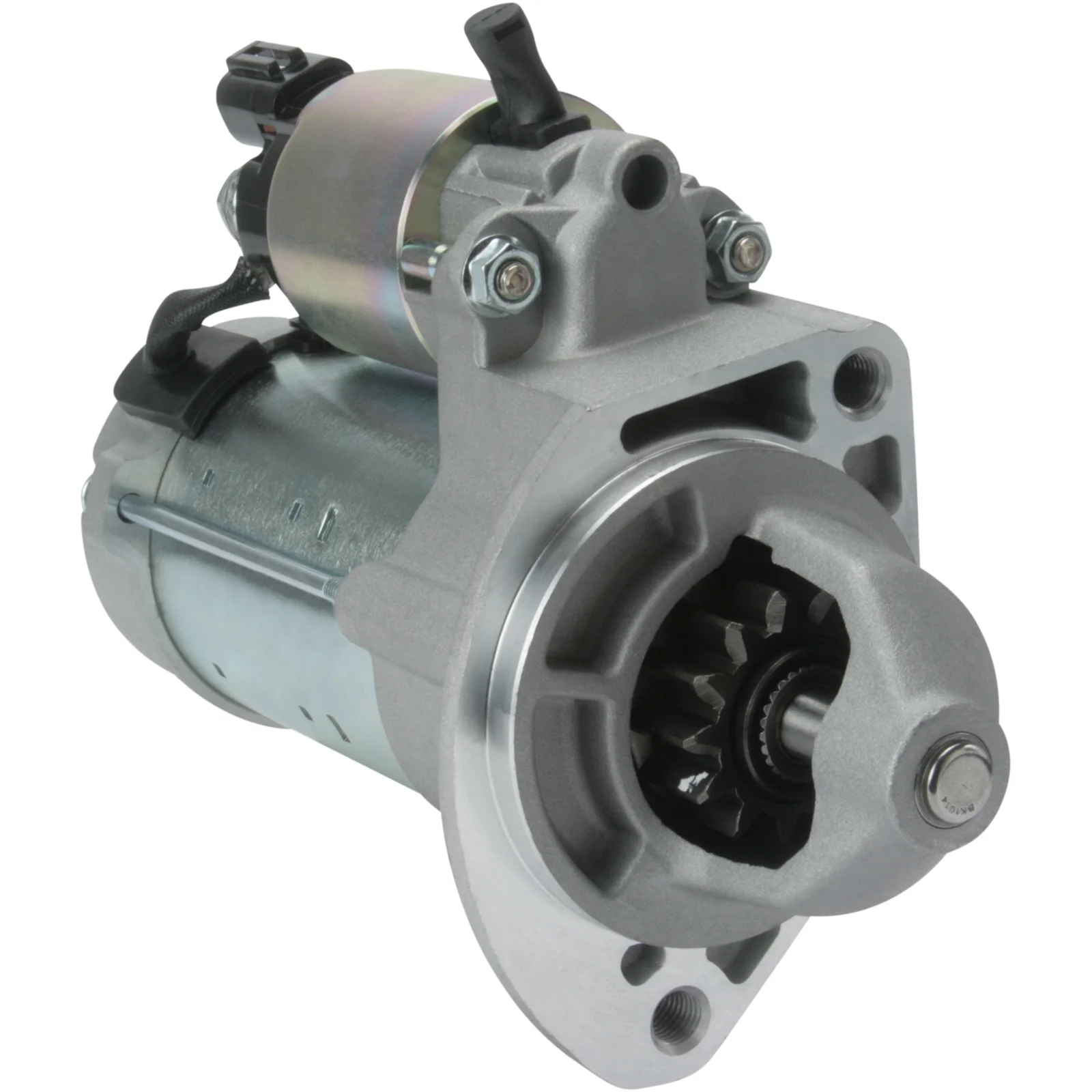

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115729

HC-Cargo Startmotor

Teknisk info:

Spenningsgiver: 12, kW: 1,6, Antall/tann: 13, Roteringsretning: CW

Beskrivelse

HC-Cargo Startmotor 12V - 1.6kW, 13k FOR STOPP-START (ISG)

Spenningsdelning: 12
kW: 1,6
Festebredd: 77,00
Drevavstand: 16,00
Avstand/tilbake: 164,00
Avstand/frem: 54,00
Antall/tenner: 13
B+: M8
Posisjon/50: 5
Terminal 50: Kontakt
Geværtype: GR
Avstand mm: 102,00
Rotasjon: CW
Total lengde mm: 216,00
Startype: Start/Stopp
Produsentinfo: BN
Antall/festeborrehull: 2 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 13
Mount. flange 77.00
No./mount. holes 2 (2)
Position/50 5
Prod. info BN
Rotation CW
Dist./back 164.00
Dist./front 54.00
Drive dist. 16.00
Gear type GR
Starter type Start/Stop
kW 1.6
Terminal 50 Plug
Voltage 12
Total length 216.00 mm
Dist. 102.00 mm

  • OEM
    CS1534, CST40412, DRS0648, F032115729, lrs02604, LRS02604, PZA3W, S6219S, 8EA011611-501, 25-4277, 250.511.132, 324.073.132, 30270, 30270N, 31200PZA004, 31200PZA014, 31200PZA305, 31200PZA505, 36100-2A500, 115729, 220936, 220936A, 255132, 428000-6760, 458861, 11040878, 0986028070

  • Konkurrentreferens
    CST40412, DRS0648, lrs02604, S6219S, 8EA011611-501, 25-4277, 250.511.132, 324.073.132, 30270, 30270N, 220936, 220936A, 255132, 458861, 11040878, 0986028070

  • Bilmärken
    HONDA, HYUNDAI, KIA

  • NormaliseratArtNr
    cs1534, cst40412, drs0648, f032115729, lrs02604, pza3w, s6219s, 8ea011611501, 30270, 30270n, 31200pza004, 31200pza014, 31200pza305, 31200pza505, 115729, 220936, 220936a, 254277, 255132, 361002a500, 458861, 11040878, 250511132, 324073132, 0986028070, 4280006760

  • Passar modeller
    HONDA CIVIC VII Sedan (ES, ET) 1.3 IMA (ED9, ES9) Engine volume: 1.3 Engine type: LDA1 Year: 10.03-09.05
    HYUNDAI i20 I (PB, PBT) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 03.12-12.15
    HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 08.08-12.15
    HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.08-12.12
    HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.09-12.12
    HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.08-12.12
    HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-11.11
    HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
    HYUNDAI i30 (FD) 1.6 CRDi VGT Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
    HYUNDAI i30 (GD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 12.11-12.16
    HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 11.11-12.16
    HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 12.11-12.15
    HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 12.11-12.16
    HYUNDAI i30 Coupé 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 05.13-05.17
    HYUNDAI i30 Coupé 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 05.13-
    HYUNDAI i30 Hatchback Van (GDE) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 05.15-
    HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-06.12
    HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 02.08-06.12
    HYUNDAI i30 Kombi (GD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 06.12-05.17
    HYUNDAI i30 Kombi (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.12-
    HYUNDAI i30 Kombi (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.12-12.15
    HYUNDAI i30 Kombi Van (GDE, GD) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 05.15-
    HYUNDAI ix20 (JC) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 06.11-07.19
    HYUNDAI ix20 (JC) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 11.10-07.19
    HYUNDAI ix20 (JC) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 06.11-07.19
    KIA CEE'D (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 05.12-07.18
    KIA CEE'D (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 05.12-07.18
    KIA CEE'D (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 05.12-07.18
    KIA CEE'D Combi Van (JD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-07.18
    KIA CEE'D Combi Van (JD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 07.12-07.18
    KIA CEE'D Halvkombi (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
    KIA CEE'D Halvkombi (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-12.12
    KIA CEE'D Halvkombi (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
    KIA CEE'D Sportswagon (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 09.12-07.18
    KIA CEE'D Sportswagon (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.18
    KIA CEE'D Sportswagon (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 09.12-07.15
    KIA CEE'D SW (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
    KIA CEE'D SW (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 07.10-12.12
    KIA CEE'D SW (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
    KIA PRO CEE'D (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
    KIA PRO CEE'D (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-09.12
    KIA PRO CEE'D (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
    KIA PRO CEE'D (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 03.13-07.18
    KIA PRO CEE'D (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.18
    KIA PRO CEE'D (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.15
    KIA PRO CEE'D Hatchback Van (JD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 05.15-07.18
    KIA PRO CEE'D Hatchback Van (JD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.12-07.18
    KIA RIO III (UB) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 09.11-12.17
    KIA RIO III (UB) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.11-12.17
    KIA RIO III Hatchback Van (UB) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 09.11-
    KIA RIO III Hatchback Van (UB) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
    KIA SOUL I (AM) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
    KIA SOUL I (AM) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
    KIA SOUL II (PS) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.14-12.18
    KIA SOUL II (PS) 1.6 CRDi 136 Engine volume: 1.6 Engine type: D4FB Year: 04.15-12.18
    KIA VENGA (YN) 1.4 CRDi 75 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
    KIA VENGA (YN) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
    KIA VENGA (YN) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
    KIA VENGA (YN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
    KIA VENGA Hatchback Van (YN) CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
    1 / 12
  • Beskrivelse
    HC-Cargo Startmotor 12V - 1.6kW, 13k FOR STOPP-START (ISG)

    Spenningsdelning: 12
    kW: 1,6
    Festebredd: 77,00
    Drevavstand: 16,00
    Avstand/tilbake: 164,00
    Avstand/frem: 54,00
    Antall/tenner: 13
    B+: M8
    Posisjon/50: 5
    Terminal 50: Kontakt
    Geværtype: GR
    Avstand mm: 102,00
    Rotasjon: CW
    Total lengde mm: 216,00
    Startype: Start/Stopp
    Produsentinfo: BN
    Antall/festeborrehull: 2 (2)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 13
    Mount. flange 77.00
    No./mount. holes 2 (2)
    Position/50 5
    Prod. info BN
    Rotation CW
    Dist./back 164.00
    Dist./front 54.00
    Drive dist. 16.00
    Gear type GR
    Starter type Start/Stop
    kW 1.6
    Terminal 50 Plug
    Voltage 12
    Total length 216.00 mm
    Dist. 102.00 mm
  • Kjøretøymatching

    • OEM
      CS1534, CST40412, DRS0648, F032115729, lrs02604, LRS02604, PZA3W, S6219S, 8EA011611-501, 25-4277, 250.511.132, 324.073.132, 30270, 30270N, 31200PZA004, 31200PZA014, 31200PZA305, 31200PZA505, 36100-2A500, 115729, 220936, 220936A, 255132, 428000-6760, 458861, 11040878, 0986028070

    • Konkurrentreferens
      CST40412, DRS0648, lrs02604, S6219S, 8EA011611-501, 25-4277, 250.511.132, 324.073.132, 30270, 30270N, 220936, 220936A, 255132, 458861, 11040878, 0986028070

    • Bilmärken
      HONDA, HYUNDAI, KIA

    • NormaliseratArtNr
      cs1534, cst40412, drs0648, f032115729, lrs02604, pza3w, s6219s, 8ea011611501, 30270, 30270n, 31200pza004, 31200pza014, 31200pza305, 31200pza505, 115729, 220936, 220936a, 254277, 255132, 361002a500, 458861, 11040878, 250511132, 324073132, 0986028070, 4280006760

    • Passar modeller
      HONDA CIVIC VII Sedan (ES, ET) 1.3 IMA (ED9, ES9) Engine volume: 1.3 Engine type: LDA1 Year: 10.03-09.05
      HYUNDAI i20 I (PB, PBT) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 03.12-12.15
      HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 08.08-12.15
      HYUNDAI i20 I (PB, PBT) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.08-12.12
      HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.09-12.12
      HYUNDAI i20 I (PB, PBT) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 09.08-12.12
      HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-11.11
      HYUNDAI i30 (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
      HYUNDAI i30 (FD) 1.6 CRDi VGT Engine volume: 1.6 Engine type: D4FB Year: 10.07-11.11
      HYUNDAI i30 (GD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 12.11-12.16
      HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 11.11-12.16
      HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 12.11-12.15
      HYUNDAI i30 (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 12.11-12.16
      HYUNDAI i30 Coupé 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 05.13-05.17
      HYUNDAI i30 Coupé 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 05.13-
      HYUNDAI i30 Hatchback Van (GDE) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 05.15-
      HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 01.10-06.12
      HYUNDAI i30 Kombi (FD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 02.08-06.12
      HYUNDAI i30 Kombi (GD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 06.12-05.17
      HYUNDAI i30 Kombi (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.12-
      HYUNDAI i30 Kombi (GD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 06.12-12.15
      HYUNDAI i30 Kombi Van (GDE, GD) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 05.15-
      HYUNDAI ix20 (JC) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 06.11-07.19
      HYUNDAI ix20 (JC) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 11.10-07.19
      HYUNDAI ix20 (JC) 1.6 CRDI Engine volume: 1.6 Engine type: D4FB Year: 06.11-07.19
      KIA CEE'D (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 05.12-07.18
      KIA CEE'D (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 05.12-07.18
      KIA CEE'D (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 05.12-07.18
      KIA CEE'D Combi Van (JD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-07.18
      KIA CEE'D Combi Van (JD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 07.12-07.18
      KIA CEE'D Halvkombi (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
      KIA CEE'D Halvkombi (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-12.12
      KIA CEE'D Halvkombi (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 12.06-12.12
      KIA CEE'D Sportswagon (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 09.12-07.18
      KIA CEE'D Sportswagon (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.18
      KIA CEE'D Sportswagon (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 09.12-07.15
      KIA CEE'D SW (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
      KIA CEE'D SW (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 07.10-12.12
      KIA CEE'D SW (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 09.07-12.12
      KIA PRO CEE'D (ED) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
      KIA PRO CEE'D (ED) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 10.10-09.12
      KIA PRO CEE'D (ED) 1.6 CRDi 90 Engine volume: 1.6 Engine type: D4FB Year: 02.08-09.12
      KIA PRO CEE'D (JD) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 03.13-07.18
      KIA PRO CEE'D (JD) 1.6 CRDi 110 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.18
      KIA PRO CEE'D (JD) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 03.13-07.15
      KIA PRO CEE'D Hatchback Van (JD) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 05.15-07.18
      KIA PRO CEE'D Hatchback Van (JD) 1.6 CRDi Engine volume: 1.6 Engine type: D4FB Year: 10.12-07.18
      KIA RIO III (UB) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 09.11-12.17
      KIA RIO III (UB) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 09.11-12.17
      KIA RIO III Hatchback Van (UB) 1.1 CRDi Engine volume: 1.1 Engine type: D3FA Year: 09.11-
      KIA RIO III Hatchback Van (UB) 1.4 CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
      KIA SOUL I (AM) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
      KIA SOUL I (AM) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.09-12.14
      KIA SOUL II (PS) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.14-12.18
      KIA SOUL II (PS) 1.6 CRDi 136 Engine volume: 1.6 Engine type: D4FB Year: 04.15-12.18
      KIA VENGA (YN) 1.4 CRDi 75 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
      KIA VENGA (YN) 1.4 CRDi 90 Engine volume: 1.4 Engine type: D4FC Year: 02.10-03.19
      KIA VENGA (YN) 1.6 CRDi 115 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
      KIA VENGA (YN) 1.6 CRDi 128 Engine volume: 1.6 Engine type: D4FB Year: 02.10-03.19
      KIA VENGA Hatchback Van (YN) CRDi Engine volume: 1.4 Engine type: D4FC Year: 04.15-
      1 / 12

Vi bruker informasjonskapsler for å gi deg den beste opplevelsen på nettstedet vårt. Du godtar bruken av informasjonskapsler ved å trykke OK og fortsette å bla gjennom nettstedet.
