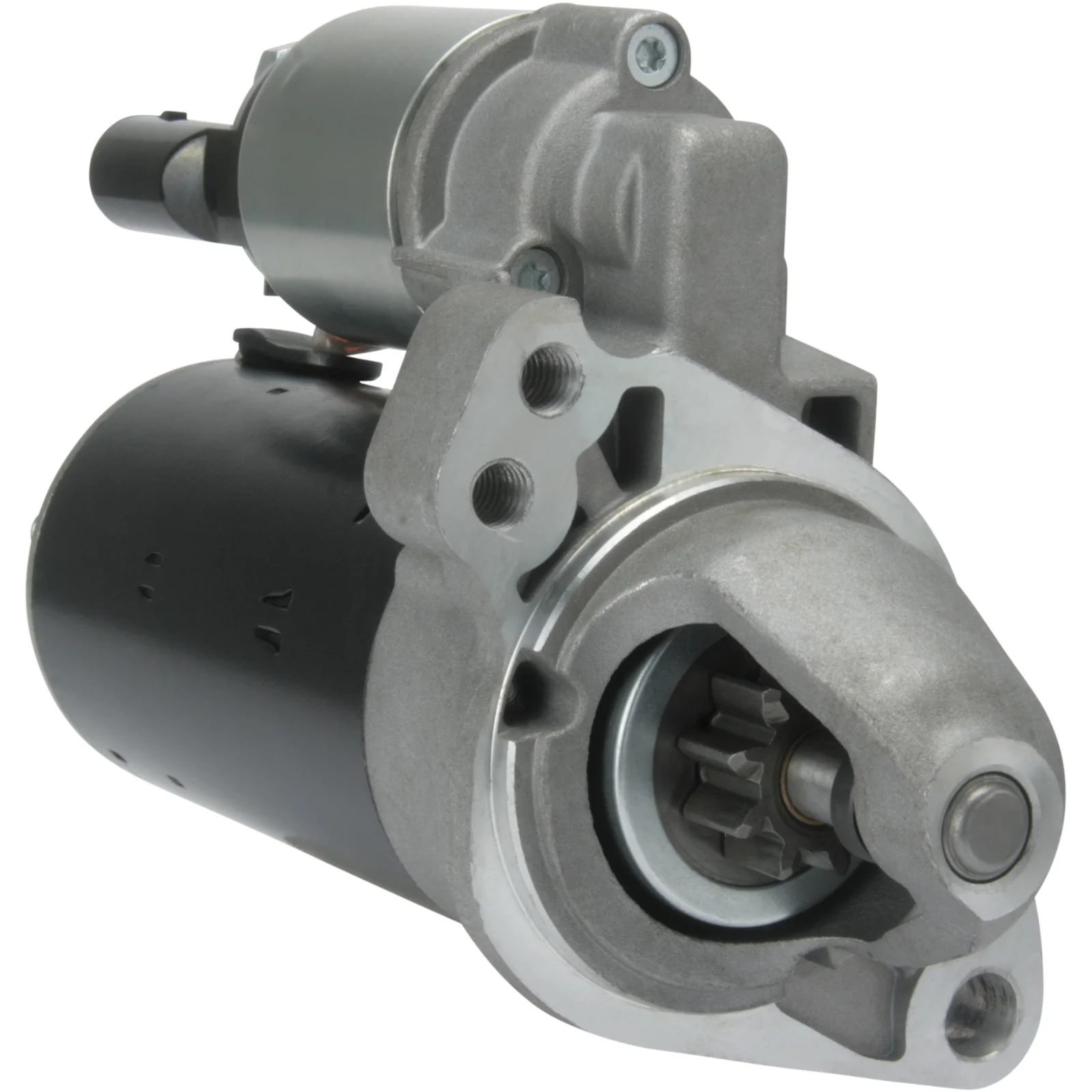

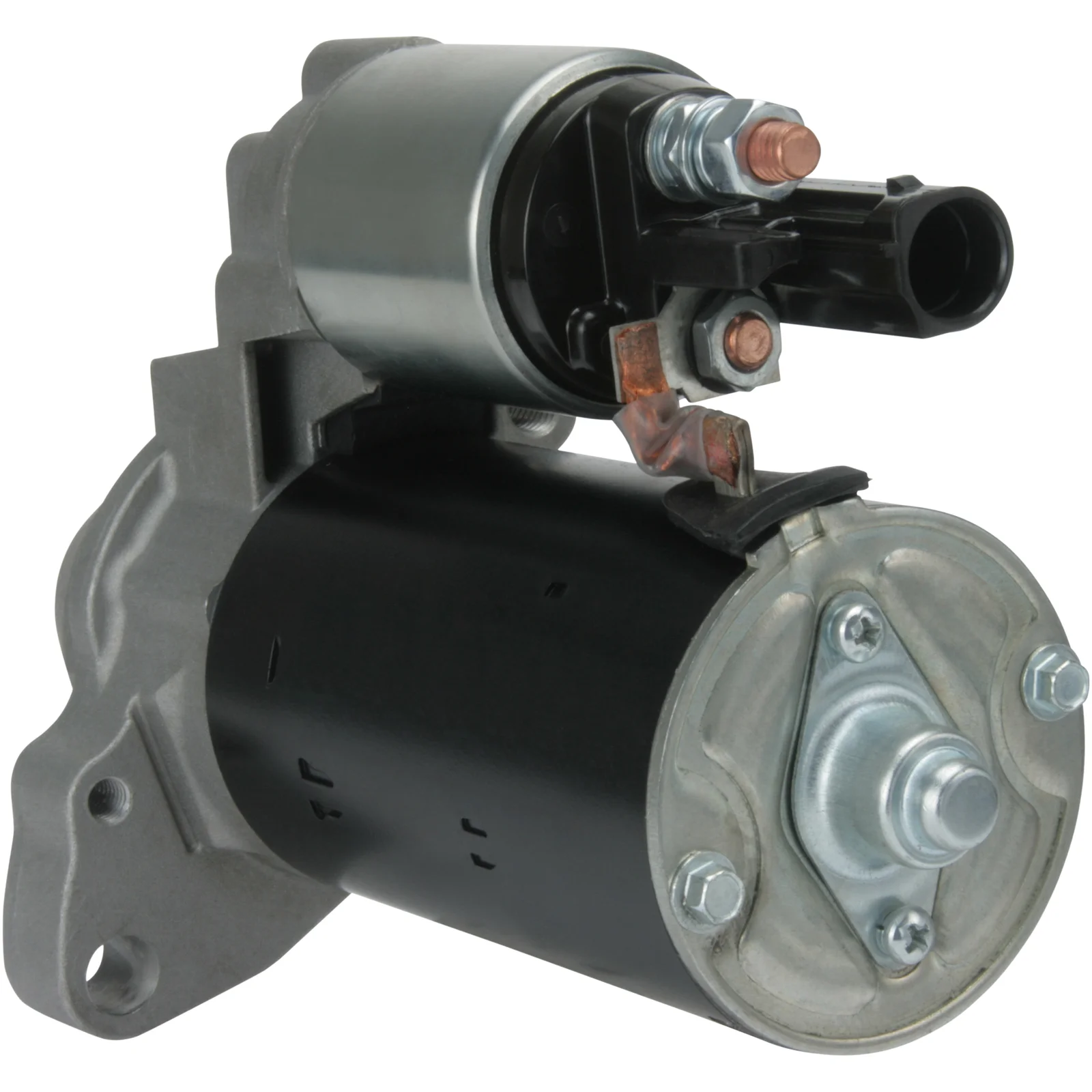

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032115996

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 1.4, No./tenner: 9, Rotasjon: CW

Beskrivelse

Spenning: 12
kW: 1,4
Feste flens: 74,00
Drive avstand: 24,00
Feste hull 4 mm: M10
Feste hull 3 mm: M10
Feste hull 2 mm: M10
Feste hull 1 mm: 11,00
Avstand/bak: 155,00
Avstand/front: 59,00
Antall/tenner: 9
B+: M8
Posisjon/50: 17
Terminal 50: Støpsel
Girtype: GR
Avstand 2: 16,50
Avstand 3: 121,00
Avstand mm: 114,50
Rotasjon: med urviseren
Total lengde mm: 226,00
Produsent info: BN
Antall/feste hull: 3 (2)

Filer

Spesifikasjon

B+ M8
No./teeth 9
Mount. flange 74.00
No./mount. holes 3 (2)
Position/50 17
Prod. info BN
Dist. 2 16.50
Dist. 3 121.00
Rotation CW
Dist./back 155.00
Dist./front 59.00
Drive dist. 24.00
Gear type GR
kW 1.4
Terminal 50 Plug
Voltage 12
Total length 226.00 mm
Dist. 114.50 mm
Mount. hole 4 M10 mm
Mount. hole 3 M10 mm
Mount. hole 2 M10 mm
Mount. hole 1 11.00 mm

  • OEM
    F00E100577, F032115996, 07c911023g, 07C911023H, 07C911023HX, 1986S00698, 0001108237, 0001108238

  • Konkurrentreferens
    CST10495, LRS02461, S0545(BOSCH), S0545S, 25-4133, 200.529.092, 19004N, 19004R, 11090271

  • NormaliseratArtNr
    cst10495, f00e100577, f032115996, lrs02461, s0545bosch, s0545s, 07c911023g, 07c911023h, 07c911023hx, 1986s00698, 19004n, 19004r, 254133, 0001108237, 0001108238, 11090271, 200529092

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F2 From date: 01-03-2006 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 5.2 Brand of engine: BXA Type description: 4F5 Body: Estate From date: 01-03-2006 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: RS6 Size of motor: 5.0 Brand of engine: BUH Type description: 4F2 From date: 01-09-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: RS6 Model type: Quattro Size of motor: 5.0 Brand of engine: BUH Type description: 4F5 Body: Estate From date: 01-04-2008 To date: 01-08-2010 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A8 Model series: A8 Model type: Quattro Size of motor: 5.2 Brand of engine: BSM Type description: 4E_ From date: 01-06-2006 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BHT Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BSB Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: A8 Model series: A8 Model type: Quattro Type of engine: W12 Size of motor: 6.0 Brand of engine: BTE Type description: E4_ From date: 01-12-2003 To date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: FSI Size of motor: 4.2 Brand of engine: BAR Type description: 4LB Body: Box Body / Estate From date: 01-08-2006 To date: 01-05-2010 Fuel: Petrol Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: FSi Size of motor: 4.2 Brand of engine: BAR Body: SUV From date: 01-03-2006 To date: 01-05-2010 Fuel: Gasoline Approved: Yes
