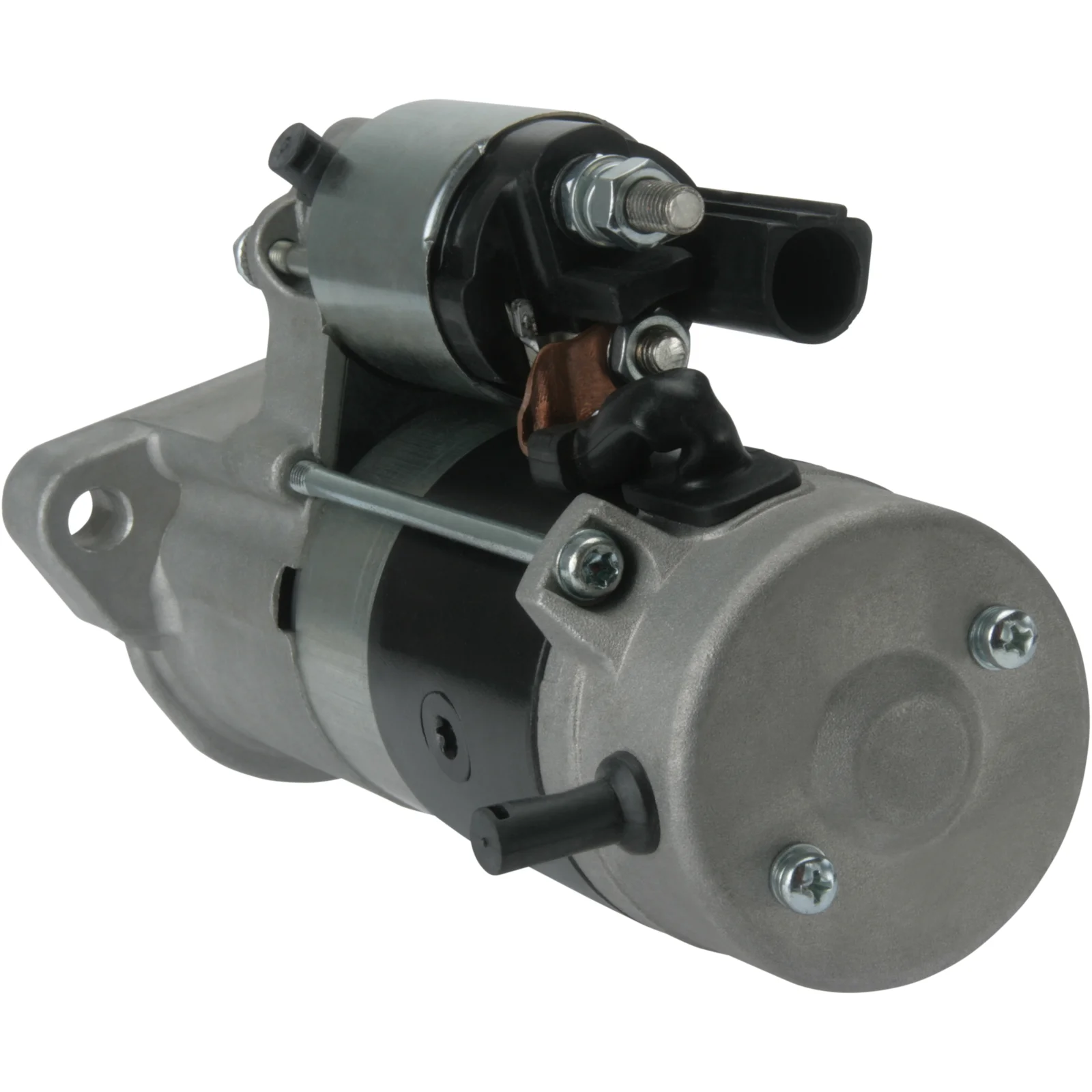

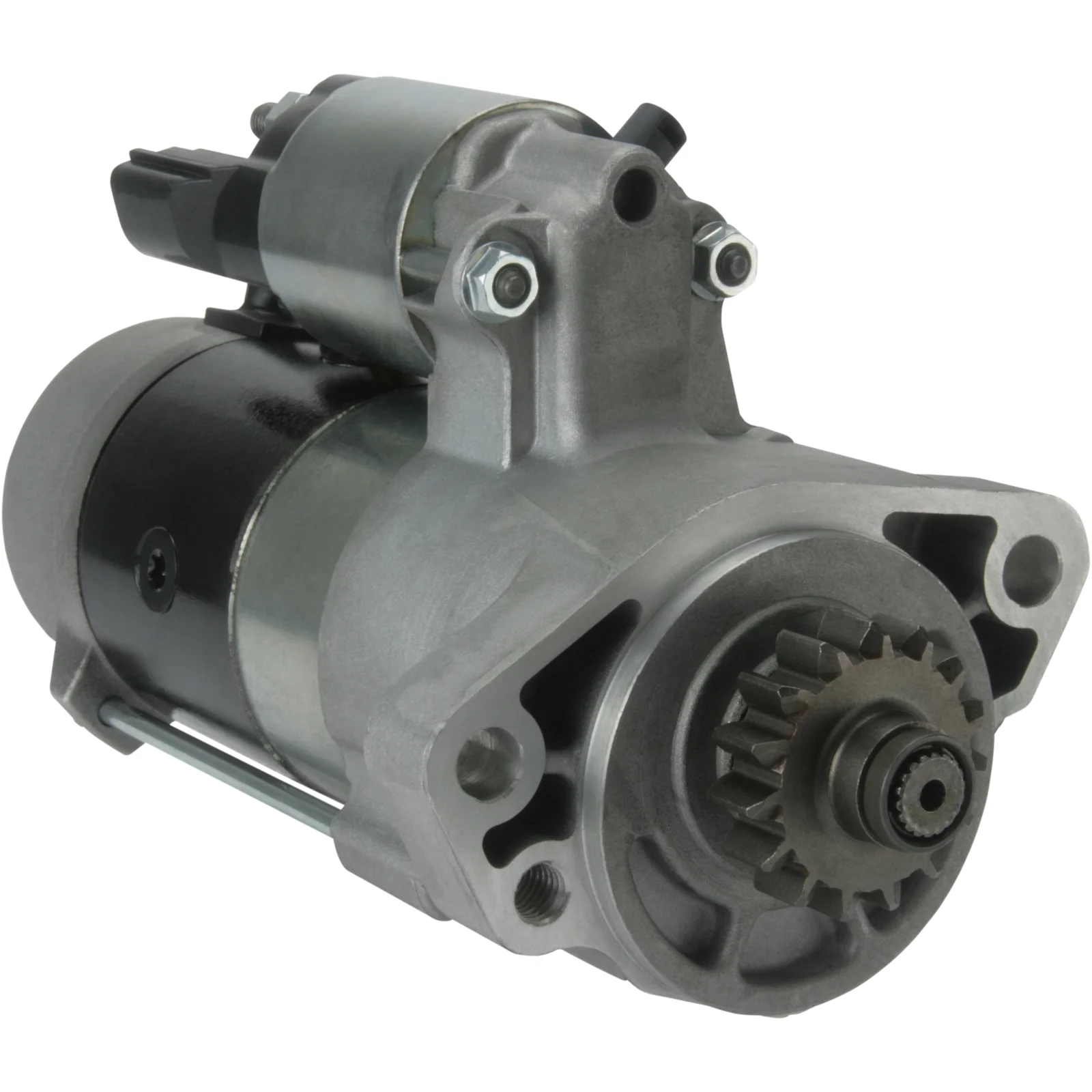

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116000

HC-Cargo Startmotor

Teknisk info:

Spenning: 12, kW: 2,0, Antall/tenner: 15, Rotasjon: medurs

Beskrivelse

HC-Cargo Startmotor 12V - 2.0kW, 15k

Spenning: 12
kW: 2.0
Montering flens: 76,20
Drivingsavstand: 26,00
Monteringshull 3 mm: 11,00
Monteringshull 2 mm: M10
Monteringshull 1 mm: 11,50
Avstand/bak: 211,50
Avstand/frem: 29,00
Antall/tannhjul: 15
B+: M8
Posisjon/50: 17
Terminal 50: Plugg
Gaffeltype: GR
Avstand 2: 23,50
Avstand 3: 104,00
Avstand mm: 101,00
Rotasjon: medurs
Total lengde mm: 247,00
Startype: Start/Stopp
Prod. info: BN
Antall/monteringshull: 3 (1)

Filer

Spesifikasjon

B+ M8
No./teeth 15
Mount. flange 76.20
No./mount. holes 3 (1)
Position/50 17
Prod. info BN
Dist. 2 23.50
Dist. 3 104.00
Rotation CW
Dist./back 211.50
Dist./front 29.00
Drive dist. 26.00
Gear type GR
Starter type Start/Stop
kW 2.0
Terminal 50 Plug
Voltage 12
Total length 247.00 mm
Dist. 101.00 mm
Mount. hole 3 11.00 mm
Mount. hole 2 M10 mm
Mount. hole 1 11.50 mm

  • OEM
    F032116000, 059 911 024K, 958 60410900, 1986S00978, 116000, 428000-7220, 428000-7221, 428000-7222, 428000-7223, 428000-7224, 428080-7224, 059911024k, 059911024KX, 95860410900

  • Konkurrentreferens
    CST40307, DRS0784, DSN965, S6156, S6156(DENSO), 25-4253, 300.914.153, 311.277.152, 19989N, 255121, 11090305, 42000005

  • Bilmärken
    Audi, Porsche, VW

  • NormaliseratArtNr
    cst40307, drs0784, dsn965, f032116000, s6156, s6156denso, 1986s00978, 19989n, 116000, 254253, 255121, 11090305, 42000005, 059911024k, 059911024kx, 300914153, 311277152, 4280007220, 4280007221, 4280007222, 4280007223, 4280007224, 4280807224, 95860410900

  • Passar modeller
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA,CLZB Type description: 4LB Body: Box Body / Estate From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CZZB,CZZA Type description: 4MB, 4MG Body: Box Body / Estate From date: 01-08-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Audi Series: Q7 (4L) Model: 3.0 TDI Quattro Engine volume: 3.0 Engine type: CJGD/CRCA/CLZB Year: 05.11-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGC/CJMA Year: 05.10-08.15
    Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CASA/CCMA/CJGA/CNRB Year: 11.07-08.15
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CASA/CCMA/CJGA Year: 11.07-05.12
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJMA Year: 11.10-08.15
    Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CLZB/CRCA Year: 05.11-08.15
    Audi Series: Q7 Van (4MB, 4MG) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CZZA/CZZB Year: 08.15-12.19
    Porsche Model: Cayenne Model series: Cayenne Type of engine: Diesel Size of motor: 3.0 Brand of engine: MCR.C From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Porsche Model: Cayenne Model series: Cayenne Type of engine: Diesel Size of motor: 3.0 Brand of engine: MCR.CB From date: 01-06-2010 Fuel: Diesel Approved: Yes
    Porsche Series: CAYENNE (92A) Model: 3.0 Diesel Engine volume: 3.0 Engine type: MCR.C/MCR.CA Year: 06.11-05.18
    Porsche Series: CAYENNE (92A) Model: 3.0 Diesel Engine volume: 3.0 Engine type: MCR.CB/MCV.VC Year: 06.10-05.18
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CVVA Type description: 7P5 From date: 01-09-2014 To date: 01-03-2018 Fuel: Diesel Approved: Yes
    VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CASD/CJMA/CRCD/CVWA Year: 01.10-03.18
    VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CJGD/CRCA Year: 05.11-03.18
    VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CVVA Year: 09.14-03.18
    VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3.0 Engine type: CASA/CNRB Year: 01.10-03.18
    VW Series: Touareg Van (7P5) Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: CRCA Year: 05.11-12.14
    1 / 8
  • Beskrivelse
    HC-Cargo Startmotor 12V - 2.0kW, 15k

    Spenning: 12
    kW: 2.0
    Montering flens: 76,20
    Drivingsavstand: 26,00
    Monteringshull 3 mm: 11,00
    Monteringshull 2 mm: M10
    Monteringshull 1 mm: 11,50
    Avstand/bak: 211,50
    Avstand/frem: 29,00
    Antall/tannhjul: 15
    B+: M8
    Posisjon/50: 17
    Terminal 50: Plugg
    Gaffeltype: GR
    Avstand 2: 23,50
    Avstand 3: 104,00
    Avstand mm: 101,00
    Rotasjon: medurs
    Total lengde mm: 247,00
    Startype: Start/Stopp
    Prod. info: BN
    Antall/monteringshull: 3 (1)

    Filer

  • Spesifikasjon
    B+ M8
    No./teeth 15
    Mount. flange 76.20
    No./mount. holes 3 (1)
    Position/50 17
    Prod. info BN
    Dist. 2 23.50
    Dist. 3 104.00
    Rotation CW
    Dist./back 211.50
    Dist./front 29.00
    Drive dist. 26.00
    Gear type GR
    Starter type Start/Stop
    kW 2.0
    Terminal 50 Plug
    Voltage 12
    Total length 247.00 mm
    Dist. 101.00 mm
    Mount. hole 3 11.00 mm
    Mount. hole 2 M10 mm
    Mount. hole 1 11.50 mm
  • Kjøretøymatching

    • OEM
      F032116000, 059 911 024K, 958 60410900, 1986S00978, 116000, 428000-7220, 428000-7221, 428000-7222, 428000-7223, 428000-7224, 428080-7224, 059911024k, 059911024KX, 95860410900

    • Konkurrentreferens
      CST40307, DRS0784, DSN965, S6156, S6156(DENSO), 25-4253, 300.914.153, 311.277.152, 19989N, 255121, 11090305, 42000005

    • Bilmärken
      Audi, Porsche, VW

    • NormaliseratArtNr
      cst40307, drs0784, dsn965, f032116000, s6156, s6156denso, 1986s00978, 19989n, 116000, 254253, 255121, 11090305, 42000005, 059911024k, 059911024kx, 300914153, 311277152, 4280007220, 4280007221, 4280007222, 4280007223, 4280007224, 4280807224, 95860410900

    • Passar modeller
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA,CASA,CJGA Type description: 4LB Body: Box Body / Estate From date: 01-11-2007 To date: 01-05-2012 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4LB Body: Box Body / Estate From date: 01-11-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA,CLZB Type description: 4LB Body: Box Body / Estate From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Model type: Quattro Type of engine: TDi Size of motor: 3.0 Brand of engine: CZZB,CZZA Type description: 4MB, 4MG Body: Box Body / Estate From date: 01-08-2015 To date: 01-12-2019 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CASA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CCMA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGA Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGC Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 4L From date: 01-05-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CLZB Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CNRB Body: SUV From date: 01-11-2007 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Model: Q7 Model series: Q7 Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 4L From date: 01-05-2011 To date: 01-08-2015 Fuel: Diesel Approved: Yes
      Audi Series: Q7 (4L) Model: 3.0 TDI Quattro Engine volume: 3.0 Engine type: CJGD/CRCA/CLZB Year: 05.11-08.15
      Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJGC/CJMA Year: 05.10-08.15
      Audi Series: Q7 (4LB) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CASA/CCMA/CJGA/CNRB Year: 11.07-08.15
      Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CASA/CCMA/CJGA Year: 11.07-05.12
      Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CJMA Year: 11.10-08.15
      Audi Series: Q7 Van (4LB) Model: 3.0 TDI quattro Engine volume: 3,0 Engine type: CLZB/CRCA Year: 05.11-08.15
      Audi Series: Q7 Van (4MB, 4MG) Model: 3.0 TDI quattro Engine volume: 3.0 Engine type: CZZA/CZZB Year: 08.15-12.19
      Porsche Model: Cayenne Model series: Cayenne Type of engine: Diesel Size of motor: 3.0 Brand of engine: MCR.C From date: 01-06-2011 Fuel: Diesel Approved: Yes
      Porsche Model: Cayenne Model series: Cayenne Type of engine: Diesel Size of motor: 3.0 Brand of engine: MCR.CB From date: 01-06-2010 Fuel: Diesel Approved: Yes
      Porsche Series: CAYENNE (92A) Model: 3.0 Diesel Engine volume: 3.0 Engine type: MCR.C/MCR.CA Year: 06.11-05.18
      Porsche Series: CAYENNE (92A) Model: 3.0 Diesel Engine volume: 3.0 Engine type: MCR.CB/MCV.VC Year: 06.10-05.18
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CASD Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJGD Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CJMA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 From date: 01-05-2011 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: TDi Size of motor: 3.0 Brand of engine: CVWA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CASA Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDi Size of motor: 3.0 Brand of engine: CNRB Type description: 7P5 From date: 01-01-2010 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Type of engine: V6 TDI Size of motor: 3.0 Brand of engine: CVVA Type description: 7P5 From date: 01-09-2014 To date: 01-03-2018 Fuel: Diesel Approved: Yes
      VW Model: Touareg Model series: Touareg Van Model type: 4Motion Type of engine: TDi Size of motor: 3.0 Brand of engine: CRCA Type description: 7P5 Body: Box Body / Estate From date: 01-05-2011 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CASD/CJMA/CRCD/CVWA Year: 01.10-03.18
      VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CJGD/CRCA Year: 05.11-03.18
      VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3,0 Engine type: CVVA Year: 09.14-03.18
      VW Series: TOUAREG (7P5, 7P6) Model: 3.0 V6 TDI Engine volume: 3.0 Engine type: CASA/CNRB Year: 01.10-03.18
      VW Series: Touareg Van (7P5) Model: 3.0 TDI 4motion Engine volume: 3.0 Engine type: CRCA Year: 05.11-12.14
      1 / 8
