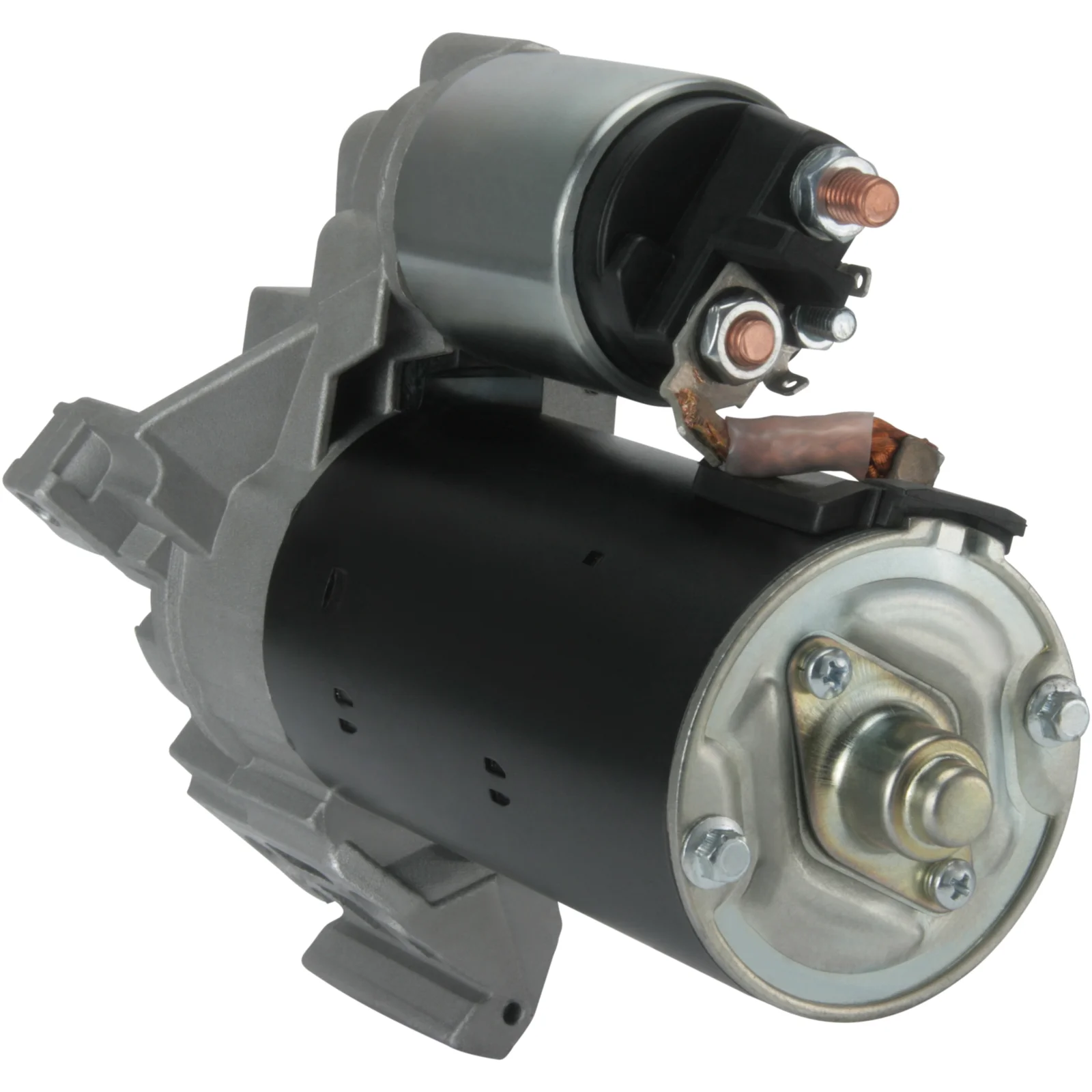

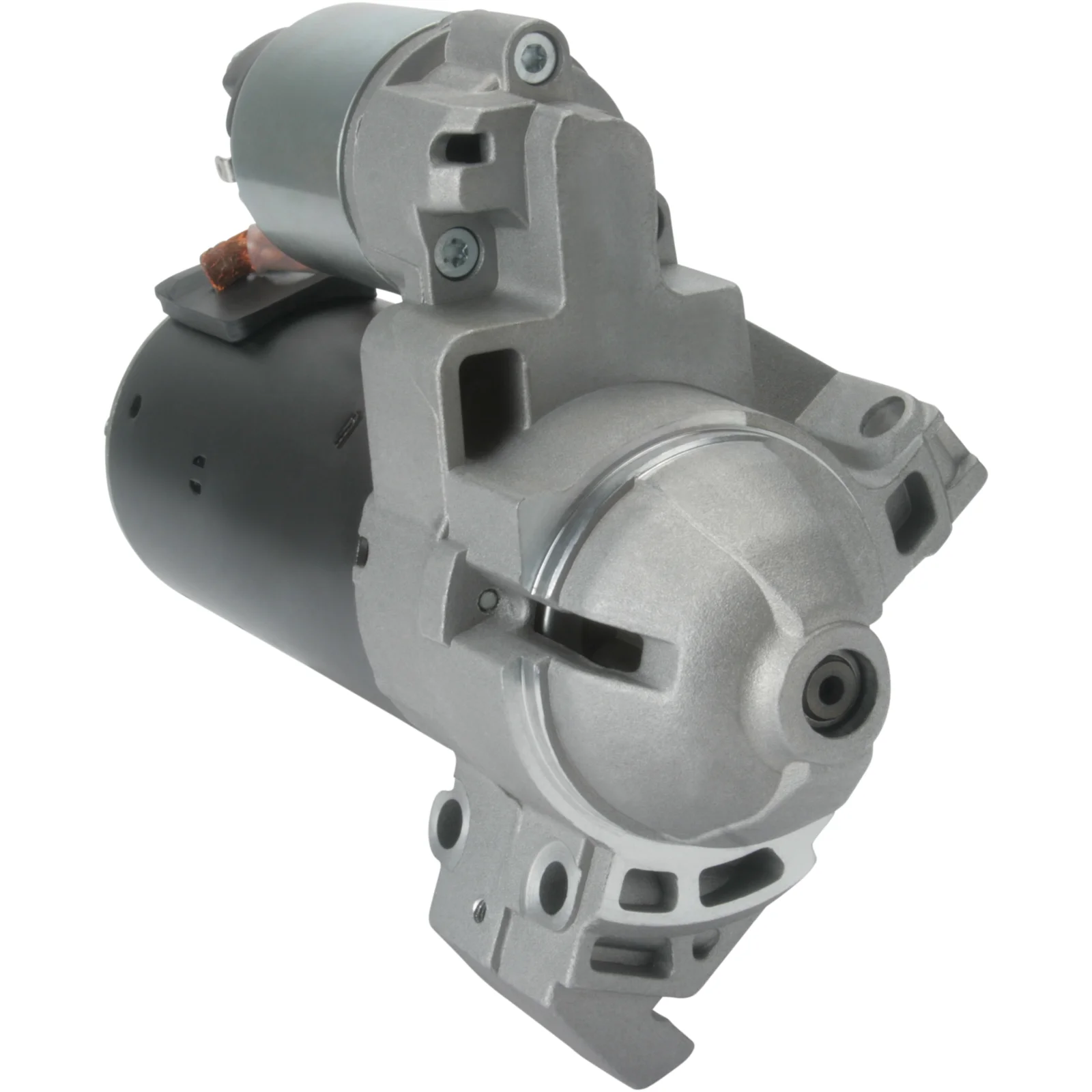

HC-Cargo Startmotor
HC-Cargo Startmotor
Varenr.: F032116001

HC-Cargo Startmotor

Teknisk info:

Spenningsregulator: 12, Effekt: 2,0 kW, Antall tenner: 11, Rotasjon: med urviseren

Beskrivelse

HC-Cargo Startmotor 12V - 2.0kW, 11

Spenning: 12
kW: 2.0
Festeblanke: 69.00
Drivningsavstand: 6.00
Festeboret 3 mm: 9.00
Festeboret 2 mm: 9.00
Festeboret 1 mm: 9.00
Avstand/bak: 184.00
Avstand/frem: 39.50
Nummer/tannhjul: 11
B+: M8
Posisjon/50: 20
Terminal 50: M6
Geværtype: GR
Avstand 2: 39.00
Avstand 3: 91.50
Avstand mm: 82.00
Rotasjon: med urviseren
Total lengde mm: 236.00
Produsentinfo: BN
Antall/festebor: 3 (0)

Filer

Spesifikasjon

B+ M8
No./teeth 11
Mount. flange 69.00
No./mount. holes 3 (0)
Position/50 20
Prod. info BN
Dist. 2 39.00
Dist. 3 91.50
Rotation CW
Dist./back 184.00
Dist./front 39.50
Drive dist. 6.00
Gear type GR
kW 2.0
Terminal 50 M6
Voltage 12
Total length 236.00 mm
Dist. 82.00 mm
Mount. hole 3 9.00 mm
Mount. hole 2 9.00 mm
Mount. hole 1 9.00 mm

  • OEM
    F032116001, 0001 148 019, 0001 148 020, 1986S00862, 116001, 0001148019, 0001148020, 12418515900, 12418515901, 12418581098

  • Konkurrentreferens
    DRS1002, 438574, 458854, 0986023960, 0986023963, 0986023967

  • Bilmärken
    BMW

  • NormaliseratArtNr
    drs1002, f032116001, 1986s00862, 116001, 438574, 458854, 0001148019, 0001148020, 0986023960, 0986023963, 0986023967, 12418515900, 12418515901, 12418581098

  • Passar modeller
    BMW Model: 3 Model series: 330 Model type: Xdrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F31 Body: Box Body / Estate From date: 01-03-2013 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F31 Body: Box Body / Estate From date: 01-07-2012 To date: 01-06-2019 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-03-2011 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-03-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F10, F18 From date: 01-09-2010 To date: 01-10-2016 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F11 Body: Estate From date: 01-09-2011 To date: 01-02-2017 Fuel: Diesel Approved: Yes Manufacture type: Touring
    BMW Model: 7 Model series: 730 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F01, F02, F03, F04 From date: 01-11-2011 To date: 01-05-2015 Fuel: Diesel Approved: Yes
    BMW Model: X1 Model series: X1 Model type: xDrive 25 d Type of engine: Diesel Size of motor: 3.0 Type description: F15, F85 From date: 01-04-2014 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2016 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive 35d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F25 From date: 01-10-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X3 Model series: X3 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-06-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F15, F85 From date: 01-08-2013 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F15, F85 From date: 01-12-2013 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F16, F86 From date: 01-08-2014 To date: 01-07-2019 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 30 d Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F25 From date: 01-04-2011 To date: 01-08-2017 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Model type: xDrive 40 Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30B Type description: F15 Body: SUV From date: 01-12-2013 To date: 01-07-2018 Fuel: Diesel Approved: Yes
    BMW Model: X6 Model series: X6 Model type: xDrive Type of engine: Diesel Size of motor: 3.0 Brand of engine: N57D30A Type description: F16, F86 From date: 01-12-2014 To date: 01-07-2019 Fuel: Diesel Approved: Yes
    BMW Series: 3 Touring Van (F31) Model: 330 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 03.13-06.19
    BMW Series: 5 (F10) Model: 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.10-10.16
    BMW Series: 5 (F10) Model: 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 03.11-10.16
    BMW Series: 5 Touring (F11) Model: 530 d Engine volume: 3.0 Engine type: N57 D30 A Year: 09.11-02.17
    BMW Series: 5 Touring (F11) Model: 530 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 03.11-02.17
    BMW Series: 7 (F01/2/3/4) Model: 730 d xDrive Engine volume: 3.0 Engine type: N57 D30 A Year: 11.11-05.15
    BMW Series: X3 (F25) Model: xDrive 30 d Engine volume: 3 Engine type: N57 D30 A Year: 04.11-08.17
    BMW Series: X3 (F25) Model: xDrive 30 d Engine volume: 3 Engine type: N57 D30 A Year: 06.11-08.17
    BMW Series: X3 (F25) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 06.16-08.17
    BMW Series: X3 (F25) Model: xDrive 35 d Engine volume: 3.0 Engine type: N57 D30 B Year: 10.11-08.17
    BMW Series: X5 (F15, F85) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 08.13-07.18
    BMW Series: X5 (F15, F85) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 12.13-07.18
    BMW Series: X5 (F15, F85) Model: xDrive 40 d Engine volume: 3.0 Engine type: N57 D30 B Year: 12.13-07.18
    BMW Series: X6 (F16, F86) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 08.14-07.19
    BMW Series: X6 (F16, F86) Model: xDrive 30 d Engine volume: 3.0 Engine type: N57 D30 A Year: 12.14-07.19
